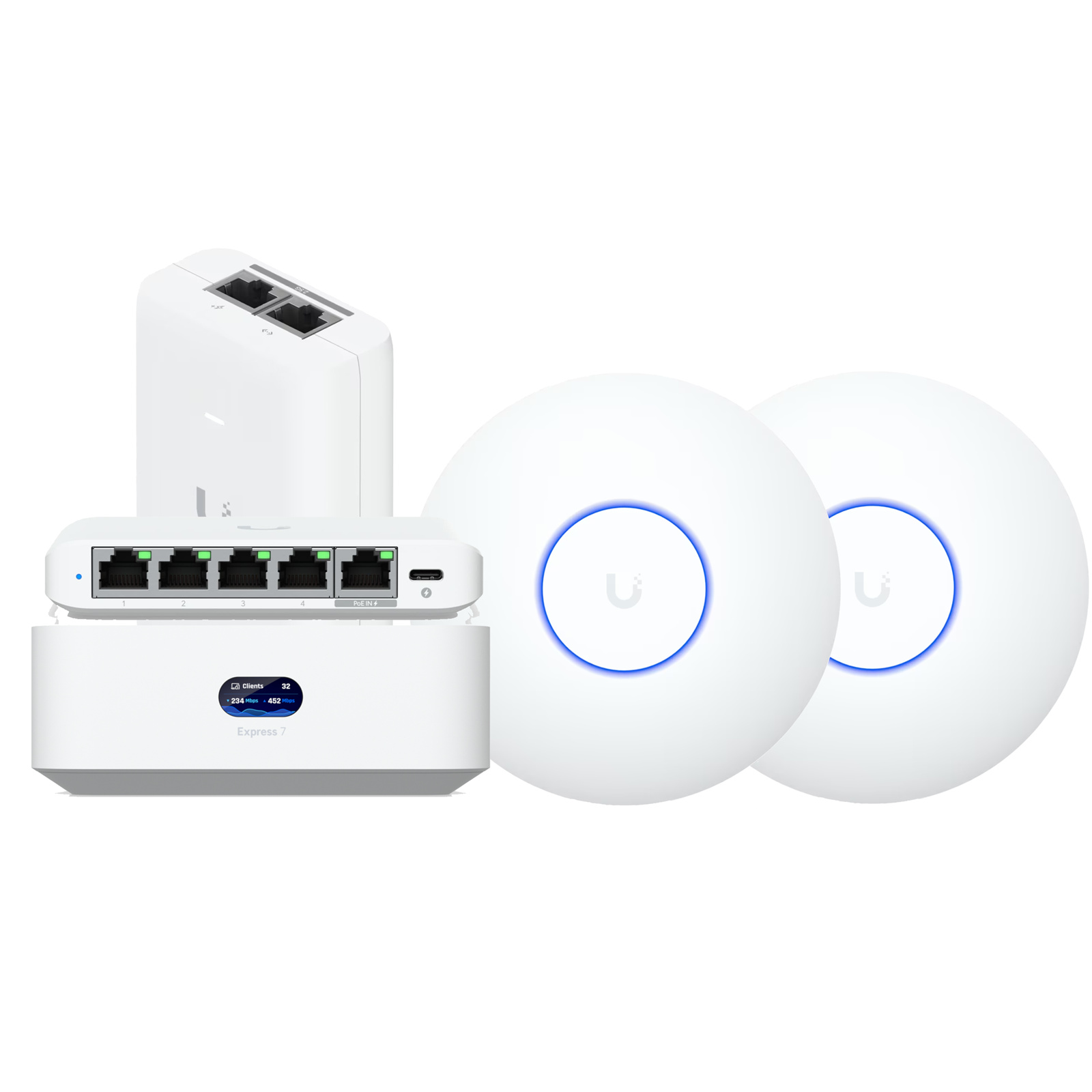

Ubiquiti Unifi Starter Kit for HyperFibre 2000 UX7 x1 / USW-Flex-2.5G-5 x1 / U7-Lite x2 / UACC-PoE+-2.5G x2

Ubiquiti UniFi (UX7)

Dimensions

117 x 117 x 42.5 mm (4.61 x 4.61 x 1.67'')

UniFi Application Suite

Network

Yes

Managed UniFi Devices

30

Simultaneous Users Connected

300

Default WAN Ports

(1) 10 GbE RJ45

LAN Ports

(1) 2.5 GbE RJ45

IDS/IPS Throughput

2.3 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

20,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Dynamic Routing/ OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

Policy-based WAN and VPN Routing

Yes

Customizable DHCP Server

Yes

IPv6 ISP Support

Yes

IGMP Proxy

Yes

Integrated WiFi

WiFi Standard

802.11a/b/g/n/ac/ax/be (WiFi 6/6E, WiFi 7)

Throughput

6 GHz
5.7 Gbps
5 GHz
4.3 Gbps
2.4 GHz
688 Mbps

MIMO

6 GHz
2 x 2 (DL/UL MU-MIMO)
5 GHz
2 x 2 (DL/UL MU-MIMO)
2.4 GHz
2 x 2 (DL/UL MU-MIMO)

Antenna Gain

6 GHz
6 dBi
5 GHz
7 dBi
2.4 GHz
4 dBi

Wireless Security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

Max. BSSIDs

4 per Radio (Gateway Mode)
4 per Radio (AP Mode)

Supported Data Rates

802.11a
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11b
1, 2, 5.5, 11 Mbps
802.11g
6, 9, 12, 18, 24, 36, 48, 54 Mbps
802.11n
6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)
802.11ac (WiFi 5)
6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11ax (WiFi 6/6E)
7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11be (WiFi 7)
7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Hardware

Max. Power Consumption

22W

Power Method

USB type C (5V DC/5A)

Power Supply

USB type C (5V DC/5A) (Adapter included)

Max. TX Power

6 GHz
24 dBm
5 GHz
26 dBm
2.4 GHz
23 dBm

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM® Cortex®-A53 at 1.5 GHz

System Memory

3 GB

Weight

422 g (14.9 oz)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet
Bluetooth

LEDs

Ethernet

Yes

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

-10 to 40° C (14 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset

Software

VLAN

802.1Q

Guest Traffic Isolation

Yes

Application Requirements

UniFi Network

Version 9.0.108 and later

USW-Flex-2.5G-5

Mechanical

Dimensions

117.1 x 90 x 21.2 mm (4.6 x 3.5 x 0.8")

Weight

206 g (7.3 oz)

Enclosure material

Polycarbonate

Hardware

Management interface

Ethernet In-Band

Networking interface

(5) 1/2.5 GbE RJ45 ports

Total non-blocking throughput

12.5 Gbps

Switching capacity

25 Gbps

Forwarding rate

18.6 Mpps

Power method

(1) AC power adapter, 5V DC, 1A
(1) PoE (PairA 1, 2+; 3, 6-)(PairB 4, 5+; 7, 8-)

Power supply

External AC/DC adapter
UniFi PoE switch

Supported voltage range

AC/DC input: 5V DC
PoE input: 44-57V DC

Max. power consumption

AC/DC input: 5W
PoE input: 6.4W

Button

Factory reset

Ambient operating temperature

-20 to 45° C (-4 to 113° F)

Ambient operating humidity

10 to 90% noncondensing

Certifications

CE, FCC, IC

Switching Features

Layer 2 features

STP / RSTP with priorities and port-level disable
Port isolation
Storm control
Port mirroring
Multicast / broadcast rate limiting
Flow control
Jumbo frames
Egress rate limit

LEDs

System

(1) Blue/white: power
Blinking white: bootup in progress
Blinking blue: firmware upgrading
Steady white: factory defaults; unit is awaiting adoption
Steady blue: unit is adopted

Ethernet

(5) Green: link/activity

Application Requirements

UniFi Network

Version 8.4.62 and later

Ubiquiti UniFi U7-Lite

Dimensions

Ø171.5 x 33 mm
(Ø6.8 x 1.3")

WiFi Standard

WIFi 7

Spatial Streams

4

Coverage Area

115 m² (1,250 ft²)

Max. Client Count

200+

Uplink

2.5 GbE

Mounting

Ceiling, Wall
(Lite Mount Included)

Power Method

PoE

Performance

MIMO

5 GHz: 2 x 2 (DL/UL MU-MIMO)
2.4 GHz: 2 x 2 (DL/UL MU-MIMO)

Max. Data Rate

5 GHz: 4.3 Gbps (BW240)
2.4 GHz: 688 Mbps (BW40)

Antenna Gain

5 GHz: 5 dBi
2.4 GHz: 4 dBi

Max. TX Power

5 GHz: 24 dBm
2.4 GHz: 23 dBm

Max. BSSIDs

8 per Radio

Supported Data Rates

802.11be (WiFi 7): 7.3 Mbps to 4.3 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240)
802.11ax (WiFi 6): 7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)
802.11ac (WiFi 5): 6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)
802.11n: 6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

Features

Wireless Meshing

Yes

Band Steering

Yes

802.11v BSS Transition Management

Yes

802.11r Fast Roaming

Yes

802.11k Radio Resource Management (RRM)

Yes

Advanced Radio Management

Yes

Passpoint (Hotspot 2.0)

Yes

Captive Hotspot Portal

Custom Branding Landing Page: Yes
Voucher Authentication: Yes
Payment-Based Authentication: Yes
External Portal Server Support: Yes
Password Authentication: Yes
Guest Network Isolation: Yes

Private Pre-Shared Key (PPSK)

Yes

WiFi Speed Limiting

Yes

Client Device Isolation

Yes

WiFi Schedules

Yes

RADIUS over TLS (RadSec)

Yes

Dynamic RADIUS-assigned VLAN

Yes

Hardware

Max. Power Consumption

13W

Supported Voltage Range

42.5-57V DC

Networking Interface

(1) 2.5 GbE RJ45 port

Weight

313 g (11 oz)

Management

Ethernet

Enclosure Material

UV-stabilized polycarbonate

Mount Material

UV-stabilized polycarbonate, galvanized steel (SGCC)

LEDs

System: White/Blue

Channel Bandwidth

HT 20/40, VHT 20/40/80/160, HE 20/40/80/160, EHT 20/40/80/160/240 (MHz)

Certifications

CE, FCC, IC

Ambient Operating Temperature

-30 to 40° C (-22 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Software

Application Requirements

UniFi Network: Version 9.0.114 and later

UniFi OS
iOS™ version 10.20.2 and later
Android™ version 10.21.7 and later

UACC-PoE+-2.5G

General

Color

White

Dimensions

93 x 62 x 35 mm (3.7 x 2.4 x 1.4")

Weight

156 g (5.5 oz)

Output Voltage

48V DC @ 0.65A

Rated Voltage

100-240V AC @ 50/60Hz

LAN Activity Indicator

-

Gigabit LAN Port

Yes, up to 2.5GbE

Remote Reset Capability

-

Reset Button

-

2-pair Powering

Pins 4, 5 (+) and 7, 8 (-)

Clamping Protection

11V Data, 60V power

Data In / PoE

RJ45 Shielded Socket

Input Current

0.75A Max.

Inrush Current

<150A peak @ 230V AC

Efficiency

>87%

Switching Frequency

65 kHz Max.

Output Ripple

1% Max.

Line Regulation

<= 1%

Load Regulation

<= 3%

Max. Surge Discharge

1500A (8/20 µs) power

Peak Pulse Current

36A (10/1000 µs) data

Response Time

<1 ns

Shunt Capacitance

<5 pF data

Surge Protection

Difference and common mode

Ambient Storage Temperature

-30 to 70°C (-22 to 158°F)

Ambient Operating Temperature

0 to 40°C (32 to 104°F)

Ambient Operating Humidity

10 to 95% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC, UL, UKCA, KC, CCC, RoHS
