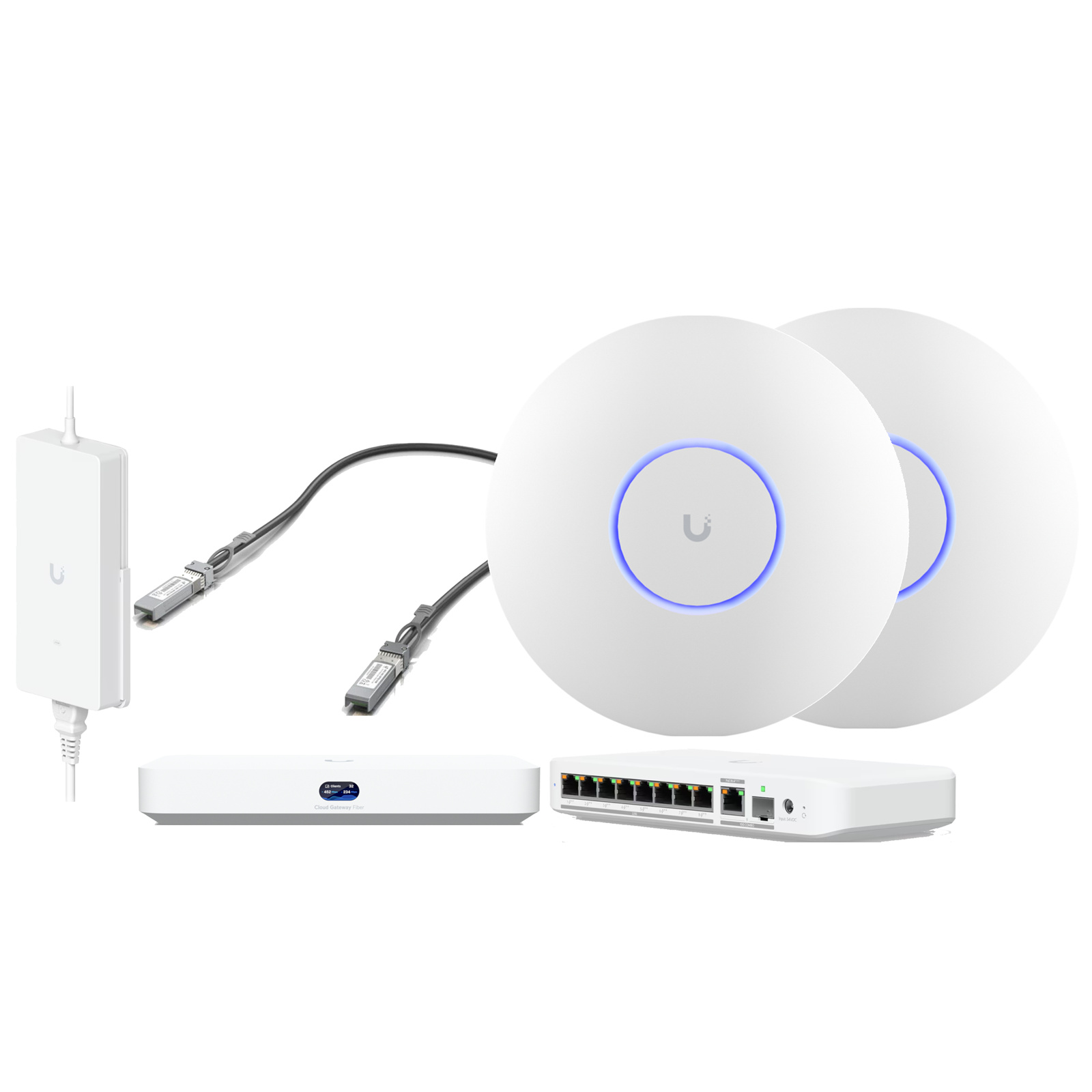

Ubiquiti Unifi Starter Kit for HyperFibre 4000/8000 UCG-Fiber x1 / UACC-DAC-SFP10-0.5M x1 / USW-Flex-2.5G-8-PoE x1 /UACC-Adapter-AC-210W x1 /U7-PRO x2

PB Tech price

AUD $ 1,606 .17

$ 1,606 .17

Ubiquiti Unifi Starter Kit for HyperFibre 4000/8000 UCG-Fiber x1 / UACC-DAC-SFP10-0.5M x1 / USW-Flex-2.5G-8-PoE x1 /UACC-Adapter-AC-210W x1 /U7-PRO x2

Brand: Ubiquiti
MPN: Unifi Starter Kit for HyperFibre 4000/8000
Part #: NETUBI9801
UPC:

PB Tech price

AUD $ 1,606 .17

Hurry, only 1 unit left!

In stock

Delivery: Order now and it ships on 19 Jun

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ubiquiti
MPN: Unifi Starter Kit for HyperFibre 4000/8000
Part #: NETUBI9801
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Ubiquiti UniFi (UCG-Fiber) 10G Cloud Gateway Fiber

Desktop 10G Cloud Gateway with integrated 4-port 2.5 GbE switch, selectable NVR storage, and full UniFi application support.

Ubiquiti 10Gbps SFP+

Complete your installation with the UniFi 10G SFP+ Direct Attach Fiber Optic Cable from Ubiquiti. Designed for short links, this 1.6' cable provides sustained 10 Gb/s speeds with SFP+ compatible devices. This cable is protected by a flexible PVC jacket.

- SFP+ Male Connectors
- Up to 10 Gb/s Throughput
- PVC Jacket

Ubiquiti UniFi USW-Flex-2.5G-8-PoE 10-Port

Flexible, 8-port 2.5 GbE PoE++ switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with PoE+++ or an AC power adapter.

Ubiquiti UniFi AC Adapter 210W

Ubiquiti UniFi AC Adapter 210W 54VDC Power Supply

An AC power adapter delivers 210W at 54V DC for a PoE switch. It is wall-mountable.

Ubiquiti UniFi U7-PRO

NOTE: PoE NOT included

U7 Pro

Ceiling-mounted WiFi 7 AP with 6 spatial streams for interference-free WiFi in demanding, large-scale environments.

- WiFi 7
- 6 spatial streams
- 140 m² (1,500 ft²) coverage
- 300+ connected devices
- Powered using PoE+
- 2.5 GbE uplink

Specifications

Ubiquiti UniFi (UCG-Fiber) 10G Cloud Gateway Fiber

Dimensions

212.8 x 127.6 x 30 mm
(8.3 x 5 x 0.5 ")

UniFi Application Suite

Network

Yes

Protect

Yes

Access

Yes

Talk

Yes

Connect

Yes

Managed UniFi Devices

50+

Managed Cameras

(15) HD
(8) 2K
(5) 4K

Simultaneous Users Connected

500+

Default WAN Ports

(1) 10G SFP+
(1) 10 GbE RJ45

LAN Ports

(1) 10G SFP+
(4) 2.5 GbE RJ45

IDS/IPS Throughput

5 Gbps

Form Factor

Compact desktop

Security

Stateful Firewall

Yes

Application-Aware Layer 7 Firewall

Yes

DPI & Traffic Identification

Yes

Zone-Based Firewall Advanced Filtering (Regions, Domains, Apps)

Yes

Content Filtering

Yes

Intrusion Prevention (IPS/IDS)

Yes

Ad Blocking

Yes

IDS/IPS Signatures

55,000+ with CyberSecure

VLAN/Subnet-based Traffic Segmentation

Yes

VPN & SD-WAN

License-Free SD-WAN

Yes

Site-to-Site VPN

Site Magic

Yes

IPsec

Yes

OpenVPN

Yes

VPN Server

Identity Endpoint One-Click VPN

Yes

Teleport Zero-Configuration VPN

Yes

WireGuard

Yes

OpenVPN

Yes

L2TP

Yes

VPN Client

OpenVPN

Yes

WireGuard

Yes

Networking

Multi-WAN Load Balancing

Yes

Dynamic Routing

OSPF

Yes

Advanced QoS

Yes

Multicast DNS (mDNS)

Yes

Advanced NAT (SNAT / DNAT / Masquerade / NAT Pooling / 1-to-1 NAT)

Yes

Integrated RADIUS Server

Yes

RADIUS over TLS (RadSec)

Yes

Additional Internet Failover with UniFi LTE Backup

Yes

Internet Quality and Outage Reporting

Yes

MAC Address Table Size

4,000

Hardware

NVR Storage

Selectable NVMe SSD up to 2 TB

PoE Budget

30W

Max. PoE Wattage per Port by PSE

PoE+

30W

Voltage Range PoE Mode

50-57V

Max. Power Consumption

29.4W (Excluding PoE output)

Power Method

DC jack (54V DC/1.1A)

Power Supply

54V DC/1.1A
(adapter included)

Supported Voltage Range

100-240V AC

Processor

Quad-core ARM® Cortex®-A73 at 2.2 GHz

System Memory

3 GB

Weight

Without SSD: 675 g (1.5 lb)
With SSD: 734 g (1.6 lb)

Enclosure Material

Polycarbonate

LCM Display

0.96" status display

Management

Ethernet
Bluetooth

LEDs

Ethernet

Yes

SFP+

Yes

ESD/EMP Protection

Air: ± 8kV, contact: ± 4kV

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Button

(1) Factory-reset

Ubiquiti 10Gbps SFP+

Connector type

SFP+ to SFP+

Passive

AWG

24 / 30

Cable length

0.5 / 1 / 3 m (1.6 / 3.3 / 9.8 ft)

Cable jacket

PVC

Jacket OD

4.2 / 6.0 mm

Supported data rates

10 / 1 Gbps

Jacket color

Black

Operating temperature

0 to 70° C (32 to 158° F)

Ubiquiti UniFi USW-Flex-2.5G-8-PoE 10-Port

Dimensions

212.9 x 99.4 x 33.5 mm
(8.4 x 3.9 x 1.3")

Port Layout

2.5 GbE RJ45

8 (All PoE++)
(2.5G/1G/100M/10M)

10 GbE RJ45

1 (PoE+++)
(10G/5G/2.5G/1G/100M)

10G SFP+
1

Max. PoE Output

Up to PoE++

Total PoE Availability

PoE+++ input: 76W
PoE++ input: 46W
PoE+ input: 16W
210W AC adapter input: 196W

Form Factor

Compact Desktop, wall, DIN, magnetic

Performance

Switching Capacity

60 Gbps

Total Non-Blocking Throughput

30 Gbps

Forwarding Rate

45 Mpps

Supported VLANs

256

MAC Address Table Size

4,000

Layer 2 Features

STP & RSTP

Yes

Egress Rate Limit

Yes

Flow Control

Yes

Storm Control

Yes

Multicast & Broadcast Rate Limiting

Yes

Port Isolation

Yes

Port Mirroring

Yes

Jumbo Frames

Yes

Loop Protection

Yes

Hardware

PoE Ports

PoE++
8

Max. PoE Wattage per Port by PSE

PoE
15.4W
PoE+
32W
PoE++
64W

Max. Power Consumption

14W (Excluding PoE output) with PoE input
17W (Excluding PoE output) with AC adapter input
210W (Including PoE Output)

Power Method

(1) AC/DC adapter (Excluded)
(1) PoE+++

Power Input Method

DC Input
PoE

Supported Voltage Range

50-57V DC/PoE

Management

Ethernet

Weight

567 g (20 oz)

Enclosure Material

Polycarbonate

Mount Material

Polycarbonate

Ambient Operating Temperature

-20 to 45° C (-4 to 113° F)

Ambient Operating Humidity

10 to 90% noncondensing

NDAA Compliant

Yes

Certifications

CE, FCC, IC

Software

Application Requirements

UniFi Network
Version 9.0.114 and later

Ubiquiti UniFi AC Adapter 210W

Brand

Ubiquiti

Manufacturer Part Number

UACC-Adapter-AC-210W

Color

White

Dimensions

190 x 86 x 26 mm (19' 8")

Weight

1.2 kg (2.6 lb)

AC Connector

C14 INLET (input)

Output Plug

DC plug: 5.5 x 2.1 x 11.5 mm (0.2 x 0.08 x 0.5")
DC cable: UL11353 16AWG 1.5 m (4.9 ft)

Supported Voltage Range (Input)

100-240V AC

Supported Voltage Range (Output)

54V DC

Ambient Operating Temperature

0 to 40° C (32 to 104° F)

Ambient Operating Humidity

10 to 90% noncondensing

Compatibility

USW-Ultra
USW-Flex-2.5G-8-PoE
USW-Ultra-60W
USW-Pro-Max-16-PoE
USW-Ultra-210W

Ubiquiti UniFi U7-PRO

Mechanical

Dimensions

Ø206 x 46 mm (Ø8.1 x 1.8")

Weight

680 g (1.5 lb)

Enclosure material

Polycarbonate, metal

Mount material

Stainless steel (SUS304), galvanized steel (SGCC)

Hardware

Networking interface

(1) 1/2.5 GbE RJ45 port

Management interface

Ethernet

Power method

PoE+

Power supply

UniFi PoE switch

Supported voltage range

44-57V DC

Max. power consumption

21W

Max. TX power

2.4 GHz 22 dBm
5 GHz 26 dBm
6 GHz 23 dBm

MIMO

2.4 GHz 2 x 2
5 GHz 2 x 2
6 GHz 2 x 2

Throughput rate

2.4 GHz 688 Mbps
5 GHz 2882 Mbps
6 GHz 5765 Mbps

Antenna gain

2.4 GHz 4 dBi
5 GHz 6 dBi
6 GHz 5.8 dBi

LEDs

White/blue

Button

Factory reset

Mounting

Wall/ceiling (Included)

Operating temperature

-30 to 60° C (-22 to 140° F)

Operating humidity

5 to 95% noncondensing

Certifications

CE, FCC, IC

Software

WiFi standards

802.11a/b/g/n/ac/ax/be

Wireless security

WPA-PSK, WPA-Enterprise (WPA/WPA2/WPA3/PPSK)

BSSID

8 per radio

VLAN

802.1Q

Advanced QoS

Per-user rate limiting

Guest traffic isolation

Supported

Concurrent clients

300+

Supported Data Rates

802.11a

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b

1, 2, 5.5, 11 Mbps

802.11g

6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n

6.5 Mbps to 300 Mbps (MCS0 - MCS15, HT 20/40)

802.11ac (WiFi 5)

6.5 Mbps to 1.7 Gbps (MCS0 - MCS9 NSS1/2, VHT 20/40/80/160)

802.11ax (WiFi 6/6E)

7.3 Mbps to 2.4 Gbps (MCS0 - MCS11 NSS1/2, HE 20/40/80/160)

802.11be (WiFi 7)

7.3 Mbps to 5.7 Gbps (MCS0 - MCS13 NSS1/2, EHT 20/40/80/160/240/320)

Application Requirements

UniFi Network

Version 8.0.26 and later

UniFi OS

Version 3.2 and later

Manufacturer Part No:

Unifi Starter Kit for HyperFibre 4000/8000

Brand:

Ubiquiti

Product Type:

UPC

Product Family:

Shipping Weight:

5.86 kg

PB Part No:

NETUBI9801

Product Model:

Unifi Starter Kit for HyperFibre 4000/8000

Warranty: 12 months *
