Features

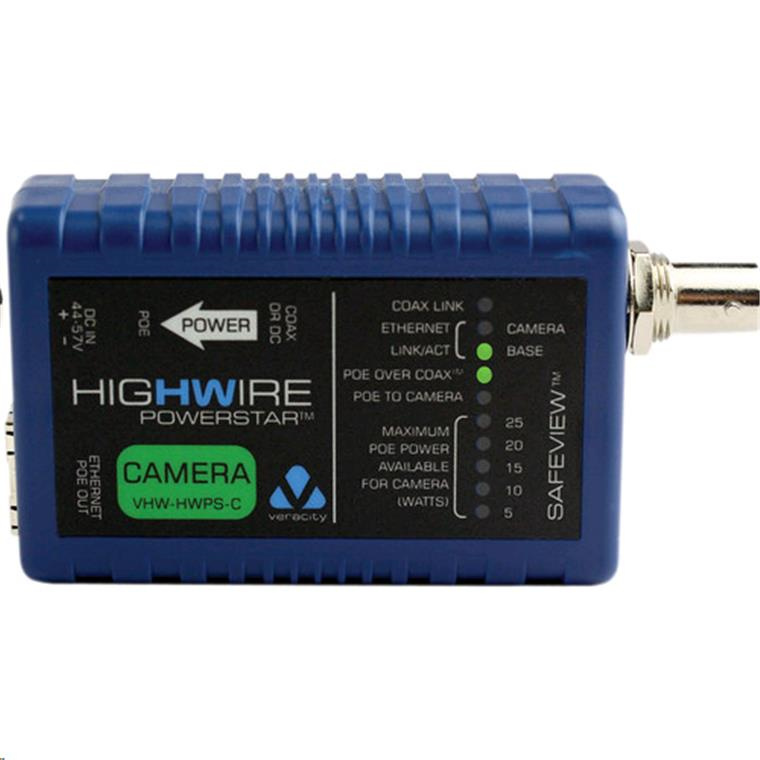

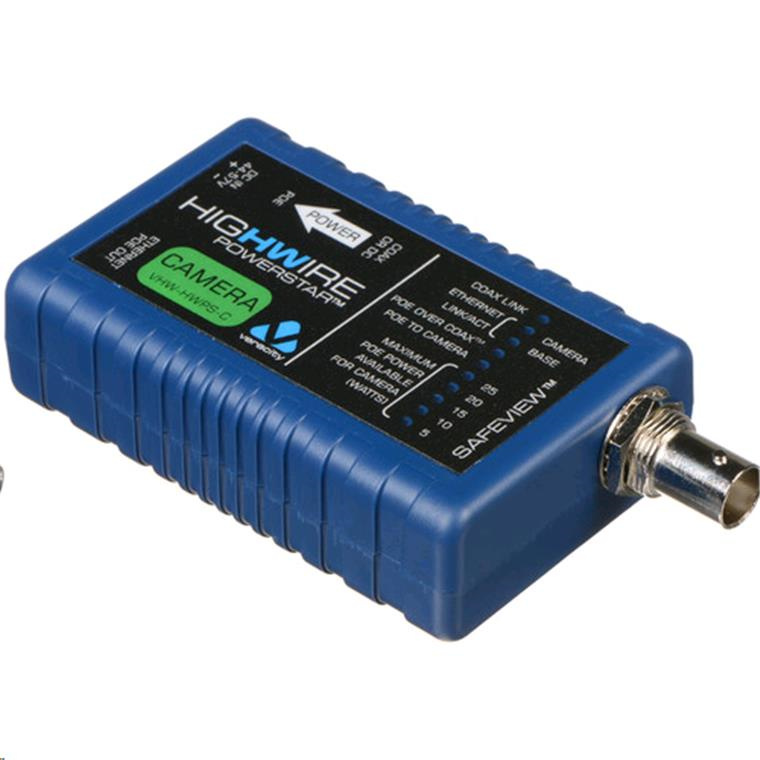

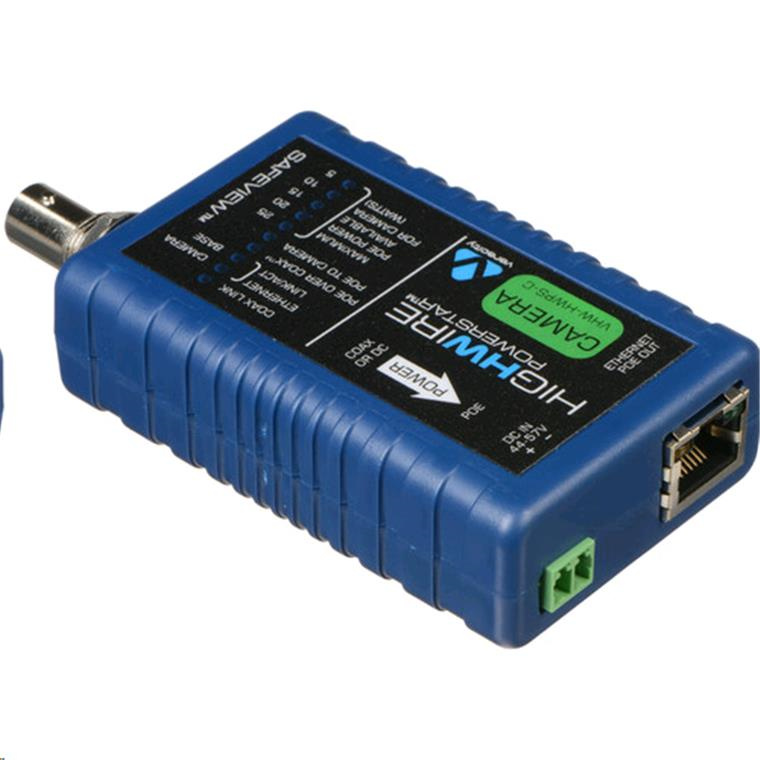

Veracity Powerstar Ethernet/PoE Over Coax Unit - Camera Unit

The camera side HIGHWIRE Powerstar from Veracity works with the HIGHWIRE Powerstar base side (available separately) to deliver PoE to an IP camera over RG59 or RG11 cable.

- Transmits PoE to Camera
- Supports PoE and Non-PoE IP Cameras
- Provides Up to 25W of PoE
- SafeView Connection and Power Status
- 100Base-T Ethernet Support
- Compatible with RG59 and RG11 Cable

The camera unit receives PoE power from the base unit and transmits it to the camera. No external power cabling is required, and all detection and setup occurs automatically.

This unit features SafeView to provide a quick confirmation of correct operation from either end of the cable. The low-power design and efficient power delivery enables long range extension even over low-grade cable, such as high-resistance copper-clad steel (CCS) types. Reliable power delivery is also ensured at the source, where either screw-terminal connections or a UPS-backed PoE supply can be used. It delivers a full 200 Mbps of bandwidth at up to 1000' of RG59 or 1600' of RG11 coax.

- PoE eliminates the need for additional cable runs
- Delivers up to 25W of PoE power
- SafeView quickly indicates connection and power status
- Works with the HIGHWIRE Powerstar base side (available separately)

Specifications

Unit

Power
1.5 W

PoE
IEEE 802.3af (PoE) or IEEE 802.3at (PoE Plus)

Interface

Connector Type
BNC 75 Ohms

Cable Supported
75 Ohms coaxial (other impedances supported)

Transmission Range
Up to 1100' (300 m) on RG59 or 1600' (500 m) on RG11 at full rate

Bandwidth
Up to 200 Mbps

Ethernet

Connector Type
RJ45 Ethernet

Cable Supported
Patch or crossover, auto-detected

Transmission Rate
100Base-T full-duplex with auto-negotiation

General

Indicator LEDs
Status Indicators:
HIGHWIRE coax link
Ethernet link/activity
PoE over coax
PoE to camera
Power available (5/10/15/20/25 W)

Colors:
Off: Disabled
Green: Enabled
Red: Fault

Operating Temperature
Delivering PoE < 15 W: 14 to 122°F (-10 to 50°C)
Delivering PoE Plus > 15 W: 14 to 104°F (-10 to 40°C)

Relative Humidity (non-condensing)
85%

Dimensions With Connector:
4.1 x 2.1 x 0.9" (10.4 x 5.4 x 2.4 cm)

Without: Connector:
3.3 x 2.1 x 0.9" (8.4 x 5.4 x 2.4 cm)

Weight
5 oz (140 g)

Manufacturer Part No:

VHW-HWPS-C

Brand:

Veracity

Product Type:

UPC

Product Family:

Shipping Weight:

3 kg

PB Part No:

NETVRC721508

Product Model:

Warranty: 12 months *
