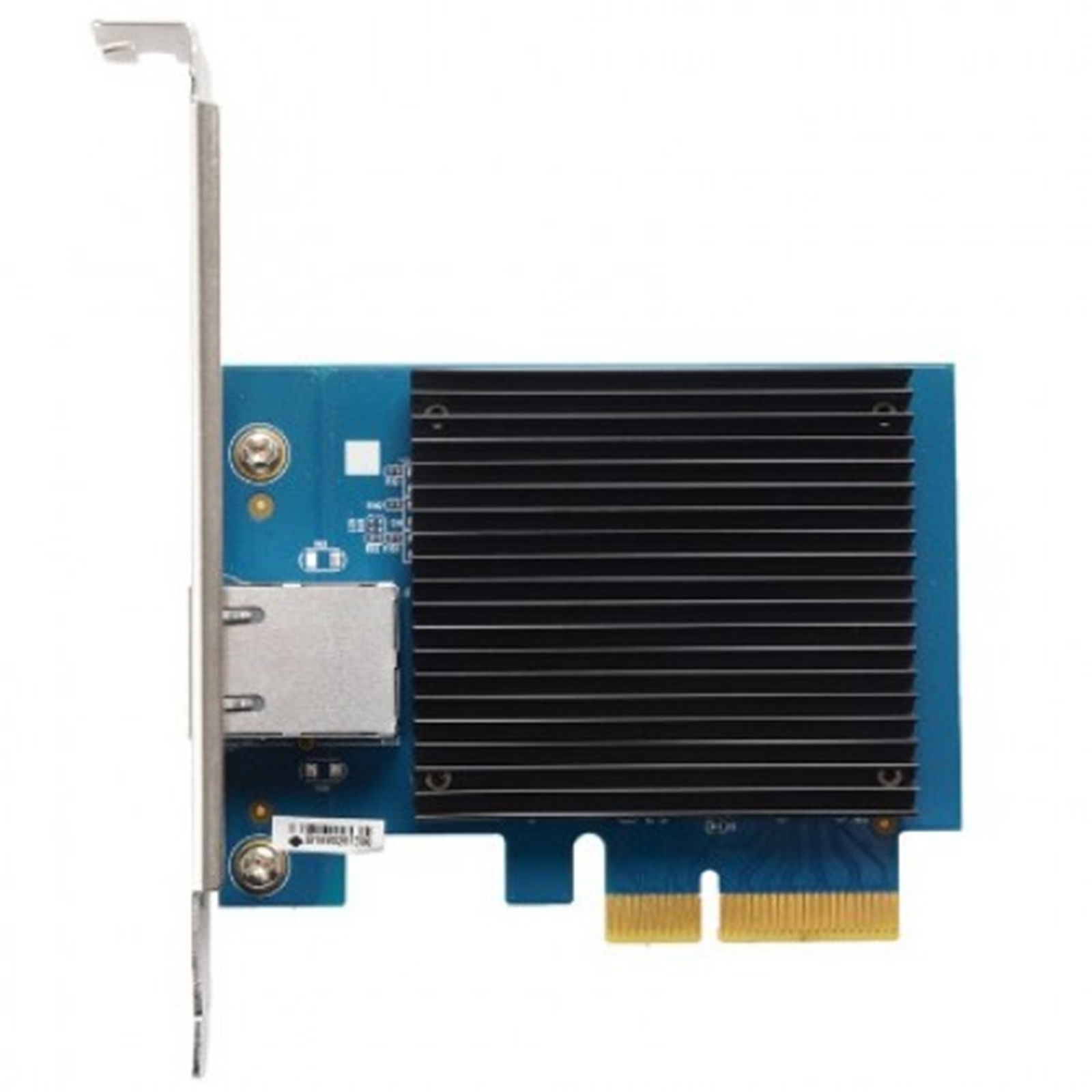

Asustor AS-T10G2 10GBase-T (RJ45) PCI-E Network Adapter For AS6504RD/AS6504RS/AS6512RD/AS7112RDX/AS7116RDX/AS7012RD/AS7012RDX/AS6704T/AS6706T Low Profile Bracket Included

AS-T10G2

A Great value and high speed 10-Gigabit Ethernet controller able to handle almost any situation.

- Marvell AQC 107 controller
- Supports 16K frames
- Supports IP, TCP, UDP checksum offloading - Reduced CPU usage
- Supports IEEE 802.1Q VLAN ID tagging, IEEE 802.1q QoS
- Includes an RJ45 port. Fast and easy networking without fiber
- Compatible with 10GbE, 5GbE, 2.5GbE, Gigabit and 100MbE speeds
- Compatible with ASUSTOR ADM (3.5.6 and above), Windows, MacOS, Linux and VMware ESXi

10Gbps fast network performance

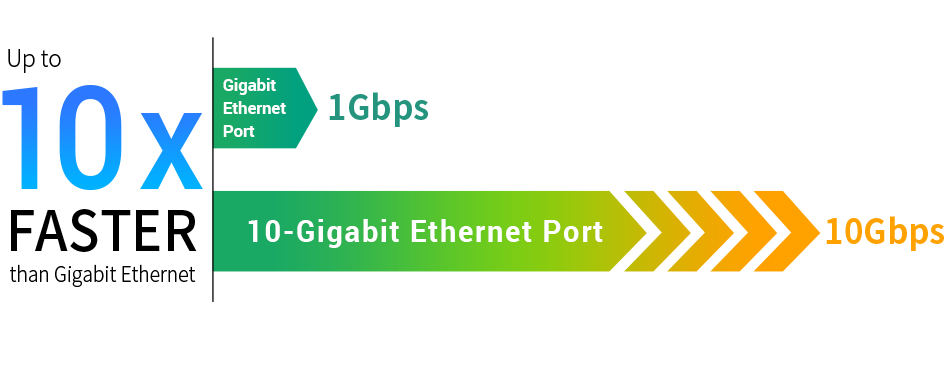

The AS-T10G2 is equipped with a 10-Gigabit RJ-45 port that delivers up to 10 times the performance than a typical Gigabit Ethernet connection. The AS-T10G2 is an affordable solution that is suitable for small and medium business as well as home users, breaking through traditional bottlenecks.

Excellent 10Gbps network performance

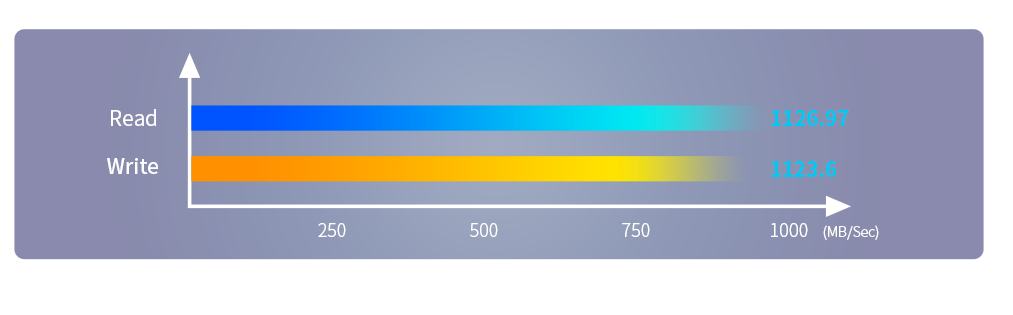

The AS-T10G2 provides incredible speeds of up to 1126 MB/s when reading and 1123 MB/s when writing when tested in the lab.

Windows File Copy Read/Write Performance

*Test Environment PC1 & PC2: Win 10, i7-4790, 24 GB (19 GB RAM DISK), Intel 545 Series SSD 128GB, NETGEAR ProSafe XS708T, Tested RAID level: RAID 5

Complete Compatibility!

The AS-T10G2 works with any ASUSTOR NAS with a standard PCI Express slot, including the Lockerstor 12R Pro and 16R Pro as well as the Lockerstor 4RD, 4RS and 12RD. The AS-T10G2 is one of the best additions to a 10-Gigabit Ethernet network and is able to multiply network performance by up to 10 times the file transfer performance of Gigabit Ethernet in your home and/or office PC. The AS-T10G2 supports 100/1000/2500/5000/10000 speeds, making it incredibly versatile and compatible with virtually any network type. Insert an AS-T10G2 into any compatible ASUSTOR NAS running ADM 3.5.6 and above while installing another one to your desktop or workstation PC and connect them each to a 10-Gigabit Ethernet switch or router to experience blazing fast speeds using regular Ethernet cables.

Giving You Control

AS-T10G2 supports Quality of Service (QoS) technology, which gives you control over apps that use the network. Maintain smooth connections by allocating speed limits to specific programs and apps when needed. The AS-T10G2 gives you control over your speeds, allowing you to easily enjoy games, video conferencing and/or streaming without usage conflicts.

Now with RJ-45! More useful than ever!

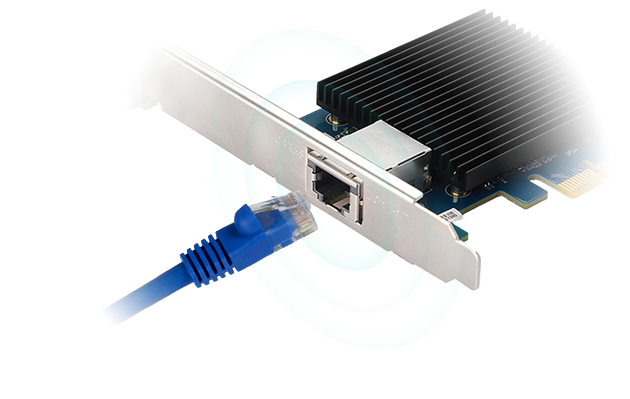

With a standard RJ-45 port, the AS-T10G2 allows you to easily upgrade to a 10-Gigabit network using standard Ethernet cables instead expensive fiber cables.

Advanced network features and security

The AS-T10G2 provides 802.1Q Virtual LAN (VLAN) tagging capabilities to make network management more resilient and secure. In addition, the AS-T10G2 also supports better transmission performance using 16K Jumbo Packets and IEEE 802.3x flow control.
