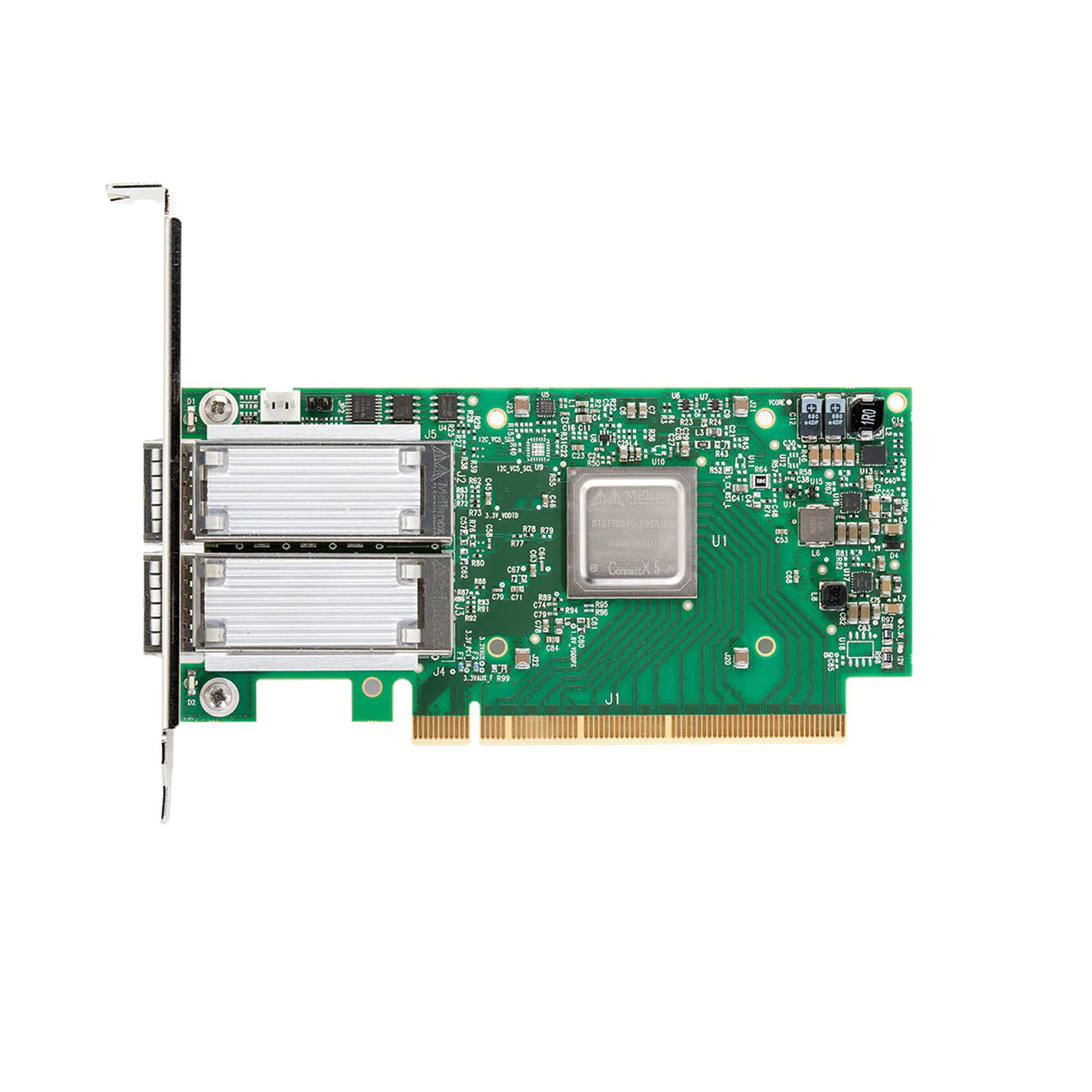

Mellanox MCX516A-CCAT ConnectX-5 EN network interface card, 100GbE dual-port QSFP28, PCIe3.0 x16, tall bracket

Brand: Mellanox
MPN: MCX516A-CCAT
Part #: NICMLX1048
UPC:

Out of stock

Click or hover over image to enlarge

Brand: Mellanox
MPN: MCX516A-CCAT
Part #: NICMLX1048
UPC:

Be the first to review this product

Number of Ports

Port Type

QSFP28

Returns & Warranty Bulk Quote Print Page

Features

Up to 100Gb/s Ethernet Adapter Cards

ConnectX-5 MCX516A-CCAT Ethernet network interface cards provide high performance and flexible solutions with up to two ports of 100GbE connectivity, 750ns latency, up to 200 million messages per second (Mpps), and a record setting 197Mpps when running an open source Data Path Development Kit (DPDK) PCIe (Gen 4.0). For storage workloads, ConnectX-5 delivers a range of innovative accelerations, such as Signature Handover (T10-DIF) in hardware, an embedded PCIe Switch, and NVMe over Fabric target offloads. ConnectX-5 adapter cards also bring advanced Open vSwitch offloads to telecommunications and cloud data centers to drive extremely high packet rates and throughput with reduced CPU resource consumption, thus boosting data center infrastructure efficiency.

ConnectX-5 adapter cards are available for PCIe Gen 3.0 and Gen 4.0 servers and provide support for 1, 10, 25, 40, 50 and 100 GbE speeds in stand-up PCIe cards, OCP 2.0, and OCP 3.0 form factors. ConnectX-5 cards also offer advanced Multi-Host and Socket Direct technologies.

Highlights

- Tag matching and rendezvous offloads
- Adaptive routing on reliable transport
- Burst buffer offloads for background checkpointing
- NVMe over Fabric offloads
- Backend switch elimination by host chaining
- Embedded PCIe switch
- Enhanced vSwitch/vRouter offloads
- Flexible pipeline
- RoCE for overlay networks
-PCIe Gen 4.0 support
- RoHS compliant
- ODCC compatible
- Various form factors available

Benefits

- Up to 100Gb/s connectivity per port
- Industry-leading throughput, low latency, low CPU utilization and high message rate
- Innovative rack design for storage and Machine Learning based on Host Chaining technology
- Smart interconnect for x86, Power, Arm, and GPU-based compute & storage platforms
- Advanced storage capabilities including NVMe over Fabric offloads
- Intelligent network adapter supporting flexible pipeline programmability
- Cutting-edge performance in virtualized networks including Network Function Virtualization (NFV)
- Enabler for efficient service chaining capabilities
- Efficient I/O consolidation, lowering data center costs and complexity

Specifications

Manufacturer

MELLANOX TECHNOLOGIES INC

Controller

Mellanox Technologies MT28800 Family ConnectX-5

Ports

Dual

Technology

Ethernet

Supported Ethernet Speeds

100/50/40/25/10/1GbE

Interface Type

QSFP28

Host Interface

PCIe 3.0 x16

Link Rate

8.0 GT/s

Bracket Height

Tall & Short

Cabling Type

QSFP28 Transceiver, DAC and AOC

RDMA

Yes

RoHS R6 Compliant

Yes

OS Support

Windows, RHEL/CentOS, VMware, FreeBSD, OFED and WinOF-2

Manufacturer Part No:

MCX516A-CCAT

Brand:

Mellanox

Product Type:

UPC

Product Family:

Shipping Weight:

0.542 kg

PB Part No:

NICMLX1048

Product Model:

MCX516A-CCAT

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
