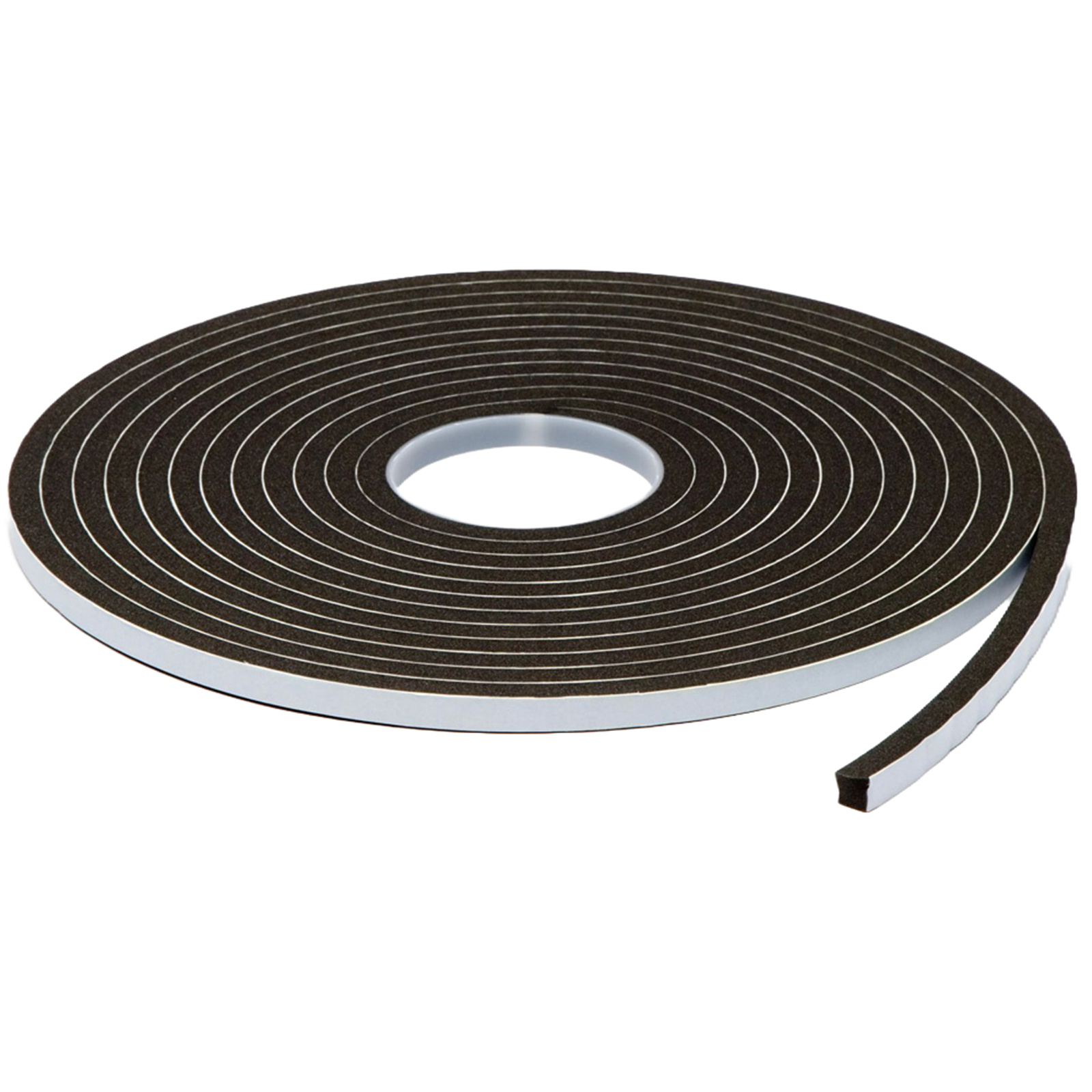

Inseal 3109 PKD
9mm Thickness - 12mm Width - 8m Length
Inseal 3109 PKD
9mm Thickness - 12mm Width - 8m Length
- Brand: Inseal
- MPN: 3109090012PKD
- Part #: OFSISL907024
- UPC:
- Brand: Inseal
- MPN: 3109090012PKD
- Part #: OFSISL907024
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Tapes, Adhesives & Fastenings





Inseal 3109 PKD 9mm Thickness - 12mm Width - 8m Length
- Brand: Inseal
- MPN: 3109090012PKD
- Part #: OFSISL907024

Product URL: https://www.pbtech.com/product/OFSISL907024/Inseal-3109-PKD-9mm-Thickness---12mm-Width---8m-Le
Features
Inseal 3109 is a soft closed cell foam coated on one side with an acrylic pressure sensitive adhesive. It has a removeable paper release liner on the other non-adhesive side. Inseal 3109 has a soft foam making it ideal for sealing between irregular or uneven surfaces, and has very easy compression. 3109 creates a consistent lasting bond. Inseal 3109 will act as a water-seal and air/dust seal when compressed. It is available in black.
- Good resistance to dilute acid and alkalis
- Very good UV light resistance
- Resistance to abrasion, corrosion and moisture
- Suitable for indoor and outdoor environments
- No known hazards associated with this product
- Clean edge finish
APPLICATIONS
- Suitable for anti-rattle and anti-vibration applications
- Forms a compression watertight seal
- Forms a compression air/dust seal
- Cushioning and gap-filling of irregular surfaces
- For preventing electrolytic corrosion
- For anti-slip mounting
Specifications
SHORE HARDNESS "00" SCALE
25
COMPRESSION REQUIRED TO EFFECT SEAL
30% minimum
10 MINUTE 180 ?PEEL ADHESION
5 N/25mm
TENSILE STRENGTH
28 N/cm²
ELONGATION AT BREAK
< 170%
CHEMICAL RESISTANCE
Good resistance to dilute acids and alkalis
UV LIGHT RESISTANCE
Very Good
SERVICE TEMPERATURE
-30 ?C to +70 ?C
RECOMMENDED APPLICATION TEMPERATURE
+10 ?C to +40 ?C
ADHESIVE
Acrylic
