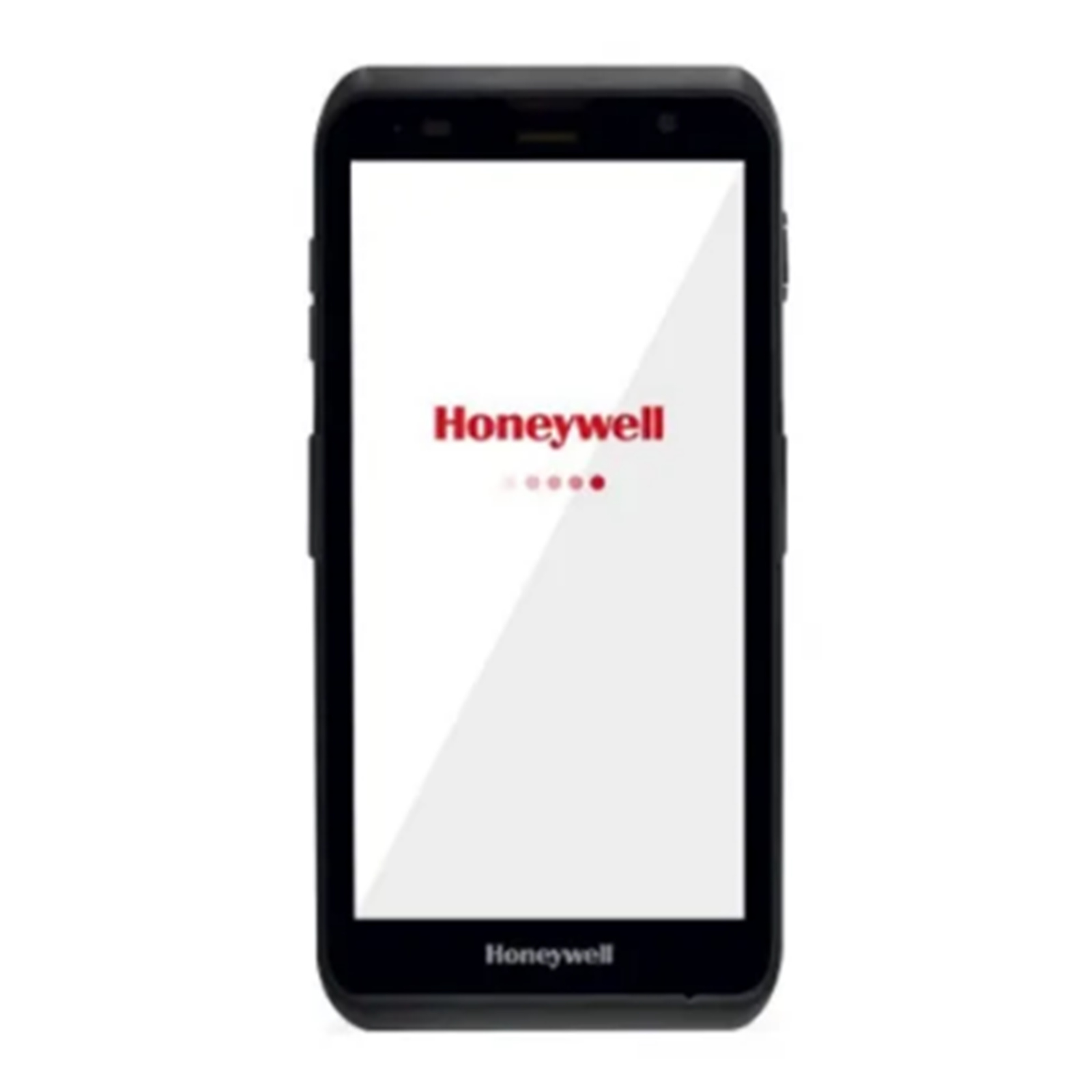

Honeywell EDA52, WLAN, S0703 IMAGER, 8-CORE CPU, 3GB/32GB, 13MP+5MP, BT+NFC, ANDROID11
Out of stock
Honeywell EDA52, WLAN, S0703 IMAGER, 8-CORE CPU, 3GB/32GB, 13MP+5MP, BT+NFC, ANDROID11
- Brand: Honeywell
- MPN: EDA52-00AE31N21RK
- Part #: POSHON1084
- UPC:
- Brand: Honeywell
- MPN: EDA52-00AE31N21RK
- Part #: POSHON1084
- UPC:
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT





Honeywell EDA52, WLAN, S0703 IMAGER, 8-CORE CPU, 3GB/32GB, 13MP+5MP, BT+NFC, ANDROID11
- Brand: Honeywell
- MPN: EDA52-00AE31N21RK
- Part #: POSHON1084

Product URL: https://www.pbtech.com/product/POSHON1084/Honeywell-EDA52-WLAN-S0703-IMAGER-8-CORE-CPU-3GB32
Features
Honeywell EDA52, WLAN, S0703 IMAGER, 8-CORE CPU, 3GB/32GB, 13MP+5MP, BT+NFC, ANDROID11
The Honeywell ScanPal™ EDA52 is an enterprise-class mobile computer that provides reliable and secure connectivity between frontline workers and back-end business systems. It is designed for use in retail, transportation & logistics, manufacturing, healthcare, and public service applications.
The ScanPal EDA52 is Honeywell's next generation ScanPal series mobile computer equipped with the latest Qualcomm Snapdragon octa-core 2.0GHz processor and robust wireless connectivity through NFC, Wi-Fi 5, Bluetooth 5.1 and 4G LTE communication.
A prominent 5.5-inch Gorilla Glass touch screen interface and ergonomic industrial design help to greatly improve user comfort and experience. Its lightweight and slim design means that users can easily operate the device with one hand, carry it in pockets, and stay comfortable all day.
The 13-megapixel rear camera allows users to capture high-resolution images for quality image documentation while the 5-megapixel front camera allows users to engage in video communication.
The EDA52 incorporates the all-new and powerful Honeywell S0703 scan engine which enables fast reading even of damaged or incomplete barcodes.
outfitted with a rugged housing and IP67 rated sealing, the EDA52 can operate under rough usage and demanding environmental conditions. A
4500mAh battery allows for prolonged and uninterrupted use between each charge. The battery is also easily removable and supports quick charge 3.0.
The EDA52 (WWAN version) supports one nano SIM and one eSIM simultaneously. An eSIM enables simple management of subscriptions to different mobile network carriers, thereby allowing easy switch between carriers without the need to manage multiple physical SIM cards.
Specifications
MECHANICAL
Dimensions
159mm x 75 mm x 14.4 mm (6.26 in x 2.95 in x 0.57 in)
Weight
258g
Display Size
Gorilla Glass 5, 5.5-inch
Resolution
1440 x 720 High Definition
Backlight
LED
Touchscreen
Multi-touch capacitive (CTP), GFF
Hard Keys
5 side keys for volume up/down, right and left scan keys and power on/off
ENVIRONMENTAL
Operating Temperature
-20°C to +50°C (-4°F to +122°F)
Storage Temperature
-30°C to +70°C (-22°F to 158°F)
Humidity
5% to 90% (non-condensing)
Drop
Multiple 1.3m (4.3ft) per MIL-STD 810G
drops to concrete at room temperature
Multiple 1.5m (5ft) per MIL-STD 810G drops with
rubber boot concrete at room temperature
Tumble
550 times at 0.5 m (1.64 ft)
Environmental Sealing
IP67
Electrostatic Discharge (ESD)
±8 kV direct; ±15 kV air
SYSTEM ARCHITECTURE
Processor
Qualcomm Snapdragon SM6115,
Quad high-performance Kryo cores 2.0 GHz +Quad
low-power Kryo cores 1.8 GHz
Memory
3 GB RAM/32 GB Flash
Operating System
Android 11
Storage Expansion
MicroSD (up to 128 GB)
Rear Camera
13-megapixel color camera
Front Camera
5-megapixel color camera
PC Interface
USB 2.0 with Type-C interface
Interface Ports
2 pin bottom connection
Battery
Li-Ion, 3.8 V, 4,500 mAh, removable
Real-Time Clock (RTC)
10 min backup via super-cap
Charging Time
less than 3.5 hours
Battery Runtime
more than 12 hours
Scan Engine
Honeywell S0703 Slim Imager
(1D/2D barcode symbologies)
LED
Battery Status Indicator
red/green/blue
Scan Indication
red/green
Sensors
acceleration sensor, light sensor, and
proximity sensor
Localization & Language
Worldwide English
WIRELESS CONNECTIVITY
WLAN (Wi-Fi Alliance certified)
IEEE 802.11 a/b/g/n/ac
Additional WLAN Features
802.11 d/e/h/i/k/ r/u/w
WLAN Security
OPEN, WEP, WPA/WPA2
(Personal and Enterprise WPA2), WPA3 (OWE, SAE, Enterprise)
WLAN Supported EAP
TLS, PEAP, TTLS, PWD, LEAP
Bluetooth®
Bluetooth Class 5.1
WWAN Radio
- GSM/EDGE: Bands 2, 3, 5, 8
- UMTS/HSPA+: Bands 1, 2, 4, 5, 6,8, 9, 19
- FDD-LTE: Bands 1, 2, 3, 4, 5, 7, 8, 9,
12,13,17,19,20,25,26,28,30,66
- TDD-LTE: Bands 38, 39, 40, 41
NFC
Integrated Near Field Communication
GPS (WWAN only) Supported Protocols
Simultaneous receiver support for GPS, GLONASS,
and BeiDou
