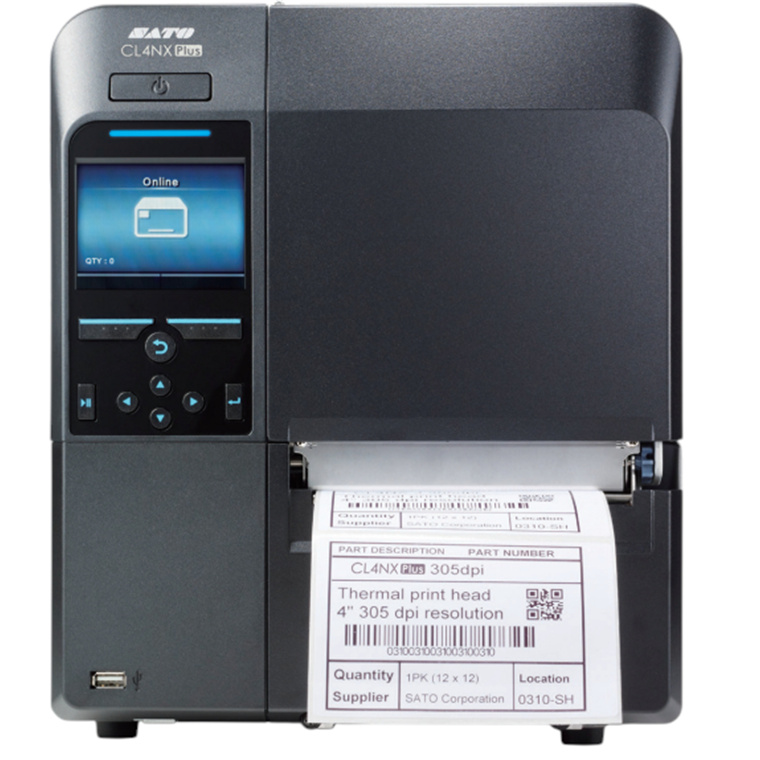

SATO CL412NX Plus TT Printer 305dpi (Non BT) 4 INCH INDUSTRIAL PRINTER worksw/Aramex,CourierPost,GoSweet Spot, Mainfreight, NZ Post, PBT, Post Haste, Toll
- Brand: SATO
- MPN: WWCLP202NPA
- Part #: POSSAT1023
Product URL: https://www.pbtech.com/product/POSSAT1023/SATO-CL412NX-Plus-TT-Printer-305dpi-Non-BT-4-INCH
Features
Accurate & E icient Performance
Enhanced print precision and accuracy makes CL4NX Plus ideal for micro label applications such as lot tracing of small electronic components.
High print speed of 14ips even at 305dpi enables high quality printing at fast speed.
UHF and HF RFID options support a wide variety of tags. New SATO RF Analyze enables reading and encoding of UHF RFID labels automatically for fast, stable encoding.
Intuitive Operation
LED indicator and colour display alert operator to printer status. Guidance videos speed up error resolution & printer maintenance.
Full operational control of print, application, I/F and system settings via front panel display.
Customisable GUI content and security-enabled menu access let administrators personalise operator experience.
Sustainable Innovation
Linerless labels use less resources, enable greater productivity (more labels per roll) and reduce logistics and storage expenses (smaller roll sizes).
Use Energy Star certi ed CL4NX Plus to save energy costs without compromising any functionality.
Functional Design, Durable Body
All-round metal casing, die-cast aluminium frame and print and ribbon mechanisms enhance printer durability and stability.
Easy setup and maintenance with field installable parts, snap-in print head and tool-less platen replacement minimise downtime.
PureLineTM platen roller provides visual indicator of wear as a means of proactive maintenance.
Application Enabled Printing (AEP)
AEP is a powerful onboard printing intelligence that enables user to simplify label printing operations such as direct connectivity to peripheral devices such as barcode readers and weight scales for data input.
Installation and maintenance costs are reduced as AEP enables printer to connect directly with database and print without the need of a PC.
Specifications
Printing Specification
Printing Method
Direct Thermal/Thermal Transfer
Print Mode
Continuous, Tear-off, Cutter, Dispenser, Linerless
Print Resolution
12 dots/mm (305dpi)
Max. Print Speed
14ips (355mm/sec)
Max. Print Area
Width: 104mm (4.09")
Length: 1500mm (59.05")
Processor
Dual CPU & Dual OS: CPU1: 800MHz for Linux OS, CPU2: 800MHz for ITRON OS
Printer Memory
CPU1: 2GB ROM, 256MB RAM, CPU2: 4MB ROM, 64MB RAM
Consumable Specification
Sensor Type
I-mark Sensor (Reflective ), Label Gap Sensor (Transmissive)
Media Type
Roll or Fan-fold Die Cut Labels, Plain Paper Face Stock, Synthetics and Continuous Stock
Media Thickness
0.060 -0.268mm (0.0024" -0.011")
Label Shape
Diameter:
Maximum 265mm (10.43")
Core diameter: 076mm (3.0"), 0101mm (4.0")
Wind Direction:
Face In / Face Out. No Setting Change Required
Label Size (Without Liner)
Continuous
Width: 22-128mm (0.87" - 5.04")
Length: 6-1497mm (0.24" - 58.94")
Tear-Off/Cutter
Width: 22-128mm (0.87" - 5.04")
Length: 17-1497mm (0.67" - 58.94")
Dispenser
Width: 22-128mm (0.87" - 5.04")
Length: 10-397mm (0.39" - 15.63")
Linerless
Width: 60-118mm (2.36" - 4.65")
Length: 30-120mm (1.18" - 4.72")
Ribbon
Size
Max. Length: 600m (1968.5'). 450m (1476.4") when Ribbon Width is 39.5mm (1.55")
Max. Roll Diameter: 90mm (3.5"), Ribbon Width: 39.5mm (1.55") to 128mm (5.04")
Other
Core Diameter: 25.4mm (1"), Wind Direction : Face In/ Face Out, No Setting Change Required
Fronts/Symbologies
Internal Fonts
Standard Bitmap: U, S, M, WB, WL, XS, XU, XM, XB, XL, X20, X21, X22, X23, X24, OCR-A, OCR-B
Scalable Fonts: 30 SATO Fonts, 2 Outline Fonts
Encoding: Major Latin and Pan-European Code Pages (WGL4), GB18030 (Simplified), KSX1001 (Korean), BIG5 (Traditional), JIS, SHIFT-JIS, UTF-8 and UTF-16BE
Barcode
Linear: UPC-A/UPC-E, JAN/EAN-13/8, CODE39, CODE93, CODE128, GS1-128(UCC/EAN128), CODABAR(NW-7), ITF, Industrial 2 of 5, Matrix 2 of 5, MSI, POSTNET, UPC Add-on Code, BOOKLAND, USPS Code, GS1 DataBar Omnidirectional, GS1 DataBar Truncated, GS1 DataBar Stacked, GS1 DataBar Stacked Omnidirectional, GS1 DataBar Limited, GS1 DataBar Expanded, GS1 DataBar Expanded Stacked
2D Symbologies: QR Code, Micro QR Code, PDF417, Micro PDF, Maxi Code, GS1 Data Matrix, Data Matrix (ECC200), Aztec Code, GS1QR Code and Composite Symbologies
Print Direction
Character Data Rotation: 0°, 90°, 180°, 270°
User Downloadable Fonts, Graphics or Formats
Maximum 100MB
Interface Characteristics and Integration
Standard Interfaces
USB 2.0 (Type A & B), Ethernet (IPv4/v6), RS232C, IEEE1284, EXT, NFC
Remote Access
SNMP Ver.3, HTTPs
Operation Characteristics
Power Requirements
AC100V~ AC240V±10%, 50/60 Hz, Auto-ranging Power Supply
Environment
Operating: 0-40°C/30-80% RH (without condensation)
Operating Linerless: 5-35°C/30-75% RH (without condensation)
Storage: -20-60°C/30-90% RH (without condensation)
Dimensions
271mm (10.67") x 457mm (18.00") x 321mm (12.64")
Weight
15.1kg (33.28 lbs)
Display Panel
TFT Full Color LCD, 3.5"(320 x 240 RGB)
