ASUS PRO WS 2200W Platinum ATX 3.1 Heavy Duty Power Supply
80 Plus Platinum, Fully Modular - PCIe Gen 5 Ready - 4 X native 12V-2x6
ASUS PRO WS 2200W Platinum ATX 3.1 Heavy Duty Power Supply
80 Plus Platinum, Fully Modular - PCIe Gen 5 Ready - 4 X native 12V-2x6
- Brand: ASUS
- MPN: ASUS-PRO-WS-2200P
- Part #: PSUASU0320
- UPC: 197105972964
- Brand: ASUS
- MPN: ASUS-PRO-WS-2200P
- Part #: PSUASU0320
- UPC: 197105972964
Similar in-stock products available at PB Tech right now
COMBO DEALS: Frequently Bought Together
ASUS MAX GAMING LC 360 ARGB LCD All in one Water Cooling 3 X 120mm PWM ARGB Fan, CPU Socket Support:...
$150.45
$150.45
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies
ASUS PRO WS 2200W Platinum ATX 3.1 Heavy Duty Power Supply 80 Plus Platinum, Fully Modular - PCIe Gen 5 Ready - 4 X native 12V-2x6
- Brand: ASUS
- MPN: ASUS-PRO-WS-2200P
- Part #: PSUASU0320
- UPC:197105972964
Product URL: https://www.pbtech.com/product/PSUASU0320/ASUS-PRO-WS-2200W-Platinum-ATX-31-Heavy-Duty-Power
Features
Note: This power supply requires a 15amp power input for operation.

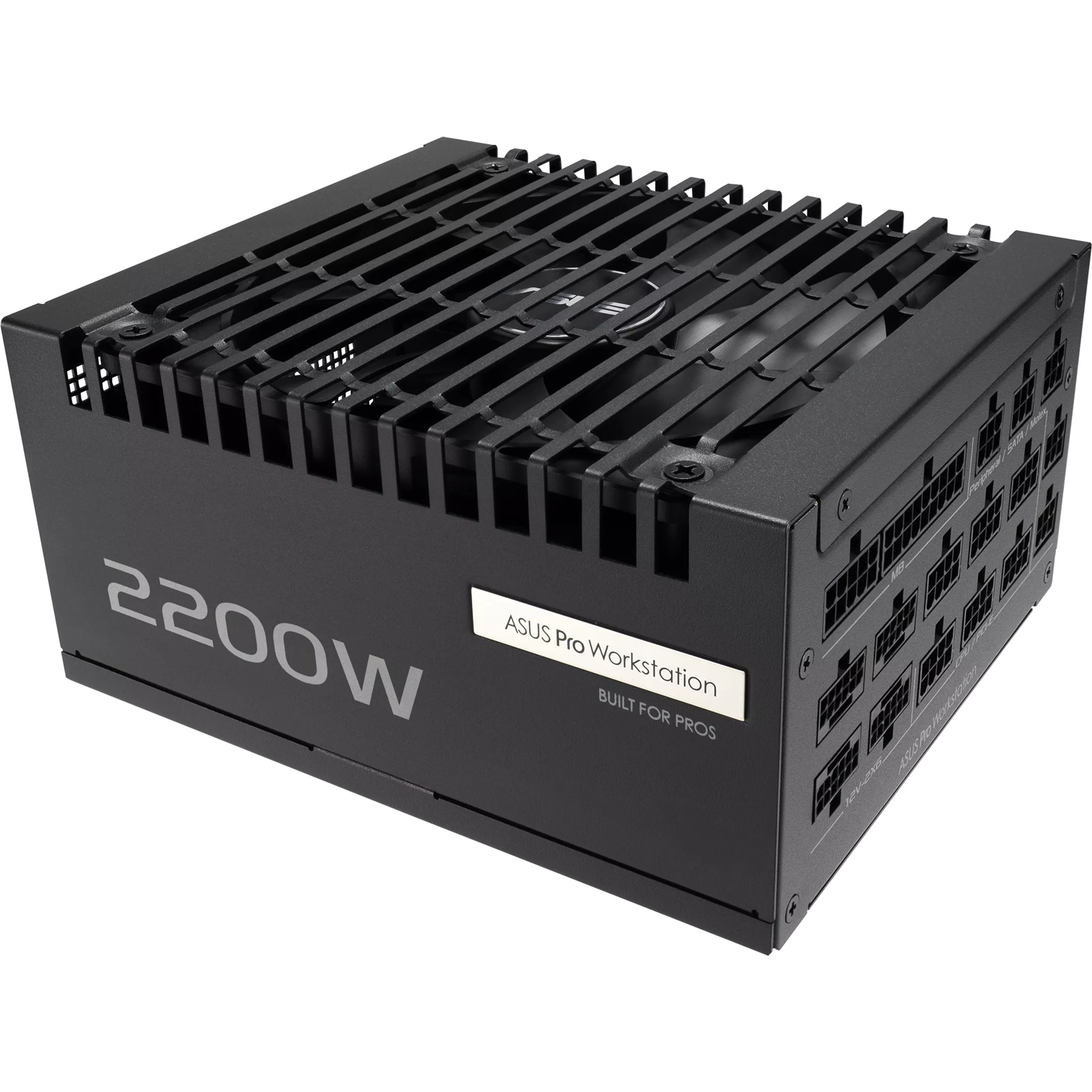

ASUS Pro WS 2200W Platinum
ASUS Pro WS 2200W Platinum PSU delivers exceptional voltage stability and advanced power delivery for professionals, supporting up to four graphics cards to meet the demanding AI workloads.
- Heavy-duty PSU: Supports up to four GeForce RTX™ 5080 graphics cards via rock-solid voltage stability and advanced power delivery.
- Dual-ball fan bearings: Designed to last up to twice as long as sleeve-bearing designs.
- Extruded aluminum heatsinks: Cover critical components, delivering lower temperatures and noise versus reference designs.
- ATX 3.1 compatible: Compliant with the ATX 3.1 standard, ensuring enhanced voltage and current regulation.
- PCIe® 5.1 ready: Features native 12V-2x6 connectors for cutting-edge graphics card power.
- 80 PLUS Platinum certified: Utilizes low-ESR Japanese server grade capacitors and premium components for industry-leading power efficiency.
Specifications
Model
ASUS-PRO-WS-2200P
Intel Form Factor
ATX12V
PFC Type
Active PFC
ATX Standard
ATX 3.1
Dimensions
175 x 150 x 86 mm
Efficiency
80Plus Platinum
Protection Features
OPP/OVP/UVP/SCP/OCP/OTP
Hazardous Materials
ROHS
AC Input Range
200-240Vac
DC Output Voltage
+3.3V +5V +12V -12V +5Vsb
Maximum Load
25A 25A 183.3A 0.8A 3A
Combined Load
130W 130W 2200W 9.6W 15W
Total Output
2200W

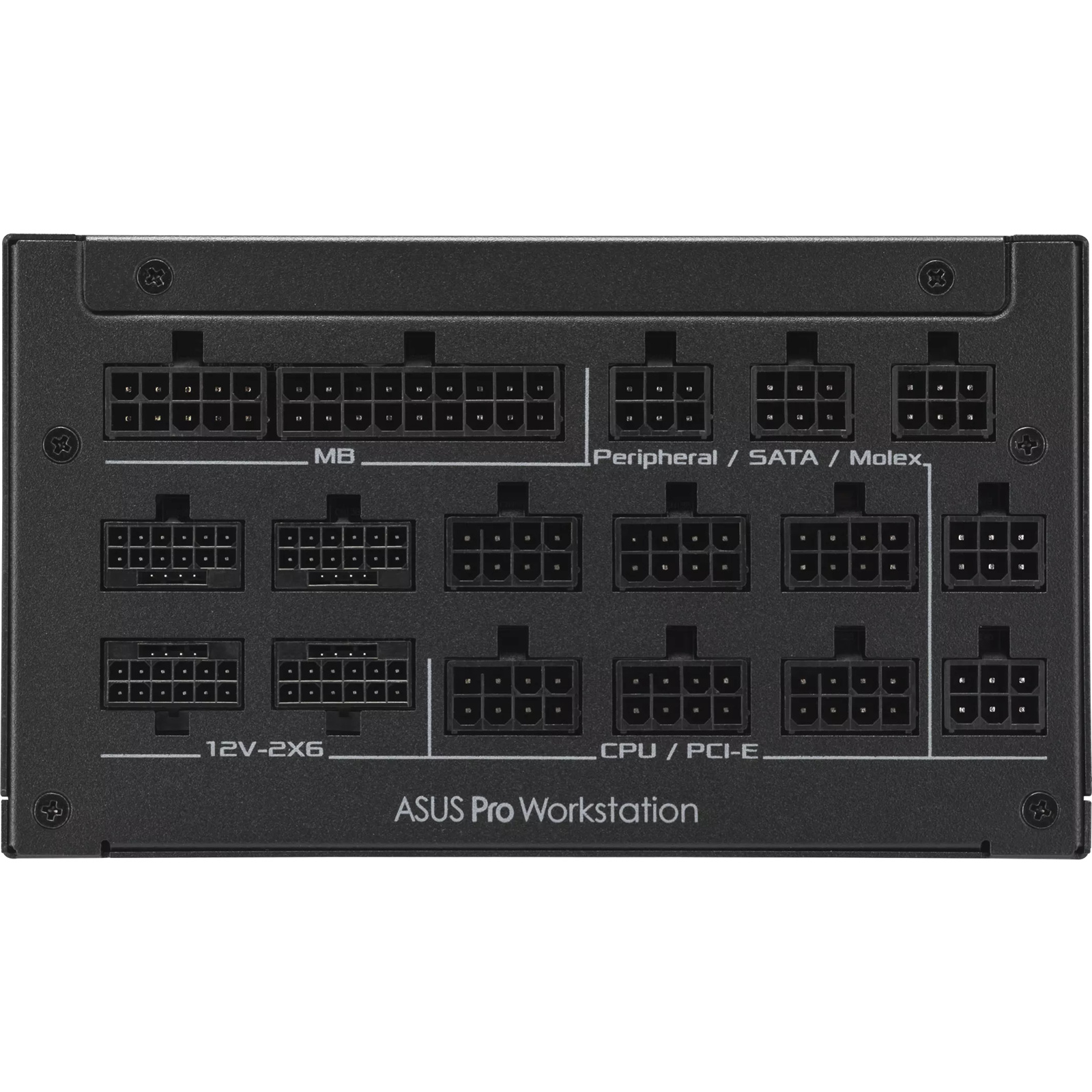

Cable Connectors
MB 24/20-pin x 1
CPU 4+4-pin x 2
PCIE 5.1 16-pin x 4
PCIE 6+2-pin x 4
SATA x 12
PERIPHERAL x 3
Package Contents
Power Cord x 1
Motherboard Power Cable x 1 (610mm)
CPU Cable x 2 (1000mm)
PCI-E Gen 5.1 16-pin Cable x 4 (750mm)
PCI-E 1-to-1 Cable x 4 (750mm)
SATA 1-to-3 Cable x 4 (400+120+120mm)
Peripheral 1-to-3 Cable x 1 (400+150+150mm)
Chassis Screws Package x 1
Cable Tie x 6
User Manual x 1
Weight
2.13 kg (single PSU)
0dB Technology
No
