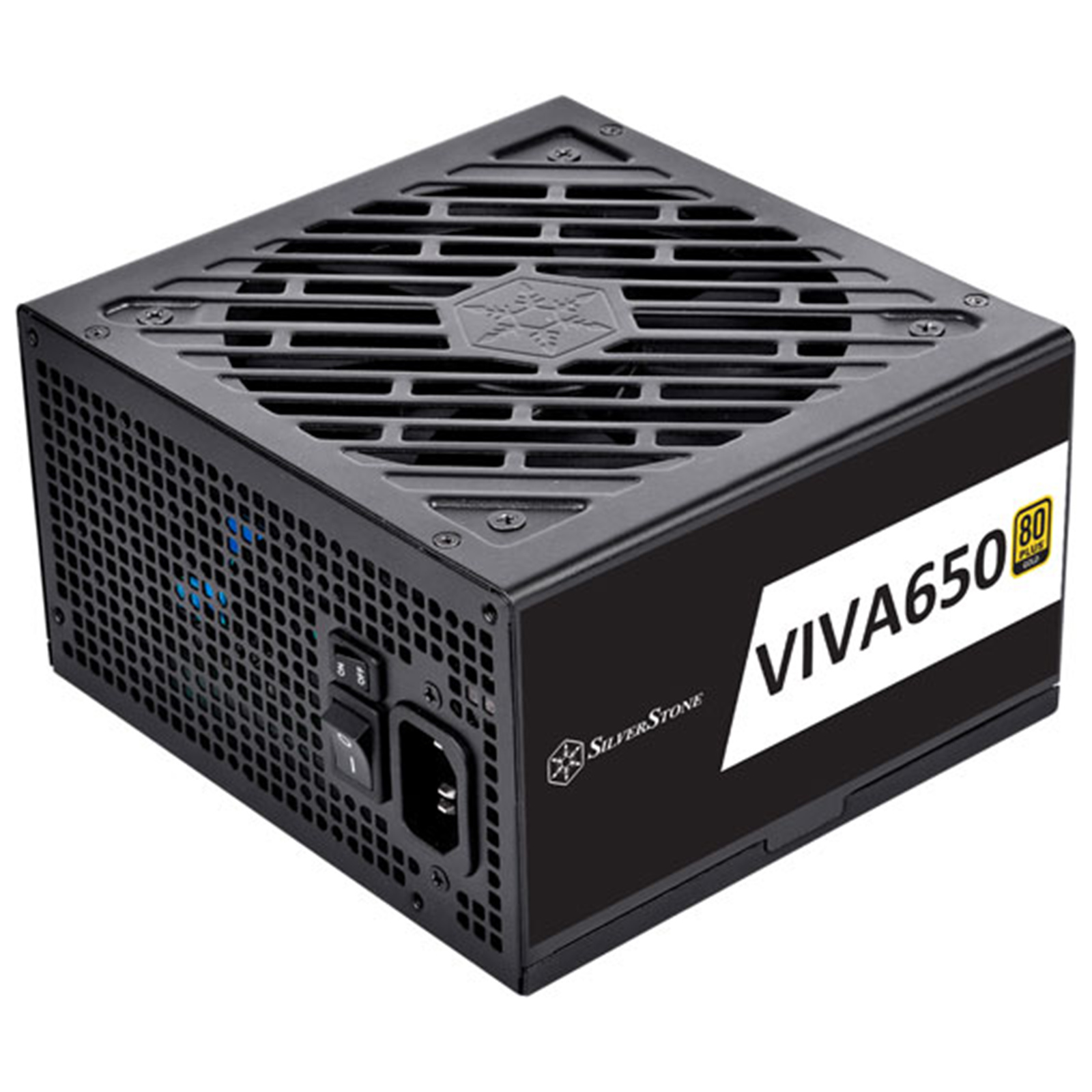

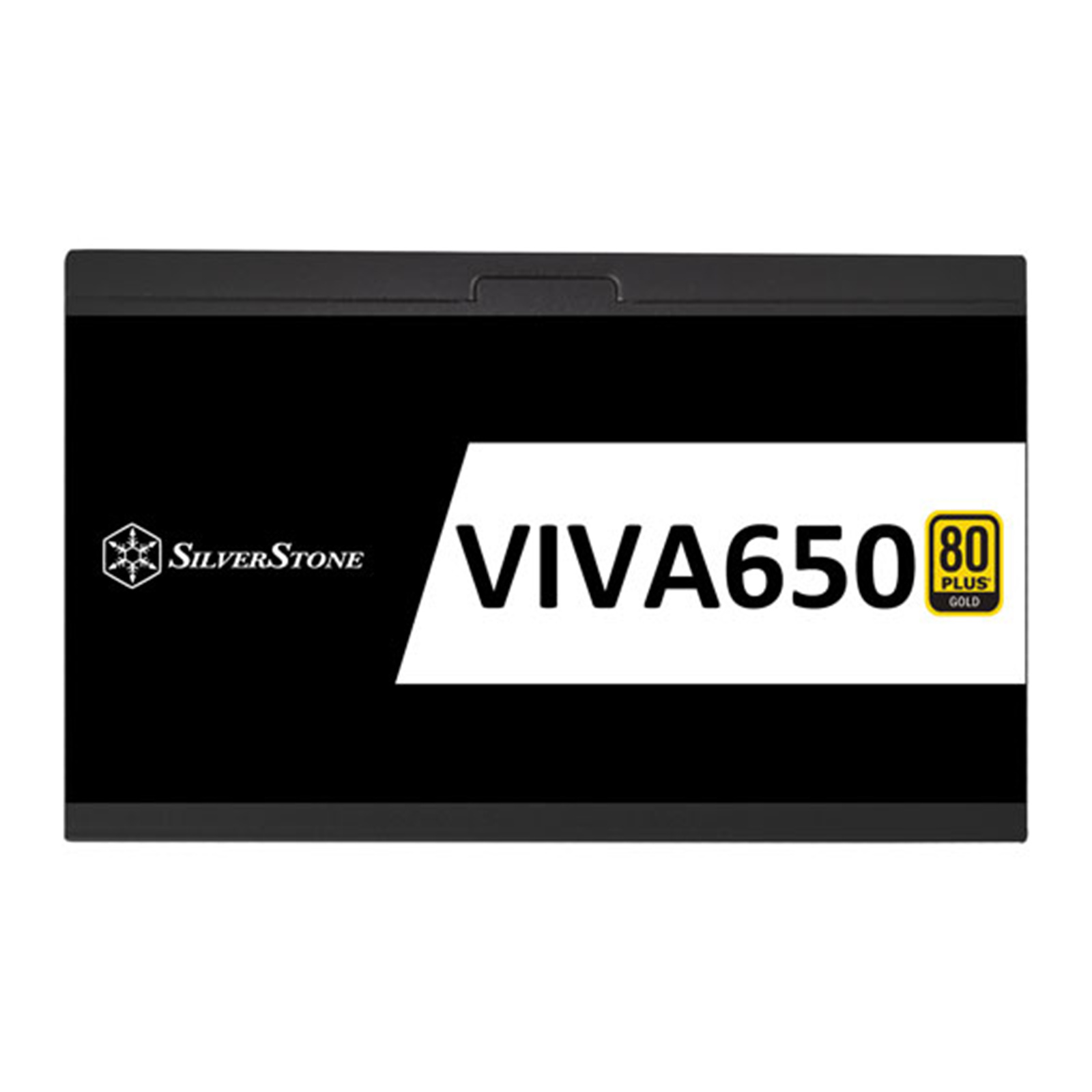

Silverstone VA650-G 650W ATX Power Supply
80Plus Gold- Silent running - Fixed Cable
Out of stock
Silverstone VA650-G 650W ATX Power Supply
80Plus Gold- Silent running - Fixed Cable
- Brand: Silverstone
- MPN: SST-VA650-G
- Part #: PSUSVT17650
- UPC: 844761021030
- Brand: Silverstone
- MPN: SST-VA650-G
- Part #: PSUSVT17650
- UPC: 844761021030
Product is out of stock. View similar products in-stock at PB Tech
What PB Tech customers are saying about this product...
See More Reviews"Super easy to set up and works perfectly"
"When fanless mode is turned on, it is genuinely silent 95% of the time. The fan only kicks on for about 10 seconds every 5 minutes or so. In always-on fan mode, it is very quiet as ...view more"
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Desktop Power Supplies





Silverstone VA650-G 650W ATX Power Supply 80Plus Gold- Silent running - Fixed Cable
- Brand: Silverstone
- MPN: SST-VA650-G
- Part #: PSUSVT17650
- UPC:844761021030

Product URL: https://www.pbtech.com/product/PSUSVT17650/Silverstone-VA650-G-650W-ATX-Power-Supply-80Plus-G
Features
VIVA 650 Gold
80 PLUS Gold 650W ATX power supply
- High efficiency with 80 PLUS Gold certification
- 24/7 continuous power output with 40? operating temperature
- Class-leading single +12V rail

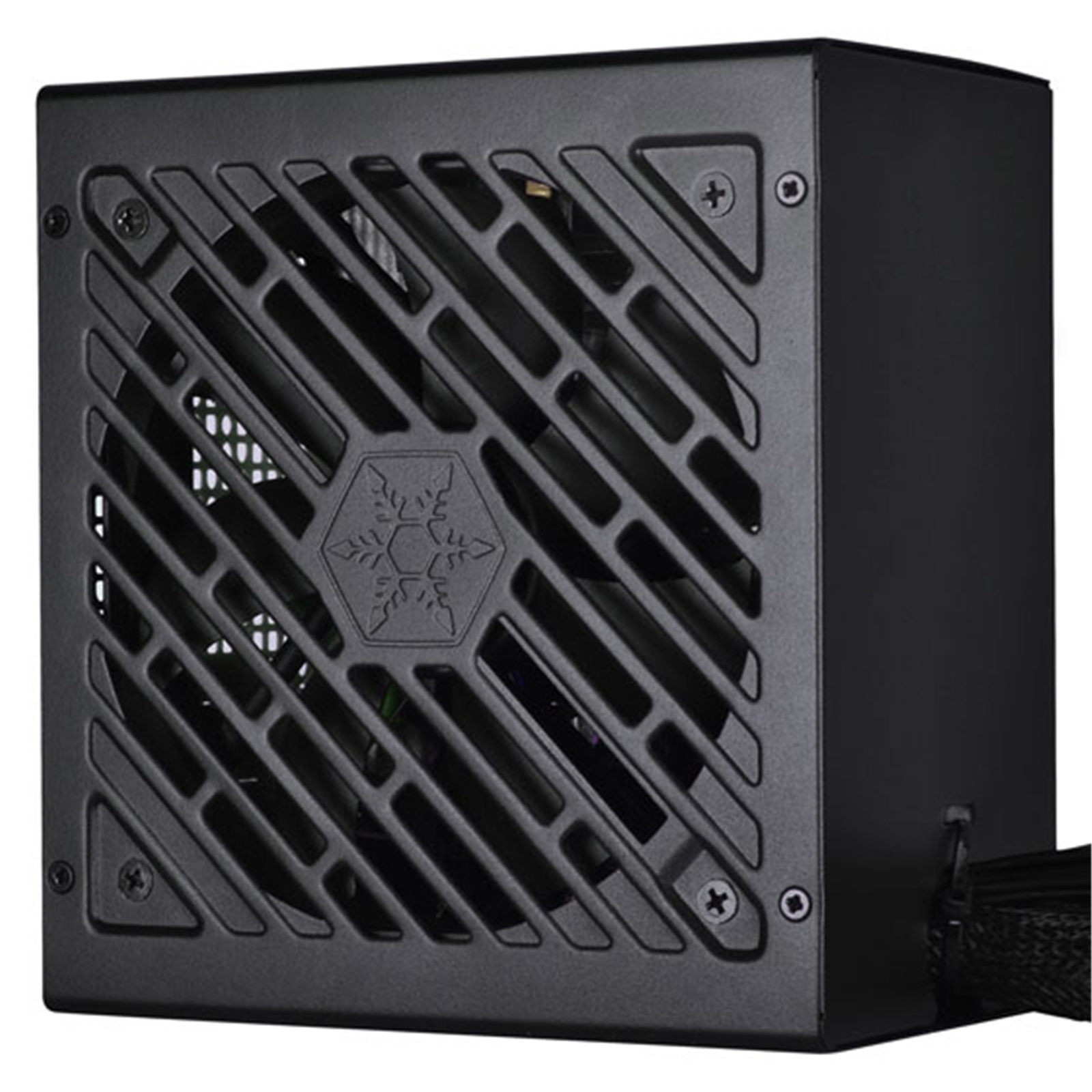

- Silent running 120mm fan with 0 dBA minimum, equipped with semi-fanless switch function
- PCIe 8 pin and PCIe 6 pin connectors support
- All black flat cables
Designed for 80 PLUS Gold level of efficiency to reduce wasted heat and save on electricity
Built-in 120mm fan has excellent airflow and low noise, perfect for quiet home or office use
Powerful single +12V rail design, perfect for future high-end component upgrades or overclocking
Flat cables have much greater flexibility to allow for tighter folding and management of cables
Fan switch located on the rear side designed for semi-fanless function
Specially designed cover increases effectiveness of residual heat dissipation
Dual CPU power connector design
Advanced protections for safety and security
- Over current protection
- Over power protection
- Over voltage protection
- Short circuit protection
- Under voltage protection
- Over temperature protection
Specifications

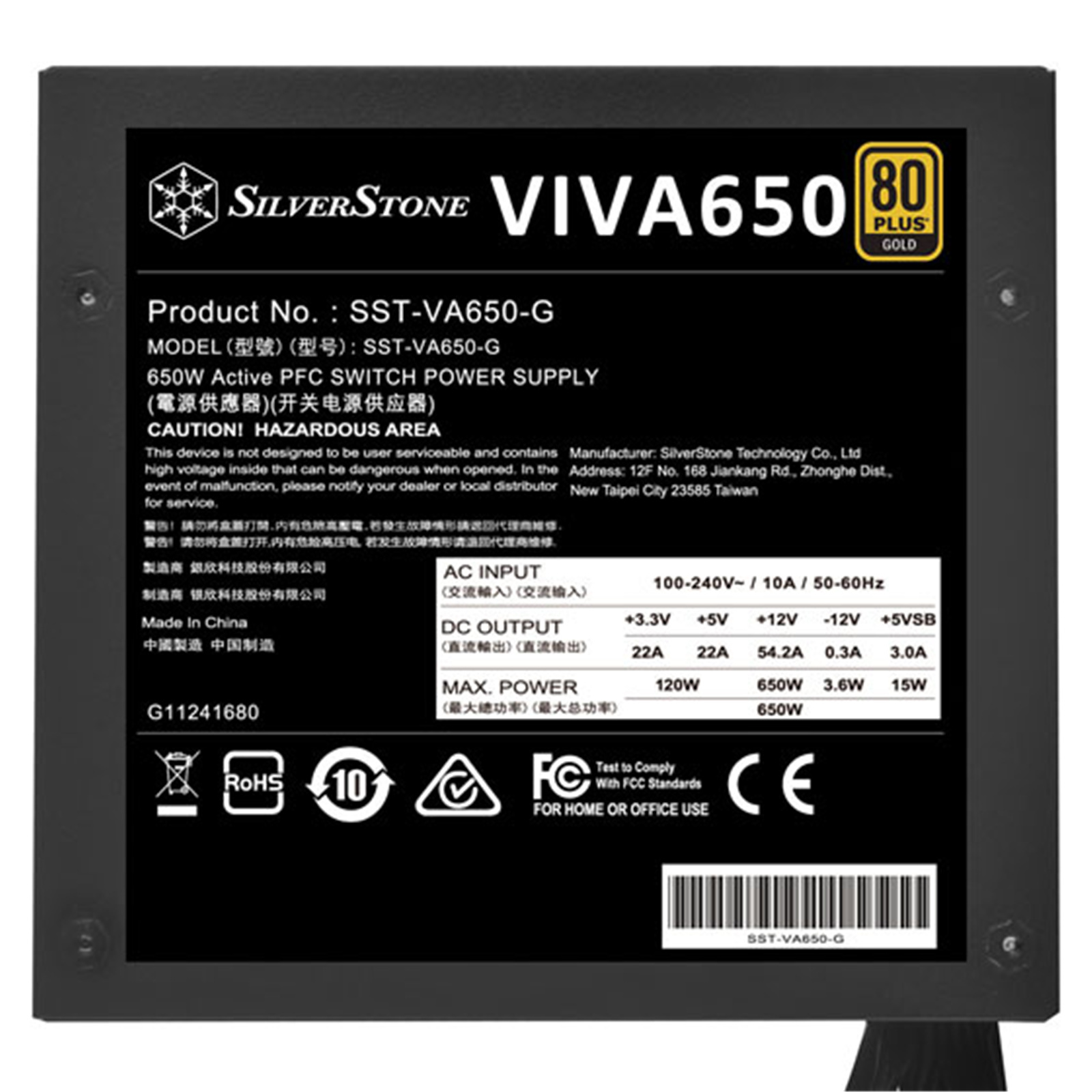

Model (safety certification)
SST-VA650-G
Color
Black (lead-free paint)
Max. DC Output
650W
Power density
360W per liter
Combined +3.3V & +5V
120W
Combined +12V
650W
Input Voltage
90 ~ 264 Vrms
Input Frequency Range
47Hz ~ 63Hz
PFC
Active PFC (PF>0.9 at full load)
Efficiency
87% ~ 90% (at 20% ~ 100% loading)
MTBF
100,000 hours
Operating temperature
0°C ~ 40°C
Protection
Over current protection
Over power protection
Over voltage protection
Short circuit protection
Under voltage protection
Over temperature protection
Connectors
1 x 24 / 20-Pin motherboard connector (500mm)
1 x 8-Pin EPS and 1 x 4-Pin + 4-Pin ATX 12V connector (650mm / 150mm)
4 x 8 / 6-Pin PCIe connector ("500mm / 150mm" x 2)
8 x SATA connector ("500mm / 150mm / 150mm / 150mm" x 2)
3 x 4-Pin Peripheral connector and 1 x 4-Pin Floppy connector (500mm / 150mm / 150mm / 150mm)
Cooling System
Silent 120mm fan
Noise Level
0 dBA minimum
Certification
80 PLUS Gold
Form factor
ATX (PS2)
Dimension
150 mm (W) x 86 mm (H) x 140 mm (D)
Weight
1.72 kg
