Bambu Lab Spare Parts 4-in-1 PTFE Adapter
for X1 Series/P1 Series/H2D/H2S/P2S
Out of stock
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular 3D Printer Parts & Accessories

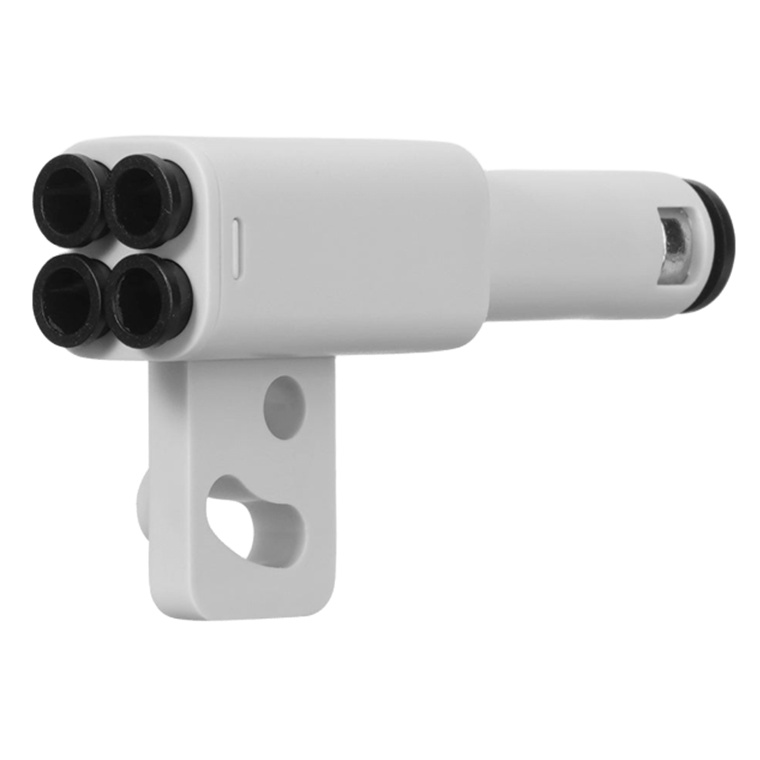

Bambu Lab Spare Parts 4-in-1 PTFE Adapter for X1 Series/P1 Series/H2D/H2S/P2S
- Brand: Bambu Lab
- MPN: FAZ013-N
- Part #: PTABAM0597
Product URL: https://www.pbtech.com/product/PTABAM0597/Bambu-Lab-Spare-Parts-4-in-1-PTFE-Adapter-for-X1-S
Features
The Bambu 4-in-1 PTFE Adapter is an adapter used to connect the PTFE tube. Compared to the original PTFE tube connector, the 4-in-1 adapter can connect 4 feeder modules to the printer at the same time. (up to 7 different filaments: 1 AMS and other 3 filaments)
It can help users to connect the printer to AMS along with other filaments which are not compatible with AMS such as TPU 95A, Bambu PET-CF and other brands' carbon-fiber/glass-fiber contained filaments.
Installation
Learn more about the replacement of Bambu 4-in-1 PTFE Adapter on Bambu Lab Wiki (https://wiki.bambulab.com/en/parts-acc/ptfe_adapter).
Compatibility
X1 Series/P1 Series/H2 Series
Instructions for use
The Bambu 4-in-1 PTFE Adapter is designed with a clear direction of use, as shown in the figure below.
1. When using AMS:
- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
- Connect the PTFE tube from the buffer output to one of its IN ends. - Directly insert a maximum of three filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.

2. When the AMS is not being used:
- Connect the PTFE tube from the tool head to the OUT end of the Bambu 4-in-1 PTFE Adapter.
- Directly insert a maximum of four filament wires into each hole of the Bambu 4-in-1 PTFE Adapter IN end.
It is important to note that reversing connections may cause filament blockage. Therefore, it is essential to ensure that the installation direction is correct.

Specifications
Brand
Bambu Lab
Manufacturer Part Number
FAZ013-N
Color
Black, White
Materials
Plastic, Metal
Function
Connects multiple filament inputs into one PTFE tube
Number of Inputs
Up to 4 feeder inputs
Compatibility (Printers)
Bambu Lab X1 Series/P1 Series/H2D/H2S/P2S
