Dynamix F-TBOM406-500M OM4 Tight Buffered Fibre Roll - 6 Core - 500m

Multimode - Indoor/Outdoor - ONFR - Tight Buffered

PB Tech price

AUD $ 1,394 .25

$ 1,394 .25

Dynamix F-TBOM406-500M OM4 Tight Buffered Fibre Roll - 6 Core - 500m

Multimode - Indoor/Outdoor - ONFR - Tight Buffered

Brand: Dynamix
MPN: F-TBOM406-500M
Part #: RACDNX0014
UPC:

PB Tech price

AUD $ 1,394 .25

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 18 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Dynamix
MPN: F-TBOM406-500M
Part #: RACDNX0014
UPC:

Be the first to review this product

Cable Length

500m

Colour

Black

Connector 1

Bare End

Connector 2

Bare End

Braided

HDMI Version

N/A

View full specs

Returns & Warranty Bulk Quote Print Page

Features

DYNAMIX 500m OM4 6 Core Multimode Tight Buffered Fibre Cable Roll. Indoor Outdoor Rated. Black ONFR Jacket

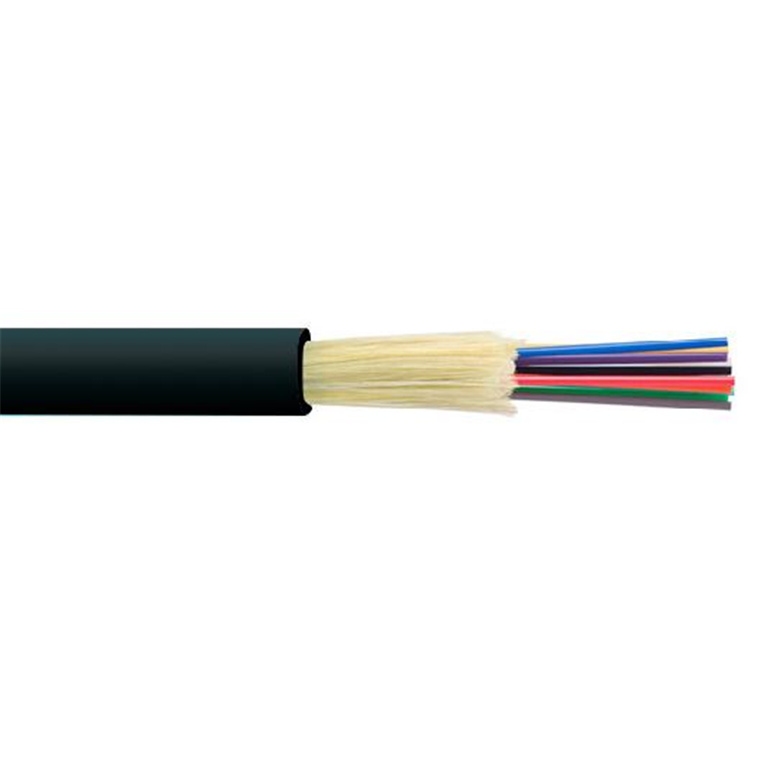

DYNAMIX OM4 tight-buffered indoor/outdoor fibre distribution cable contains 6 fibres of 250µm bundled under the same black OFNR outer jacket with an Aramid yarn strength as reinforcement to stiffen the cable and prevent kinking. The cable is lightweight, soft and easy to peel. It is widely used as fibre pigtails and fibre jumpers for communication equipment. This cable is 100% tested and certified. It complies with ISO/IEC 11801 OM4 specifications, IEC 60793-2-10 type A1a.2 and A1a.3 Optical Fibre specification, and TIA-EIA-492AAAC/492AAAD.

Specifications

Core Diameter

50±2.5µm

Core Non-Circularity

=5.0%

Cladding Diameter

125.0 ±1.0µm

Cladding Non-Circularity

=1.0%

Coating Diameter

245 ±7µm

Attenuation

850nm, =2.4dB/km
1300nm, =0.6dB/km

Overfilled Modal Bandwidth

850nm, =3500MHz/km
1300nm, =500MHz/km

Effective Modal Bandwidth

850nm, =4700MHz/km

40 & 100 Gigabit Ethernet

850nm, 150m

10GBASE-SR

850nm, 550m

1000BASE-SX

850nm, 1100m

Numerical Aperture

0.200±0.015

Group Refractive Index

850nm, 1.485
1300nm, 1.477

Zero Dispersion Wavelength, ??

1259-1340nm

Zero Dispersion Slope, S0

1295nm=??=1310nm, =0.105ps/(nm2/km)
1310nm=??=1340nm, =0.000375 (1590-??) ps/(nm²/km)

Macro-bending Loss 100 Turns @37.5mm Radius

850nm, =0.50dB
1300nm, =0.50dB

Macro-bending Loss 2 Turns @15mm Radius

850nm, =0.50dB

1300nm, =0.50dB

Step (Mean of Bidirectional

Measurement)

=0.10dB

Irregularities Over Fibre Length & Point Discontinuity

=0.10dB

Attenuation Uniformity

=0.08dB/km

Temperature Cycling

-60°C~85°C, =0.10dB/km

Temperature Humidity Cycling

-60°C~85°C, 4%~98% RH, =0.10dB/km

Manufacturer Part No:

F-TBOM406-500M

Brand:

Dynamix

Product Type:

Tight Buffered Fibre Roll

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

RACDNX0014

Product Model:

F-TBOM406-500M

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
