Tamiya - Universal Gearbox Assembly Kit

PB Tech price

AUD $ 17 .53

$ 17 .53

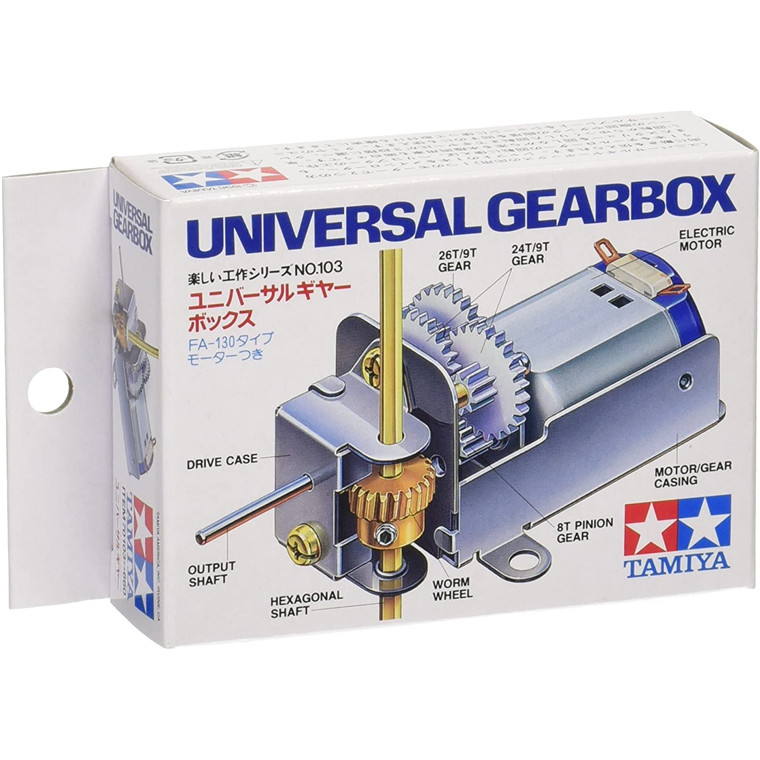

Tamiya - Universal Gearbox Assembly Kit

Brand: Tamiya
MPN: Tamiya 70103
Part #: RCTTMA70103
UPC:

PB Tech price

AUD $ 17 .53

In stock at Supplier

Delivery: Order now and it ships on 17 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Tamiya
MPN: Tamiya 70103
Part #: RCTTMA70103
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

The Universal Gear Box works well in a variety of applications and can be mounted several ways. A hex shaft and a threaded shaft are included to give the builder flexibility in design. The plastic gears and metal gear box are all high quality. A FA-130 motor has also been included.

Tamiya 70103 universal gearbox has a thin, compact, metal frame, making it the smallest Tamiya gearbox. The final two gears are metal, making for a tough output. A worm gear allows for the high gear ratio options of 101:1, 269:1, and 719:1. The main output shaft can be oriented in four different directions, and a small, auxiliary output shaft turns perpendicularly to the main output shaft.

The output shafts are 3 mm hexagonal axles that are 10 cm (about four inches) from tip to tip. The axles work with any of the Tamiya wheels we carry, giving you many options for your robot speed. The low-voltage motors run on 3-6 volts and draw up to a few amps, making them perfect candidates for the DRV8833 motor driver carrier. Motor overheating can be caused by excessive stalling, even at very low voltages. We recommend that you use stall-detection sensors, or just watch your robot, to make sure that it doesn't stall for more than a few seconds at a time.

Specifications

Typical operating voltage:

3 V

Gear ratio options:

101, 269, 719 :1

Free-run motor shaft speed @ 3V:

12300 rpm1

Free-run current @ 3V:

150 mA2

Stall current @ 3V:

2100 mA

Motor shaft stall torque @ 3V:

0.5 oz·in

Manufacturer Part No:

Tamiya 70103

Brand:

Tamiya

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

RCTTMA70103

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
