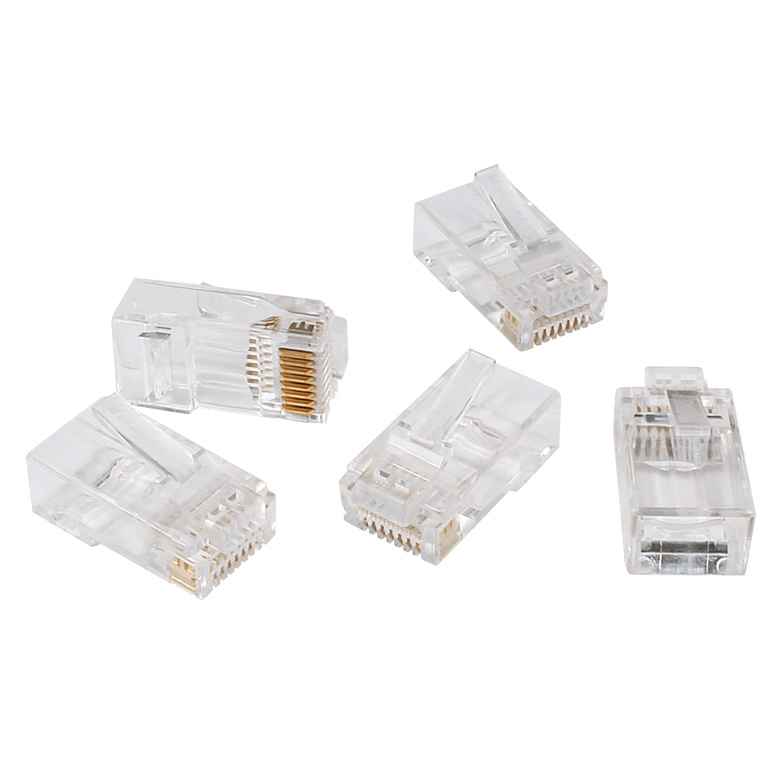

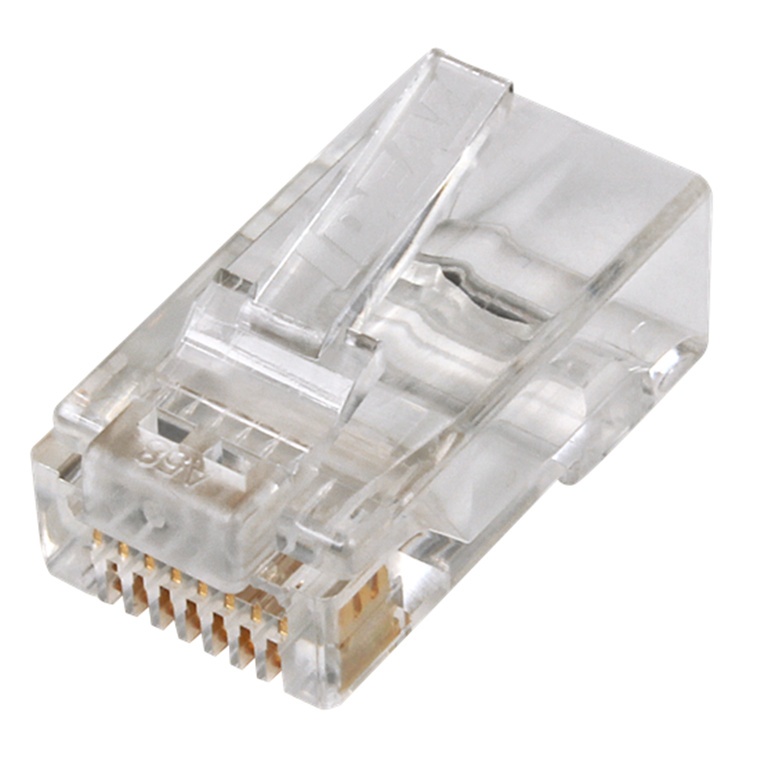

Ideal Industries IDL85-377J CAT6 UTP RJ45 Push Through Plug. Jar of 100. Compatible with 30-496

PB Tech price

AUD $ 95 .55

$ 95 .55

Out of stock

Ideal Industries IDL85-377J CAT6 UTP RJ45 Push Through Plug. Jar of 100. Compatible with 30-496

Brand: Ideal Industries
MPN: IDL85-377J
Part #: SCBIDI4399
UPC:

PB Tech price

AUD $ 95 .55

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Ideal Industries
MPN: IDL85-377J
Part #: SCBIDI4399
UPC:

Be the first to review this product

Cable Length

Returns & Warranty Bulk Quote Print Page

Features

IDEAL INDUSTRIES CAT6 UTP RJ45 Push Through Plug. Jar of 100. Compatible with 30-496

- Feed-Thru 8 position, 8 contact RJ-45 modular plug for 23AWG CAT6, 100O balanced twisted pair 250MHz cables. Compatible with most 24AWG CAT5e cables as well.
- 50 micro-inch gold plating on contact mating area for long-term reliability in connectivity, even after hundreds of mating cycles.
- Complies with industry-standard mechanical and electrical specifications for compatibility with compliant modular jacks and ports.
- Designed to work seamlessly with IDEAL FT-45™ Modular Plug Crimp Tool. Also compatible with crimping (no cutting of conductors) in the IDEAL Telemaster™ crimping tools.
- Three-prong contact design for use with solid or stranded 23-24 AWG insulated copper conductors up to 0.041" in diameter.
- Accepts outer jacket cable diameters up to .280"
- Permanent connection - once crimped they cannot be reused
- Primary strain relief support retains the cable jacket and minimizes conductor movement once crimped.

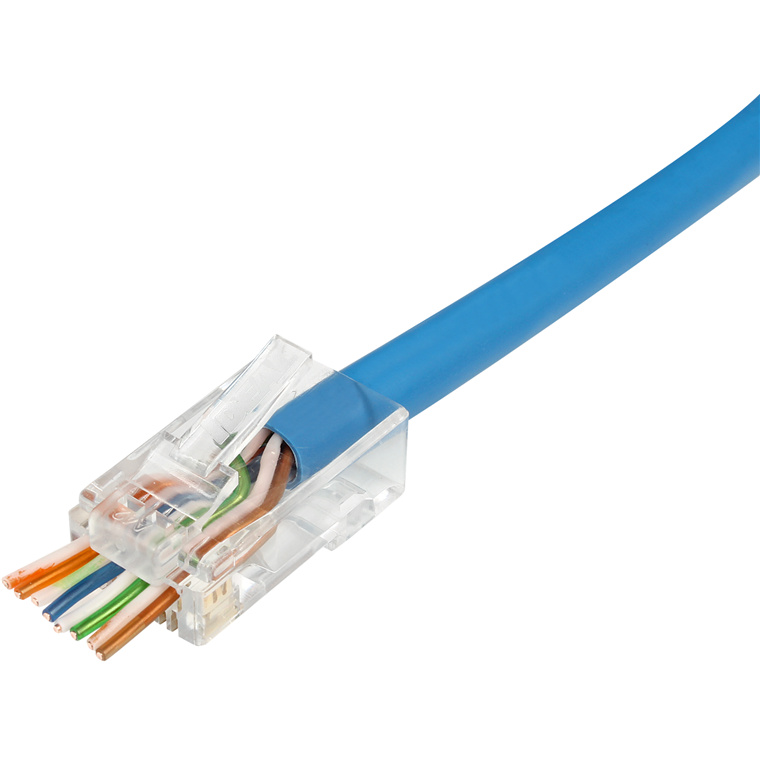

Feed-thru connectors have several additional advantages and improvements to traditional closed-end modular plugs in assembly and termination:

As conductors feed-thru the connector face, all are visibly inserted far enough to be pierced by the pin below - eliminating short wires or opens.

The conductor order can then be verified before the connector is crimped. This eliminates wasted connectors, saves time in assembly, and reduces the chances of finding an error during a wire map test of the cable.

The cable can be pushed or pulled into the connector to ensure that the twisted pairs are within 1/4" of the pin contacts and that the jacket is seated beyond the primary strain relief for a secure connection NEXT performance, minimal untwisted wires.

CAT6 single piece connector, no special assembly or sled & liner required help to simplify the assembly process - no measuring or exact cutting required. Same assembly as CAT5e Feed-Thru, just remove the cable spline if present.

Specifications

Qty in pack

100

Compatible with

30-496

Manufacturer Part No:

IDL85-377J

Brand:

Ideal Industries

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

SCBIDI4399

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
