Mercusys MS110CMP 8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
- Brand: Mercusys
- MPN: MS110CMP
- Part #: SWHMES1101
Product URL: https://www.pbtech.com/product/SWHMES1101/Mercusys-MS110CMP-8-Port-10100-Mbps--2-Port-Gigabi
Features
8-Port 10/100 Mbps + 2-Port Gigabit Desktop Switch with 8-Port PoE+
- 10 Ports: 8× 10/100 Mbps PoE+ Ports + 2× Gigabit non-PoE Ports
- Two Cables in One: With 8 PoE+ ports, transfers data and power on one single cable
- High Power PoE+: Support PoE Power up to 30 W for each PoE port and 115 W for all PoE ports*
- 2× Uplink Ports: MS110CMP provides 2× uplink ports when turning on the isolation mode. One for connecting to the Internet and one for connecting to the NVR.
- Long-Range up to 250 m: Increases PoE transmission distance to 250 m by Extend Mode**
- Isolation Mode: One click to divide traffic for specific ports for stability and security
- Compliant with Powered Devices: Works with IEEE 802.3af/at compliant PDs
- Plug and Play: Simple to use and saves time and effort
- PoE Auto Recovery: Automatically reboots your dropped or unresponsive PoE-powered devices
- Durable Metal Casing: Allows for efficient heat dissipation and long network life
8 PoE+ Ports and 2 Gigabit Ports for Network Deployment
Compliant with the 802.3af/at Powered Devices, each of the 8 PoE+ ports supports a maximum power supply of 30W. 2 Gigabit non-PoE ports are for uplink devices, one of which is used to connect to the internet and the other to the NVR. The total 115 W PoE power budget
No Fuss
No need for electricians; simplify installation and deployment.
Cost-Efficiency
Getting rid of extra cables and power adapters will save money on infrastructure.
Flexibility
Deployment in complex situations is made possible by more placement possibilities.
Power Management
Improves power usage while intelligently protecting your gadgets from power surges.
IEEE 802.3af/at
PoE ports compliant with the 802.3af/at Powered Devices.
Long-Range up to 250 m with Extend Mode**
Extend Mode** increases PoE transmission distance to 250 m. MS110CMP has four long-range ports with PoE+. Turn on the Extend Mode and make it ideal for installing surveillance cameras over wide areas.
Traffic Separation
With only one click, isolation mode divides traffic for ports 1-8 to prevent snooping/tampering and isolate broadcast storms for greater protection. MS110CMP provides 2× uplink ports when turning on the isolation mode.
PoE Auto Recovery
The switch continuously detects data transmission with PoE-powered devices (PD). When a PD stops sending data packets to the switch for an extended length of time, the switch will reboot it automatically.
Plug and Play
MS110CMP offers auto-negotiation(10/100M) and automated MDl/MDIX. There is no additional configuration needed. lt is simple to use, saving time and effort.
Durable and Silent
MS110CMP's durable metal case allows for efficient heat dissipation, excellent signal interference prevention, reliable equipment stability, and a long network life.
Specifications
Hardware
Standards and Protocols
IEEE 802.3x Flow Control
PoE Ports
RJ45
Standard: Compliant with 802.3 af/at Powered Devices
PoE Ports: Port 1- Port 8
PoE Power Budget: 115 W
Dimensions
6.7 × 3.9 × 1.1 in (171 × 98 × 27 mm)
Interfaces
8× 10/100 Mbps Ports + 2× Gigabit Ports, Auto-Negotiation, Auto MDI/MDIX
External Power Supply

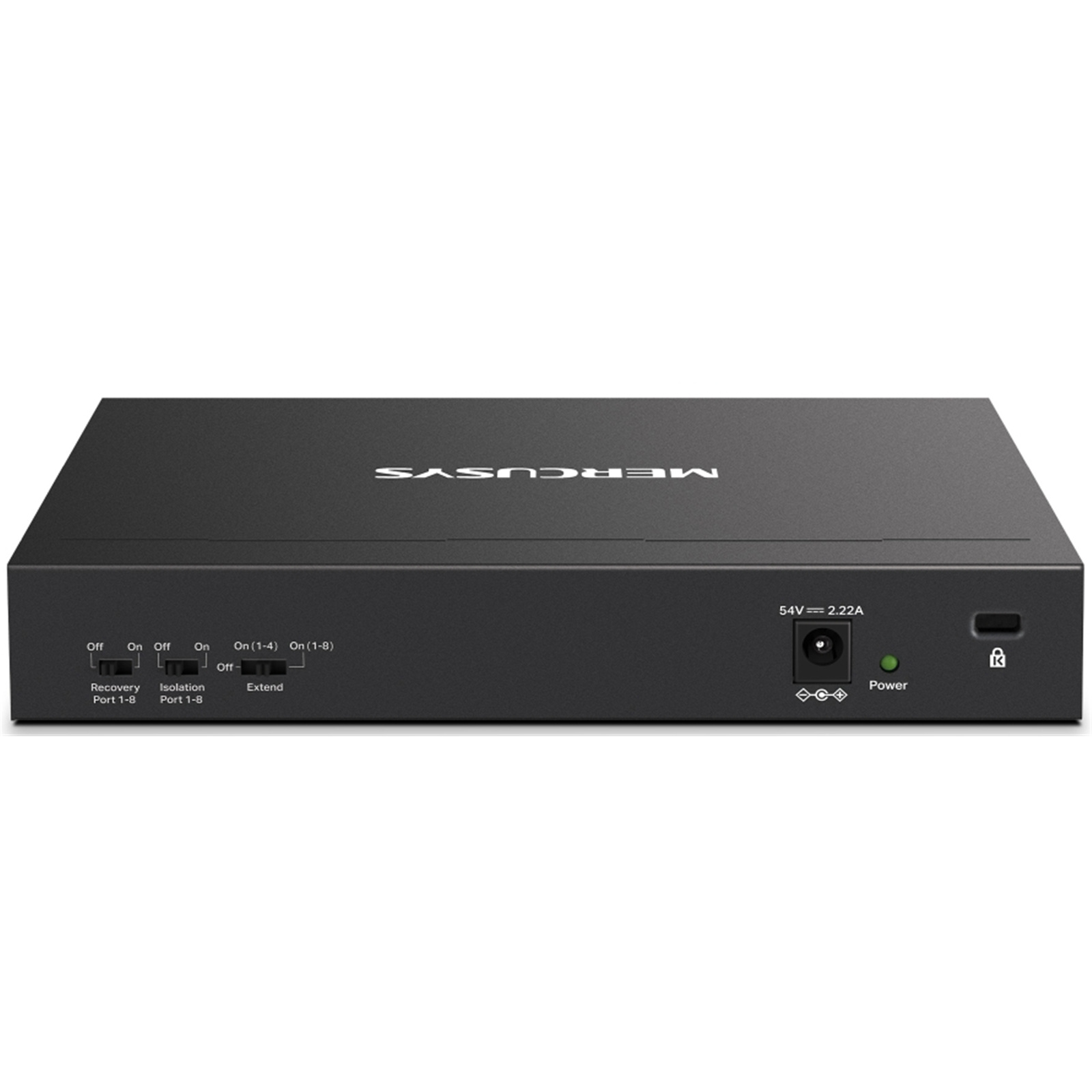

External Power Adapter (Output: 54V/2.2A)
Installation
Desktop / Wall Mount
Data Rates
10/100 Mbps at Half Duplex
20/200 Mbps at Full Duplex
Jumbo Frame
2 KB
Switching Capacity
5.6 Gbps
MAC Address Table
2K
Max Power Consumption
3.79W(220 V / 50 Hz, no PD connected)
130.49W(220 V / 50 Hz, with 115W PD connected
Max Heat Dissipation
12.92 BTH/h (no PD connected)
444.97 BTH/h(with 115W PD connected)
Others
Package Contents
- 10-Port 10/100Mbps Desktop Switch with 8-Port PoE+ (MS110CMP)
- Power Adapter
- Quick Installation Guide
Environment
Operating Temperature: -10?~40? (14?~104?)
Storage Temperature: -40?~70? (-40?~158?)
Operating Humidity: 10%~90% RH non-condensing
Storage Humidity: 5%~95% RH non-condensing
