Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

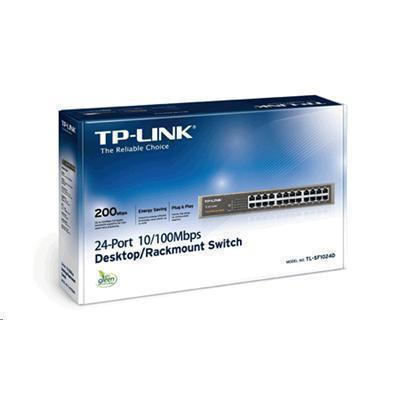

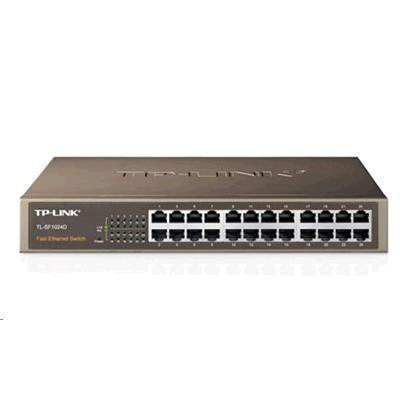

TP-Link TL-SF1024D 24-port 10/100Mbps Desktop/Rackmount Switch

Brand: TP-Link
MPN: TL-SF1024D
Part #: SWHTPL1026
UPC: 845973020828

CLEARANCE

PB Tech price

AUD $ 78 .89

Out of stock

Delivery: Out of stock

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: TP-Link
MPN: TL-SF1024D
Part #: SWHTPL1026
UPC: 845973020828

Be the first to review this product

Form Factor

Desktop

10 Gigabit

10 Gigabit Ports

0 Ports

Management Level

Unmanaged

Number of Ports

24 Ports

PoE Ports

0 Ports

PoE Budget

View full specs

Returns & Warranty Bulk Quote Print Page

Features

Highlights:

- 24 10/100M RJ45 ports.
- Supports MAC address self-learning and auto MDI/MDIX.
- Standard 13-inch steel case.

What This Product Does

The TL-SF1024D Fast Ethernet Switch provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 1000Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024D can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.

High Performance

The metal case design combined with a safety certified internal power supply make the Switch the most robust product which is very cost-effective for a less than 24 user environment. Featuring non-blocking switching architecture, TL-SF1024D forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024D work reliably.

TP-LINK Green Technology

This new generation The TL-SF1024D Fast Ethernet Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 70% of the packaging material can be recycled.

Easy to Use

The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100, or 1000 Mbps) and intelligently adjusts for compatibility and optimal performance.

- Innovative energy-efficient technology saves power up to 75%
- Supports IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode
- Non-blocking switching architecture that forwards and filters packets at full wire-speed for maximum throughput
- 4.8 Gbps Switching Capacity
- Store and forward Switching scheme
- Auto-MDI/MDIX eliminates the need for crossover cables
- Supports MAC address auto-learning and auto-aging
- Auto-negotiation ports provide smart integration between 10Mbps, 100Mbps hardware.
- Plug and Play design simplifies installation
- Fanless design to make sure it works quietly without disturbing your family

Specifications

HARDWARE FEATURES

Standards and Protocols
IEEE802.3, 802.3u, 802.3x, CSMA/CD, TCP/IP

Interface
24 10/100Mbps Auto-Negotiation RJ45 ports (Auto MDI/MDIX)

Network Media
10Base-T: UTP category 3, 4, 5 cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)
100Base-Tx: UTP category 5, 5e cable (maximum 100m)
EIA/TIA-568 100Ù STP (maximum 100m)

Backup Bandwidth
4.8Gbps

External Power Supply
100-240VAC, 50/60Hz

Fan Quantity
Fanless

LED Indicator
Power, Link/Act, 100Mbps

Dimensions ( W x D x H )
11.6×7.1×1.7 in. (294×180×44 mm)

SOFTWARE FEATURES

Basic Function
- Wire-speed Performance
- MAC Address Auto-Learning and Auto-aging
- IEEE802.3x flow control for Full-Duplex Mode and backpressure for Half-Duplex Mode

Port Forwarding
10BASE-T: 14880pps/port
100BASE-TX: 148800pps/port

Transfer Method
Store-and-Forward

MAC Address Table
8k

OTHERS

Certification
FCC, CE

System Requirements
Microsoft Windows 98SE, NT, 2000, XP, Vista or Windows 7, MAC OS, NetWare, UNIX or Linux.

Environment

Operating Temperature:
0~40 (32~104)

Storage Temperature:
-40~70 (-40~158)

Operating Humidity:
10%~90% non-condensing

Storage Humidity:
5%~90% non-condensing

Manufacturer Part No:

TL-SF1024D

Brand:

TP-Link

Product Type:

UPC

845973020828

Product Family:

Shipping Weight:

2 kg

PB Part No:

SWHTPL1026

Product Model:

TL-SF1024D

Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
