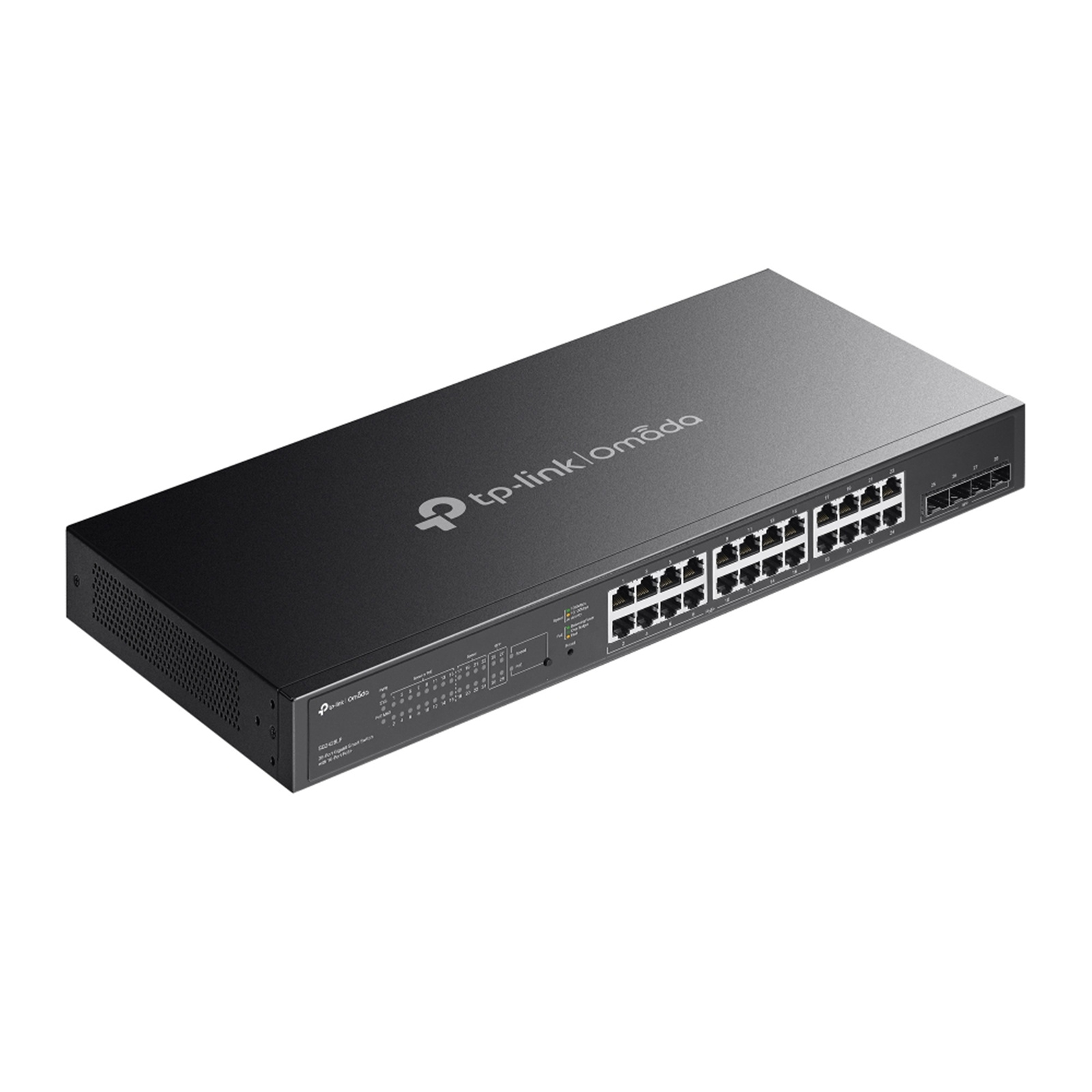

TP-Link Omada SG2428LP 28-Port Gigabit Easy Managed PoE Switch (150W) - SFP x4, 1GbE x8, 1GbE PoE+ x16
TP-Link Omada SG2428LP 28-Port Gigabit Easy Managed PoE Switch (150W) - SFP x4, 1GbE x8, 1GbE PoE+ x16
- Brand: TP-Link
- MPN: SG2428LP
- Part #: SWHTPL24281
- UPC:
- Brand: TP-Link
- MPN: SG2428LP
- Part #: SWHTPL24281
- UPC:
Similar in-stock products available at PB Tech right now
COMBO DEALS: Frequently Bought Together
$60.41
$60.41
$25.00
$25.00
Features
Specifications
Reviews
Accessories
Delivery & Pick-up
Returns & Warranty
Popular Switches
Ubiquiti UniFi USW-Flex-Mini 5-Port Gigabit L2 Managed Switch -...
TP-Link TL-SG1005D 5-Port Gigabit Desktop Switch
TP-Link TL-SG105 5-Port 10/100/1000Mbps Desktop Switch
TP-Link TL-SG108PE 8-Port Gigabit Easy Smart PoE Switch with 4...
Ubiquiti UniFi USW-Lite-8-POE 8-Port Gigabit L2 Managed PoE...
TP-Link Omada SG2428LP 28-Port Gigabit Easy Managed PoE Switch (150W) - SFP x4, 1GbE x8, 1GbE PoE+ x16
- Brand: TP-Link
- MPN: SG2428LP
- Part #: SWHTPL24281
Product URL: https://www.pbtech.com/product/SWHTPL24281/TP-Link-Omada-SG2428LP-28-Port-Gigabit-Easy-Manage
Features
SG2428LP
Omada 28-Port Gigabit Smart Switch with 16-Port PoE+
- 16x Gigabit 802.3af/at PoE+ ports
- 8x Gigabit non-PoE RJ45 ports and 4x Gigabit SFP slots
- 150 W total PoE budget with up to 30 W PoE output per port**
- Centralized cloud management via the web or the Omada app*
- Standalone management via web, CLI, SNMP, and RMON
- Static Routing helps route internal traffic for higher efficiency
- VLAN, ACL, QoS, and IGMP Snooping
- Fanless design for quiet operation
- Durable metal casing and rackmountable design
*These functions require the use of the Omada SDN Controller. Zero-Touch Provisioning requires the use of the Omada Cloud-Based Controller. Go to the Omada Cloud-Based Controller Product List to find all the models supported by the Omada Cloud-Based Controller.
**PoE budget calculations are based on laboratory testing. The actual PoE power budget is not guaranteed and will vary due to client limitations and environmental factors.
Specifications
HARDWARE FEATURES
Interface
- 16× 10/100/1000 Mbps PoE+ RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 8× 10/100/1000 Mbps non-PoE RJ45 Ports (Auto Negotiation/Auto MDI/MDIX)
- 4× Gigabit SFP Slots
Fan Quantity
Fanless
Physical Security Lock
Yes
Power Supply
100-240V AC, 50/60Hz
PoE Ports (RJ45)
- Standard: 802.3at/af compliant
- PoE+ Ports: 16 Ports (up to 30 W PoE Output per Port)
- PoE Power Budget: 150 W**
Dimensions ( W x D x H )
17.3×8.7×1.73 in (440×220×44 mm)
Mounting
Rack Mountable
Max Power Consumption
184.7 W (110V/60Hz) (with 150 W PD connected)
Max Heat Dissipation
628.0 BTU/hr (110V/60 Hz) (with 150 W PD connected)
PERFORMANCE
Switching Capacity
56 Gbps
Packet Forwarding Rate
41.66 Mpps
MAC Address Table
8K
Packet Buffer Memory
4.1 Mbit
Jumbo Frame
9 KB
SOFTWARE FEATURES
Quality of Service
- 802.1p CoS/DSCP priority
- 8 priority queues
- Priority Schedule Mode: SP (Strict Priority), WRR (Weighted Round Robin)
- Queue Weight Config
- Bandwidth Control: Port/Flow-based Rating Limit
- Smoother Performance
- Storm Control: Multiple Control Modes(kbps/ratio), Broadcast/Multicast/Unknown-Unicast Control
L2 and L2+ Features
- 16 IP Interfaces: Support IPv4/IPv6 Interface
- Static Routing: 32 IPv4/IPv6 Static Routes
- DHCP Server
- DHCP Relay
- DHCP Interface Relay
- DHCP VLAN Relay
- DHCP L2 Relay
- Static ARP
- Proxy ARP
- Gratuitous ARP
- Link Aggregation
- Spanning Tree Protocol
- Loopback Detection
- 802.3x Flow Control
- Mirroring
- Device Link Detect Protocol (DLDP)
- 802.1ab LLDP/ LLDP-MED
L2 Multicast
- 511 IPv4, IPv6 shared multicast groups
- IGMP Snooping
- Multicast VLAN Registration (MVR)
- Multicast Filtering
- Limited IP Multicast (256 profiles and 16 entries per profile)
Advanced Features
- Automatic Device Discovery*
- Batch Configuration*
- Batch Firmware Upgrading*
- Intelligent Network Monitoring*
- Abnormal Event Warnings*
- Unified Configuration*
- Reboot Schedule*
VLAN
- VLAN Group: Max. 4K VLAN Groups
- 802.1Q tag VLAN
- MAC VLAN: 12 Entries
- Protocol VLAN
- GVRP
- Voice VLAN
Access Control List
- Support up to 230 entries
- Time-based ACL
- MAC ACL
- IP ACL
- IPv6 ACL
- Combined ACL
- Rule Operation: Permit/Deny
- Policy Action
- Mirroring
- Redirect
- Rate Limit
- QoS Remark
- ACL Rules Binding
- Port Binding
- VLAN Binding
Security
- IP-MAC-Port Binding
- AAA
- 802.1X
- Port based authentication
- MAC (Host) based authentication
- Authentication Method includes PAP/EAP-MD5
- MAB
- Guest VLAN
- Radius authentication and accountability support
- IP/IPv6-MAC Binding
- 512 Binding Entries
- DHCP Snooping
- DHCPv6 Snooping
- ARP Inspection
- ND Detection
- IP Source Guard
- 253 Entries
- Source IP+Source MAC
- IPv6 Source Guard
- 183 Entries
- Source IPv6 Address+Source MAC
- DoS Defend
- Static/Dynamic/Permanent Port Security: Up to 64 MAC addresses per port
- Broadcast/Multicast/Unicast Storm Control: kbps/ratio control mode
- Port Isolation
- Secure web management through HTTPS with SSLv3/TLS 1.2
- Secure Command Line Interface (CLI) management with SSHv1/SSHv2
- IP/Port/MAC-based access control
IPv6
- IPv6 Static Routing and ACL
- IPv6 Dual IPv4/IPv6
- IPv6 Interface
- Multicast Listener Discovery (MLD) Snooping
- IPv6 neighbor discovery (ND)
- Path maximum transmission unit (MTU) discovery
- Internet Control Message Protocol (ICMP) version 6
- TCPv6/UDPv6
- IPv6 applications: DHCPv6 Client, Ping6, Tracert6, Telnet(v6), IPv6 SNMP, IPv6 SSH, IPv6 SSL, Http/Https, IPv6 TFTP
MIBs
- MIB II (RFC1213)
- Bridge MIB (RFC1493)
- P/Q-Bridge MIB (RFC2674)
- Radius Accounting Client MIB (RFC2620)
- Radius Authentication Client MIB (RFC2618)
- Remote Ping, Traceroute MIB (RFC2925)
- Support TP-Link private MIBs
- RMON MIB(RFC1757, rmon 1,2,3,9)
MANAGEMENT
Omada App
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Centralized Management
- Omada Cloud-Based Controller
- Omada Hardware Controller
- Omada Software Controller
Cloud Access
Yes. Requiring the use of Omada Hardware Controller, Omada Cloud-Based Controller, or Omada Software Controller.
Zero-Touch Provisioning
Yes. Requiring the use of Omada Cloud-Based Controller
Management Features
- Web-based GUI
- Command Line Interface (CLI) through telnet
- SNMPv1/v2c/v3
- SNMP Trap/Inform
- RMON (1,2,3,9 groups)
- SDM Template
- DHCP/BOOTP Client
- Dual Image, Dual Configuration
- CPU Monitoring
- Cable Diagnostics
- EEE
- SNTP
- System Log
OTHERS
Certification
CE, FCC
Package Contents
- SG2428LP
- Power Cord
- Installation Guide
- Rackmount Kit
- Rubber Feet
System Requirements
Microsoft® Windows® XP, Vista™ or Windows 7/8/10/11, MAC® OS, NetWare®, UNIX® or Linux.
Environment
- Operating Temperature: 0-40 ? (32-104 ?);
- Storage Temperature: -40-70 ? (-40-158 ?)
- Operating Humidity: 10-90% RH non-condensing
- Storage Humidity: 5-90% RH non-condensing
