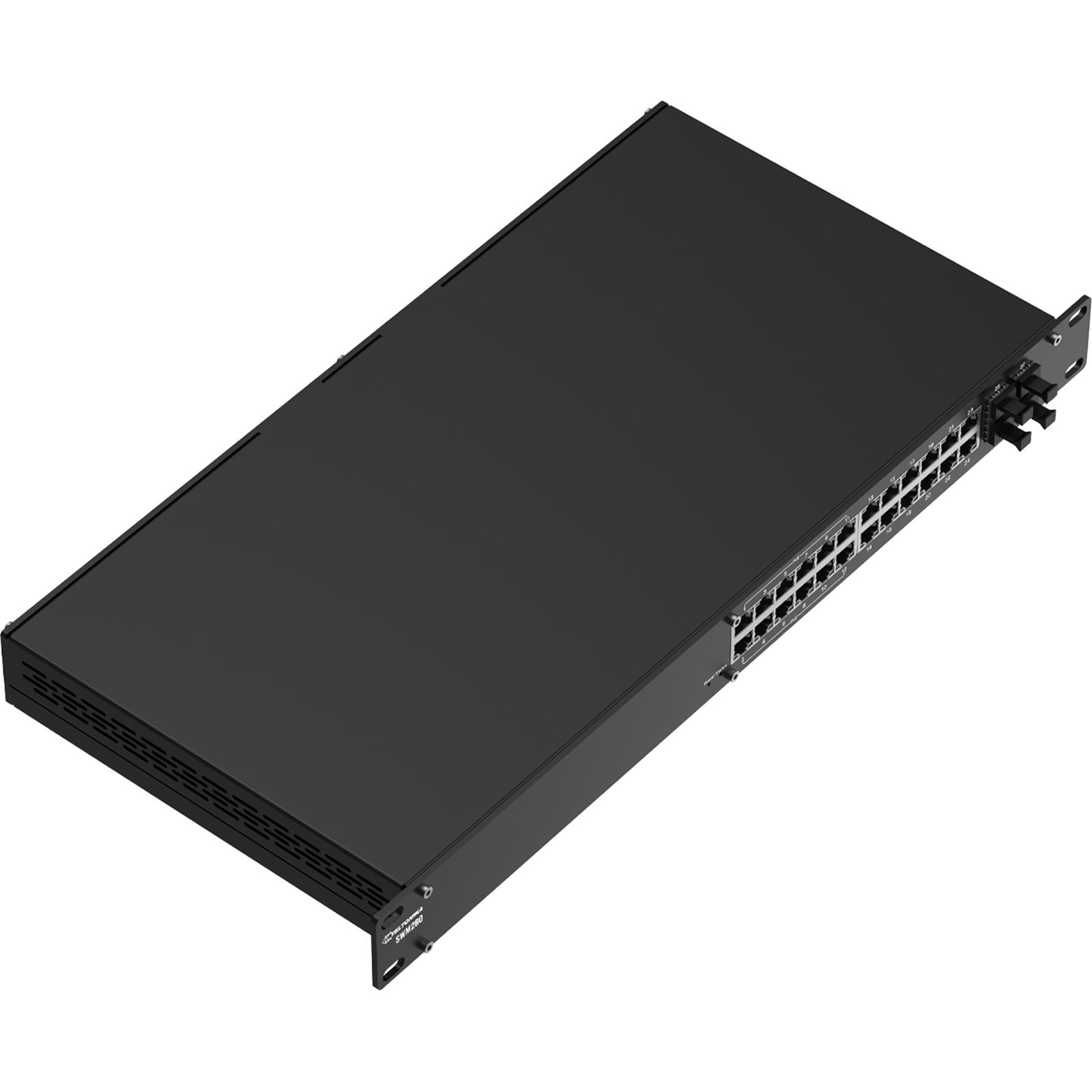

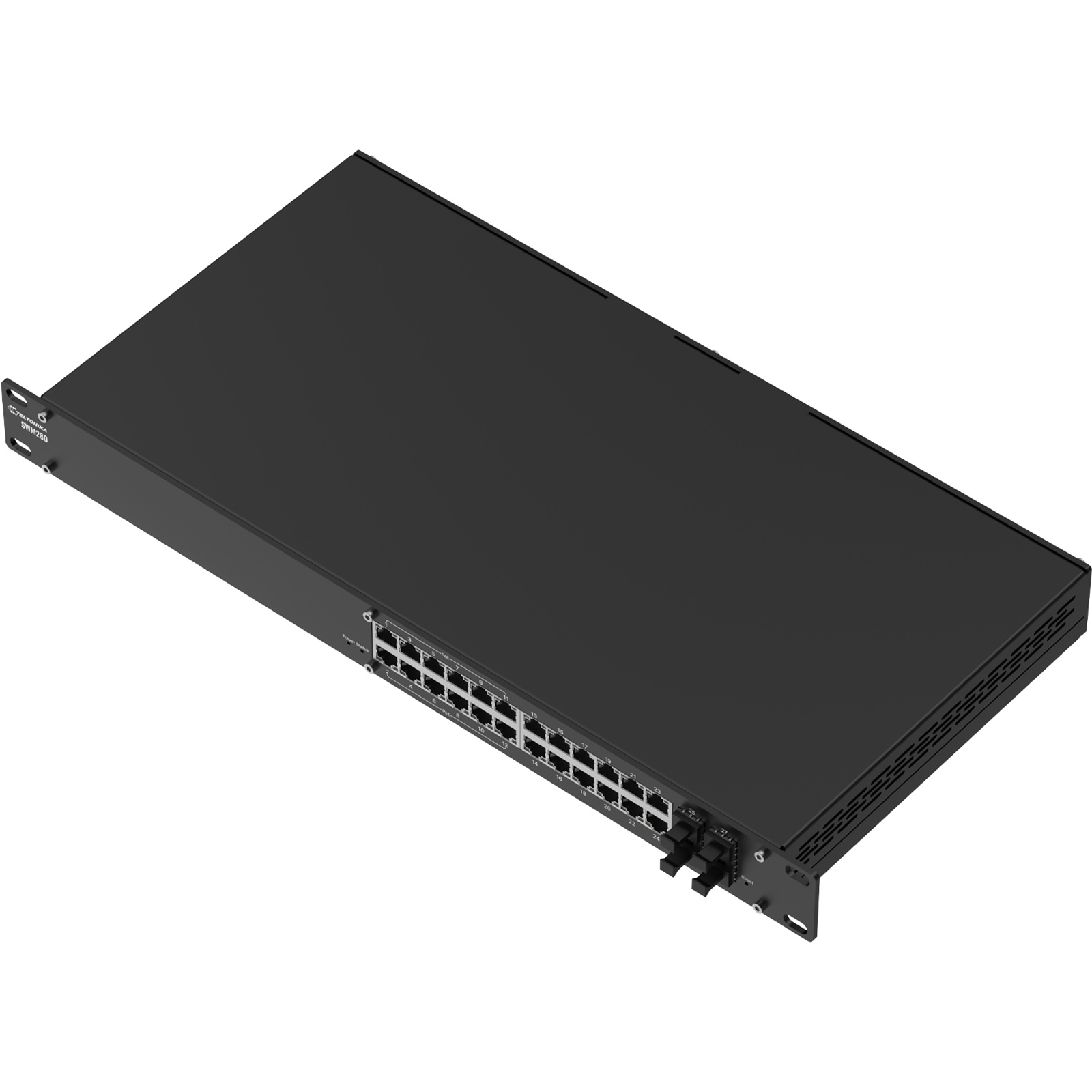

Teltonika SWM280 Ethernet managed switch (Max 300W) GbE x 24 / SFP x 4 / PoE x 12

Ethernet

Fiber

4 x SFP ports

IEEE 802.3 series standards

802.3i, 802.3u, 802.3ab, 802.3x, 802.3az

ETH

Multi-layer managed 24 x ETH ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover

INDUSTRIAL PROTOCOLS

Profinet

Profinet Class B conformance (available with optional order code)

Services

EtherNet/IP

Yes

SNMP V2, V3

Yes

LLDP

Yes

Network Management

802.1p class of service, 802.1x port-based network access control, 802.1Q VLAN

Network

Routing

Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP)

MRP

MRP client role, MRP manager role

L2 features

Loop protection, Forwarding table, VLAN, STP/RSTP

DHCP

DHCP server, DHCP client, DHCP static leases capable of using MAC with wildcards

Port Settings

Enable/disable, link speed control, port isolation, PoE Management, EEE (802.3az) management, Port Mirroring

L3 Features

Static IPv4 routing, static IPv6 routing, DHCPv6 client, static IPv6 address

QoS

QOS

Port priority, DSCP priority, 802.1p priority, TOS

Scheduling method

SP/WFQ/WRR

Bandwidth control

Rate limiting, storm control

Traffic Shaper

Port-based shaping

Diagnostics

Tools

Cable diagnostic, ping, traceroute, nslookup

Ping reboot

Capability to restart PoE in a specific port

Security

Authentication

PAM - preshared key, Radius & TACACS+, IP & login attempts block

VLAN

Port VLAN separation

802.1x

Port-based network access control client and server

MAC filtering support

Allow specific MAC addresses to connect through specified ports, ignore unauthorized or disable the port if an unauthorized MAC address is detected

API

Teltonika Networks Web API (beta) support

Expand your device's possibilities by using a set of configurable API endpoints to retrieve or change data. For more information, please refer to this documentation: https://developers.teltonika-networks.com

System Characteristics

CPU

Realtek, single core, 500MHz, MIPS-4KEc

RAM

128MB, DDR3

FLASH storage

16 MB serial flash

Firmware/Configuration

WEB UI

Update FW from file, check FW on server, configuration profiles, configuration backup

FOTA

Update FW

RMS

Update FW/configuration for multiple devices at once

Keep settings

Update FW without losing current configuration

Factory settings reset

A full factory reset restores all system settings, including the IP address, PIN, and user data to the default manufacturer's configuration

FIRMWARE CUSTOMISATION

Operating system

SwmOS (OpenWrt based Linux OS)

Supported languages

Busybox shell, Lua, C, C++

Development tools

SDK package with build environment provided

Package Manager

The Package Manager is a service used to install additional software on the device

Performance Specifications

Bandwidth (Non-blocking)

56 Gbps

Forwarding rate

83.33 Mpps

Packet buffer

512 KB

MAC address table size

8K entries

Jumbo frame support

10000 bytes

POE OUT

PoE+ ports

Port 1-12

PoE standards

IEEE 802.3af (PoE, Type 1) and IEEE 802.3at (PoE+, Type 2), Alternative A

PoE Max Power per Port (at PSE)

30 W

Total PoE Power Budget (at PSE)

300 W

Power

Connector

C14 connector

Input voltage range

100-240 VAC, 50/60 Hz

Power consumption

Idle: 7.5 W / Max: 325 W / PoE Max: 300

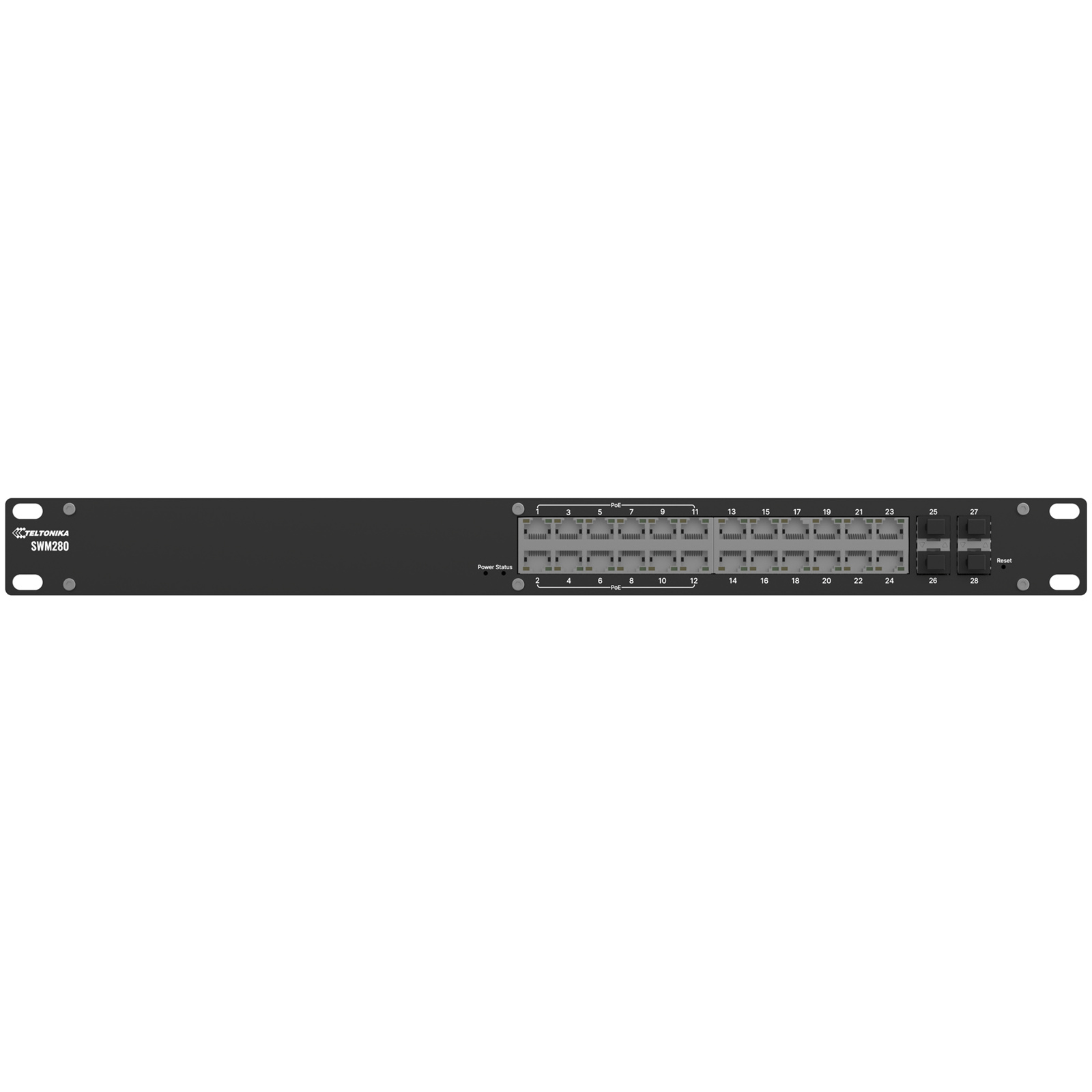

Physical Interfaces

Ethernet

24 x RJ45 ports, 10/100/1000 Mbps

Fiber

4 x SFP ports

Status LEDs

1 x Power LED, 48 x ETH status LEDs, 1 x Status LED, 4 x SFP status LEDs

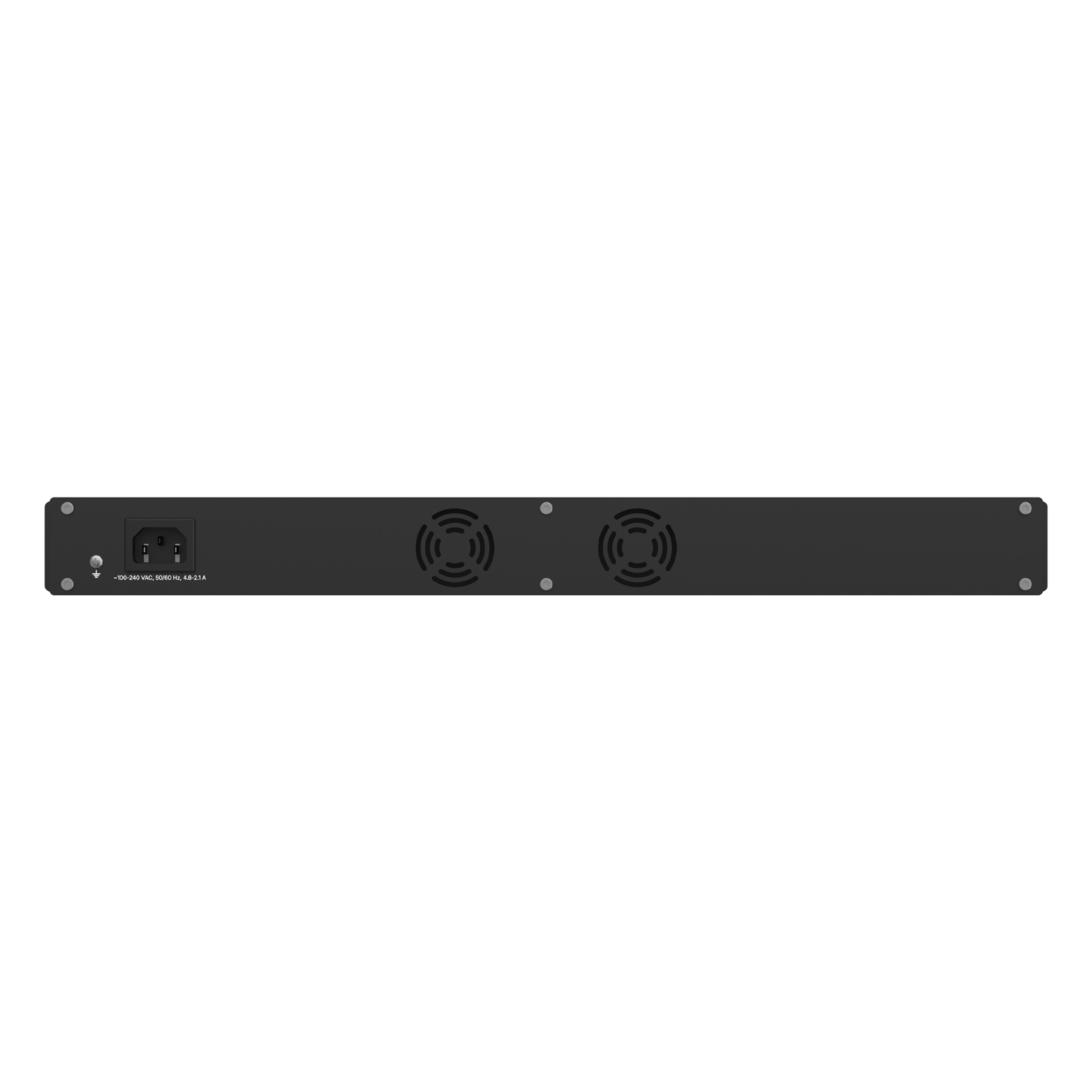

Power

1 x C14 connector

Reset

Software reset button

Other

1 x Grounding screw

Physical Specification

Casing material

Anodized aluminum housing and panels

Dimensions (W x H x D)

483 x 44 x 234 mm

Weight

1842 g

Mounting options

Rack mounting kit

Operating Environment

Operating temperature

0 °C to 50 °C

Operating humidity

10% to 90% non-condensing

Ingress Protection Rating

IP30

Regulatory & Type Approvals

Regulatory

CE, UKCA, CB, RCM, FCC, IC
