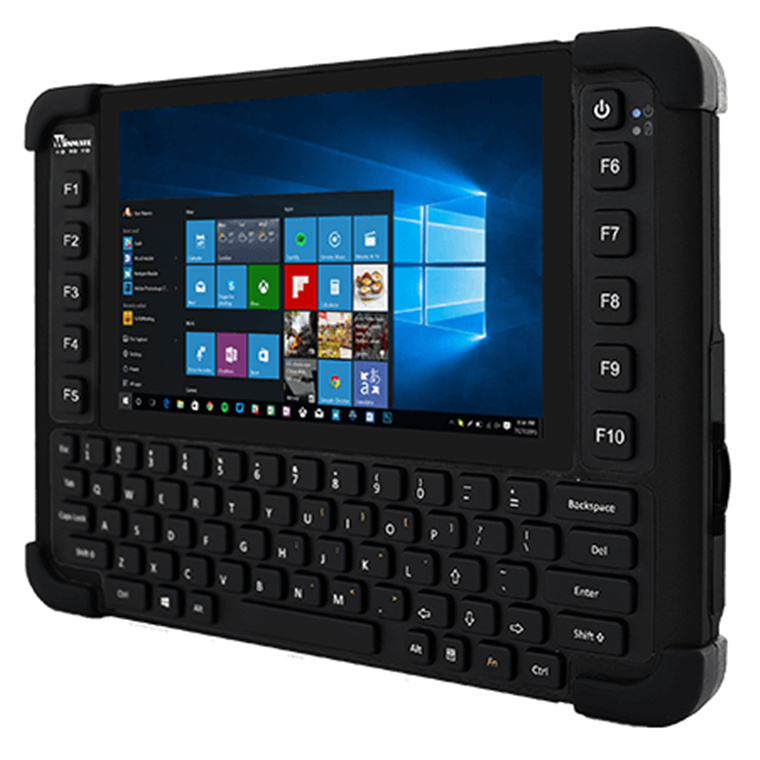

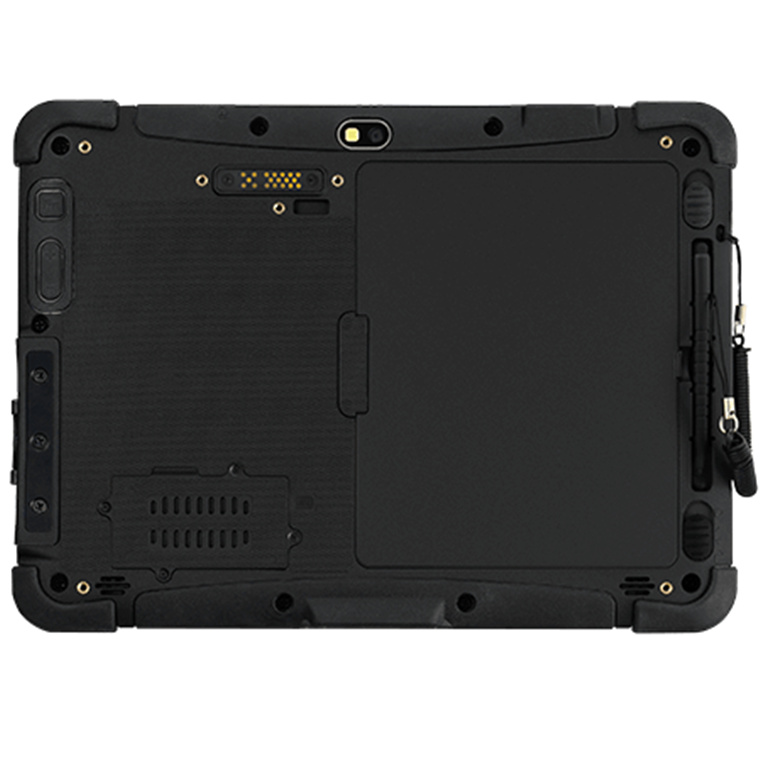

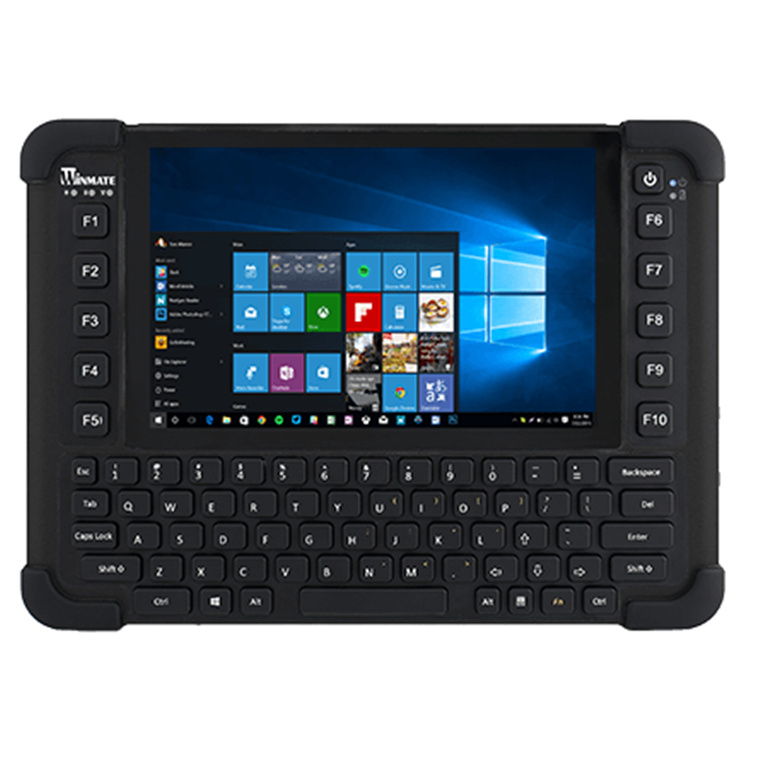

Winmate Rugged Tablet 8 inch Windows Intel N6211, 4G, 128G, PCAP, Win IoT WiFi/BT/GPS 5900 mAh Li-Polymer Battery (2S1P), Front and Rear camera
Features
Winmate 8inch Windows Rugged Tablet PC with Intel® Celeron® N6211
- Intel® Elkhart Lake Celeron® N6211 Processor
- 8" 1280x800 wide viewing angle with PCAP touch
- ISO/IEC 99953 QWERTY Keypad
- USB Type-C port supports power delivery 20V In
- IP65 water and dust proof with MIL-STD-810H rugged housing
- Low power consumption with fanless design
- Removable battery with hotswap function for all day productivity
- Integrated 4G/5G Wireless WWAN (Optional)
Stable Performance with Intel's CPU
The M101EKB uses Intel® Celeron® N6211 processor with a fanless cooling system to provide stable performance and low power consumption. The M101EKB supports the latest Windows® operating system to fulfill increasing industrial application requirements and provides an alternative solution for those between general consumer and extremely rugged applications.
Multi-touch Projected Capacitive Touch
Designed for versatile use in applications such as warehouse logistics, direct store delivery, and law enforcement vehicles, the M101EKB is perfect for those that require vehicle-mount computer capabilities with the portability of a tablet. The minimum 10-point Multi-touch Projected Capacitive Touch technology allows users to switch windows, take snapshots, zoom in, and rotate easily to take full advance of the tablet's interface.
8" Touch Screen and QWERTY Keypad
Along with the 8" projected capacitive (PCAP) multi-touch screen, the M101EKB Rugged Tablet features a waterproof ISO/IEC 9995-3 QWERTY keypad with LED backlight and 10 programmable function keys for easy data input in the field when touch is not convenient to use. The keypad adds a lot of practicality, particularly to those who have to type a lot. Add extra convenience for workers wearing thick gloves.
Real-Time Data and Wireless Connectivity
Real-time data access to the right information is crucial for mobile workers. The M101EKB offers GPS, Wi-Fi 802.11 a/b/g/n/ac, BT 4.0, and optional LTE to enable robust communications anytime and anywhere. With a built-in 5.0 MP camera on the rear side, users can instantly capture photos, videos, and documents.
Rugged Durable Design
The M101EKB is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. to concrete according to Defence standard MIL-STD-810H for operations in some of the harshest environments. With all-around rubber edges and covered I/O ports, the M101EKB rugged tablet features a dust-tight and waterproof enclosure that makes the M101EKB ideal for use in wet and dusty conditions.
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Industrial PCs & IoT
MINIX Fanless MiniPC Z150-0dB Intel N150 8G/256GB, WiFi 6, Win 11...
MINIX MiniPC Z95 Intel N95, 16GB LPDDR5X, 512GB NVMe Dual...
JimiLab Vehicle Trackers VL 512 OBD II Play &Plug Tracker 4G with...
MINIX Fanless MiniPC Z150-0dB Intel N150 16G/512GB, WiFi 6, Win...
MINIX NEO C1 1080P 60Hz USB-C to HDMI Wireless Display Dongle...
Winmate Rugged Tablet 8 inch Windows Intel N6211, 4G, 128G, PCAP, Win IoT WiFi/BT/GPS 5900 mAh Li-Polymer Battery (2S1P), Front and Rear camera
- Brand: Winmate
- MPN: M101EKB
- Part #: TABWMAM101EKB
Product URL: https://www.pbtech.com/product/TABWMAM101EKB/Winmate-Rugged-Tablet-8-inch-Windows-Intel-N6211-4
Features
Winmate 8inch Windows Rugged Tablet PC with Intel® Celeron® N6211
- Intel® Elkhart Lake Celeron® N6211 Processor
- 8" 1280x800 wide viewing angle with PCAP touch
- ISO/IEC 99953 QWERTY Keypad
- USB Type-C port supports power delivery 20V In
- IP65 water and dust proof with MIL-STD-810H rugged housing
- Low power consumption with fanless design
- Removable battery with hotswap function for all day productivity
- Integrated 4G/5G Wireless WWAN (Optional)
Stable Performance with Intel's CPU
The M101EKB uses Intel® Celeron® N6211 processor with a fanless cooling system to provide stable performance and low power consumption. The M101EKB supports the latest Windows® operating system to fulfill increasing industrial application requirements and provides an alternative solution for those between general consumer and extremely rugged applications.
Multi-touch Projected Capacitive Touch
Designed for versatile use in applications such as warehouse logistics, direct store delivery, and law enforcement vehicles, the M101EKB is perfect for those that require vehicle-mount computer capabilities with the portability of a tablet. The minimum 10-point Multi-touch Projected Capacitive Touch technology allows users to switch windows, take snapshots, zoom in, and rotate easily to take full advance of the tablet's interface.
8" Touch Screen and QWERTY Keypad
Along with the 8" projected capacitive (PCAP) multi-touch screen, the M101EKB Rugged Tablet features a waterproof ISO/IEC 9995-3 QWERTY keypad with LED backlight and 10 programmable function keys for easy data input in the field when touch is not convenient to use. The keypad adds a lot of practicality, particularly to those who have to type a lot. Add extra convenience for workers wearing thick gloves.
Real-Time Data and Wireless Connectivity
Real-time data access to the right information is crucial for mobile workers. The M101EKB offers GPS, Wi-Fi 802.11 a/b/g/n/ac, BT 4.0, and optional LTE to enable robust communications anytime and anywhere. With a built-in 5.0 MP camera on the rear side, users can instantly capture photos, videos, and documents.
Rugged Durable Design
The M101EKB is designed to be tough and rugged, withstanding shock, vibration, and drop up to 4 ft. to concrete according to Defence standard MIL-STD-810H for operations in some of the harshest environments. With all-around rubber edges and covered I/O ports, the M101EKB rugged tablet features a dust-tight and waterproof enclosure that makes the M101EKB ideal for use in wet and dusty conditions.
Specifications
Display
Size
8.0 inches
Resolution
1280x800
Type
Projected Capacitive Multi Touch
Panel Brightness
800.0 nits
Contrast Ratio
1500:1
View Angles
80,80,80,80
Bonding
Optical Bonding for Sunlight Viewability
Viewability
Anti-Glare touch treatment
Touch Mode
Support Hand / Gloves and Rain Mode
System Specification
Processor
Intel Celeron N6211 @1.20 GHz (up to 3.00 GHz)
Intel Pentium N6415 @1.20 GHz (up to 3.00 GHz) (Optional)
Memory
4GB LPDDR4
8GB LPDDR4 (Optional)
Storage
128GB SSD
Additional storage available with micro SDXC card slot
256GB SSD (Optional)
512GB SSD (Optional)
Smart Card Reader
Add-on Smart Card Reader (Optional)
Security
Trusted Platform Module (TPM) 2.0
Kensington Lock
Operating System
Windows 10 IoT Enterprise LTSC (64 bit)
Windows 11 IoT Enterprise LTSC (64 bit) (Optional)
WLAN
Support
BT
Support
WWAN
4G (Optional)
5G (Optional)
GNSS
GPS, GLONASS, Galileo, BeiDou
RFID
HF RFID 13.56 MHz reader (Optional)
add-on UHF RFID Reader (Optional)
Sensors
Light sensor/ G-sensor / Gyro
Environment
Operating Humidity
10% to 90% RH, non-condensing
Operating Temperature
-20°C to 60°C
Storage Temperature
-30°C to 70°C (-22°F to 158°F)
Shock
MIL-STD-810H Method 516.8 Procedure I
Vibration
MIL-STD-810H Method 514.8 Procedure I
Drop
MIL-STD-810H Method 516.8, 4 ft
IP rating
IP65
Certification
Certification
CE, FCC
Mechanical
Dimension
271.8 x 198.2 x 22 mm
Weight
1.35 kg (3 lbs)
Cooling System
Fanless Design
Accessory
Accessory
Adapter and Power Cord
Capacitive Stylus
Standard Battery
Optional Accessory
Desk Dock (Optional)
Vehicle Dock (without VGA output) (Optional)
Vehicle Cradle (Optional)
Battery Charger (Optional)
Smart Card Reader (Optional)
High Capacity Battery (Optional)
Hand Strap (Optional)
VESA Mount Kit (Optional)
Shoulder Strap (Optional)
Carry Bag (Optional)
Vehicle Charger (Optional)
IO Ports
USB Port
1 x USB 3.0 (Type A), 1 x USB 3.0 (Type-C support Power Delivery 20V In)
Video
1 x Micro HDMI Output (Optional)
Audio
1 x Audio combo 3.5mm audio combo jack (Mic in or Line Out)
Dual Digital Mic With Noise Cancellation
Dual Speaker
SD Card Slot
1 x Micro SD Card slot (Support SDXC)
SIM Card Slot
1 x SIM card slot
Expansion Port
1 x Expansion connector (Optional)
Indicator
4x LED Indicator for Power, Battery, HDD, RF status
Docking Connector
1 x 19-pin docking connector
Power
Battery
Hot-swappable 7.7V, typ. 5900 mAh Li-Polymer Battery (2S1P)
7.4V, typ. 10280 mAh Li-Polymer Battery (2S2P, optional)
Battery Operating Time
Standard. Battery: 8 hours
High Capacity Battery: 13 hours
Power Rating
19V DC
Adapter
100-240V, 50-60Hz / 19V DC
Camera
Rear Camera
8MP Rear Camera with auto-focus and LED light
Barcode Scanner
Barcode Scanner
1D/2D Barcode Reader (Optional)
Control
Button
Physical Buttons:
ISO/IEC 9995-3 QWERTY Keypad , IP65 water and dust proof, with LED backlight (keypad dimensions : min. 10x10mm)
1 x Power, 10 x Function Keys (programmable by Hottab)
Security Function
SOTI MobiControl
SOTI MobiControl Compliance
Kensington Lock
Kensington Lock
