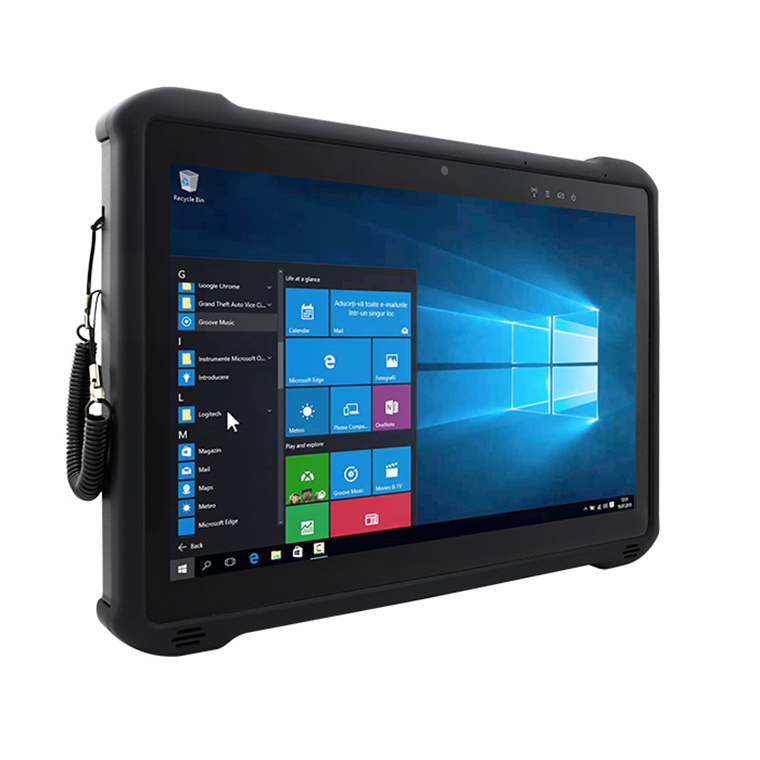

Winmate M116P Rugged Tablet 11.6 P-Cap touch 4G/64GB/Win 10 IoT 1920x1080 Intel Apollo Lake with WiFi/BT/GPS GNSS: GPS, GLONSS,with 7.7V typ. 5900 mAh Li-Polymer Battery Front :2M Rear :8M

Normally $3,513.14
Normally $3,513.14
You save $194
You save $194
AUD $ 3,318 .29
$ 3,318 .29
$3,318.29  +GST
$3,318.29  inc GST

Winmate M116P Rugged Tablet 11.6 P-Cap touch 4G/64GB/Win 10 IoT 1920x1080 Intel Apollo Lake with WiFi/BT/GPS GNSS: GPS, GLONSS,with 7.7V typ. 5900 mAh Li-Polymer Battery Front :2M Rear :8M

  • Brand: Winmate
  • MPN: M116P
  • Part #: TABWMAM116P
  • UPC:
Normally $3,513.14
Normally $3,513.14
You save $194
You save $194
PB Tech price
AUD $ 3,318 .29 $ 3,318 .29


Delivery: Order now and it ships on 16 May
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$3,318.29  +GST
$3,318.29  inc GST

Features

- Intel® Pentium® N4200 1.1GHz (Turbo up to 2.5 GHz)
- 11.6" 1920 x 1080 LED panel with direct optical bonding
- IP65 water and dust proof with MIL-STD-810G rugged housing
- Optional Integrated 1D/2D Barcode Reader and HF RFID for data collection
- Removable battery with hot-swap function for all day productivity
- WiFi, BT, 4G LTE, GPS
- Optional GigaLAN Port

Specifications

Display Specifications

Size

11.6"

Brightness

850 nits

Resolution

1920 x 1080 Full HD

Contrast Ratio

1000:1

Touch

Projected capacitive multi-touch

Viewing Angle

89/89/89/89

Panel Viewability

Direct optical bonding for sunlight viewability

System Specification

Processor

Intel® Pentium® N4200 1.1GHz (Turbo up to 2.5 GHz)

Memory

4GB LPDDR4 RAM 1 (up to 8GB)

Storage

128GB SSD (options up to 512GB)
Additional storage available with micro SDXC card slot with micro SDXC card slot

Wireless Communication

WLAN

802.11 a/b/g/n/ac WiFi

BT

BT 5.0

WWAN

Optional 4G LTE

GPS

GPS, GLONASS

I/O Connectors

Audio

Built-in dual digital mic with noise cancellation
2 x 1 watt front-facing speakers

I/O

1 x 19-pin docking connector
1 x micro HDMI
1 x USB 3.0 (Type A), 1 x USB 3.0 (Type C)
1 x Power Jack
1 x Micro SDXC slot
1 x Audio combo connector (Mic in or Line Out)
1 x RJ45-10/100/1000 GigaLAN port (Optional)
1 x Expansion connector for USB 2.0/ Full RS232 (Optional)
1 x Micro SIM card slot
1 x Mini PCIe for WWAN Module

In front Control

Control Button

1 x Power
3 x function keys

LED indicator

Power, Battery, HDD, RF

Mechanical and Environment

Dimensions (W x L x H)

300.67 x 201.97 x 22.5 mm

Net Weight (kg)

1.35 kg

Operating Temperature

-20°C to 60°C (AC mode), -10°C to 50°C (Battery mode)

Storage Temperature

-30°C to 70°C (-22°F to 158°F)

IP Proof

IP65

Operating Humidity

10% to 90% RH, non-condensing

Certifications

CE, FCC

Shock

MIL-STD-810G Method 516.6 Procedure I

Vibration

MIL-STD-810G Method 514.6 Procedure I

Drop

MIL-STD-810G Method 516.6, 4 ft

Power Management

Power Input

19V DC

Battery

Hot-swappable 7.7V typ. 5900 mAh Li-Polymer Battery (2S1P)
Optional 7.4V typ. 10280 mAh Li-Polymer Battery (2S2P)

Adapter

100-240V, 50-60Hz (19V DC)

Battery Operating Time

Std. Battery: 8 hours

Product Specification

OS

Windows 10 IoT Enterprise (64 bit)

Smart Card Reader

Optional Smart Card Reader

RFID

Optional HF RFID reader 13.56 MHz

Barcode

Optional 1D/2D Barcode Reader

Camera

2MP front camera
8MP rear camera with autofocus and LED light

Security

Security

Trusted Platform Module (TPM) 2.0
Kensington Lock

Mobile Device Management

SOTI Mobicontrol compatible

Manufacturer Part No:
M116P
Brand:
Product Type:
4G/64GB/Win 10 IoT
UPC
-
Product Family:
M116P Rugged Tablet
Shipping Weight:
6.557 kg
PB Part No:
TABWMAM116P
Product Model:
11.6 P-Cap touch
Warranty: 12 months *
