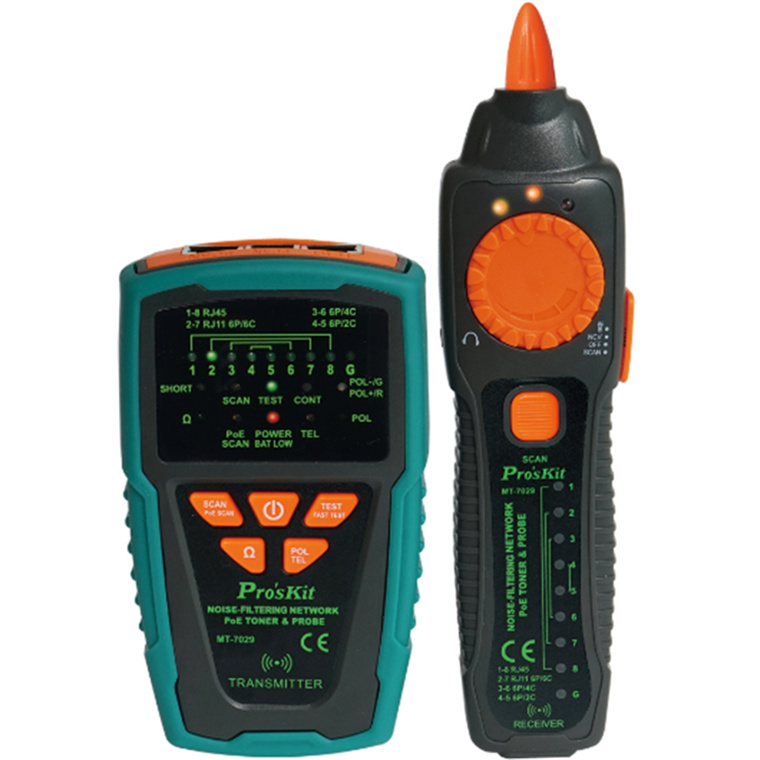

ProsKit MT-7029N Noise-Filtering Network PoE Toner & Probe Kit
ProsKit MT-7029N Noise-Filtering Network PoE Toner & Probe Kit
- Brand: ProsKit
- MPN: MT-7029N-SH
- Part #: TOLPSK0169
- UPC:
What PB Tech customers are saying about this product...
See More Reviews"Yes, it looks cheap and needs to have the adjustment wheel on full to discover working cables, however it works well and it's a lifesaver when you need to find the right cable in a ...view more"
"Needed a tool to trace pre-wired cables around the house and ...view more"
"working as expected , scanning, testing etc all is working . The plastic construction tho and sensitivity needs to be upped but for the price this is a great buy"
COMBO DEALS: Frequently Bought Together





Brother Genuine TZe-221 Labelling Tape Black on White, 9mm wide 8m long for PTH110, PT-D410,...
$21.99
$21.99


Dynamix RJ-45-JAR 100x RJ-45 8P8C Modular RJ45 Plug (Flat, Stranded) - 50micron (Packaged in Jars...
$19.93
$19.93
Features
Specifications
Reviews
Delivery & Pick-up
Returns & Warranty
Popular Testing & Measurement Tools





ProsKit MT-7029N Noise-Filtering Network PoE Toner & Probe Kit
- Brand: ProsKit
- MPN: MT-7029N-SH
- Part #: TOLPSK0169

Product URL: https://www.pbtech.com/product/TOLPSK0169/ProsKit-MT-7029N-Noise-Filtering-Network-PoE-Toner
Features
- Strong Anti-Noise Availability
- PoE Switches & STP Wire Tracing up to 3KM
- Telephone Line Status/Polarity Indication
- Cable Mapping & Status Indication up to 300M
Strong Anti-Noise Availability
- With EMI filters to eliminate high frequency noise allows you to track wire easily and quickly
Telephone Line Status/Polarity Indication
- Identify the telephone line polarity easily and detect status such as severed lines, off-hook condition, or incoming call ringing
PoE Switches & STP Wire Tracing up to 3KM
- Ideal for tracking live Ethernet cables as well as STP cable and determining continuity of network
Cable Mapping & Status Indication up to 300M
- Fast/Slow scan function.
- Display the result of pin to pin cable mapping
- Display cable status and troubleshoot wiring
- for continuity, shorts, opens and crossover
Non- Contact Voltage Detecting
Specifications
MT-7029 Transmitter
Tone frequency
130 KHz
Max. distance of transmission & cable map
3km & 300m
Tone mode
Single tone
Compatible connectors
for RJ45(8 pin)/RJ11(6 pin) cable map test
RJ45 SCAN socket: for RJ45 locating Individual wire pairs
RJ11 SCAN socket: for RJ11 locating Individual wire pairs
Cable types tested
RJ45 Lan cable Cat 5 / 5e / 6(UTP/ STP) RJ11/12 Telephone cable Cat 3 (6P/2C/4C/6C)
Continuity test
1 LED (<=300), Coaxial cable & normal solid/
Stranded wire by alligator clips patch cord
Cable map & shielded indication
8 LEDs Fast/slow dual speed, 1 LED
Phone line polarity indication
1 Dual color LED
Telephone line status indication
1 Dual color LED
Network scan & POE scan
1 LED & 1 LED
EMI filter(network scan & PoE scan)
YES
Other function
Live telecommunication equipment test and router test,
Voltage protection DC 48V, auto power off, low battery display
Battery type
DC 9V (NEDA 1604/6F22) xl pcs (not included)
Dimension (LxWxD)
138x80x35 mm
MT-7029 Receiver
Frequency
130KHZ
Compatible connectors
RJ45(8 Pin)/RJ11(6 Pin)
Signal status indication
1 dual color LED & buzzer, building ear jack
Cable map & shielded indication
8 LEDs & 1 LED
NCV indication
1 LED (AC90~1000V)
LED illumination
1 LED
Battery type
9V DC (NEDA 1604/6F22) xl pc (not included)
Dimension (LxWxD)
203x50x32 mm

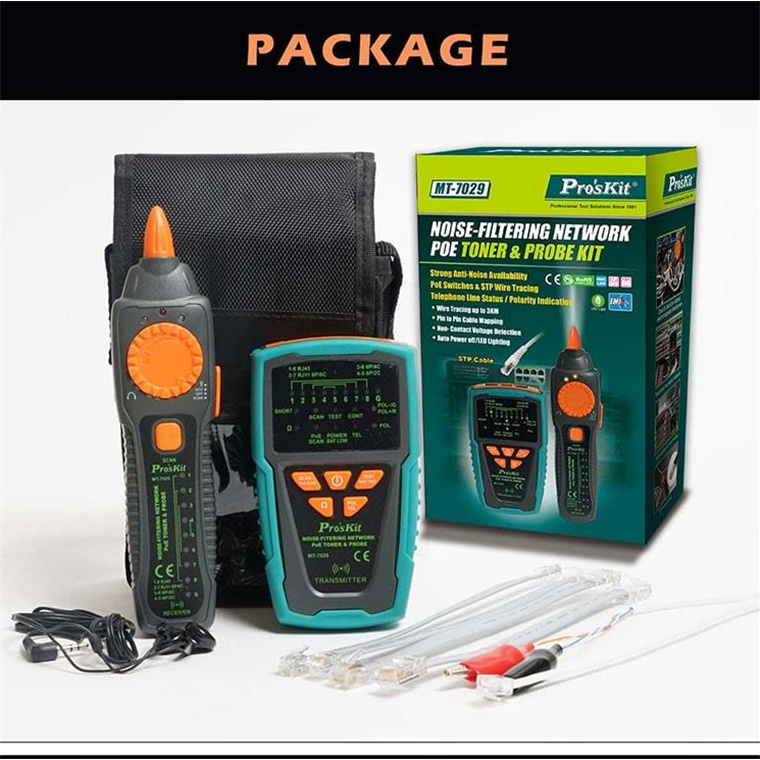

Accessories
RJ45 cable patch cords
RJ11 cable patch cords RJ11 to alligator clips patch cord, earphone, storage bag, user manual
