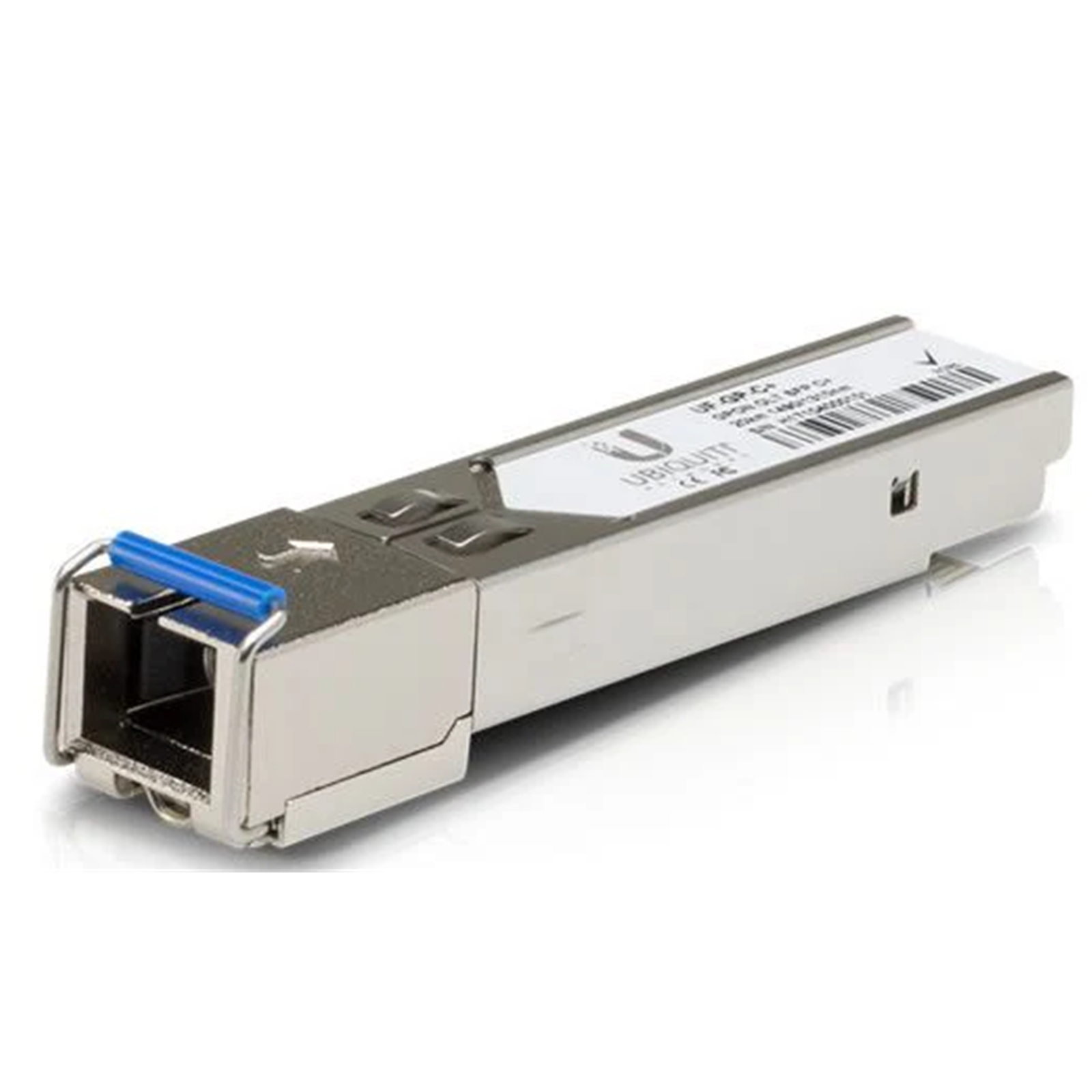

Ubiquiti UFiber GPON OLT Class C+ SFP Module
- Brand: Ubiquiti
- MPN: UF-GP-C+
- Part #: UNC001006536

Product URL: https://www.pbtech.com/product/UNC001006536/Ubiquiti-UFiber-GPON-OLT-Class-C-SFP-Module
Features
Ubiquiti UFiber GP-C+. will increase the capacity of your UFiber OLT.
This product will help connect to new customers quickly. This is a fiber solution that anyone can deploy.
- Support ITU-T G.984.2 GPON OLT C+ application
- SFP package with SC/UPC receptacle optical interface
- Single +3.3V power supply
- Single fiber bi-directional data links with symmetric 2.488Gbps Tx and 1.244Gbps Rx
- 1490nm continuous-mode transmitter with DFB LD
- 1310nm burst-mode receiver with APD-TIA
- 2-wire interface for integrated digital diagnostic Monitoring
- Receiver RESET, Signal Detect, RSSI function indication (RESET, RX_SD, RSSI)
- RoHS6 compliance
- 20-Pack
Specifications
Supported Media
Single-Mode Fiber
Connector Type
(1) SC/UPC
TX Wavelength
1490 nm
RX Wavelength
1310 nm
TX Power Range
3 to 7 dBm
RX Power Range
-30 to -12 dBm
Downstream Data Rate
2.5 Gbps
Upstream Data Rate
1.25 Gbps
Cable Distance
20 km
Operation case temperature
-40~85°C for industrial and 0~70°C for commercial
