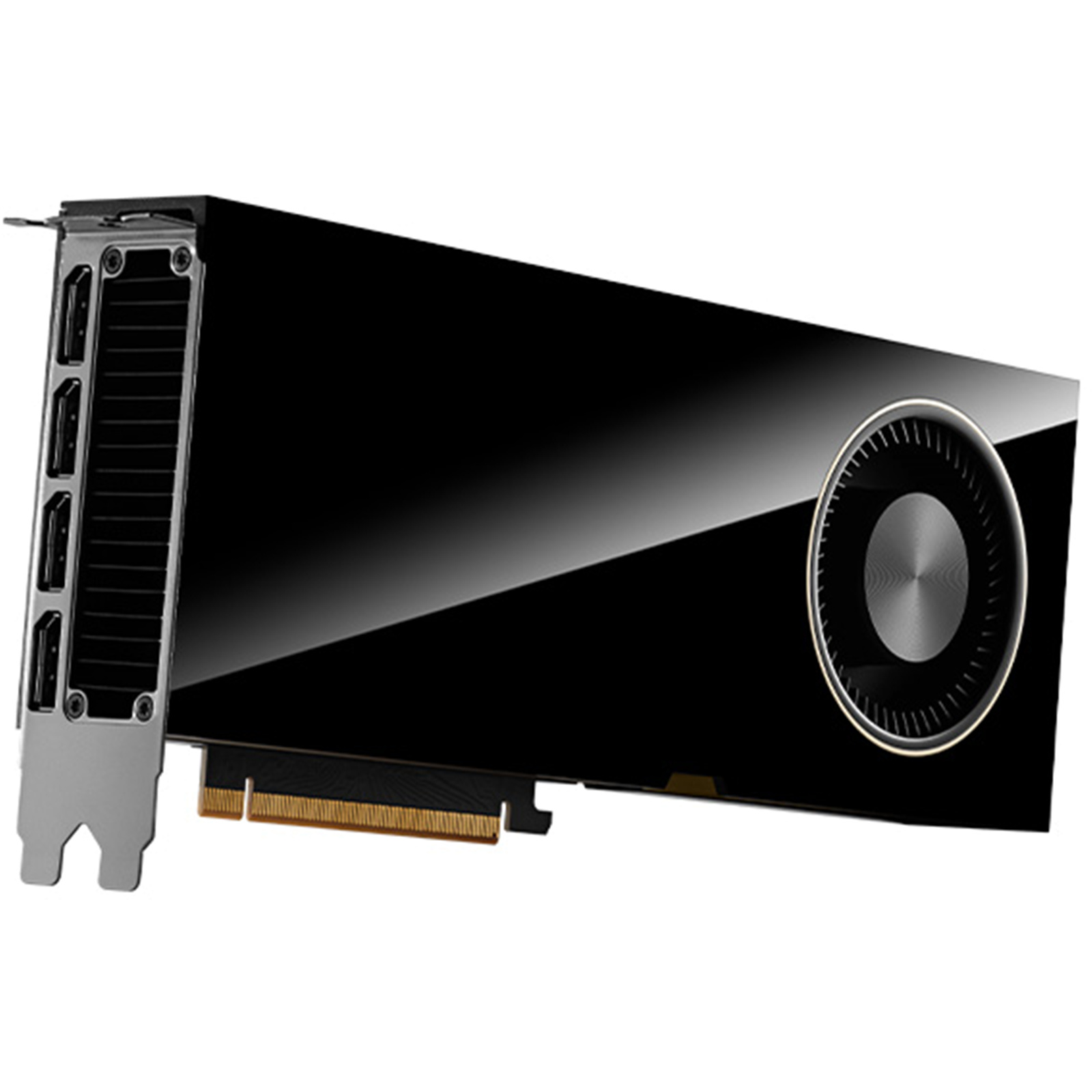

Leadtek NVIDIA RTX A6000 ADA 48GB GDDR6 WorkStation Graphics Card

Performance for Endless Possibilities

The NVIDIA RTX™ 6000 Ada Generation delivers the features, capabilities, and performance to meet the challenges of today's professional workflows. Built on the NVIDIA Ada Lovelace GPU architecture, the RTX 6000 combines third-generation RT Cores, fourth-generation Tensor Cores, and next-gen CUDA® cores with 48GB of graphics memory for unprecedented rendering, AI, graphics, and compute performance. NVIDIA RTX 6000-powered workstations provide what you need to succeed in today's ultra-challenging business environment.

Performance Features

NVIDIA Ada Lovelace Architecture
NVIDIA RTX™ 6000 Ada Generation is the most powerful workstation GPU offering high-performance, real-time ray tracing, AI-accelerated compute, and professional graphics rendering. Building upon the major SM enhancements from the Ada Lovelace GPU, the NVIDIA Ada Lovelace architecture provides more cores, higher clocks, and a larger L2 cache for more performance to enhance ray tracing operations, tensor matrix operations, and frame rates with DLSS 3.0.

NVIDIA CUDA Cores
The NVIDIA Ada Lovelace architecture-based CUDA Cores offer more than 2X the single-precision floating point (FP32) throughput compared to the previous generation, providing significant performance improvements for graphics workflows such as 3D model development and compute for workloads such as desktop simulation for computer-aided engineering (CAE). The RTX 6000 enables two FP32 primary data paths, doubling the peak FP32 operations.

Third-Generation RT Cores
Incorporating 3rd generation ray tracing engines, NVIDIA Ada Lovelace architecture-based GPUs provide incredible ray-traced rendering performance. A single RTX 6000 board can render complex professional models with physically accurate shadows, reflections, and refractions to empower users with instant insight. Working in concert with applications leveraging APIs such as NVIDIA OptiX, Microsoft DXR, and Vulkan ray tracing, systems based on the RTX 6000 will power truly interactive design workflows to provide immediate feedback for unprecedented levels of productivity. The RTX 6000 features up to 2X faster ray-triangle intersection throughput compared to the previous generation.

Fourth-Generation Tensor Cores
Specialized for deep learning matrix multiply and accumulate math operations at the heart of neural network training and inferencing functions, the RTX 6000 includes enhanced Tensor Cores that accelerate more data types and still support the Fine-Grained Structured Sparsity feature that delivers more than 2X throughput for tensor matrix operations compared to the previous generation. New Tensor Cores will accelerate new FP8 precision modes. Independent floating-point and integer data paths allow more efficient execution of workloads using a mix of computation and addressing calculations.

Higher Speed GDDR6 Memory
Built with 48GB GDDR6 memory delivering up to 25% greater throughput for ray tracing, rendering, and AI workloads than the previous generation. The RTX 6000 provides the industry's largest graphics memory footprint to address the largest datasets and models in latency-sensitive professional applications.

PCIe Gen 4
The RTX 6000 supports PCI Express Gen 4, which provides double the bandwidth of PCIe Gen 3, improving data-transfer speeds from CPU memory for data-intensive tasks like AI and data science.

Error Correcting Code (ECC) on Graphics Memory
Meet strict data integrity requirements for mission-critical applications with uncompromised computing accuracy and reliability for workstations.

5th Generation NVDEC Engine
NVDEC is well suited for transcoding and video playback applications for real-time decoding. The following video codecs are supported for hardware-accelerated decoding: MPEG-2, VC-1, H.264 (AVCHD), H.265 (HEVC), VP8, VP9, and AV1 video formats. Video encoding at 8K/60 will be achievable for professional video editing.

8th Generation NVENC Engine
NVENC can take on the most demanding 4K or 8K video encoding tasks to free up the graphics engine and the CPU for other operations. The RTX 6000 provides better encoding quality than software-based x264 encoders. The RTX 6000 incorporates AV1 video encoding which is 40% more efficient than H.264 encoding for 4K HDR video. AV1 will provide better quality at the same bitrate bandwidth.

Graphics Preemption
Pixel-level preemption provides more granular control to better support time-sensitive tasks such as VR motion tracking.

Compute Preemption
Preemption at the instruction level provides finer-grain control over compute tasks to prevent long-running applications from either monopolizing system resources or timing out.

Display Features

NVIDIA Mosaic Technology
Transparently scale the desktop and applications across up to 4 GPUs and 16 displays from a single workstation while delivering full performance and image quality.

DisplayPort 1.4a
Support up to four 5K monitors @ 60Hz, or dual 8K displays @ 60Hz per card. The RTX 6000 supports HDR color for 4K @ 60Hz for 10/12b HEVC decode and up to 4K @ 60Hz for 10b HEVC encode. Each DisplayPort connector can drive ultra-high resolutions of 4096x2160 @ 120 Hz with 30-bit color.

NVIDIA RTX™ Desktop Manager
Gain unprecedented end-user control of the desktop experience for increased productivity in a single large display or multi-display environments, especially in the current age of large, widescreen displays.

NVIDIA Quadro Sync II
Synchronize the display and image output of up to 32 displays3 from 8 GPUs (connected through two Sync II boards) in a single system, reducing the number of machines needed to create an advanced video visualization environment.

Frame Lock Connector Latch
Each frame lock connector is designed with a self-locking retention mechanism to secure its connection with the frame lock cable to provide robust connectivity and maximum productivity.

OpenGL Quad Buffered Stereo Support
Provide a smooth and immersive 3D Stereo experience for professional applications.

Ultra-High-Resolution Desktop Support
Get more Mosaic topology choices with high resolution displays devices with a 32K Max desktop size.

Professional 3D Stereo Synchronization
Robust control of stereo effects through a dedicated connection to directly synchronize 3D stereo hardware to an NVIDIA RTX professional graphics card.

Software Support

NVIDIA Virtual GPU Software
Support for NVIDIA virtual GPU (vGPU) software allows a personal workstation to be repurposed into multiple high-performance virtual workstation instances enabling remote users, to share resources to drive high-end design, AI, and compute workloads.

NVIDIA® RTX™ Experience
NVIDIA RTX Experience delivers a suite of productivity tools to your desktop workstation, including desktop recording in up to 8K, automatic alerts for the latest NVIDIA RTX Enterprise driver updates, and access gaming features.

Software Optimized for AI
Deep learning frameworks such as Caffe2, MXNet, CNTK, TensorFlow, and others deliver dramatically faster training times and higher multi-node training performance. GPU accelerated libraries such as cuDNN, cuBLAS, and TensorRT delivers higher performance for both deep learning inference and High-Performance Computing (HPC) applications.

NVIDIA® CUDA® Parallel Computing Platform
Natively execute standard programming languages like C/C++ and Fortran, and APIs such as OpenCL, OpenACC and Direct Compute to accelerates techniques such as ray tracing, video and image processing, and computation fluid dynamics.

Unified Memory
A single, seamless 49-bit virtual address space allows for the transparent migration of data between the full allocation of CPU and GPU memory.

NVIDIA GPUDirect® for Video
GPUDirect for Video speeds communication between the GPU and video I/O devices by avoiding unnecessary system memory copies and CPU overhead.

NVIDIA Enterprise-Management Tools
Maximize system uptime, seamlessly manage wide-scale deployments and remotely control graphics and display settings for efficient operations.

1 This feature requires implementation by software applications, and it is not a stand-alone utility.
2 Product formerly known as NVIDIA Quadro View has undergone a brand transition.
3 Support requires Linux and NVIDIA RTX Enterprise Driver R387 or newer. NVIDIA SLI Certified System required for over 4 GPUs.
4 Product formerly known as NVIDIA Quadro Experience, rebrand effective 4/21/2021.
