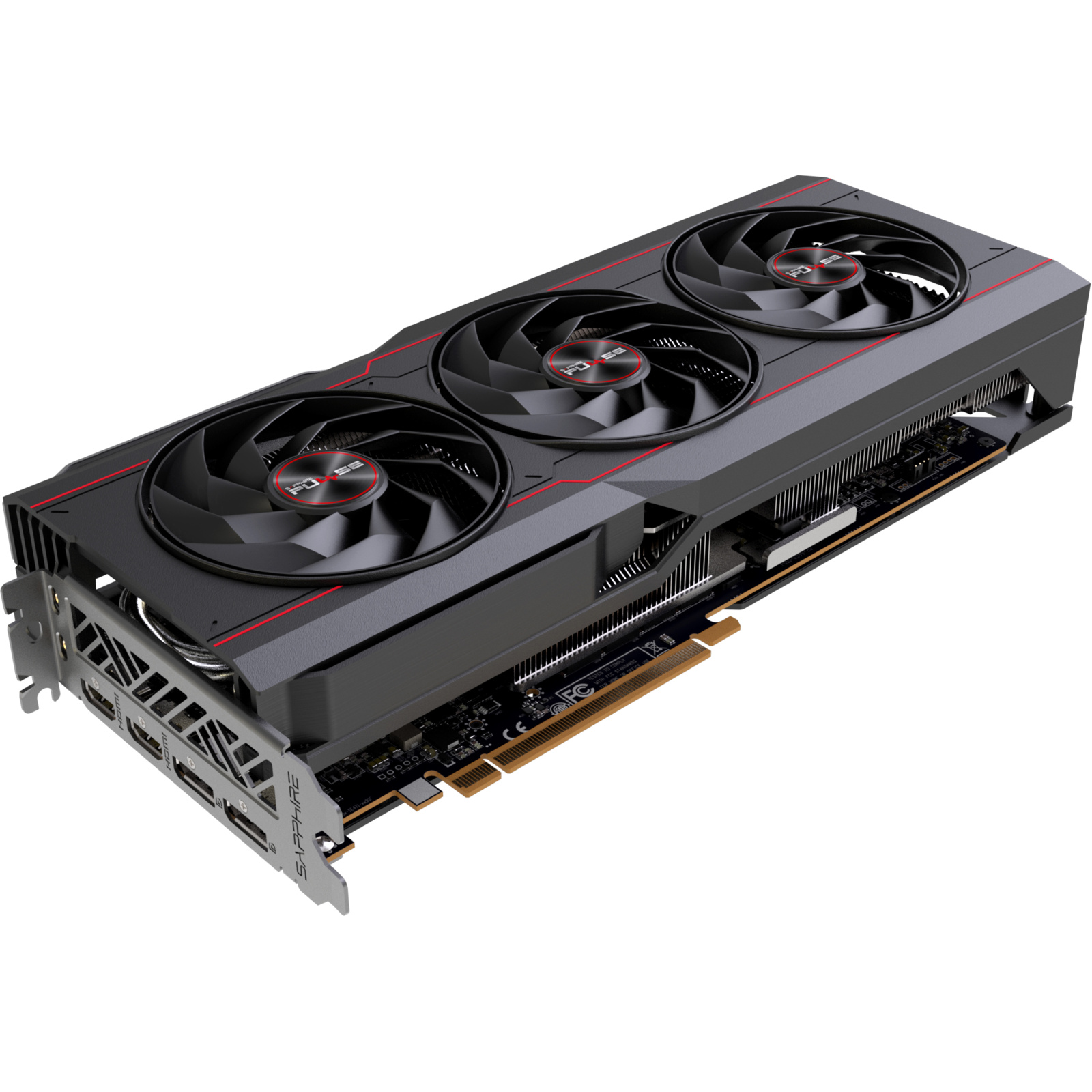

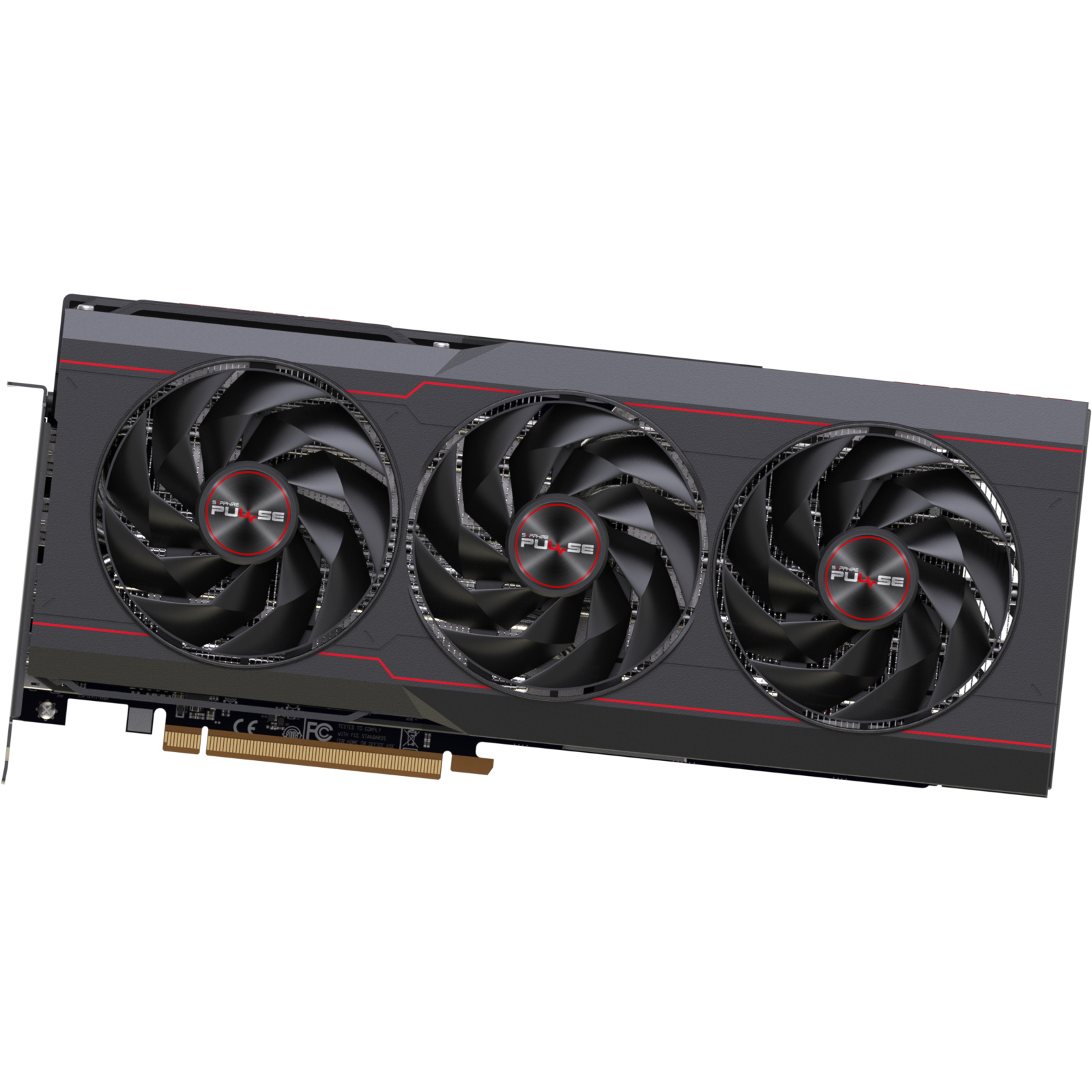

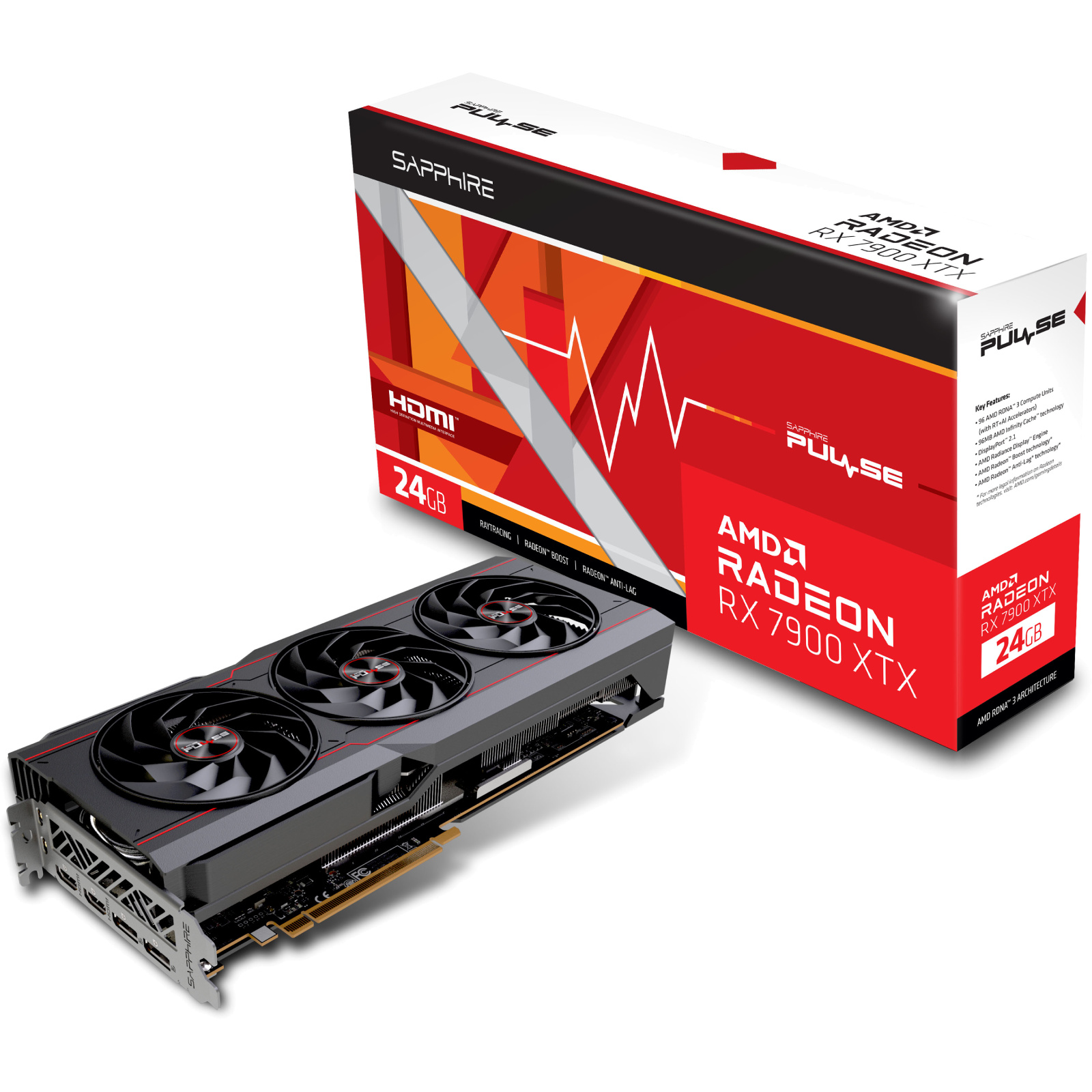

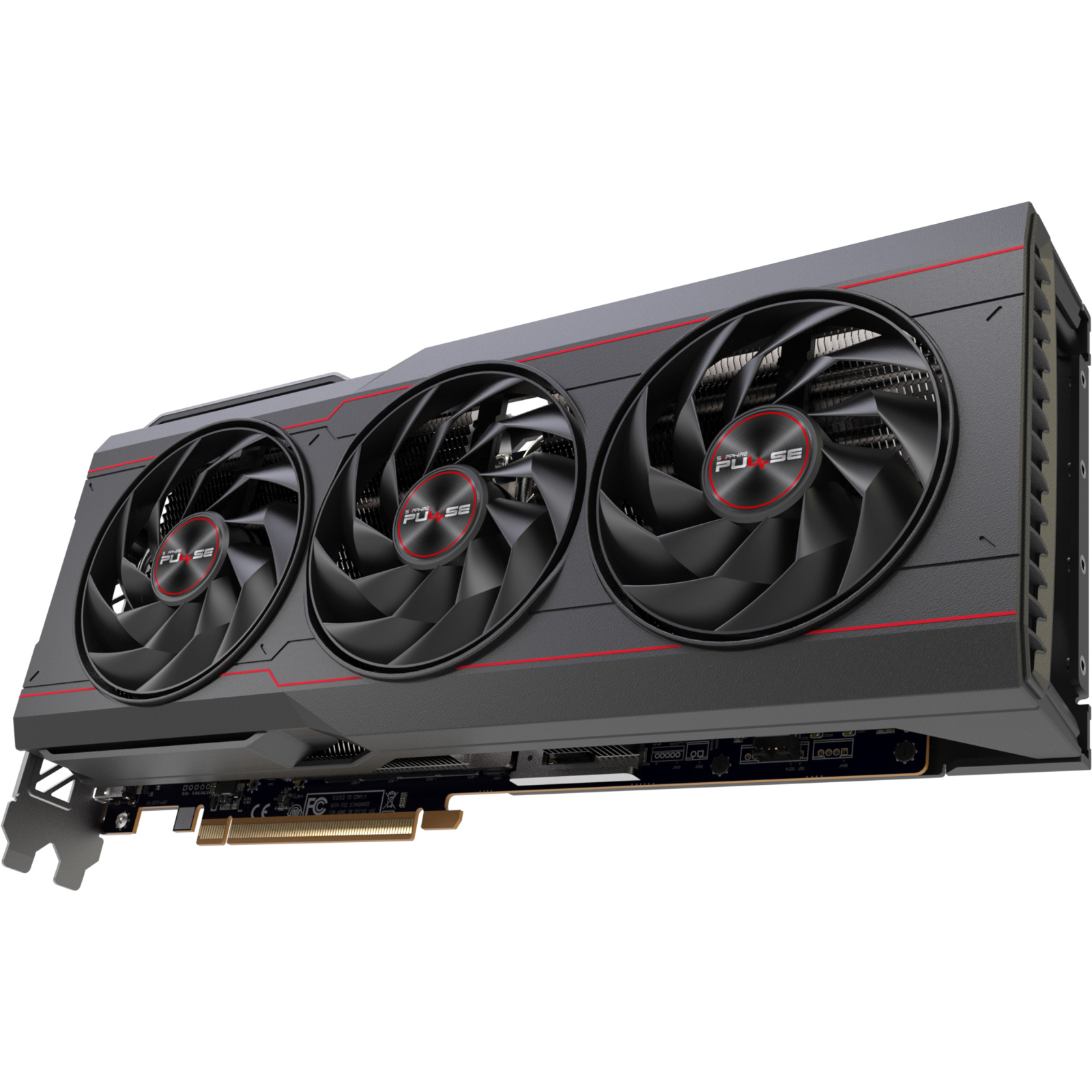

Sapphire PULSE AMD Radeon RX 7900 XTX Gaming OC 24GB GDDR6 Graphics Card

2.7 Slot - 3x 8 Pin Power - Minimum 800W PSU

Sapphire PULSE AMD Radeon RX 7900 XTX Gaming OC 24GB GDDR6 Graphics Card

2.7 Slot - 3x 8 Pin Power - Minimum 800W PSU

Massive gaming power!
  • Brand: Sapphire
  • MPN: 11322-02-20G
  • Part #: VGASAP27911
  • UPC: 840777088661
7
  • Brand: Sapphire
  • MPN: 11322-02-20G
  • Part #: VGASAP27911
  • UPC: 840777088661

Product Model

RX 7900 XTX

Memory Size

24GB

Base Clock Speed

2330MHz

Boost Clock Speed

2525MHz

Max Displays

4

Length

313mm

DisplayPorts

2

Mini DisplayPorts

None

Product is out of stock. View similar products in-stock at PB Tech

What PB Tech customers are saying about this product...

See More Reviews

"So I upgraded from the red devil 6600xt and found the card to be quieter and cooler than that, played games like starfield, BG3 , Arma reforger, and star citizen(this game can tank ...view more"

S
By: ShaneB55 11/12/23
Verified Owner

"Purchased this card 2 months ago. On the default tuning I was having game crashes. Once I changed some of the tuning settings it’s been solid as. Very happy with the upgrade. FYI ...view more"

By: RikiP7 15/09/23
Verified Owner

"Have purchased this to finish my workstation + gaming setup. ...view more"

D
By: DumitruS 22/08/23

Features



AMD RDNA™ 3 Architecture

- 24GB of GDDR6 memory
- AMD Radiance Display™ Engine
- DisplayPort™ 2.1
- AMD FidelityFX™ Super Resolution
- AMD Radeon Super Resolution
- 4K and Beyond



Digital Power Design

SAPPHIRE NITRO+ & PULSE AMD Radeon™ RX 7900 Series are designed with digital power which provides accurate power control and excellent power efficiency



Ultra High Performance Conductive Polymer Aluminum Capacitor

The Ultra High Performance Conductive Polymer Aluminum Capacitor has a small PCB foot print but high volumetric capacitance that makes 20-phase power possible on the RX 7900 series graphics card. The capacitor offers stable capacitance at a high frequency and temperature with very low signal noise, ensuring the stability and reliability of the product.



High TG Copper PCB

The GPU is mounted on to the high-density 14 layer 2oz Copper and high TG PCB to match the rapid speed, high current and increased power requirement of the GPU and memory to guarantee high stability of the PCB during operation.



Angular Velocity Fan Blade

The Angular Velocity Fan Blade  provides a double layer of downward air pressure which alongside the air pressure on the outer ring of the Axial fan, results in up to 44% more downward air pressure and up to 19% more airflow for a quieter and cooler operation when compared to the previous generations.



Optimized Composite Heatpipe

The composite heatpipes are fine-tuned for each individual cooling design with optimal heat flow, efficiently and evenly spreading out the heat to the entire cooling module.



Fuse Protection

In order to protect your card, the SAPPHIRE cards have fuse protection built into the circuit of the external PCI-E power connector to keep the components safe.



Graphics Card Supporter

Bundled with a graphics card supporter to keep the graphics card in place on the PCIe Slot.



Two-Ball Bearing

These feature Dual Ball bearing fans, which have an approximately 85% longer lifespan than sleeve bearings in our tests. The improvements to the fan blades means the solution is up to 10% quieter than the previous generation.



AMD RDNA™ 3

Specifications

GPU

AMD Radeon™ RX 7900 XTX Graphics Card
5nm GPU
AMD RDNA™ 3 Architecture

Engine Clock

Boost Clock: Up to 2525 MHz
Game Clock: Up to 2330 MHz

Boost Clock is the maximum frequency achievable on the GPU running bursty workload. Boost clock achievability, frequency, and sustainabilty will vary based on several factors, including but not limited to: thermal conditions and variation in application and workloads.
Game Clock is the expected GPU clock when running typical gaming applications, set to typical TGP(Total Graphics Power). Actual individual game clock results may vary.

Stream Processors

6144

Compute Units

96 CU (with RT+AI Accelerators)

Infinity Cache

96MB

Ray Accelerators

96

Memory Size/Bus

24GB/384 bit GDDR6

Memory Clock

20 Gbps Effective

Displays

Maximum 4 Displays

Resolution

HDMI™: 7680×4320
DisplayPort 2.1: 7680×4320

Interface

PCI-Express 4.0 x16

Output

2x HDMI
2x DisplayPort

BIOS Support

Dual UEFI

Game Index

4K

Sapphire Features

Premium Digital Power Design
Ultra High Performance Conductive Polymer Aluminum Capacitors
Fuse Protection
High TG Copper PCB
Optimized Composite Heatpipe
Tri-X Technology
Intelligent Fan Control
Precision Fan Control

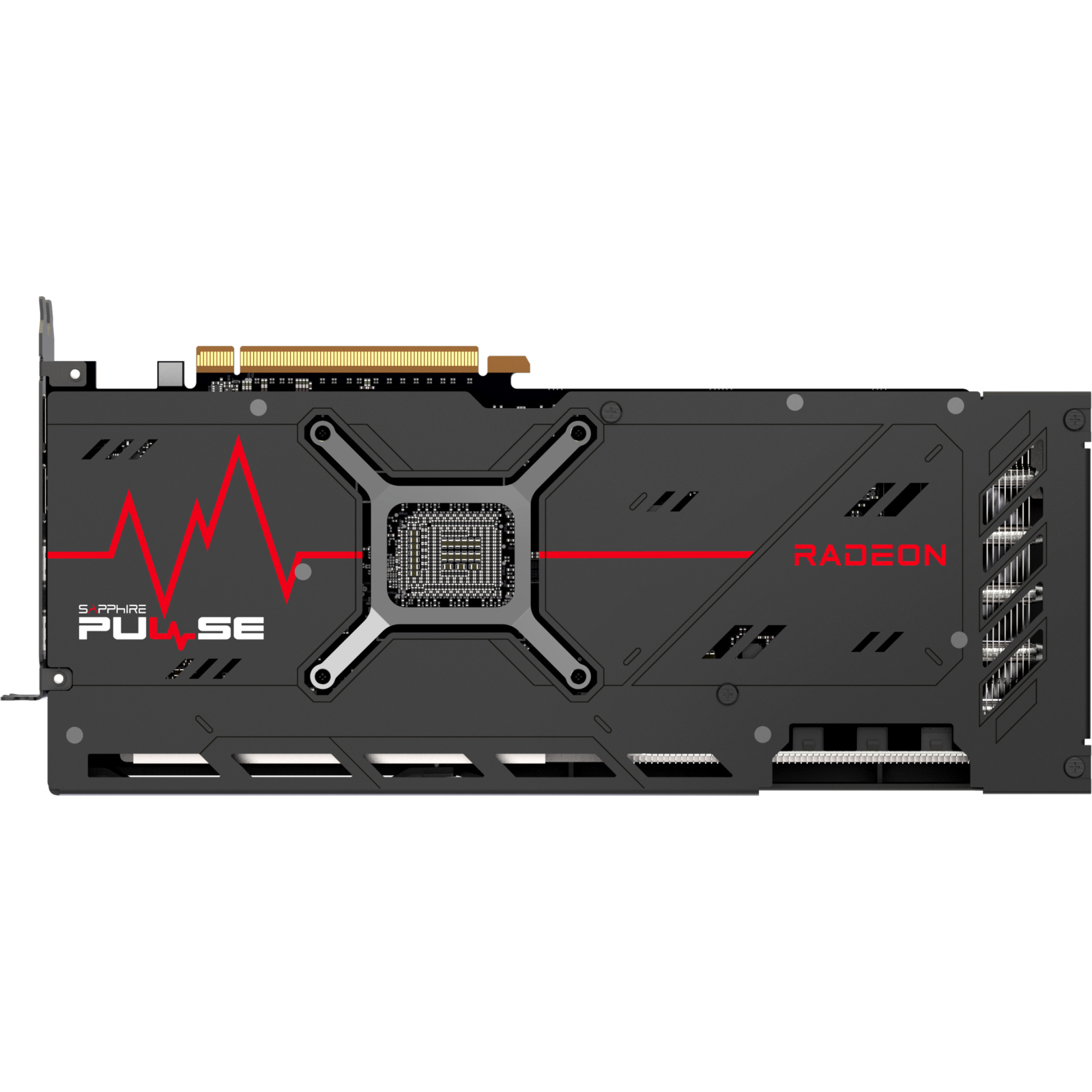

Metal Backplate
Two-Ball Bearing Fans
Angular Velocity Fan Blade
TriXX Supported
TriXX Boost
Graphics Card Supporter

AMD Features

AMD RDNA™ 3 Gaming Architecture
96 AMD RDNA™ 3 Compute Units (with RT+AI Accelerators)
96MB AMD Infinity Cache™ technology
DisplayPort™ 2.1
AMD Radiance Display™ Engine
AMD Radeon™ Boost technology*
AMD Radeon™ Anti-Lag* technology*
24GB GDDR6 on 384-Bit Memory Bus
PCI® Express 4.0 ready
AMD FidelityFX™ technologies*
AMD FidelityFX™ Super Resolution technology*
Microsoft® DirectX® 12 Ultimate
Microsoft® DirectStorage
Vulkan® Optimized
AMD smart technologies*
AMD Software: Adrenalin Edition™ application
AMD Noise Suppression*
AMD Privacy View*
AMD Radeon™ Super Resolution technology*
AMD Link*
AMD Freesync™ technology

Cooling

3 Fans

Form Factor

2.7 slot, ATX
Dimension: 313(L)X 133.75(W)X 52.67 (H)mm

Power Consumption

370W Total Board Power

OS

Linux®, Windows® 10, and Windows 11. 64-bit  operating system required

System Requirement

Minimum 800 Watt Power Supply
3 x 8-pin Power Connector.
PCI Express® based PC is required with one X16 lane graphics slot available on the motherboard.
Minimum 8GB of system memory. 16GB recommended.

Manufacturer Part No:
11322-02-20G
Brand:
Product Type:
Graphics Card
UPC
840777088661
Product Family:
PULSE AMD Radeon
Shipping Weight:
2.1 kg
PB Part No:
VGASAP27911
Product Model:
RX 7900 XTX Gaming OC
Warranty: 24 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.

Reviews

5 out of 5 Stars Based on 7 Reviews
5 Stars
7
4 Stars
0
3 Stars
0
2 Stars
0
1 Stars
0

Do you own this product?

Write a review and go into the monthly draw Win A $100 PB Tech Gift Card!

Great Product Great Price

This was the smallest card i can find on the 7900 xtx to fit inside my ITC NR200 Case.

doesn't drop a beat, great thermals 70-85C Hotspot temp

no Coil whine

P
By: PeterlogaD 16/02/23
Verified Owner
3 out of 3 users found this review helpful
Did you find it helpful?

Solid option for small cases

One of the main reasons to pick this model over the others is it's less-than-three slots size and 313mm length, which makes it viable for an mITX build. I put it in a Torrent Nano case, which fits with not a lot of clearance at the bottom. You probably wouldn't be able to install bottom-mounted fans, but the card's own fans seem to do a decent job. The provided support bracket was never going to fit, and doesn't seem especially well-suited to the card since it would have to be mounted across the path of the fans. Luckily, the Nano's built-in bracket system _just_ fits with a bit of a struggle.

I noticed a tiny bit of coil whine on first st...view more

R
By: RichC 19/03/23
Verified Owner
2 out of 2 users found this review helpful
Did you find it helpful?

Amazing card. Settings do need to be changed

Purchased this card 2 months ago. On the default tuning I was having game crashes. Once I changed some of the tuning settings it’s been solid as. Very happy with the upgrade. FYI NO RGB ON THIS CARD.

By: RikiP7 15/09/23
Verified Owner
1 out of 1 user found this review helpful
Did you find it helpful?

great for my ultra wide setup

So I upgraded from the red devil 6600xt and found the card to be quieter and cooler than that, played games like starfield, BG3 , Arma reforger, and star citizen(this game can tank most systems) runs great. I also play on a lot of modded dayz servers that would really push my old card but the 7900xtx has no issues

S
By: ShaneB55 11/12/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Nice GPU Upgrade

Have purchased this to finish my workstation + gaming setup.
It works great and was easy to setup software as AMD works great on both Linux and Windows.
The performance is good, but did not exceed my expectations.
The card is big, but lighter than expected, and it was easy to install, it came with a nice support bracket.
Overall I'm happy with the product

D
By: DumitruS 22/08/23
0 out of 0 users found this review helpful
Did you find it helpful?

Massive punching ability

The Sapphire Pulse with its quite significant price tag could be hard to justify at first but with its massive amount of punch it is a card you won't need to upgrade for a fair few years making your purchase a little easier/less difficult to justify. The size of the card holds true to older generations too, meaning there is a chance you will not need to upgrade your case, this model is only 7mm longer than my original card.

Though I wanted the Nitro+ version (my previous 5700XT was a Nitro+ model), these seem to be incredibly rare at the moment with none available in NZ, the one I managed to find in Australia was hugely expensive, needless...view more

K
By: KarlW46 11/08/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?

Awesome upgrade

Definitely a massive boost with 24g of vram. Exceptional performance from this outstanding gpu.

S
By: SarahC557 26/03/23
Verified Owner
0 out of 0 users found this review helpful
Did you find it helpful?
