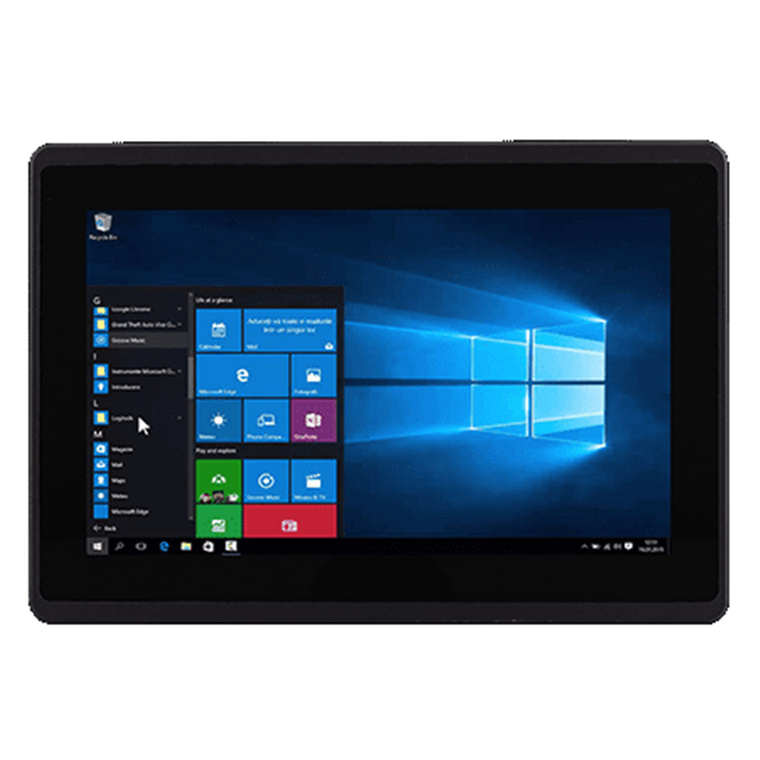

Winmate Eseries HMI Panel PC W07IB3S-EHO1 7" 4G/128G/CeleronN2930 1024 x 600 PCAP touchscreen, Optional Wind10 IoT/ Ubuntu 18.04, Front IP65, 2x USB,1xRS232/422/485,2x Giga LAN, 1x HDMI, 9-36V DC input, 3 pin terminal block

Normally $2,120.70
Normally $2,120.70
You save $232
You save $232
AUD $ 1,887 .81
$ 1,887 .81

Out of stock

Winmate Eseries HMI Panel PC W07IB3S-EHO1 7" 4G/128G/CeleronN2930 1024 x 600 PCAP touchscreen, Optional Wind10 IoT/ Ubuntu 18.04, Front IP65, 2x USB,1xRS232/422/485,2x Giga LAN, 1x HDMI, 9-36V DC input, 3 pin terminal block

  • Brand: Winmate
  • MPN: W07IB3S-EHO1
  • Part #: WKAWMA07001
  • UPC:
Normally $2,120.70
Normally $2,120.70
You save $232
You save $232
PB Tech price
AUD $ 1,887 .81 $ 1,887 .81


Delivery: Out of stock
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info

Features

True Flat (Easy-to-clean)

True Flat surface is not only for a stylish look, elegant for aesthetically pleasant look that fits in modern interiors and exteriors. It is easy to maintain and clean. No more clogged dust on edges.

Power over Ethernet (Data and Power connections in a single cable)

The hardware installation becomes easier with Power over Ethernet. PoE reduces the number of cables needed for the connection of various devices. This infrastructure allows to centralized power management, therefore it is a cost-effective solution for access control, home and industrial automation.

Windows / Linux Operating System (Customizable and easy to use)

Windows OS works perfectly with all your favorite apps. Easy software integration opens wide possibilities for customization.

P-Cap Touch (Resistant to scratches)

The glass cover lens provides a great protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving convenience of using the device. Thus it helps to enhance overall customer experience.

Mounting clips (Quick installation)

With mounting clips for panel mounting there is no need to drill holes in a fixture. This saves you the time for mounting and guarantee aesthetic look of the wall after the unit gets removed.

Specifications

Display

Size

7 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1024x600

Panel Brightness

1000 nits

Contrast Ratio

700:1

View Angles

75,75,75,70

Active Area

153.6x90 mm

System Specification

Processor

Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)

Memory

1 x SO-DIMM, DDR3L 1600 MHz, 4GB

Storage

1 x mSATA SSD 128GB.

Ethernet controller

2 x Intel® Gibabit Ethernet Controller

Operating System

Windows 10 IoT Enterprise (Optional)
Linux Ubuntu 18.04 (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Mechanical

Dimension

185 x 128 x 48 mm

Cut out

177x118mm

Mounting

Panel mount
VESA Mount

Enclosure

Metal Housing

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% (non-condensing)

Operating Temperature

0~50°C

Storage Temperature

-20~60°C

IP rating

Front IP65

IO Ports

USB Port

1 x USB3.0 (Type-A)
1 x USB2.0 (Type-A)

Serial Port

1 x RS232/422/485 (Default RS232)

LAN

2 x Giga LAN RJ45 Connector

Video

1 x HDMI 1.4 (Optional)

Expansion Port

1 x mPCIe slot(for half size Wifi module)

mini PCIe

1 x Mini PCIE(For WLAN)

Power Input

1 x 12V DC, 2.5f DC jack

Power

Power Rating

12V DC
10~60V (Optional)

Adapter

12V 50W

Manufacturer Part No:
W07IB3S-EHO1
Brand:
Product Type:
7" 4G/128G/CeleronN2930
UPC
-
Product Family:
Eseries HMI Panel PC
Shipping Weight:
1 kg
PB Part No:
WKAWMA07001
Product Model:
W07IB3S-EHO1
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
