Winmate Marine Panel PC - 10.1" Multi-Touch Screen - Intel Celeron N2930 - 1x USB 2.0 - 1x Giga LAN

Normally $1,737.50
Normally $1,737.50
You save $174
You save $174
AUD $ 1,562 .68
$ 1,562 .68

Out of stock

Winmate Marine Panel PC - 10.1" Multi-Touch Screen - Intel Celeron N2930 - 1x USB 2.0 - 1x Giga LAN

  • Brand: Winmate
  • MPN: W10IB3S-MRH2
  • Part #: WKAWMA10101
  • UPC:
Normally $1,737.50
Normally $1,737.50
You save $174
You save $174
PB Tech price
AUD $ 1,562 .68 $ 1,562 .68


Features

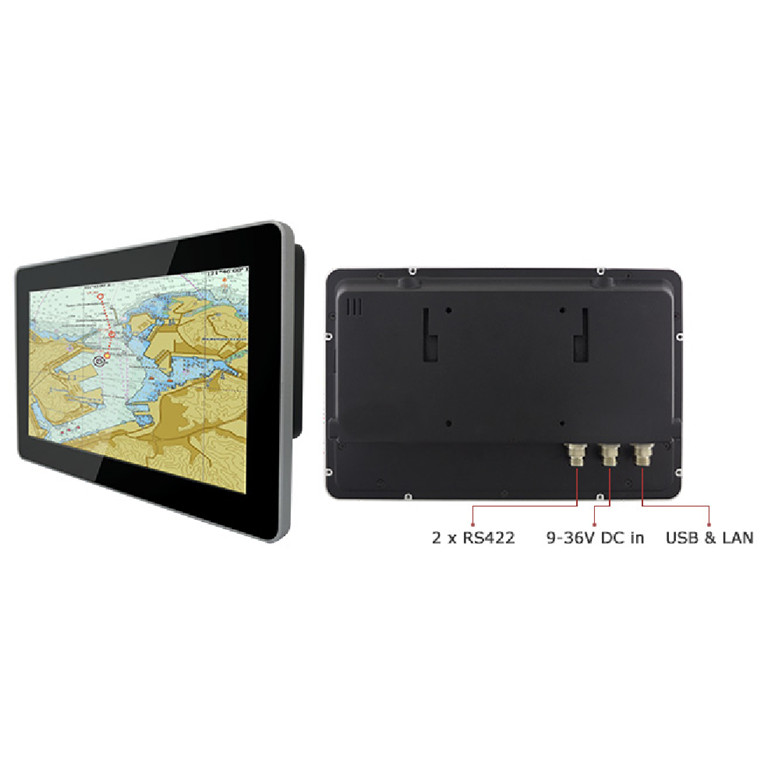

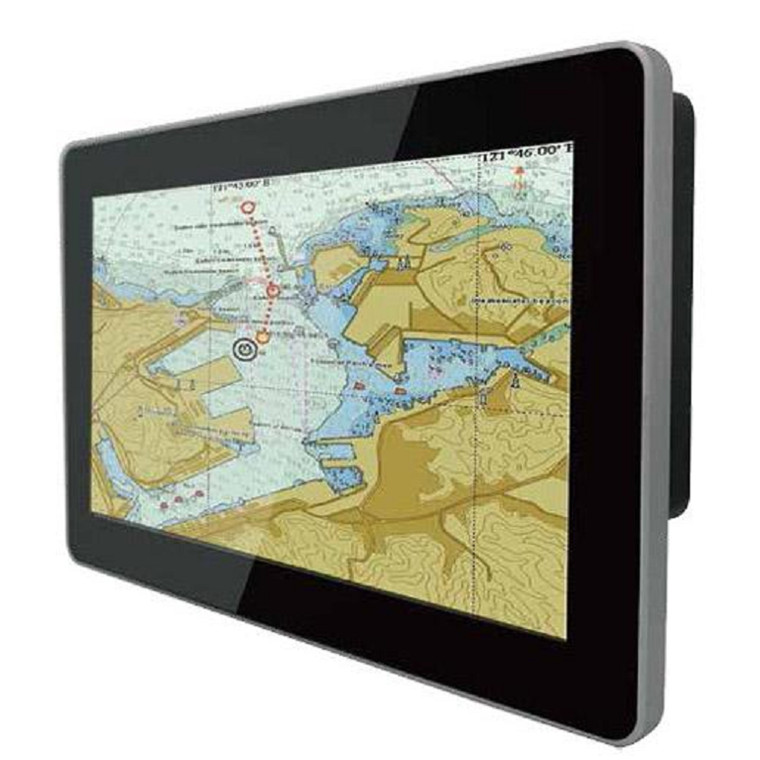

Winmate 10.1" Multi-Touch Intel Celeron N2930 Marine Panel PC

Features

- 1280 x 800 resolution
- P-Cap multi-touch screen
- Front IP65 and full IP44 ratings
- Isolated connectors (M12 type)
- Wireless communications - Wi-Fi, WWAN, GPS (optional)

Specifications

Specifications

Processor

Intel Celeron N2930 1.83GHz

Chipset

Intel ATOM SoC Integrated

Memory

4GB DDR3L 1066/1333 SODIMM

Audio

Realtek HD Audio Codec

Storage

64GB mSATA SSD

Net Weight (kg) (with touch)

1.64 kg

Cooling System

Fanless design

Mounting

VESA Mount (75 x 75 mm)

Dimensions (W x H x D)

263.28 x 173.6 x 40.2 mm

Security

Trusted Platform Module (TPM 2.0)

Certification

Comply with IEC60945 (test report)
FCC Part 15B Class B
CE

Power Input

9~36V isolated DC IN (M12 type)

Wireless Communications

Wi-Fi 802.11 a/b/g/n/ac (optional)
WWAN Optional 3G
GPS U-blox GPS Module (optional)

OS Support

Windows 10 IoT Enterprise
Windows Embedded 8.1 Industry Pro
Windows Embedded 8 Standard
Windows 7 Pro for Embedded Systems
Windows Embedded Standard 7 -WS7P

Software Support

SDK Watchdog SDK

Display

Size/Type

10.1" TFT (widescreen)

Resolution

1280 x 800

Panel Brightness

300cd/m (typ.)

Contrast Ratio

800 : 1 (typ.)

Viewing Angle

-89~89(H);-89~89(V)

Max Colours

262K (6bit)

Touch

Projective-Capacitive Touch

I/O Connectors

Serial Port

2 x RS-422 (M12 type)
1 x RS-422 when the device supports WWAN, optional (M12 type)

USB Port

1 x USB 2.0 (M12 type)

Ethernet

1 x Gigabit LAN (M12 type)

Speaker

1 x 1 Watt Speaker

Environment

Operating Temperature

-15°C to +55°C

Operating Humidity

5% to 95% (non-condensing)

Anti-vibration

0.7g @ DNV2.4 (Class A)

IP Rating

Front: IP65 (water and dust proof)
Full: IP44

Manufacturer Part No:
W10IB3S-MRH2
Brand:
Product Type:
Marine Panel PC
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKAWMA10101
Product Model:
-
Warranty: 12 months *
