Winmate R10ID3S-MRM2/PAT Marine Panel PC - 10" Touchscreen - Resolution 800x600Intel Atom N2600 1.6GHz, 2GB, 32GB, 2x RJ45 - 1x VGA -2x RS232 - 2x USB-A- IP66 Proof - Safety Glass - Anti-Corrosion - Fanles Premier 5-wire Resistive Touch, RS

Normally $2,929.00
Normally $2,929.00
You save $758
You save $758
AUD $ 2,170 .42
$ 2,170 .42

Out of stock

Winmate R10ID3S-MRM2/PAT Marine Panel PC - 10" Touchscreen - Resolution 800x600Intel Atom N2600 1.6GHz, 2GB, 32GB, 2x RJ45 - 1x VGA -2x RS232 - 2x USB-A- IP66 Proof - Safety Glass - Anti-Corrosion - Fanles Premier 5-wire Resistive Touch, RS

  • Brand: Winmate
  • MPN: R10ID3S-MRM2/PAT
  • Part #: WKAWMA10202
  • UPC:
Normally $2,929.00
Normally $2,929.00
You save $758
You save $758
PB Tech price
AUD $ 2,170 .42 $ 2,170 .42


Features

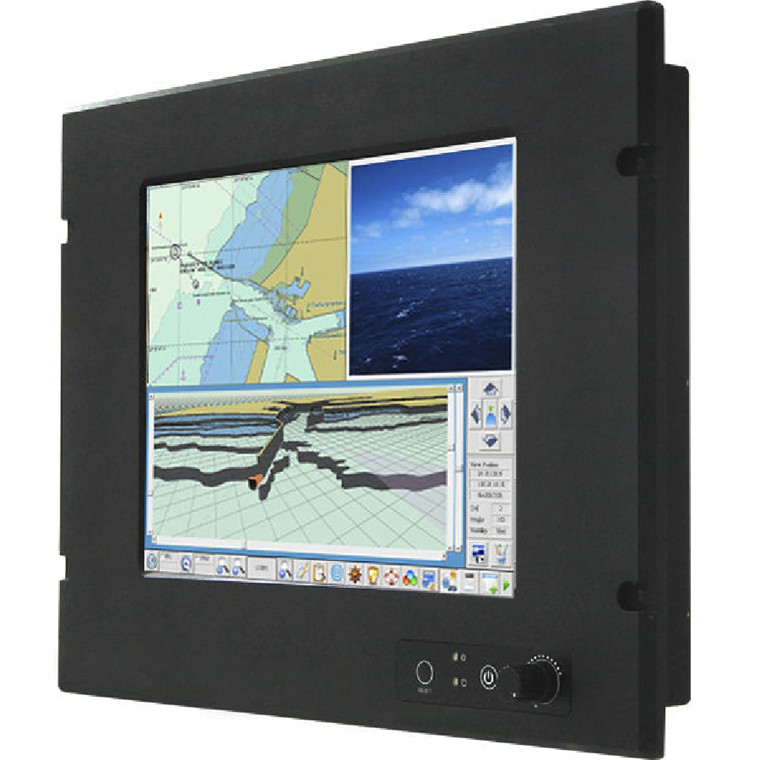

Winmate 10.4" Touchscreen Intel Atom N2600 Marine Panel PC

The Marine Grade Panel PC is high performance, fan-less, low power PC with NM10 chipset combine with a TFT LCD Panel. Design with transflective panel, dimming brightness, ease of use OSD front panel control, IP65 proof, high quality touch-screen, wide voltage range power input acceptable, and anti-corrosion protection. Born to the demands of marine applications as navigation, ship automation, and surveillance, rugged industrial and light military applications.

Features

-Intel Dual Core Atom N2600 Platform,Fanless Design
-Dimming knob control backlight brightness from nearly 0% to 100%
-Transflective film technology enhance visibility
-Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
-9~36V DC power input acceptable
-High quality touchscreen / AR protection glass for option
-Ease of use front panel OSD control
-Enhanced shock and vibration resistance

Specifications

Specifications

Processor

Intel Dual Core Atom N2600 1.6GHz

Chipset

Intel NM10 express chipset

Memory

1 x SODIMM DDR3-800, max.4GB (Default 2 GB)

Audio

Realtek ALC886 HD Audio Codec

Storage

1 x SATA2 (Default 32GB SSD)

Mounting

VESA Mount

Power Input

9 to 36 V DC power supply with Terminal block (Default)

Certification

IEC60945, DNV2.4, IACS-E10, CE, FCC

Display

Size/Type

10.4"

Resolution

800 x 600

Panel Brightness

400 cd/m2 (typ.)

Contrast Ratio

500 : 1 (typ.)

Viewing Angle

-80~80 (H); -60~80 (V)

Max Colours

16.2M (8bits/color)

Touch

SAW, 5 Wire Resistive

I/O Connectors

Ethernet LAN

2 x RJ 45-10/100/1000 Mbps

COM

2 x RS232
1 x RS232/422/485

USB

2 x USB 2.0 Type-A Receptacle

RGB Out

1 x VGA 15P DSUB (female)

Environment

Operating Temperature

-15°C to +55°C

Operating Humidity

5% to 95% (non-condensing)

Anti-vibration

5Hz~500Hz / 1Grms / 3 Axis

Anti-Shock

15G,11ms duration

IP Rating

Front IP66
Rear IP54

Manufacturer Part No:
R10ID3S-MRM2/PAT
Brand:
Product Type:
Marine Panel PC
UPC
-
Product Family:
-
Shipping Weight:
6.45 kg
PB Part No:
WKAWMA10202
Product Model:
R10ID3S-MRM2/PAT
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
