Winmate R19L300-MRA2ID3S Marine Panel PC 4G, 64G, Intel N260 - 19" Touchscreen - Intel Atom N2600 - 2x Giga LAN - 2x USB-A 1x VGA - IP66 Proof - Safety Glass - Anti-Corrosion - Fanless

Normally $3,000.00
Normally $3,000.00
You save $308
You save $308
AUD $ 2,691 .71
$ 2,691 .71
$2,691.71  +GST
$2,691.71  inc GST

Winmate R19L300-MRA2ID3S Marine Panel PC 4G, 64G, Intel N260 - 19" Touchscreen - Intel Atom N2600 - 2x Giga LAN - 2x USB-A 1x VGA - IP66 Proof - Safety Glass - Anti-Corrosion - Fanless

  • Brand: Winmate
  • MPN: R19L300-MRA2ID3S
  • Part #: WKAWMA19201
  • UPC:
Normally $3,000.00
Normally $3,000.00
You save $308
You save $308
PB Tech price
AUD $ 2,691 .71 $ 2,691 .71


Delivery: Order now and it ships on 16 May
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$2,691.71  +GST
$2,691.71  inc GST

Features

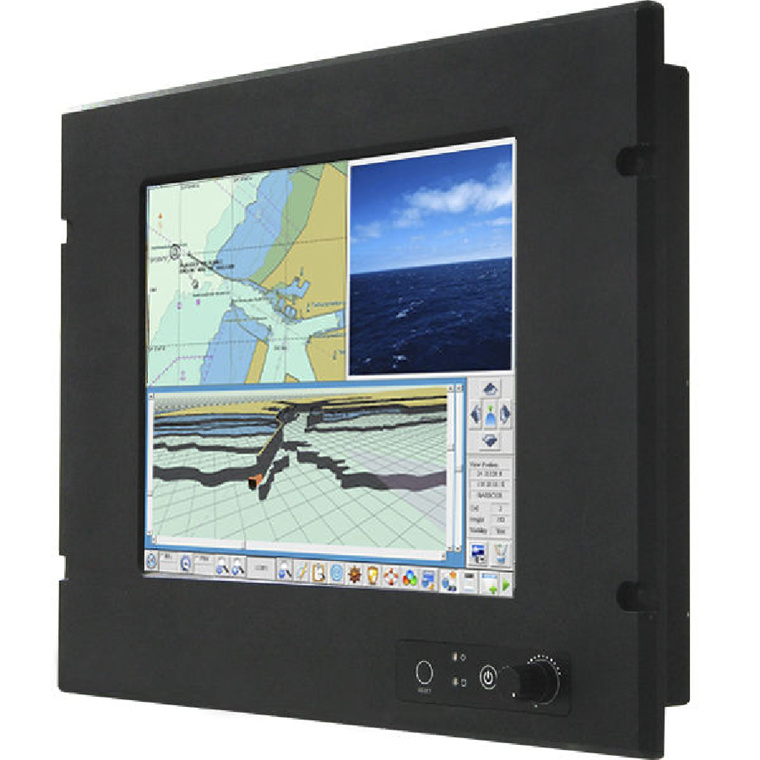

Winmate 19" Touchscreen Intel Atom N2600 Marine Panel PC

The Marine Grade Panel PC is high performance, fan-less, low power PC with NM10 chipset combine with a TFT LCD Panel. Design with transflective panel, dimming brightness, ease of use OSD front panel control, IP65 proof, high quality touch-screen, wide voltage range power input acceptable, and anti-corrosion protection. Born to the demands of marine applications as navigation, ship automation, and surveillance, rugged industrial and light military applications.

Features

-Intel Dual Core Atom N2600 Platform, Fanless Design
-Dimming knob control backlight brightness from nearly 0% to 100%
-Transflective film technology enhance visibility
-Panel (flush) mount IP66 aluminum housing with powder coating design (IP54 rear)
-9 to 36V DC power input acceptable
-High quality touchscreen / AR protection glass for option
-Ease of use front panel OSD control
-Enhanced shock and vibration resistance

Specifications

Specifications

Processor

Intel Dual Core Atom N2600

Chipset

Intel NM10 express chipset

Memory

1 x SODIMM DDR3-800 max.4GB (Default 2 GB)

Audio

Realtek ALC886 HD Audio Codec

Storage

1 x SATA2 (Default 32GB SSD)

Cooling System

Fanless design

Mounting

VESA Mount

Power Input

9 to 36 V DC power supply with terminal block.

Certification

IEC60945, DNV2.4, IACS-E10, CE, FCC

Display

Size/Type

19"

Resolution

1280 x 1024

Panel Brightness

350 nits (typ.)

Contrast Ratio

1000 : 1

Viewing Angle

-85~85 (H); -80~80 (V)

Max Colours

16.7M (6 bit colours)

Touch

SAW, 5 Wire Resistive

I/O Connectors

Ethernet LAN

2 x RJ45 10/100/1000 Mbps

COM

1 x RS232/422/485

USB

2 x USB 2.0

Video output

1 x VGA 15P D-SUB

Environment

Operating Temperature

-15°C to +55°C

Operating Humidity

5% to 95% (non-condensing)

Anti-vibration

5Hz~500Hz / 1Grms /3 Axis

IP Rating

Front IP66
Rear IP54

Anti-Shock

15G,11ms duration

Manufacturer Part No:
R19L300-MRA2ID3S
Brand:
Product Type:
4G, 64G, Intel N260
UPC
-
Product Family:
R19L300-MRA2ID3S
Shipping Weight:
1 kg
PB Part No:
WKAWMA19201
Product Model:
Marine Panel PC
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
