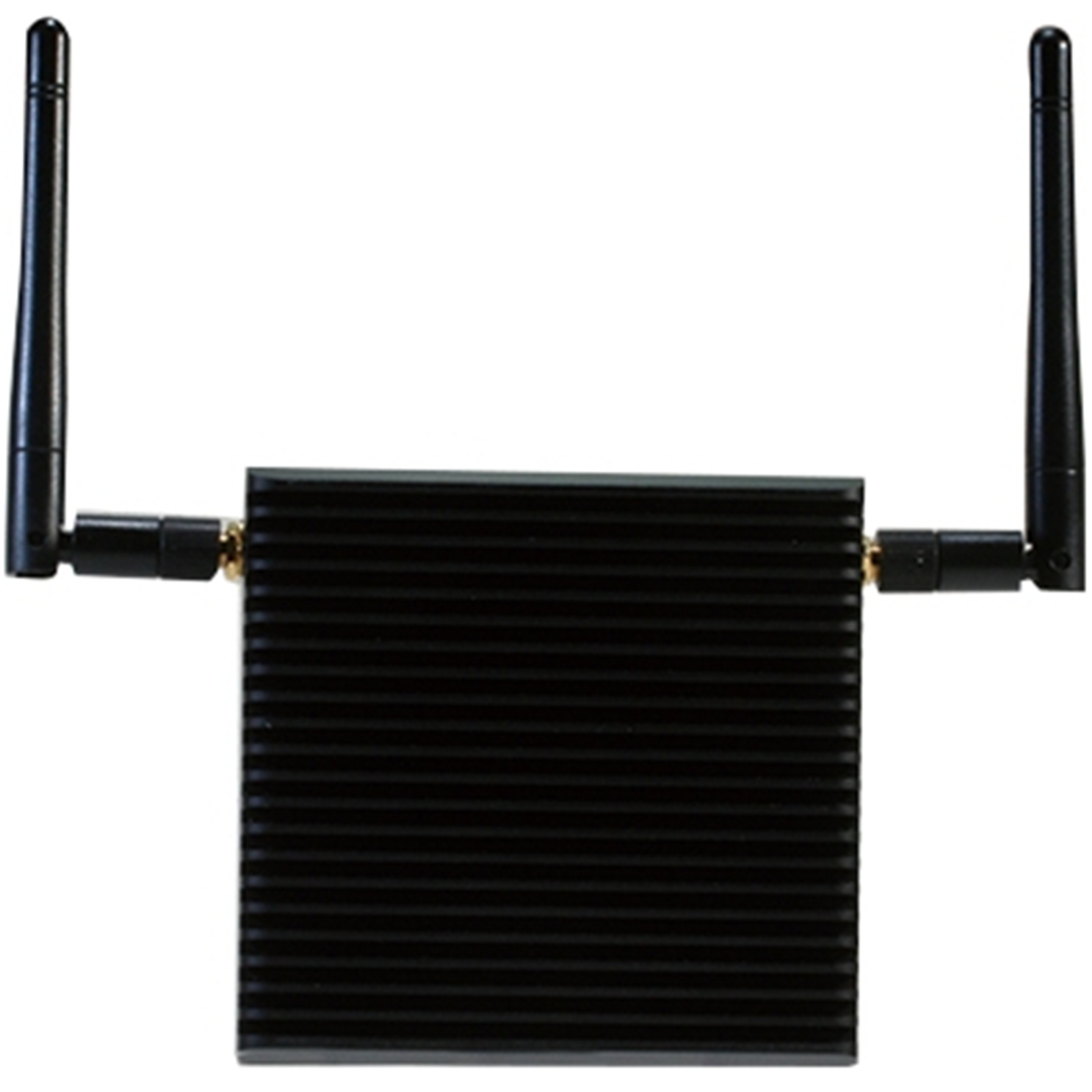

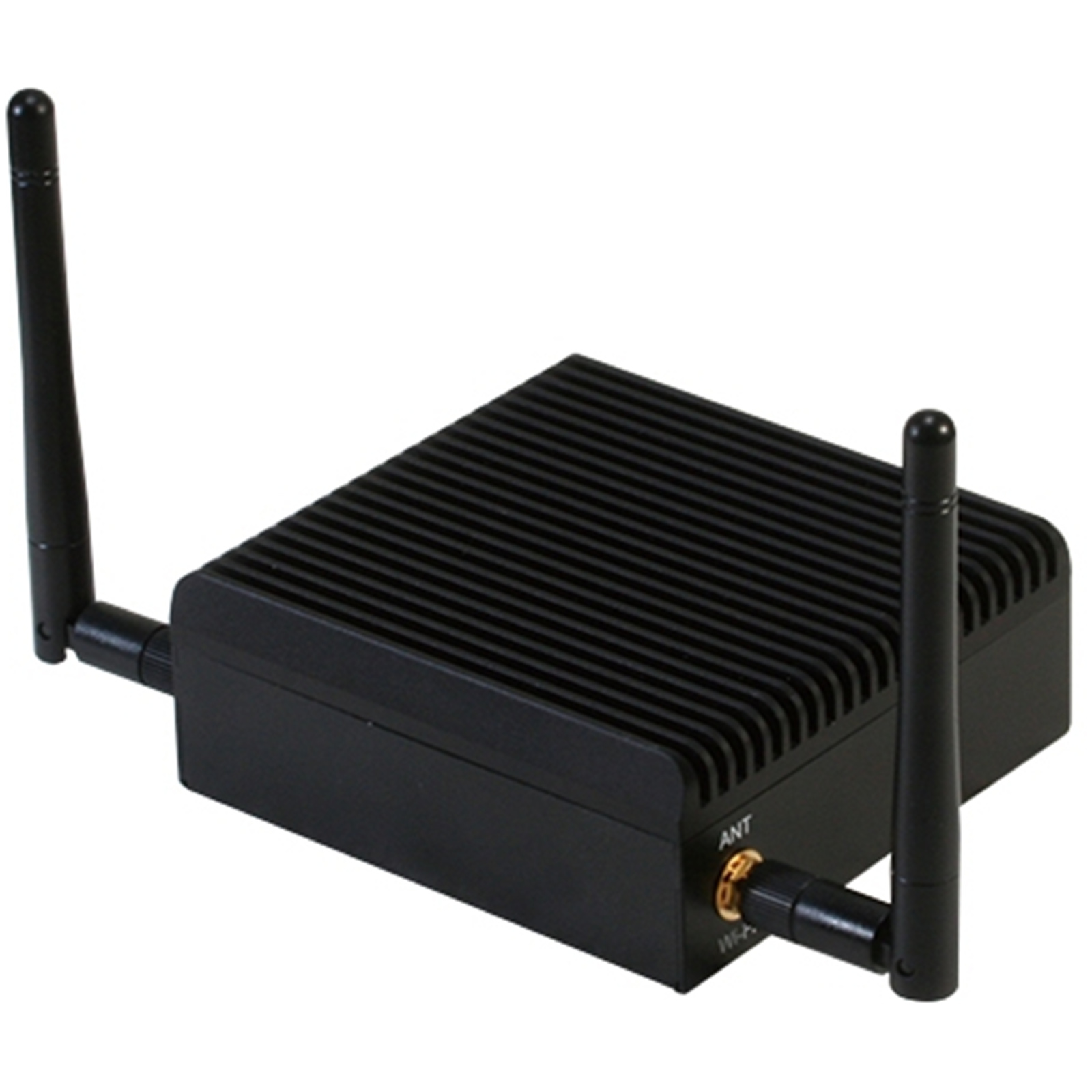

AAEON UP System A20 UP-GWS01.INTEL CPU x5-z8350.2G memory,16G eMMC.A1.1

AAEON UP System A20 UP-GWS01.INTEL CPU x5-z8350.2G memory,16G eMMC.A1.1

  • Brand: AAEON
  • MPN: UP-GWS01-A20-0216-A11
  • Part #: WKSAAEA20001
  • UPC:

Features

Compact in Design: 95mm x 91mm x 37mm (WxLxH)

Palm-sized compact system design for space-constrained surroundings.


Flexible Connectivity

UP-GWS01 offers optional WIFI and default Giga LAN. Designed to connect to cloud and server with ease.


IoT Support

Through powerful Intel® x5-Z8350 CPU plus various I/O expansion and connectivity, UP-GWS01 is fit for applications of all sizes. From factory automation gateway, security management, digital signage, to personal home application gateway.

- Intel Atom® x5-Z8350 Processor SoC
- Onboard DDR3L Memory
- Onboard eMMC Storage
- Gigabit LAN x 1, USB 2.0 x 4, USB 3.0 x 1, HDMI x 1
- Optimized Fanless Cooling Design
- Wi-Fi (Optional)
- No eDP/ MIPI-CSI/ 40pin HAT/ CPLD internally

Specifications

SYSTEM

CPU

Intel Atom® x5-Z8350 Processor (2M Cache, 1.44 GHz up to 1.92 GHz)

MEMORY

Onboard DDR3L memory

GRAPHICS

Intel® HD Graphics 400, 12 EU Gen 8, up to 500MHz Support DX*11.1/12, Open
GL*4.2, Open CL*1.2 OGL
ES3.0, H.264, HEVC (decode), VP8

STORAGE

Onboard eMMC

ETHERNET

Gb LAN x 1

WIFI/BT

Wi-Fi (Optional)

EXPANSION SLOT

-

SECURITY

-

OS SUPPORT

Windows® 10, Linux, Windows® 10 IoT core

I/O PLACEMENTS

USB

USB 2.0 x 4, USB 3.0 x 1 (OTG)

DISPLAYPORT

HDMI x 1

ETHERNET

Gb LAN x 1

COM

-

AUDIO

HDMI x 1

GPIO

-

POWER SUPPLY

POWER REQUIREMENT

5V/4A DC Only

POWER SUPPLY TYPE

-

POWER CONSUMPTION (TYPICAL)

-

MECHANICAL

MOUNTING

-

DIMENSIONS (W X H X D)

3.74" x 3.58" x 1.46" (95mm x 91mm x 37mm)

NET WEIGHT

-

GROSS WEIGHT

-

ENVIRONMENT

OPERATING TEMPERATURE

32°F ~ 104°F (0°C ~ 40°C)

OPERATING HUMIDITY

0% ~ 90% relative humidity non-condensing

STORAGE TEMPERATURE

-

MTBF

-

CERTIFICATION

CE/FCC Class A

Manufacturer Part No:
UP-GWS01-A20-0216-A11
Brand:
Product Type:
-
UPC
-
Product Family:
UP System A20
Shipping Weight:
1 kg
PB Part No:
WKSAAEA20001
Product Model:
-
Warranty: 12 months *
