AAEON UP Squared System UPS-GWS01C2.CPU N4200(F1).8GB memory.128GB eMMC.Rev.A1.0
- Brand: AAEON
- MPN: UPS-GWS01P4F-A20-08128 (F1)
- Part #: WKSAAESQ0006

Product URL: https://www.pbtech.com/product/WKSAAESQ0006/AAEON-UP-Squared-System-UPS-GWS01C2CPU-N4200F18GB
Features

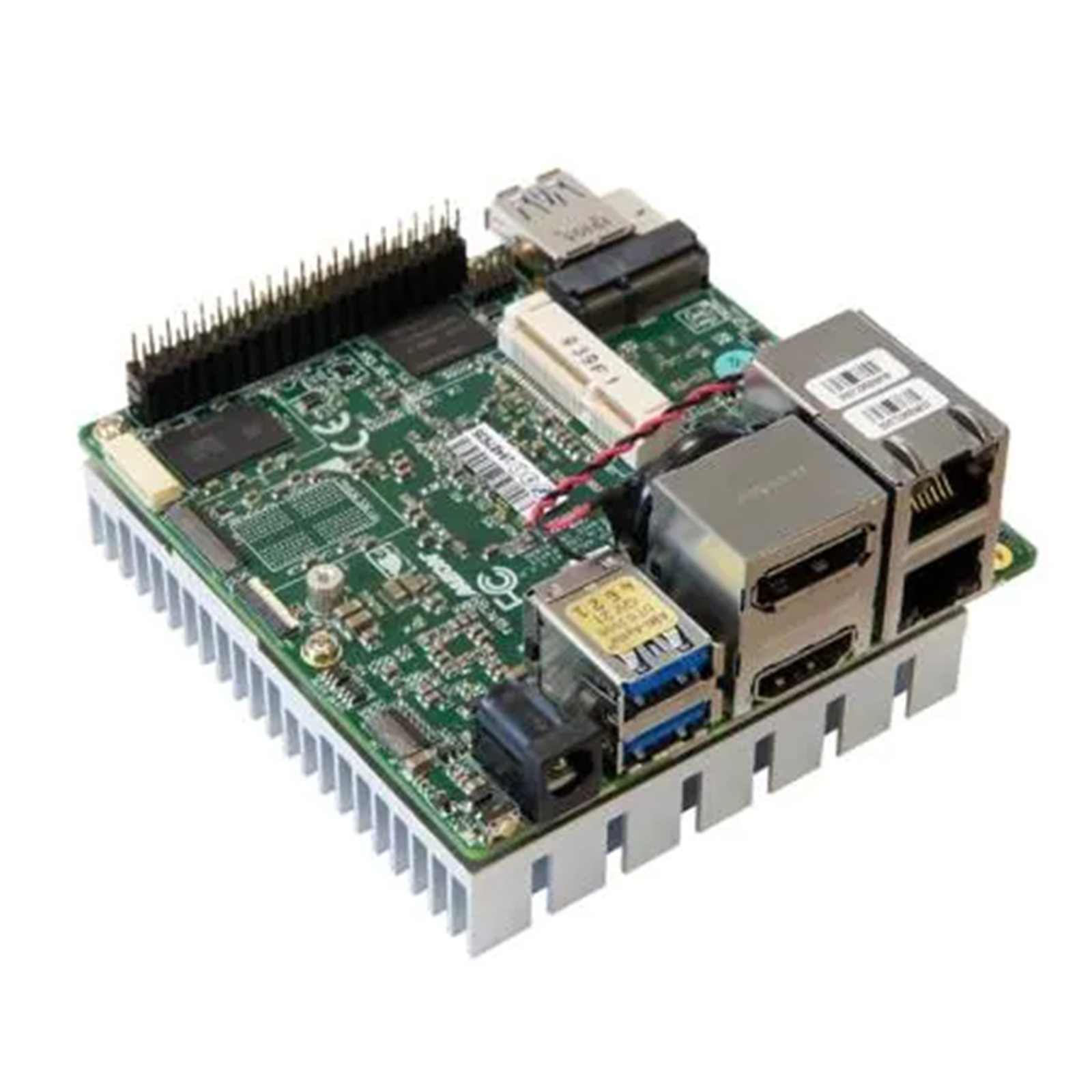

The UP Squared system is a complete system package featuring the powerful and fast UP Squared maker board. Designed for easy deployment in embedded applications from industrial automation to IIoT and AIoT, the UP Squared system brings high-performance in a low-power compact solution.
UP Squared is powered by Intel® Apollo Lake processors, delivering high performance at minimum power consumption. Its small size also makes it perfect for use in mobile applications including drone operations. UP Squared offers flexible OS support including Windows 10, Linux and Android.
UP Squared supports the AI Core X mPCIe module, which features Intel Movidius Myriad X. With speeds up to 105 fps (80 typical) and 1 trillion floating point operations, adding on the AI Core X to UP Squared creates a powerful, compact AI Edge solution. UP Squared with AI Core X has proven real-world performance, used by AAEON partners in applications from license plate recognition to drone-based visual inspections.
If you require a total AI solution, AAEON offers the "UP Squared AI Developer Kit". This kit includes the UP Squared system with the AI Core X and an Ever Focus® USB camera. The "UP Squared AI Developer Kit" comes preloaded with Windows™ 10 and the Intel® OpenVINO™ toolkit. Be sure to inquire about the kit when speaking to your sales representative.
- Intel® Pentium® N4200/ Celeron® N3350 Processor SoC/Atom® E3950
- Onboard LPDDR4 Memory, eMMC Storage
- Gigabit LAN x 2
- HDMI x 1, DP x 1
- USB 3.0 x 3, USB 3.0 OTG x 1
Specifications
Processor Brand
Intel
Processor Type
Pentium N4200
Frequency
1.1 GHz
Maximum RAM Capacity
8 GB
Installed RAM
8 GB
Operating Supply Voltage
5 V
Minimum Operating Temperature
0 C
Maximum Operating Temperature
+ 60 C
Brand
AAEON UP
Interface Type
DP, eDP, GPIO, HDMI, I2S, LAN, MIPI-CSI, Mini-PCIe, SATA, UART, USB 2.0, USB 3.0
Product Type
Single Board Computers
