iBASE AMS300M i7-7700T, 16GB (2x8GB DDR4), Wifi 2HDD Scoket, PSU

Normally $1,635.12
Normally $1,635.12
You save $77
You save $77
AUD $ 1,558 .01
$ 1,558 .01
$1,558.01  +GST
$1,558.01

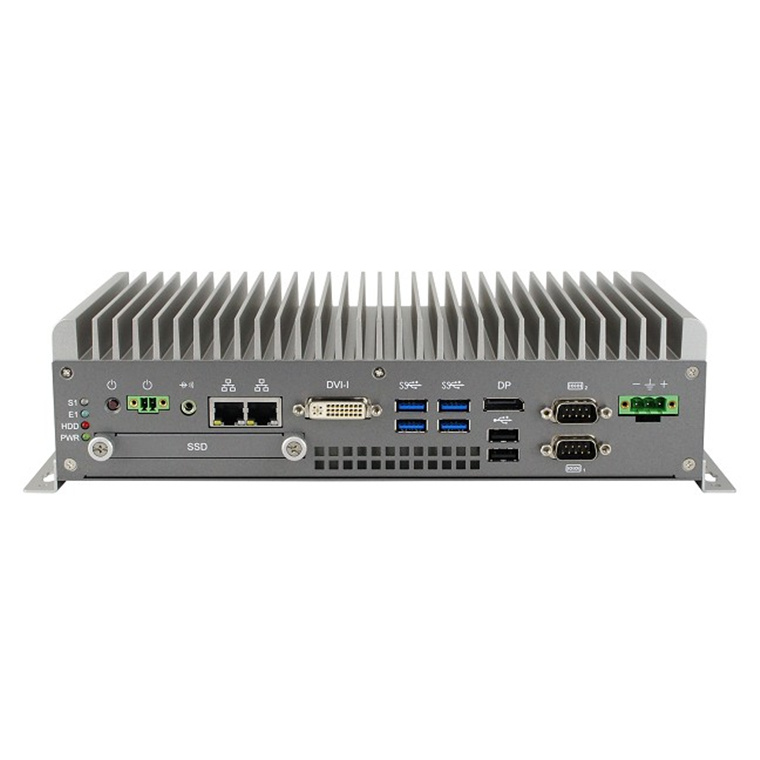

iBASE AMS300M i7-7700T, 16GB (2x8GB DDR4), Wifi 2HDD Scoket, PSU

  • Brand: iBASE
  • MPN: AMS300M
  • Part #: WKSIBA300M
  • UPC:
CLEARANCE
Normally $1,635.12
Normally $1,635.12
You save $77
You save $77
PB Tech price
AUD $ 1,558 .01 $ 1,558 .01
Hurry, only 1 unit left!


Delivery: Order now and it ships tomorrow
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$1,558.01  +GST
$1,558.01

Features

?Compact fanless system with IBASE MB300 customized board

?7th/6th Gen Intel® Core™ i7/i5/i3 Processors (35W TDP)

?2MB MRAM module (optional)

?Front removable drive bay for HDD/SSD (supports RAID 0/1)

?Over/Under/Reverse voltage protection?iSMART, iAMT (11.6)

The AMS300 is a compact, yet expandable fanless system designed for industrial control and measurement processes in smart factory automation applications. It is powered by 7th/6th Gen Intel® Core™ i7/i5/i3 processors and comes integrated with 8GB memory as well as 64GB of industrial-grade SSD storage. An optional 2MB MRAM expansion module is available to store data even without power. The AMS300 is built with two module compartments for PCI-E/PCI cards and Fieldbus modules, giving flexibility to customers to configure the various I/O required. The unit also features high vibration and shock resistance crucial for deployment in harsh conditions and all interfaces situated on one side for easy assembly and expansion.

Built with a passive finned heat sink, the rugged AMS300 boasts of superb thermal performance while reliably operating at a temperature range of -10°C to 60°C. It adopts wall, side and DIN-rail mounting to securely fit in space-constrained and industrial environments. Advanced features include iAMT (11.6) for remote management and repair of systems and IBASE's owned iSMART technology that enables energy-efficient systems with various power-saving functions. AMS300 offers extensive I/O connectivity including a drive bay with RAID 0/1 support, a 24V DC terminal block, 4x USB 3.0 which can be used as machine vision camera interface, 2x USB 2.0, 2x COM, 2x Gigabit Ethernet and video outputs for DVI-I and DisplayPort interface.

To meet customer specific requirements, the AMS301, an AMS300 variant model, houses an extension module with an IP301 card with 3x mPCIe slots that can be installed with optional PROFINET and PROFIBUS Fieldbus modules. The AMS302, on the other hand, has an IP302 expansion card with interface for USB, COM, PCI-E(x8) and PCI-E(x4) devices.

Specifications

System Mainboard MB300 with Intel® Q170 PCH
CPU Type 7th/6th Gen Intel® Core™ i7/i5/i3 Desktop processors (35W TDP)
System Speed Up to 3.4GHz
Memory 2x DDR4-2133 SO-DIMM, Max. 32GB
Front Panel External I/O 2x Antenna hole for WLAN module
Rear Panel External I/O 1x DVI-I + 1x DisplayPort connector
1x Audio jack for Line-out
4x USB 3.0 ports, 2x USB 2.0 ports
1x Red HDD LED, 1x Green PWR LED, 2x error LED by programming
1x power button
1x 2-pin terminal block for external power button
1x RS232/422/485 port for COM#1
1x RS232 port for COM#2
2x RJ45 Gigabit Ethernet port
1x 3-pin DC-in terminal block type for 24V
Expansion Slots 1x Mini PCI-E socket (full-sized)
Storage 2x 2.5'' SSD (1x internal & 1x external-accessible) + 1x mSATA socket
Construction Aluminum & steel
Chassis Color Silver & Gray
Mounting Desktop or wall mounting (wall mount kit included)
Side mounting
DIN rail mounting (optional)
Dimensions 275mm (W) x 140mm (D) x 70mm (H)
10.83" (W) x 5.51" (D) x 2.76" (H)
Weight 2.7kg
Operating Temperature -10°C to 60°C (14°F~140°F) *with air flow
-10°C to 50°C (14°F to 122°F) without air flow
Storage Temperature -20°C to 80°C (-4°F to 176°F)
Relative Humidity 5~90% @ 45°C, (non-condensing)
Vibration Operating: 3 grms / 5~500Hz / random operation (storage is mSATA)
Shock Operating: 20 g / 11 ms
Non-operating: 40 g / 11 ms
Certification CE / LVD / FCC Class B

Manufacturer Part No:
AMS300M
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
4.478 kg
PB Part No:
WKSIBA300M
Product Model:
AMS300M
Warranty: 36 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
