Features

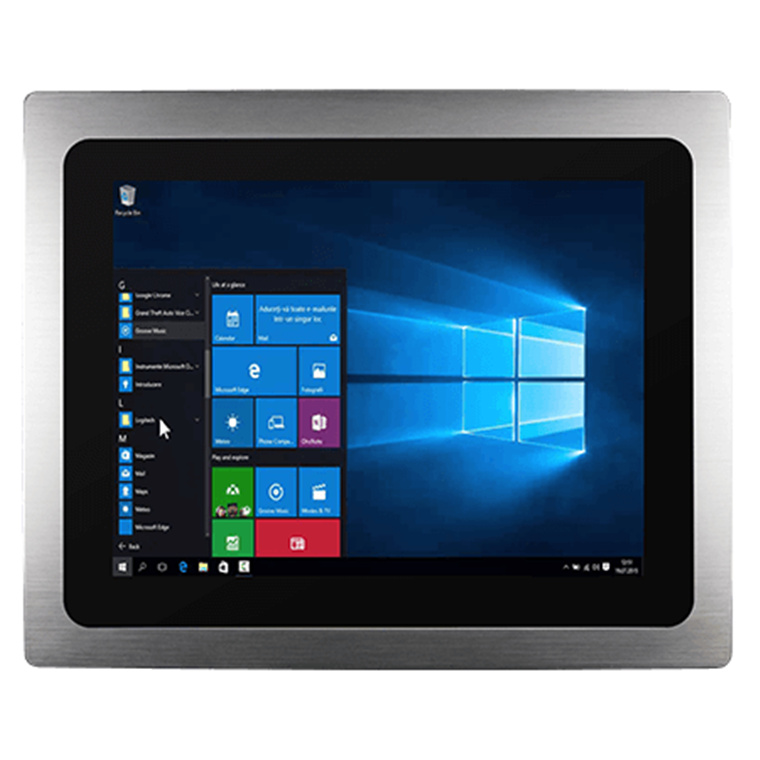

R10IB3S-PPT2HB
10.4" Intel® Celeron® N2930 PP Series HMI Panel PC
- 10.4" LED LCD with projected capacitive multi-touch screen
- 1000 nits high brightness
- Intel® Celeron® Bay Trail-M N2930, 1.83 GHz
- Fanless cooling system and ultra-low power consumption
- Front IP65 water and dust proof
- Aluminum housing and fanless design
- Room booking schedule, access control, room information display
Real Flat Surface and Slim Design
The PP Series HMI panel PCs feature an elegant, slim design and true-flat design that works perfectly within industrial applications that satisfy the growing demand for control devices with a flat design. With a truly flat surface, PP Series HMI panel PCs are easy to maintain and clean, leaving no more clogged dust on the edges.
Convenient Onscreen Operations with PCAP Multi-Touch
The PP Series HMI panel PCs offer an ultimate touch experience with a projected capacitive (PCAP) multitouch screen. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience. Enjoy every touch!
Front IP65 Water and Dust Proof
The IP65 rating is utterly impervious to dust and protected against the splash of waters. The PP Series HMI panel PCs deliver outstanding processing, graphical, and media performance while operating in challenging conditions.
Rich I/O Interface for IoT Connectivity
The PP Series HMI panel PCs feature high performance and a rich I/O interface for innovative industrial IoT solutions, including serial ports, USB ports, LAN, video, and audio ports. Connectivity options, high performance, and installation-friendly design deliver excellent performance for vertical applications.
Suitable for Industrial Automation
Robust aluminum die-cast housing offers corrosion resistance and durability, making the PP Series HMI panel PCs suitable for a wide range of application possibilities in industrial and factory applications with challenging environments.
Specifications
Display
Size
10.4 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Resolution
1024x768
Panel Brightness
1000 nits
Contrast Ratio
1000:1
View Angles
88,88,88,88
Active Area
210.4x157.8 mm
System Specification
Processor
Intel® Celeron® N2930 (2M Cache, up to 2.16 GHz)
Memory
1 x SO-DIMM, DDR3L 1600 MHz, 8GB
Storage
1 x mSATA SSD 256GB.
Ethernet controller
2 x Intel® Ethernet Controller I210-AT
Security
TPM 2.0
Operating System
Windows 10 IoT Enterprise (Optional)
Mechanical
Dimension
284 x 252 x 55.39 mm
Cut out
262x220mm
Mounting
Panel mount
VESA Mount
Enclosure
Metal Housing
Cooling System
Fanless design
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~50°C
Storage Temperature
-20~60°C
IP rating
Front IP65
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB3.0 (Type-A)
1 x USB2.0 (Type-A)
Serial Port
1 x RS232/422/485 (Default RS232)
1 x RS232
LAN
2 x Giga LAN RJ45 Connector
Video
1 x HDMI 1.4
Audio
2 x Speaker
Expansion Port
1 x mPCIe slot(for half size Wifi module)
Indicator
1 x LED Indicator for power
1 x LED Indicator for storage
Brightness Knob
1 x Brightness Adjustment Knob
mini PCIe
1 x Mini PCIE(For WLAN)
Control
Button
1 x Power Button
1 x Reset Button
Accessory
Accessory
100~240V AC to DC Adapter
Power Cord
Driver CD & Manual
VESA screws
Mounting clips
Power
Power Rating
12V DC
Adapter
12V 50W
