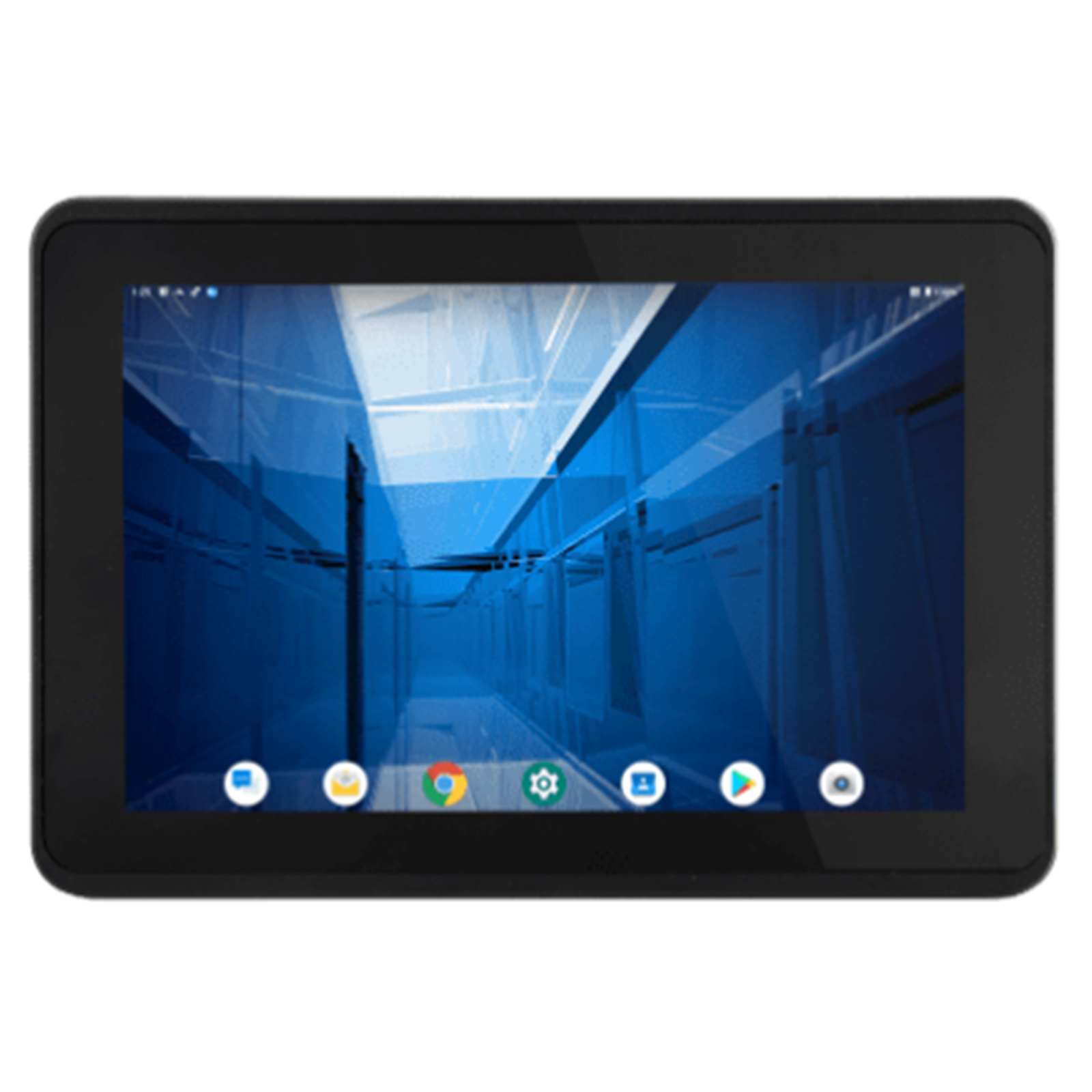

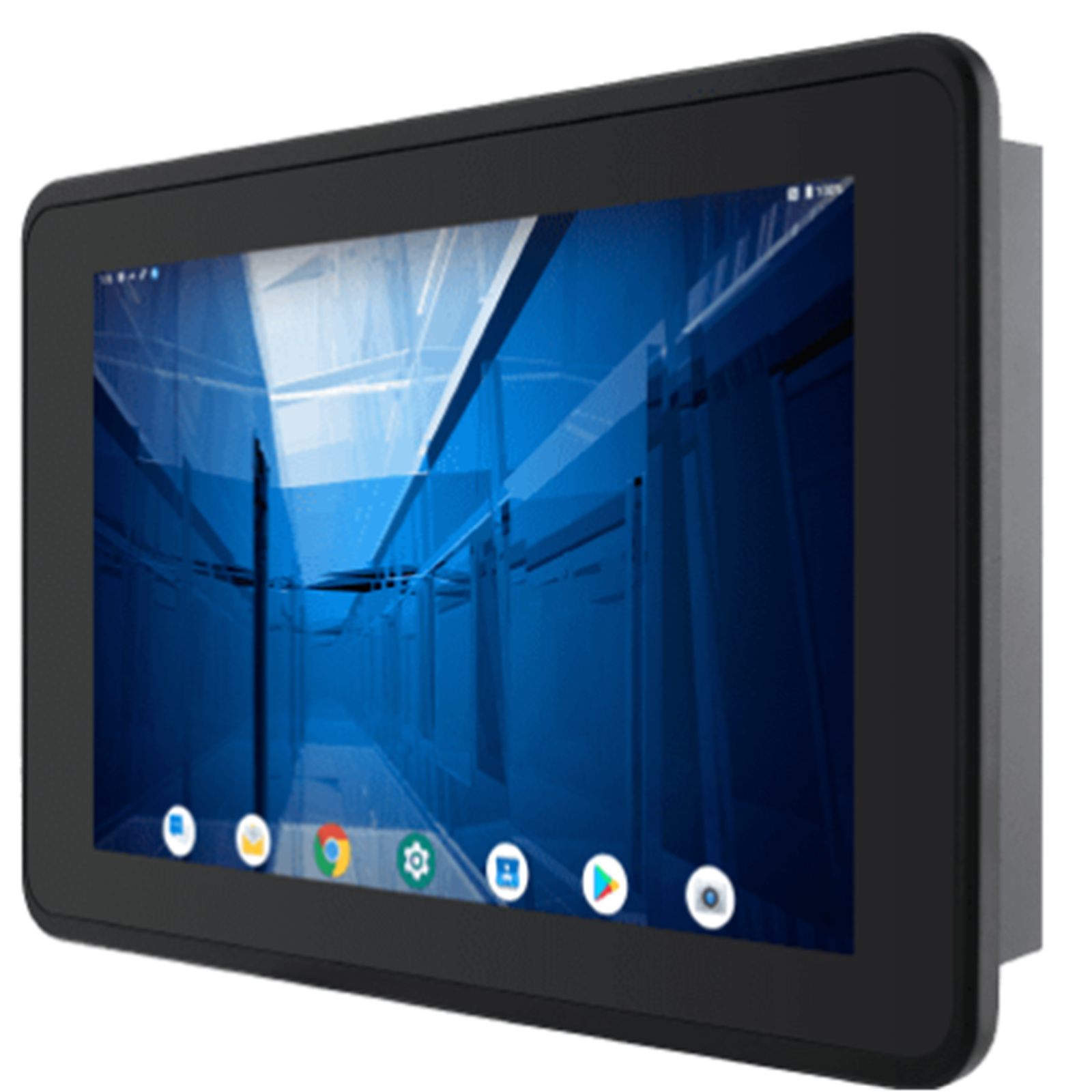

Winmate W10IM3S-ELH2 HMI Fanless Panel PC 10.1" 1280 x 800 ARM A53 Quad 4GB/32GB Android 11 with P-Cap Multitouch screen 1USB , 1Micro USB, 1RS485 , 1RJ45/LAN, -20~50°C, Front IP65, Panel & Vesa mount

Winmate W10IM3S-ELH2 HMI Fanless Panel PC 10.1" 1280 x 800 ARM A53 Quad 4GB/32GB Android 11 with P-Cap Multitouch screen 1USB , 1Micro USB, 1RS485 , 1RJ45/LAN, -20~50°C, Front IP65, Panel & Vesa mount

  • Brand: Winmate
  • MPN: W10IM3S-ELH2
  • Part #: WKSWMA10IM3S
  • UPC:

Features

Lightweight Design (Versatile use)

Lightweight design for multi-purpose use in any industrial or home use.

Real Flat (Easy-to-clean)

The real Flat surface is not only for a stylish look. It is easy to maintain and clean. It has no more clogged dust on the edges.

Android Operating System (Customizable and easy to use)

Android OS works perfectly with all your favorite apps. Easy software integration opens full possibilities for customization.

P-Cap Touch (Resistant to scratches)

The glass cover lens provides excellent protection from scratches. P-Cap Touch supports 4-point multi-touch and can easily be controlled by fingers. This technology allows enjoying every touch and improving the convenience of using the device. Thus it helps to enhance the overall customer experience.

Mounting clips (Quick installation)

With mounting clips for panel mounting, there is no need to drill holes in a fixture. This saves you the time for mounting and guarantee the aesthetic look of the wall after the unit gets removed.

- 10.1" 1280 x 800 Resolution with P-Cap Multi-touch screen
- MediaTek ARM A53 Quad Core 2.0GHz CPU
- Android 11
- 1 x USB , 1 x Micro USB, 1 x RS485 , 1 x RJ45 / LAN
- Support Android or Linux operating system

Specifications

Display

Size

10.1 inches

Touch / Glass

Projected Capacitive Multi Touch Screen

Resolution

1280x800

Panel Brightness

350 nits

Contrast Ratio

800:1

View Angles

85,85,85,85

Active Area

216.96 x135.6 mm

System Specification

Processor

ARM A53 Quad Core 2.0GHz

Memory

4GB LPDDR4

Storage

32GB eMMC

Operating System

Android 11 (Upgradeable to Android 13)
Linux Yocto 5.10.104 with QT 5.15 (Optional)
Linux Ubuntu (in 2023) (Optional)

WLAN

Support (Optional)

BT

Support (Optional)

Mechanical

Dimension

267 x 182 x 47 mm

Cut out

244x159 mm

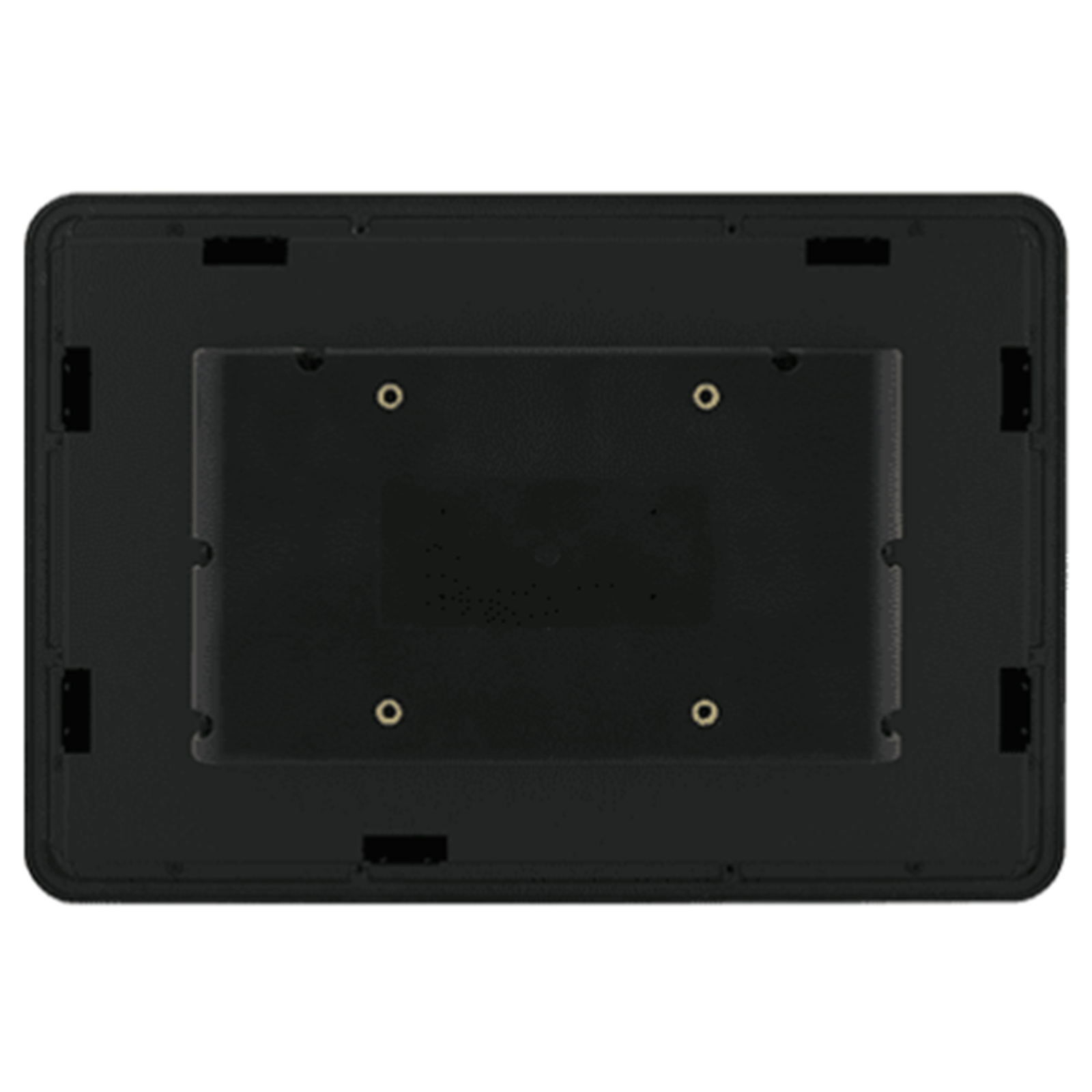

Mounting

Panel mount
VESA Mount

Enclosure

Front Aluminum Bezel & Rear Plastic Cover

Cooling System

Fanless design

Environment

Operating Humidity

10% to 90% (non­condensing)

Operating Temperature

-20~50°C

Storage Temperature

-25~70°C

IP rating

Front IP65

Certification

Certification

CE, FCC

IO Ports

USB Port

1 x USB 2.0 Type A
1 x Micro USB 2.0 OTG

Serial Port

1 x RS485, 3pin Terminal block

LAN

1 x LAN RJ45 Connector

Indicator

1 x LED Indicator for storage

Manufacturer Part No:
W10IM3S-ELH2
Brand:
Product Type:
HMI Fanless Panel PC
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
WKSWMA10IM3S
Product Model:
W10IM3S-ELH2
Warranty: 12 months *
