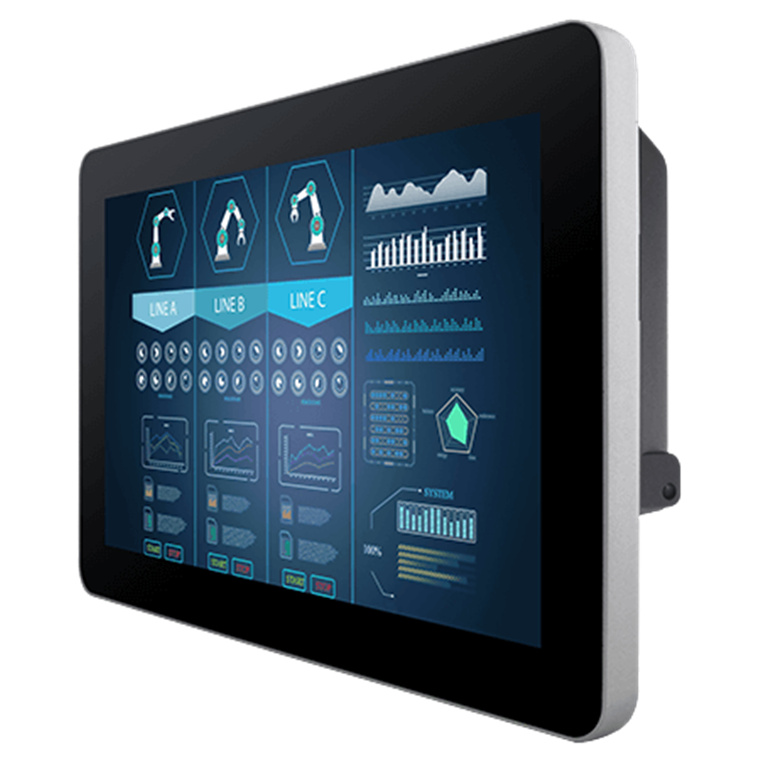

Winmate Multi-Touch Chassis W10L100-PCH2 P-Cap 10.1" 1280x800 Front IP65 Water and Dust Proof, 1xUSB, 1xVGA, Fanless design
- Brand: Winmate
- MPN: W10L100-PCH2
- Part #: WKSWMA10L100

Product URL: https://www.pbtech.com/product/WKSWMA10L100/Winmate-Multi-Touch-Chassis-W10L100-PCH2-P-Cap-101
Features
Low Power Consumption
This display is designed for low power consumption and effective heat dissipation, making it durable for long-term usage in production facilities. It is the ultimate energy-efficient solution.
Easy Mounting
This industrial display comes with a universal VESA mounting option for wall and desk mounting. Enable easy installation and use in various industries according to your specific requirements.
- 10.1" 1280 x 800 Resolution
- Projected Capacitive Multi-Touch (P-Cap)
- Front IP65 Water and Dust Proof
- VGA input and variety of optional connectors
- USB port for touch
- Stylish and elegant design
Specifications
Display
Size
10.1 inches
Touch / Glass
Projected Capacitive Multi Touch Screen
Anti-glare Coating (Optional)
Resolution
1280x800
Panel Brightness
350 nits
1000 nits(Optional)
Contrast Ratio
800:1
View Angles
85,85,85,85
Display Color
16.7M Colors
Active Area
216.96 x135.6 mm
Environment
Operating Humidity
10% to 90% (non-condensing)
Operating Temperature
0~50°C
Storage Temperature
-10~60°C
Certification
Certification
CE, FCC
IO Ports
USB Port
1 x USB for Touch Screen
Video
1 x VGA
1 x HDMI (Optional)
1 x DVI (Optional)
Audio
1 x Speaker (Optional)
Mechanical
Dimension
264.57 x 173.29 x 35.70 mm
Mounting
VESA Mount
Enclosure
Aluminum
Cooling System
Fanless Design
Power
Power Rating
12V DC input
Control
Button
5 Keys: - , + , Power , Esc , Enter
