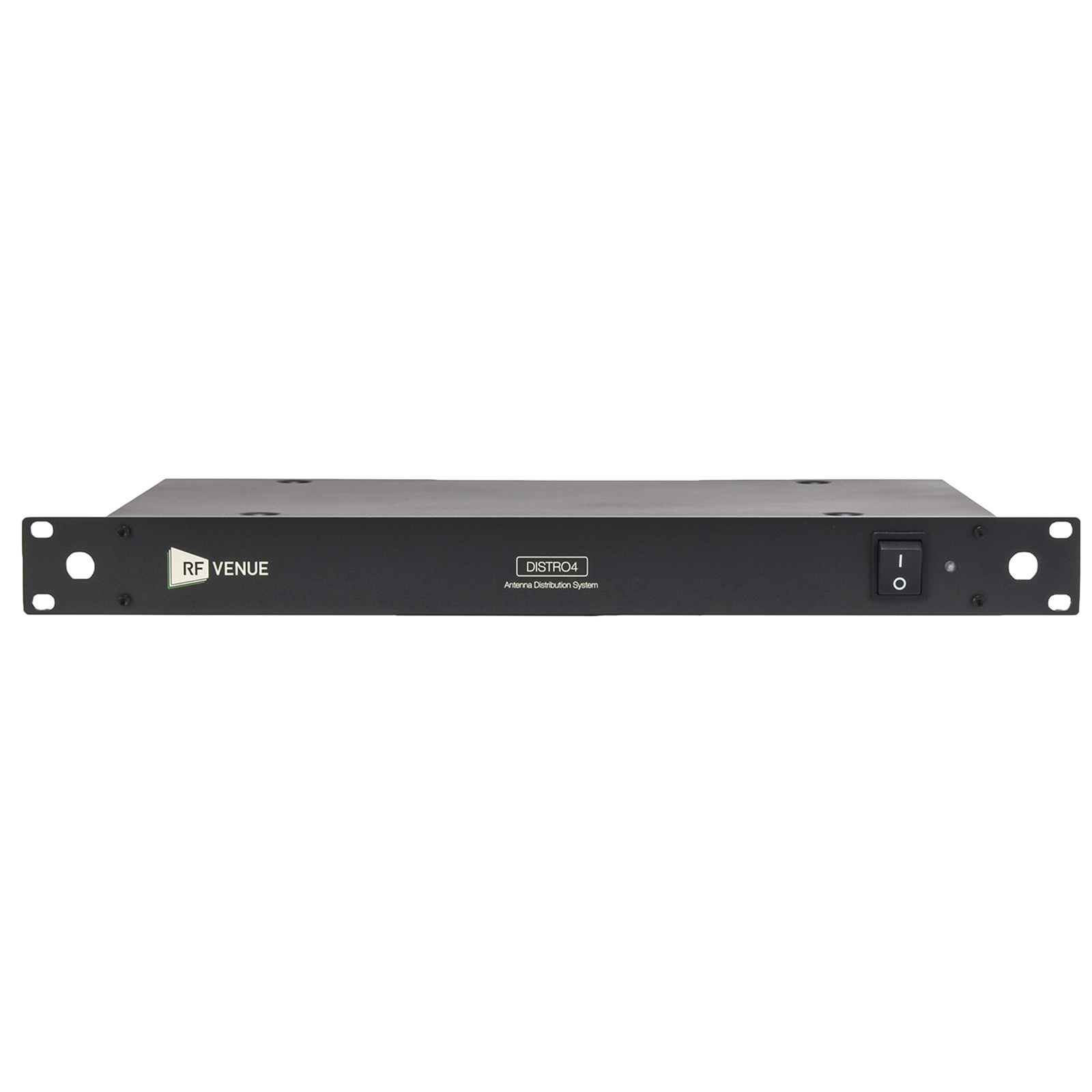

RF VENUE DISTRO4 ANTENNA DISTRIBUTION SYSTEM W/ CASCADE

PB Tech price

AUD $ 1,365 .76

$ 1,365 .76

RF VENUE DISTRO4 ANTENNA DISTRIBUTION SYSTEM W/ CASCADE

Brand: RF VENUE
MPN: DISTRO4
Part #: AUDRFV1016
UPC:

NEW ARRIVAL

PB Tech price

AUD $ 1,365 .76

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 12 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: RF VENUE
MPN: DISTRO4
Part #: AUDRFV1016
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

DISTRO4™ With Cascade Antenna Distribution System With Cascade

DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true "distribution amplifier," DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.

DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.

Share one set of antennas: Reduce IMD and crosstalk caused by using antennas for each receiver

Efficient: Supports up to 5 Receivers including 12VDC Power

Compatible: Works with all manufacturers receivers

Product Setup

*Please note - 4 DC ports are provided for powering receivers, for a fifth receiver, an external power supply is required.

Specifications

Frequency range

470-952 MHz

RF output level (gain)

3 dB (±2 dB)

Cascade output level

0 dB ~ +2 dB

Output connection isolation

>= 25 dB

Third order intercept point

24 dBm

Impedance

50ohm

Power consumption

60 W

Input AC voltage

100~240 V switching

DC over coax (to external antennas)

12-14 VDC

Output DC voltage (to receiver jacks)

+12 V

Output DC connectors

5.5mm OD, 2.1mm ID

Dimensions (W x H x D)

480 x 45 x 250 mm

Weight

2.15 kg

Manufacturer Part No:

DISTRO4

Brand:

RF VENUE

Product Type:

UPC

Product Family:

Shipping Weight:

0.2 kg

PB Part No:

AUDRFV1016

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
