RF VENUE DISTRO4 ANTENNA DISTRIBUTION SYSTEM W/ CASCADE
- Brand: RF VENUE
- MPN: DISTRO4
- Part #: AUDRFV1016

Product URL: https://www.pbtech.com/au/product/AUDRFV1016/RF-VENUE-DISTRO4-ANTENNA-DISTRIBUTION-SYSTEM-W-CAS
Features

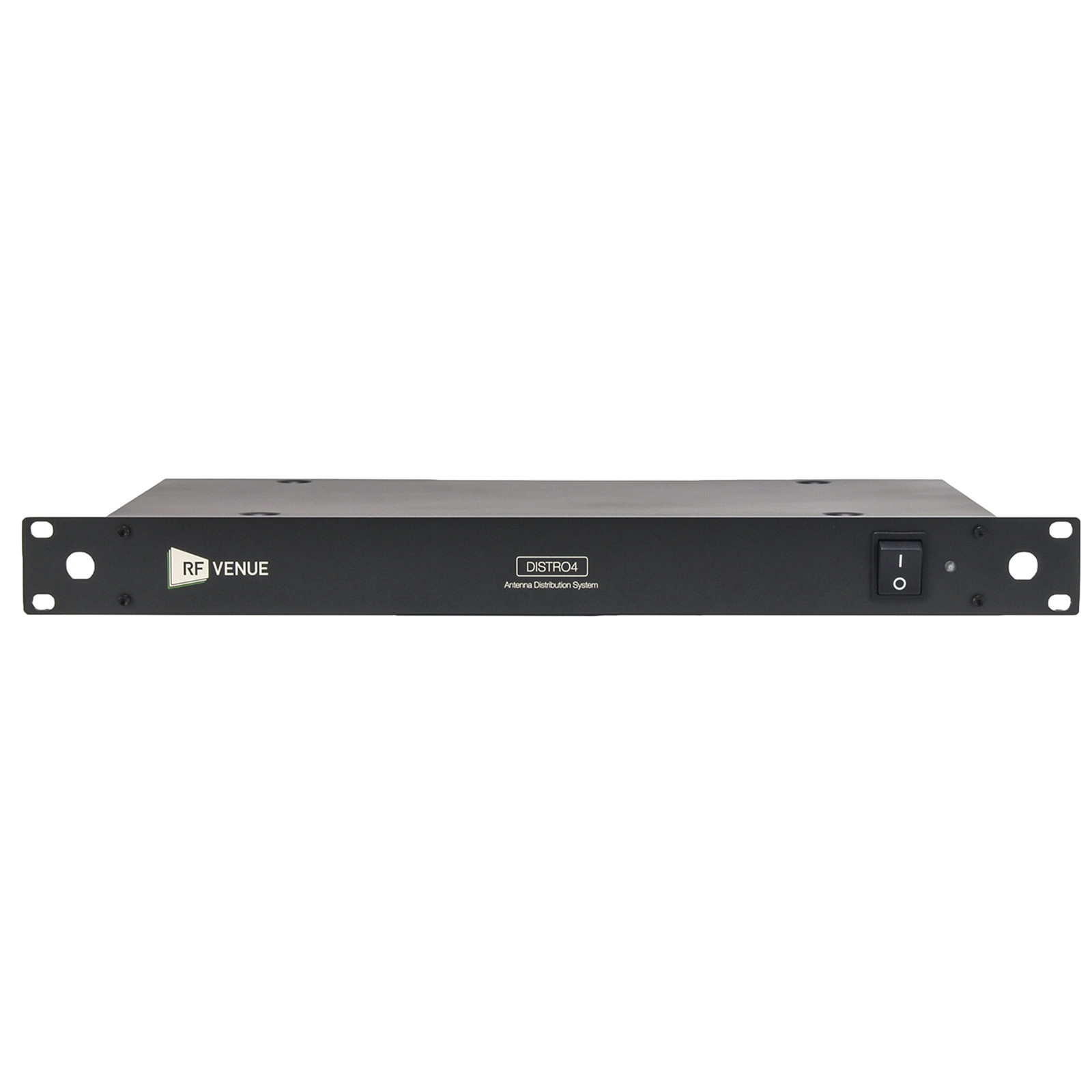

DISTRO4™ With Cascade Antenna Distribution System With Cascade
DISTRO4 distributes diversity RF and DC power across four wireless microphone receivers of any brand. A true "distribution amplifier," DISTRO4 splits signals from two antennas (or one Diversity Fin) connected to the rear panel and amplifies them before delivering the signals to multiple receivers in a rack. An additional cascade port is included for daisy chaining multiple units together to accommodate up to 16 receivers per antenna pair.
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4.
Share one set of antennas: Reduce IMD and crosstalk caused by using antennas for each receiver
Efficient: Supports up to 5 Receivers including 12VDC Power
Compatible: Works with all manufacturers receivers
Product Setup
DISTRO4 features a 2000 mA internal power supply (no wall wart) and compares to antenna distributors twice its price. It includes all RF and DC power cables needed to connect a 4 channel wireless microphone system as well as cascade to one additional DISTRO4. Included Accessories: (1) AC cable, (4) DC cables, (10) BNC jumpers
*Please note - 4 DC ports are provided for powering receivers, for a fifth receiver, an external power supply is required.
Specifications
Frequency range
470-952 MHz
RF output level (gain)
3 dB (±2 dB)
Cascade output level
0 dB ~ +2 dB
Output connection isolation
>= 25 dB
Third order intercept point
24 dBm
Impedance
50ohm
Power consumption
60 W
Input AC voltage
100~240 V switching
DC over coax (to external antennas)
12-14 VDC
Output DC voltage (to receiver jacks)
+12 V
Output DC connectors
5.5mm OD, 2.1mm ID
Dimensions (W x H x D)
480 x 45 x 250 mm
Weight
2.15 kg
