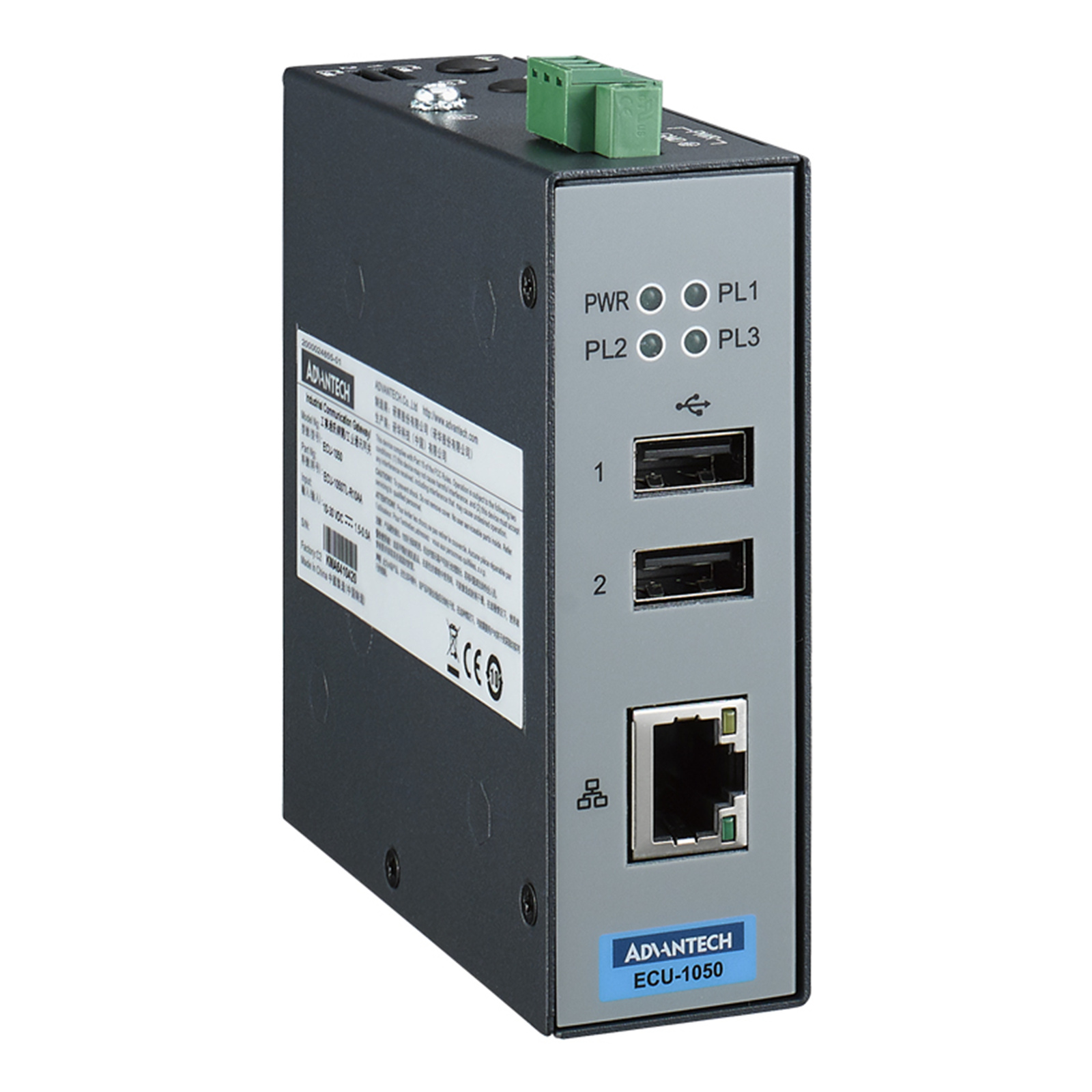

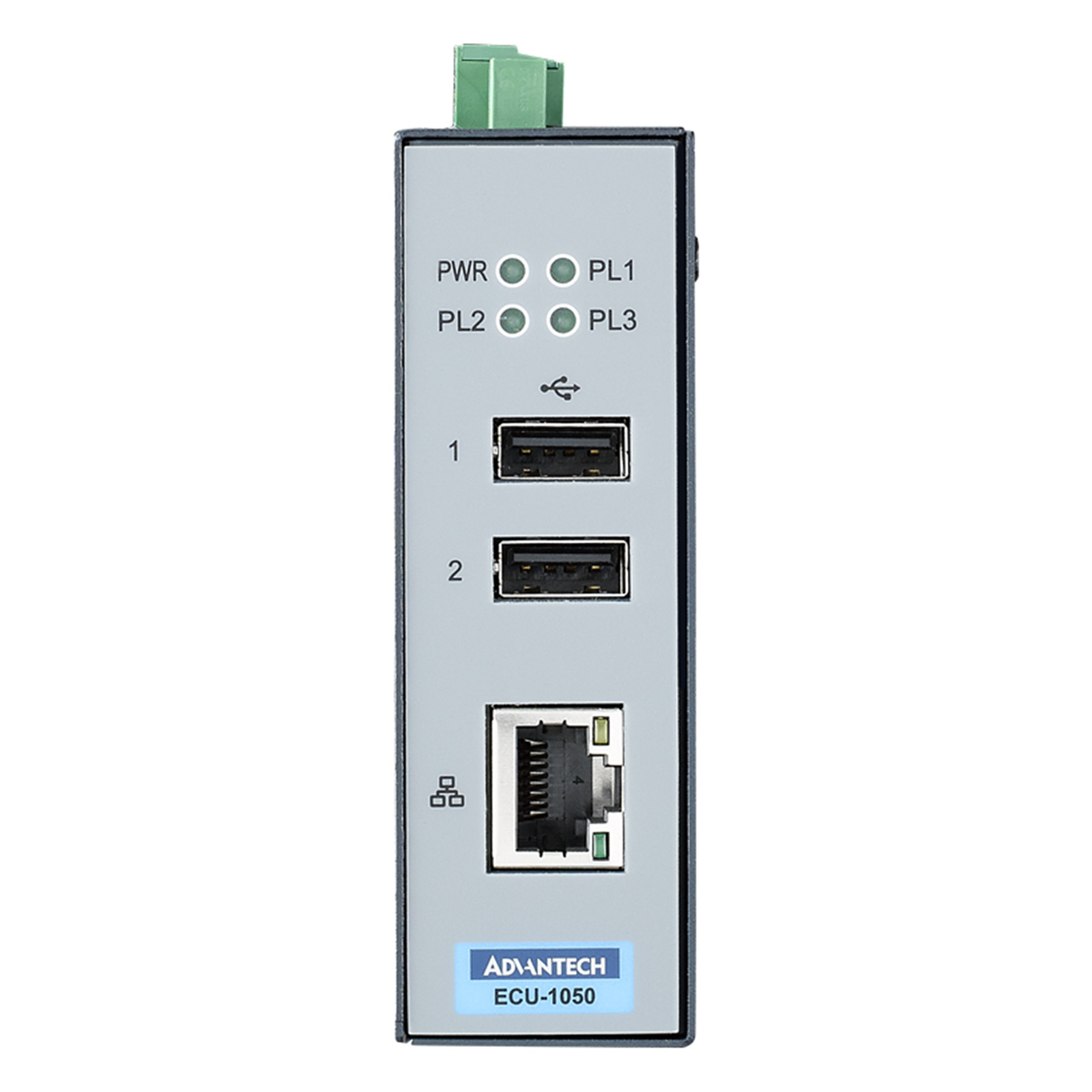

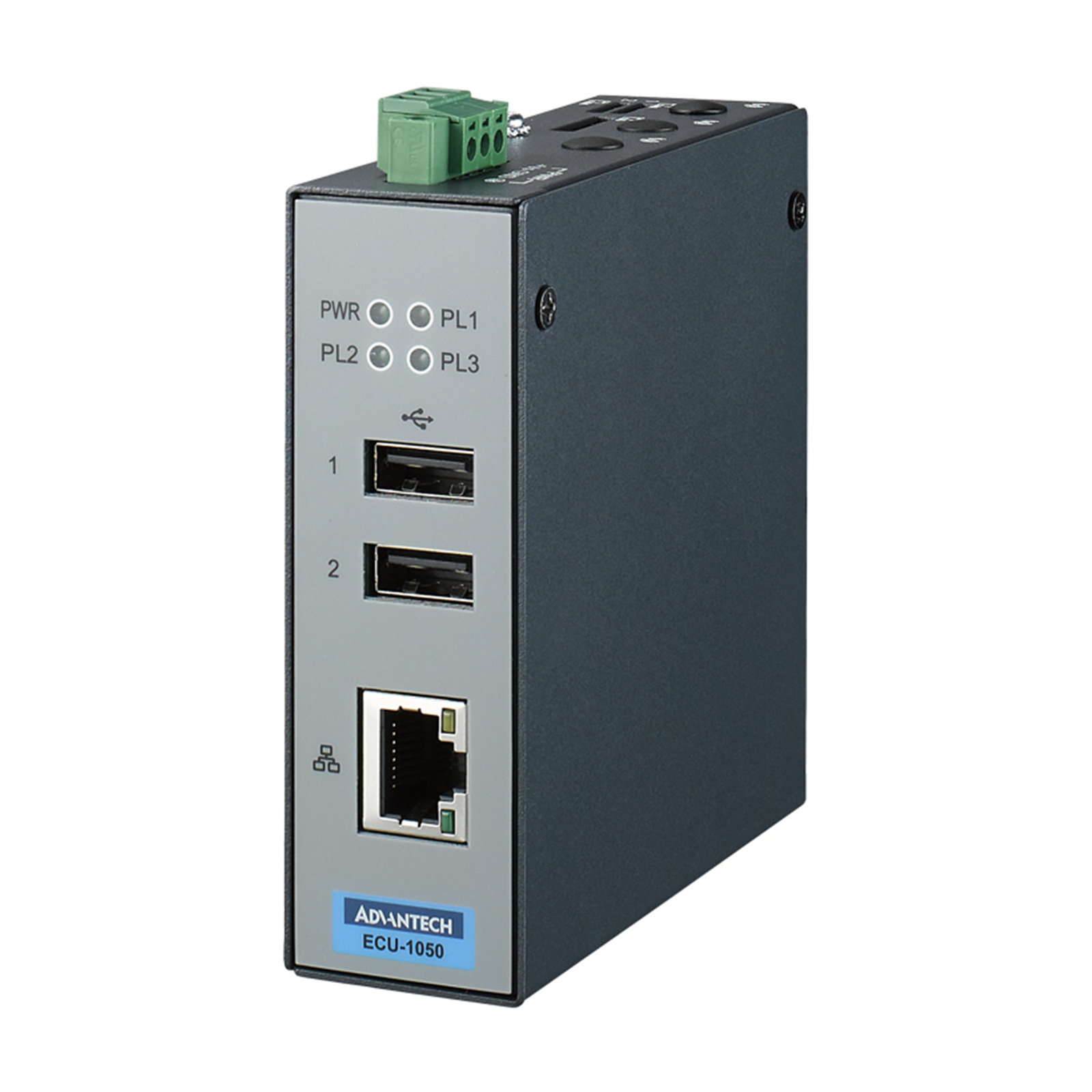

Advantech ECU-1050TL-R10AA Cloud enabled Intelligent Communication Gateway for IIOT application
- Brand: Advantech
- MPN: ECU-1050TL-R10AA
- Part #: IPCAVH220397

Product URL: https://www.pbtech.com/product/IPCAVH220397/Advantech-ECU-1050TL-R10AA-Cloud-enabled-Intellige
Features
Industrial Communication Gateway with TI Cortex A8, 2 LAN & 2 mPCIe wireless expansion
For facility monitoring, distributed solar power, smart factory sector, especially cloud based applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1050TL RISC-based industrial communication gateway. ECU-1050TL has an open platform design with Cortex A8 processor, one 10/100 Ethernet ports and operating temperature range of -40~70°C. With Linux operating system and open Edgelink SDK, which enable to system integrators to develop applications which precisely fit their need.
- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C
Specifications
General
Certification
CE, FCC
Mounting
Wall-Mount/ DIN-Rail
Power consumption (typical)
2.4W @ 24VDC
Power Requirements
10 ~ 30 VDC
System
CPU
TI Cortex A8, 600MHz
Memory
DDR3L 256MB
Indicators
LEDs for Power, LAN (LINK, ACT), Programmable
Storage
512MB NAND Flash
SD Slot
1 x Micro-SD slot
Watchdog
Yes
Real-time clock
Yes
Communication
Ethernet Port
1 x 10/100 RJ-45 ports
USB Port
2 x USB2.0
Expansion
Interface: 2 x Mini-PCIe (Full-size) Type: WIFI/4G/Cellular Signal: USB
Software
Communication Protocol*
IEC-60870-5-104 Modbus TCP/RTU MQTT FTP/HTTP/DHCP/TCP/IP
PLC Driver Support
100+ PLC drivers Data Logger Real-time datalogger Database uplink ODBC/ FTP Data Monitoring 2000 Tags Max. Programming support IEC-61131-3, Linux C, Phython OS Support Yocto Kernel 4.9 Configuration Tool Advantech Edgelink Studio
Data Logger
Real-time datalogger
Database uplink
ODBC/ FTP
Data Monitoring
2000 Tags Max.
Programming support
IEC-61131-3, Linux C, Phython
OS Support
Yocto Kernel 4.9
Configuration Tool
Advantech Edgelink Studio
Environment
Operating Temperature
-40 ~ 70°C
Storage Temperature
-40 ~ 85°C
Humidity
5 ~ 95% (non-condensing)
