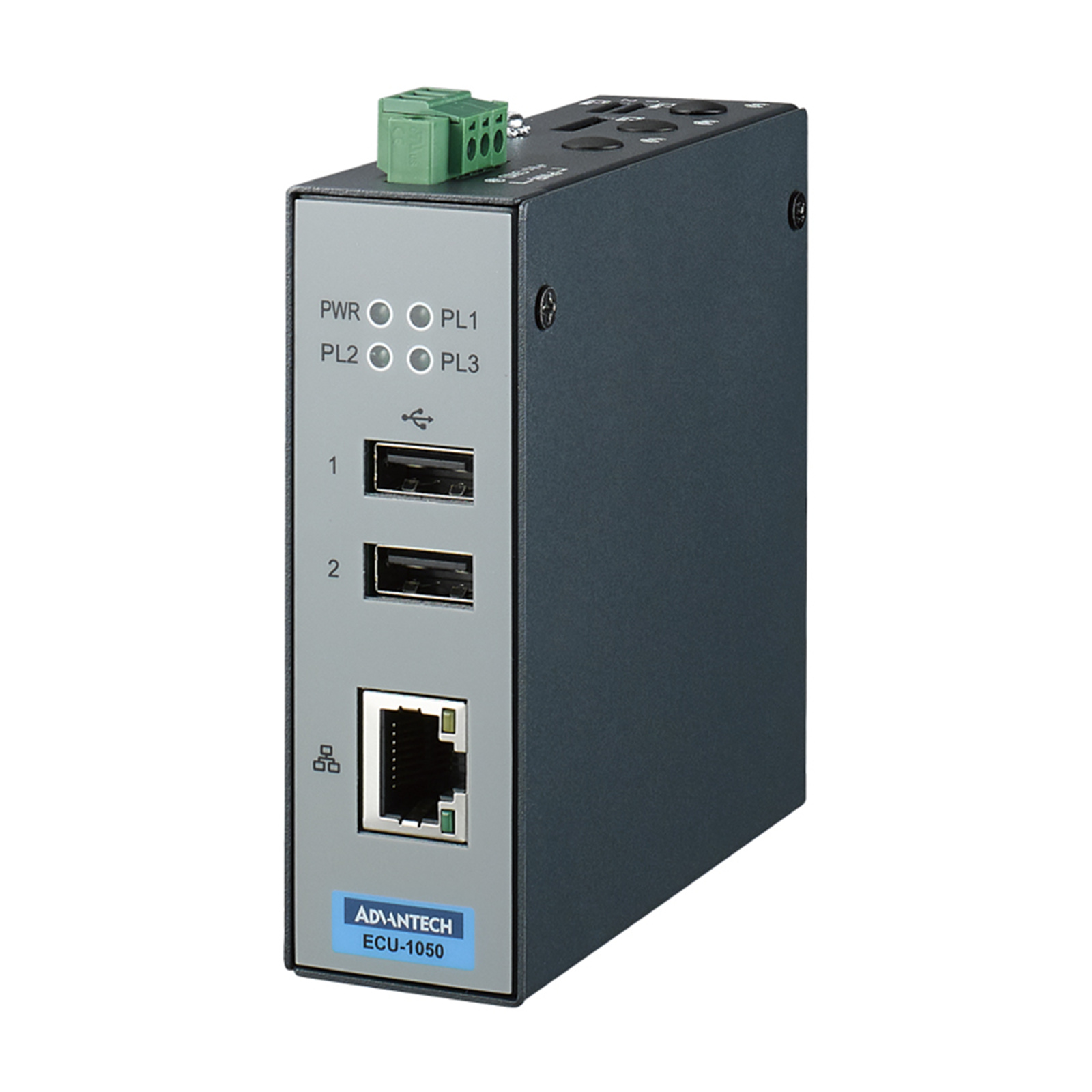

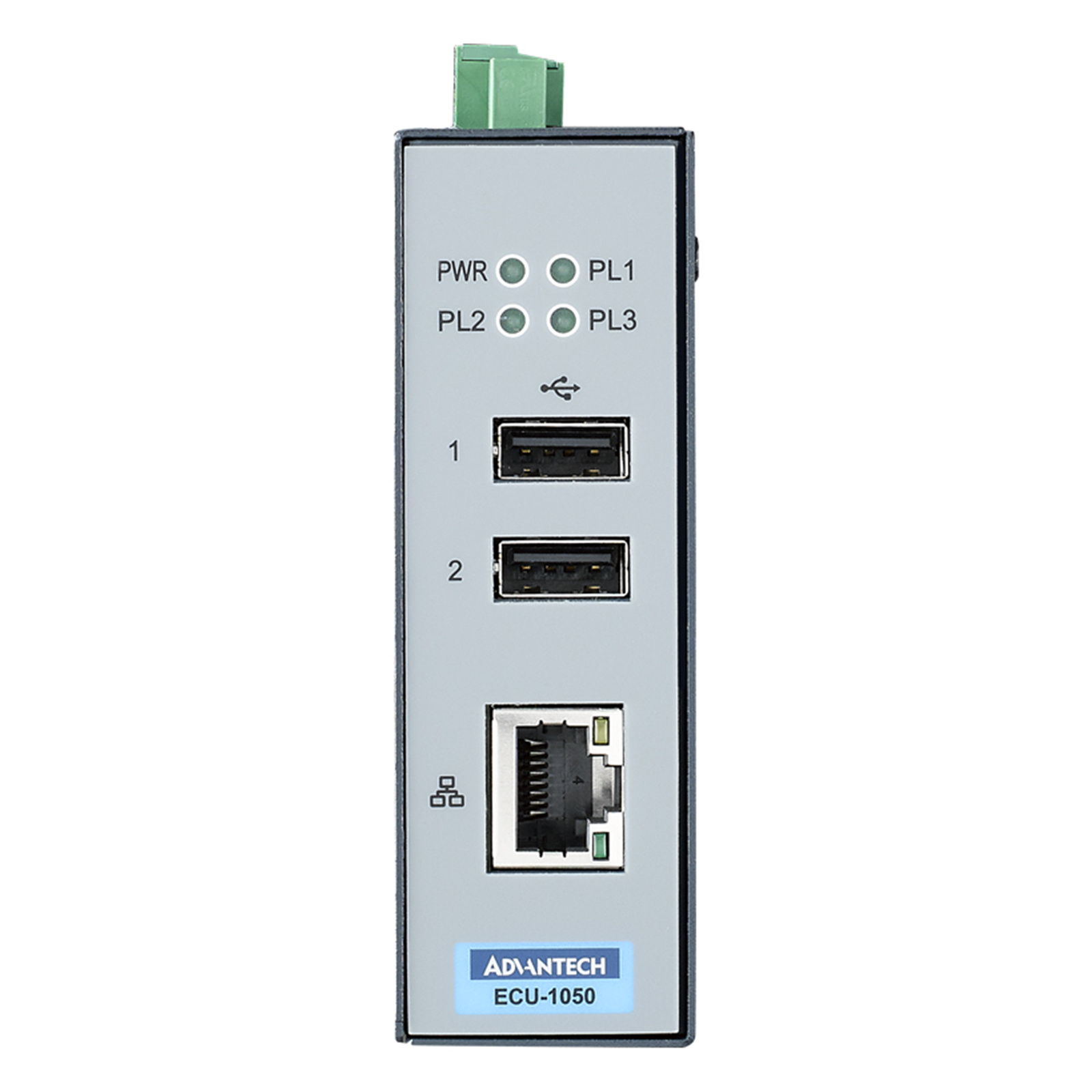

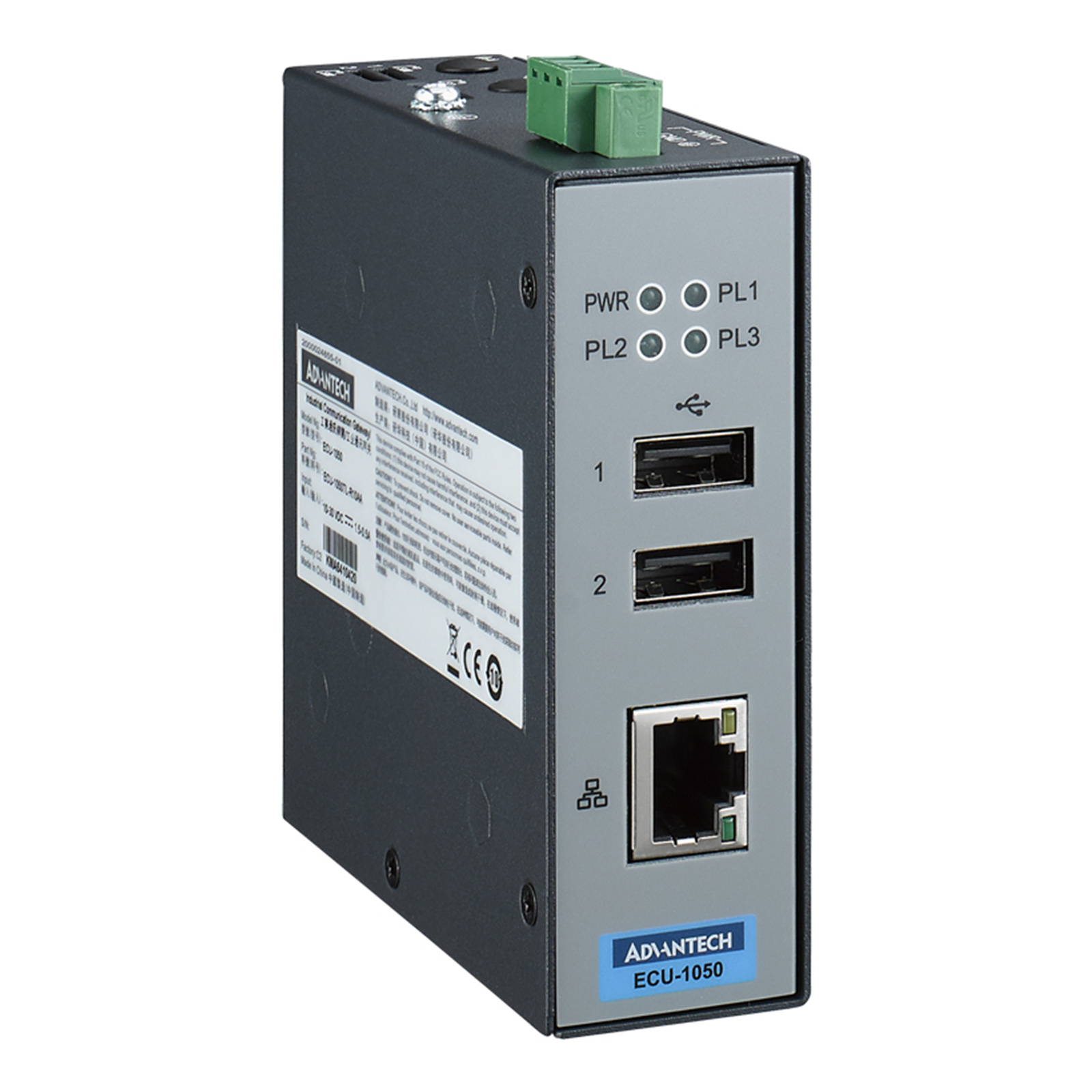

Advantech ECU-1050TL-R10AA Cloud enabled Intelligent Communication Gateway for IIOT application

PB Tech price
PB Tech price
$ 365 .94
 +GST
$ 402 .53
 inc GST
$365.94  +GST
$402.53

Advantech ECU-1050TL-R10AA Cloud enabled Intelligent Communication Gateway for IIOT application

  • Brand: Advantech
  • MPN: ECU-1050TL-R10AA
  • Part #: IPCAVH220397
  • UPC:
PB Tech price
$ 365 .94 $ 402 .53
 +GST  inc GST


Delivery: Order now and it ships on 24 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$365.94  +GST
$402.53

Features

Industrial Communication Gateway with TI Cortex A8, 2 LAN & 2 mPCIe wireless expansion

For facility monitoring, distributed solar power, smart factory sector, especially cloud based applications which require a total wireless and Ethernet communication solutions, Advantech has released the ECU-1050TL RISC-based industrial communication gateway. ECU-1050TL has an open platform design with Cortex A8 processor, one 10/100 Ethernet ports and operating temperature range of -40~70°C. With Linux operating system and open Edgelink SDK, which enable to system integrators to develop applications which precisely fit their need.

- TI Cortex A8 600MHz CPU with DDR3L 256MB RAM
- Web service for remotely on-line monitoring
- Firmware update by SD card and online update
- Data logger on SD card
- Support dual SIM slots for communication redundant
- Support MQTT Client for cloud communication
- Wide Operating temperature: -40 ~ 70°C

Specifications

General

Certification

CE, FCC

Mounting

Wall-Mount/ DIN-Rail

Power consumption (typical)

2.4W @ 24VDC

Power Requirements

10 ~ 30 VDC

System

CPU

TI Cortex A8, 600MHz

Memory

DDR3L 256MB

Indicators

LEDs for Power, LAN (LINK, ACT),  Programmable

Storage

512MB NAND Flash

SD Slot

1 x Micro-SD slot

Watchdog

Yes

Real-time clock

Yes

Communication

Ethernet Port

1 x 10/100 RJ-45 ports

USB Port

2 x USB2.0

Expansion

Interface: 2 x Mini-PCIe (Full-size) Type: WIFI/4G/Cellular Signal: USB

Software

Communication Protocol*

IEC-60870-5-104   Modbus TCP/RTU   MQTT   FTP/HTTP/DHCP/TCP/IP

PLC Driver Support

100+ PLC drivers Data Logger Real-time datalogger Database uplink ODBC/ FTP Data Monitoring 2000 Tags Max. Programming support IEC-61131-3, Linux C, Phython OS Support  Yocto Kernel 4.9 Configuration Tool  Advantech Edgelink Studio

Data Logger

Real-time datalogger

Database uplink

ODBC/ FTP

Data Monitoring

2000 Tags Max.

Programming support

IEC-61131-3, Linux C, Phython

OS Support

Yocto Kernel 4.9

Configuration Tool

Advantech Edgelink Studio

Environment

Operating Temperature

-40 ~ 70°C

Storage Temperature

 -40 ~ 85°C

Humidity

5 ~ 95% (non-condensing)

Manufacturer Part No:
ECU-1050TL-R10AA
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220397
Product Model:
ECU-1050TL-R10AA
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
