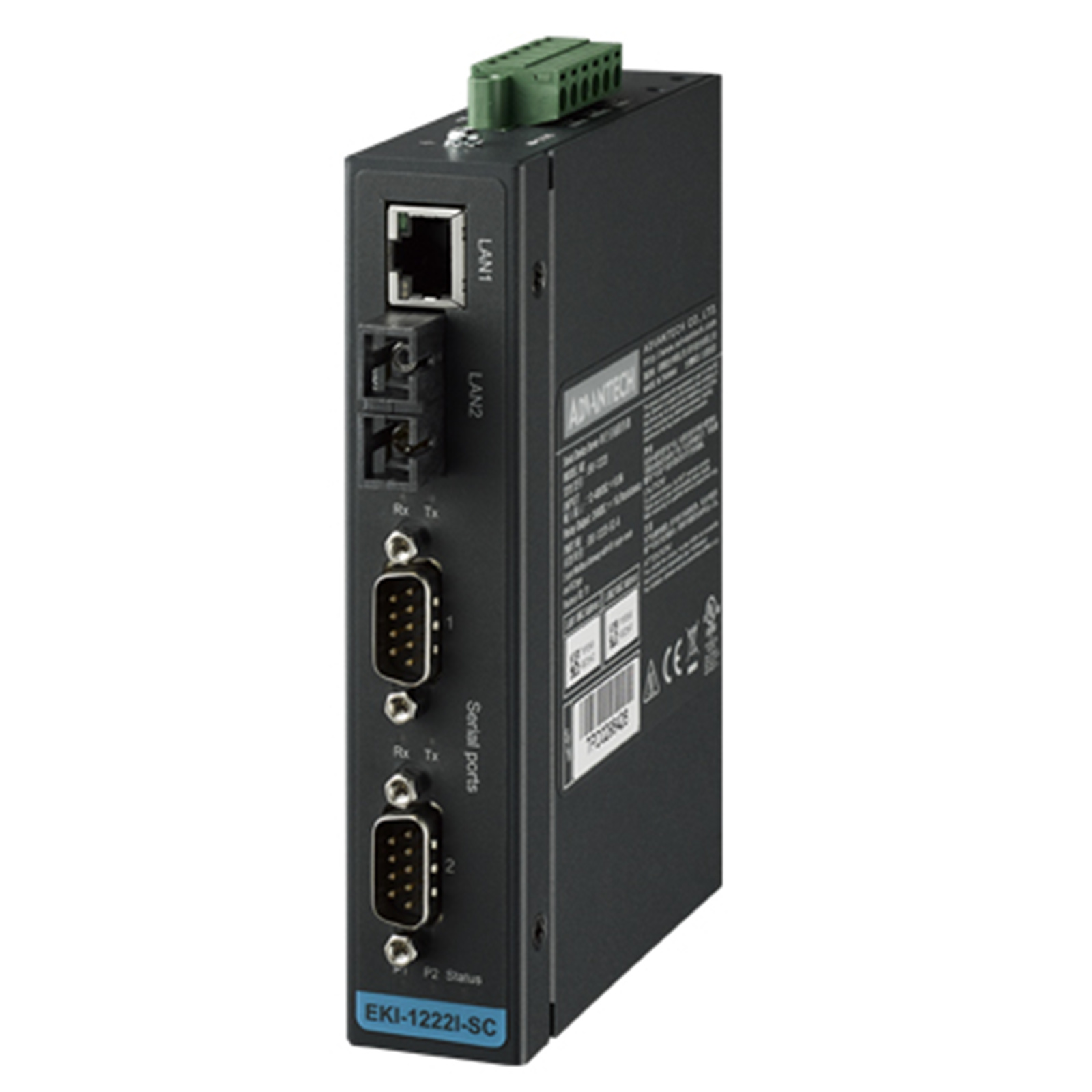

Advantech EKI-1222I-SC-A 2-Port Modbus Gateway, SM/SC Fiber, Wide Temperature
- Brand: Advantech
- MPN: EKI-1222I-SC-A
- Part #: IPCAVH220418

Product URL: https://www.pbtech.com/product/IPCAVH220418/Advantech-EKI-1222I-SC-A-2-Port-Modbus-Gateway-SMS
Features
-? Integrates Modbus TCP and Modbus RTU/ASCII networks
?- Supports up to 921.6 kbps and any baud rate setting
-? Supports up to 16 connections per serial port under Modbus client mode and 32 sessions under Modbus server mode
?- Software-selectable RS-232/422/485/485-4w communication
?- Mountable via DIN rail and wall mount
?- Built-in 15 kV ESD protection for all serial signals
-? Automatic RS-485 data flow control
-? Supports surge protection for DC power ports with line-to-line (2 kV) and line-to-earth (4 kV)
?- "I" models support a wide operating temperature
Specifications
Ethernet Communications
Compatibility
IEEE 802.3, IEEE 802.3u
Speed
10/100Base-T(X), 100Base-FX
Port
1 x RJ45 (Ethernet)
EKI-1221I-MT: 1 x ST multi-mode Fiber
EKI-1222I-SC: 1 x SC single mode Fiber
Protection
Built-in 2.25 k VDC magnetic isolation
Optical Fiber
Multi-Mode
Wavelength: 1310nm
(EKI-1221I-MT)
Tx Power: -14/-20dBm
Rx Sensitivity: -32dBm
Distance: 2KM
Single-Mode
Wavelength: 1310nm
(EKI-1222I-SC)
Tx Power: -8/-15dBm
Rx Sensitivity: -34dBm
Distance: 30KM
Serial Communications
Port Type
RS-232/422/485/485-4w, software selectable
No. of Ports
EKI-1221I-MT : 1
EKI-1222I-SC : 2
?Port Connector
DB9 male
Data Bits
5, 6, 7, 8
Stop Bits
1, 2
Parity
None, Odd, Even, Space, Mark
Flow Control
XON/XOFF, RTS/CTS
Baud Rate
50 bps ~ 921.6 kbps, any baud rate setting
Serial Signals
RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
RS-485 4-wire: TxD+, TxD-, RxD+, RxD-, GND
Protection
15 KV ESD for all signals
Software
OS Support
32-bit/64-bit Windows XP/Vista/7/8/8.1/10, Windows
Server 2003/2008/2008 R2/2012/2012 R2
Utility Software
Advantech EKI Device Configuration Utility
Operation Modes
Modbus RTU Client/Server mode
Modbus ASCII Client/Server mode
Configuration
Windows Utility, Telnet Console, Web Browser
Protocols
ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP
General
LED Indicators
System: Power, System Status
LAN: Speed, Link/Active
Fiber : Link/Active
Serial: Tx, Rx
Reboot Trigger
Built-in WDT (watchdog timer)
Mechanics
Dimensions (W x H x D)
30 x 140 x 95.3 mm (1.18 x 5.51 x 3.75 inch)
Enclosure
Metal with solid mounting hardware
Mounting
DIN-rail, Wall
Weight
EKI-1221I-MT: 0.42Kg
EKI-1222I-SC: 0.43kg
Power Requirements
Power
Input 12 ~ 48 VDC, redundant dual inputs
Power Connector
Terminal block
Power Consumption
4W
Environment
?Operating Temperature
-40 ~ 75 °C (40 ~ 167 °F)
?Storage Temperature
-40 ~ 85 °C (-40 ~ 185 °F)
Operating Humidity
10 ~ 95% RH
