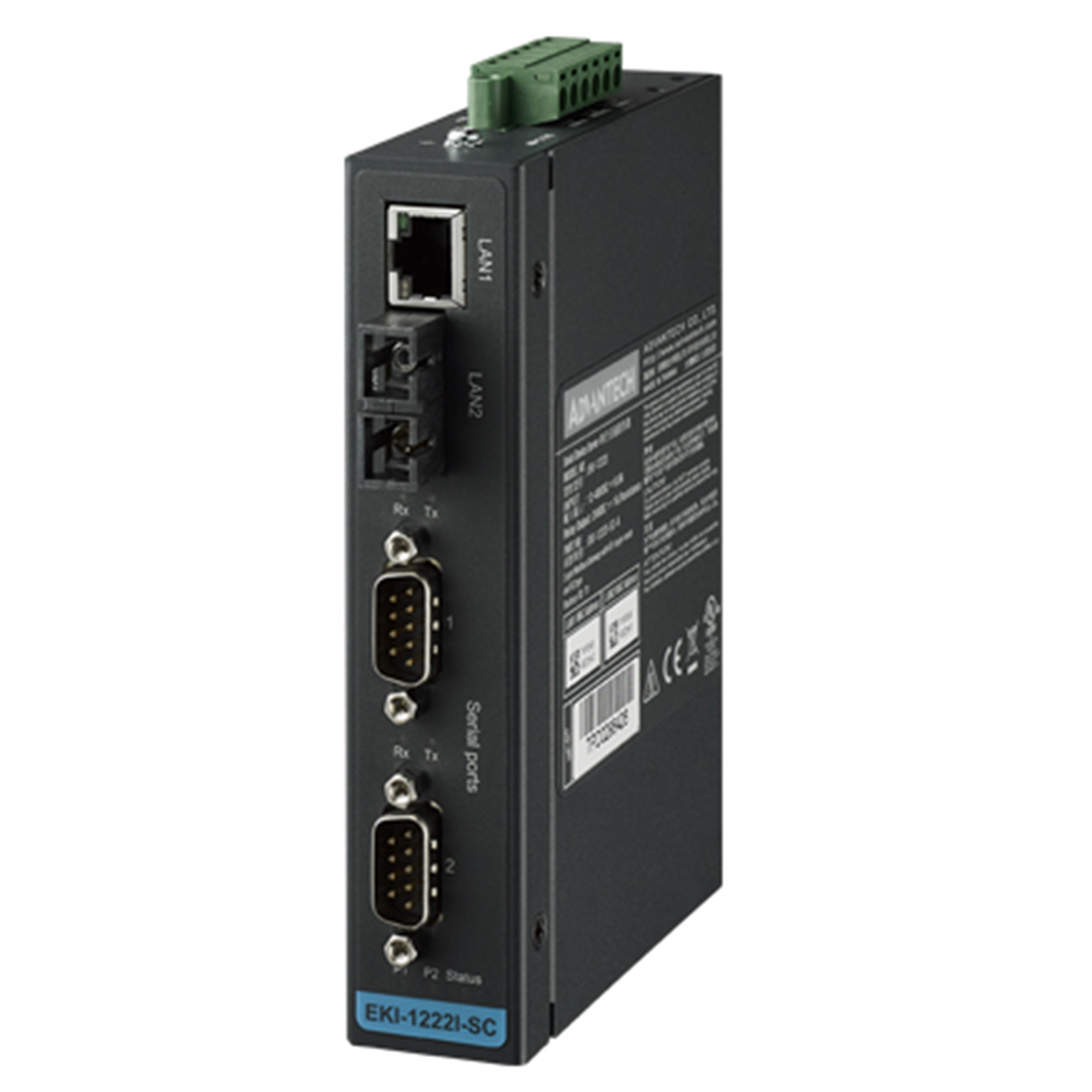

Advantech EKI-1222I-SC-A 2-Port Modbus Gateway, SM/SC Fiber, Wide Temperature

PB Tech price
PB Tech price
$ 975 .84
 +GST
$ 1,073 .43
 inc GST

Out of stock

Limited Supply - only stock on hand available, when sold out we may not be able to source this product again.

Advantech EKI-1222I-SC-A 2-Port Modbus Gateway, SM/SC Fiber, Wide Temperature

  • Brand: Advantech
  • MPN: EKI-1222I-SC-A
  • Part #: IPCAVH220418
  • UPC:
PB Tech price
$ 975 .84 $ 1,073 .43
 +GST  inc GST


Delivery: Out of stock
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info

Features

-? 1 x 10/100 Mbps Ethernet ports and 1 x 100 Mbps Fiber port
-? Integrates Modbus TCP and Modbus RTU/ASCII networks
?- Supports up to 921.6 kbps and any baud rate setting
-? Supports up to 16 connections per serial port under Modbus client mode and 32 sessions under Modbus server mode
?- Software-selectable RS-232/422/485/485-4w communication
?- Mountable via DIN rail and wall mount
?- Built-in 15 kV ESD protection for all serial signals
-? Automatic RS-485 data flow control
-? Supports surge protection for DC power ports with line-to-line (2 kV) and line-to-earth (4 kV)
?- "I" models support a wide operating temperature

Specifications

Ethernet Communications

Compatibility

IEEE 802.3, IEEE 802.3u

Speed

10/100Base-T(X), 100Base-FX

Port

1 x RJ45 (Ethernet)
EKI-1221I-MT: 1 x ST multi-mode Fiber
EKI-1222I-SC: 1 x SC single mode Fiber

Protection

Built-in 2.25 k VDC magnetic isolation

Optical Fiber

Multi-Mode

Wavelength: 1310nm

(EKI-1221I-MT)

Tx Power: -14/-20dBm
Rx Sensitivity: -32dBm
Distance: 2KM

Single-Mode

Wavelength: 1310nm

(EKI-1222I-SC)

Tx Power: -8/-15dBm
Rx Sensitivity: -34dBm
Distance: 30KM

Serial Communications

Port Type

RS-232/422/485/485-4w, software selectable

No. of Ports

EKI-1221I-MT : 1
EKI-1222I-SC : 2

?Port Connector

DB9 male

Data Bits

5, 6, 7, 8

Stop Bits

1, 2

Parity

None, Odd, Even, Space, Mark

Flow Control

XON/XOFF, RTS/CTS

Baud Rate

50 bps ~ 921.6 kbps, any baud rate setting

Serial Signals

RS-232: TxD, RxD, CTS, RTS, DCD, RI, GND
RS-422: TxD+, TxD-, RxD+, RxD-, GND
RS-485: Data+, Data-, GND
RS-485 4-wire: TxD+, TxD-, RxD+, RxD-, GND

Protection

15 KV ESD for all signals

Software

OS Support

32-bit/64-bit Windows XP/Vista/7/8/8.1/10, Windows
Server 2003/2008/2008 R2/2012/2012 R2

Utility Software

Advantech EKI Device Configuration Utility

Operation Modes

Modbus RTU Client/Server mode
Modbus ASCII Client/Server mode

Configuration

Windows Utility, Telnet Console, Web Browser

Protocols

ICMP, IP, TCP, UDP, BOOTP, DHCP, Auto IP, SNMP, HTTP, DNS, SMTP, ARP, NTP

General

LED Indicators

System: Power, System Status
LAN: Speed, Link/Active
Fiber : Link/Active
Serial: Tx, Rx

Reboot Trigger

Built-in WDT (watchdog timer)

Mechanics

Dimensions (W x H x D)

30 x 140 x 95.3 mm (1.18 x 5.51 x 3.75 inch)

Enclosure

Metal with solid mounting hardware

Mounting

DIN-rail, Wall

Weight

EKI-1221I-MT: 0.42Kg
EKI-1222I-SC: 0.43kg

Power Requirements

Power

Input 12 ~ 48 VDC, redundant dual inputs

Power Connector

Terminal block

Power Consumption

4W

Environment

?Operating Temperature

-40 ~ 75 °C (40 ~ 167 °F)

?Storage Temperature

-40 ~ 85 °C (-40 ~ 185 °F)

Operating Humidity

10 ~ 95% RH
