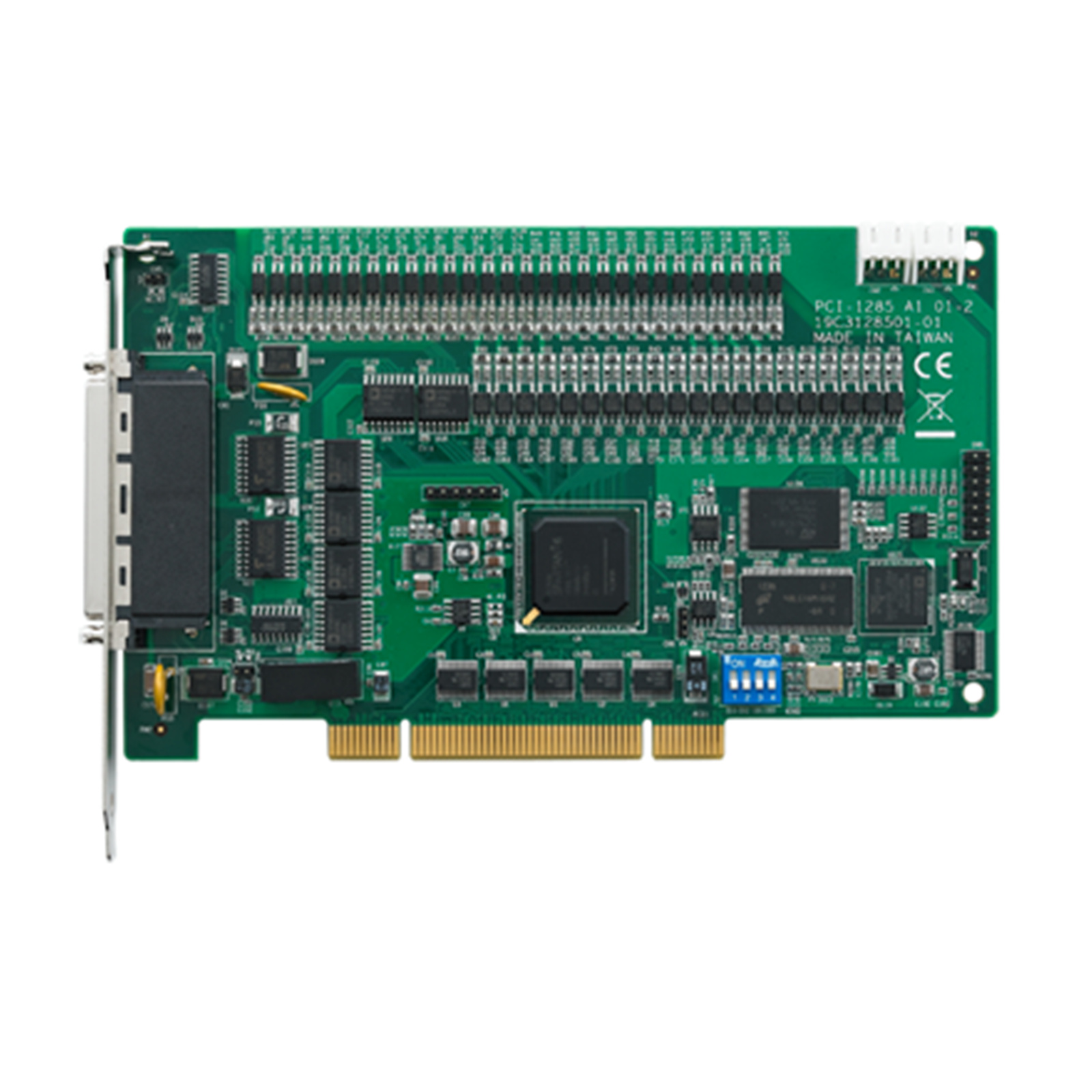

Advantech PCI-1285V-AE Value DSP-Based 8-Axis Motion Control Universal PCI Card
- Brand: Advantech
- MPN: PCI-1285V-AE
- Part #: IPCAVH220968

Product URL: https://www.pbtech.com/product/IPCAVH220968/Advantech-PCI-1285V-AE-Value-DSP-Based-8-Axis-Moti
Features
Full DSP-based 8-Axis Motion Control Universal PCI Card
- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- Pulse output up to 5 Mpps
- Memory buffer (10K points) for trajectory planning which is designed in DSP
- Supports E-Gear, and helical interpolation
- Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
- Hardware emergency input
- Watchdog timer
- Position latch
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
- Programmable interrupt
- Supports gantry mode by semi-closed loop pulse train control
- RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes
Specifications
Counter/Encoder Input
Counting Range
32-bit
Encoder Type and Interface
Counts per Enc. Cycle
x1, x2, x4 (A/B phase only)
Input Range
0~1 VDC for low; 3.5~5 VDC for high
Input Type
Quadrature (A/B phase) or up/down
Max. Input Frequency
10 MHz under x4 A/B phase mode
Frequency
Signal Input
Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC
General
Connectors
2 x 100-pin mini-SCSI female connector
Humidity (Operating)
5~95% RH (non-condensing)
Humidity (Storage)
5~95% RH (non-condensing)
Local I/O
General Input Signal
Input voltage: 24 VDC Max.
Input delay: 100 us Max. (isolation delay)
Signal:
EMG (emergency stop)
ORG, LMT+, LMT-
INPOS (in position signal)
LTC (counter latch)
RDY (servo ready)
ALARM (servo alarm)
General Output Signal
Output voltage: Open collect 24 VDC Max
Output delay: 100 us Max. (isolation delay)
Sink current: 100 mA per channel
Signal:
CMP (position compare in range output)
SVON (servo on)
RALM (reset driver alarm)
ERC (counter clear signal)
Pulse Type Motion Control
Interpolation
2 to 8-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation
Max. Output Speed
5 Mbps
Motor Driver Support
Pulse-type servo/stepping
Pulse Output Type
Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)
Step Count Range
±2, 147, 483, 646
Velocity Profiles
T-Curve, S-Curve
