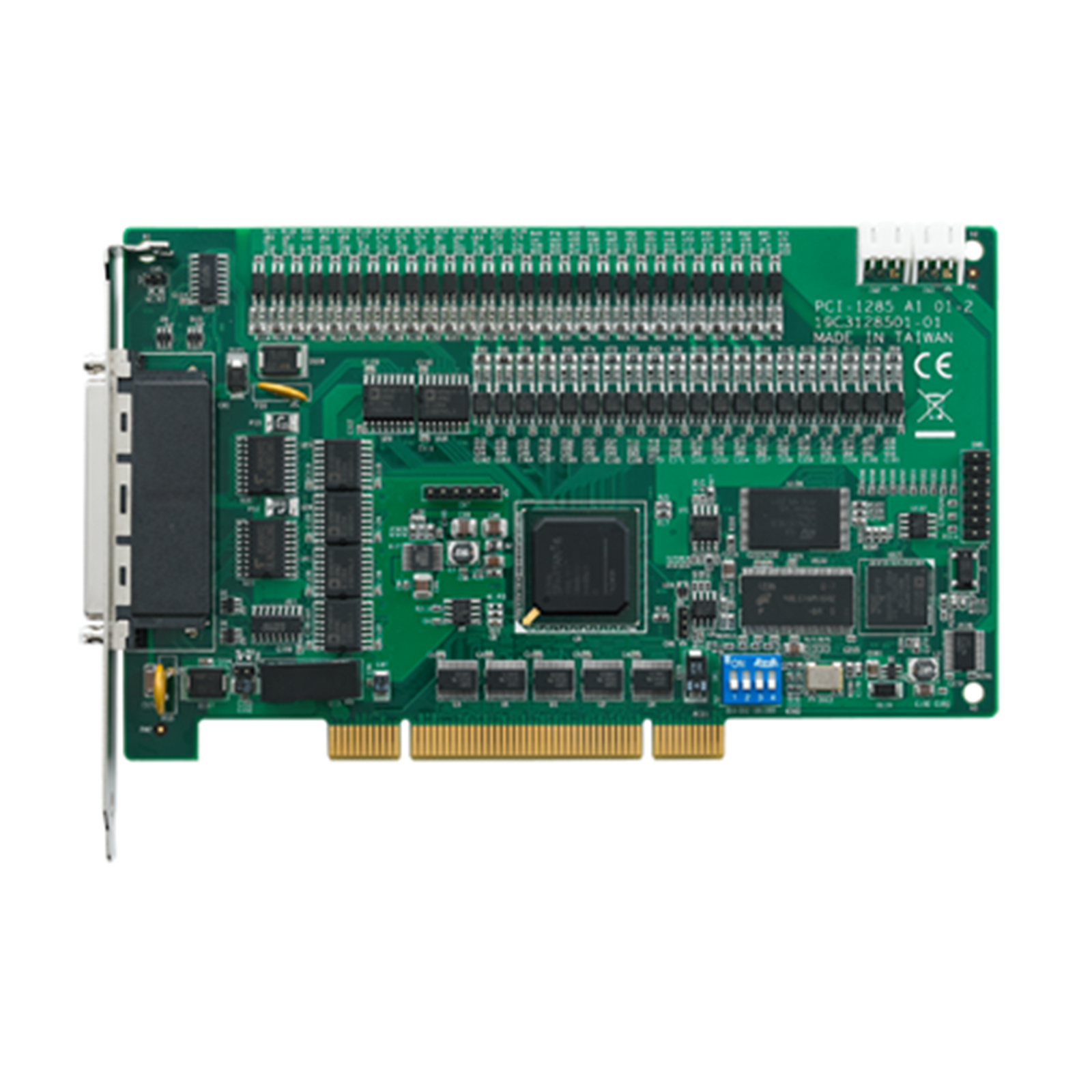

Advantech PCI-1285V-AE Value DSP-Based 8-Axis Motion Control Universal PCI Card

PB Tech price
PB Tech price
$ 1,688 .57
 +GST
$ 1,857 .43
 inc GST
$1,688.57  +GST
$1,857.43

Advantech PCI-1285V-AE Value DSP-Based 8-Axis Motion Control Universal PCI Card

  • Brand: Advantech
  • MPN: PCI-1285V-AE
  • Part #: IPCAVH220968
  • UPC:
PB Tech price
$ 1,688 .57 $ 1,857 .43
 +GST  inc GST


Delivery: Order now and it ships on 24 Sep
Express Delivery Times
Metro - Within 2-3 working days
Rural - Within 3-5 working days

Standard Delivery Times
NSW, VIC, ACT, QLD - Within 3-7 working days
SA, WA, TAS, NT - Within 5-10 working days

View all shipping info
$1,688.57  +GST
$1,857.43

Features

Full DSP-based 8-Axis Motion Control Universal PCI Card

- Encoder input is 10 MHz for 4xAB mode, 2.5 MHz for CW/CCW mode
- Pulse output up to 5 Mpps
- Memory buffer (10K points) for trajectory planning which is designed in DSP
- Supports E-Gear, and helical interpolation
- Supports E-CAM providing 256 points to describe the CAM profiles which buffers located in DSP
- Hardware emergency input
- Watchdog timer
- Position latch
- Position compare triggering up to 100 KHz, and memory buffer is up to 100 K points in DSP
- Programmable interrupt
- Supports gantry mode by semi-closed loop pulse train control
- RDY/LTC-dedicated input channels & SVON/CMP/CAM-DO/ERC-dedicated output channels are switchable for general input and output purposes

Specifications

Counter/Encoder Input

Counting Range

32-bit

Encoder Type and Interface

Counts per Enc. Cycle

x1, x2, x4 (A/B phase only)

Input Range

0~1 VDC for low; 3.5~5 VDC for high

Input Type

Quadrature (A/B phase) or up/down

Max. Input Frequency

10 MHz under x4 A/B phase mode

Frequency

Signal Input

Logic level 1: 10~30 VDC
Logic level 0: 0~3 VDC

General

Connectors

2 x 100-pin mini-SCSI female connector

Humidity (Operating)

5~95% RH (non-condensing)

Humidity (Storage)

5~95% RH (non-condensing)

Local I/O

General Input Signal

Input voltage: 24 VDC Max.
Input delay: 100 us Max. (isolation delay)
Signal:
EMG (emergency stop)
ORG, LMT+, LMT-
INPOS (in position signal)
LTC (counter latch)
RDY (servo ready)
ALARM (servo alarm)

General Output Signal

Output voltage: Open collect 24 VDC Max
Output delay: 100 us Max. (isolation delay)
Sink current: 100 mA per channel
Signal:
CMP (position compare in range output)
SVON (servo on)
RALM (reset driver alarm)
ERC (counter clear signal)

Pulse Type Motion Control

Interpolation

2 to 8-axis linear, 2-axis circular, X-Y plane with Z thread helical interpolation

Max. Output Speed

5 Mbps

Motor Driver Support

Pulse-type servo/stepping

Pulse Output Type

Pulse/direction (1-pulse, 1-direction type) or CW/CCW (2-pulse type)

Step Count Range

±2, 147, 483, 646

Velocity Profiles

T-Curve, S-Curve

Manufacturer Part No:
PCI-1285V-AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH220968
Product Model:
PCI-1285V-AE
Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
