Advantech TPC-671H-Z2AE 6.5" VGA, Z510 1.1GHz/512k, 1GB

Normally $1,640.44

You save $66

AUD $ 1,573 .49

$ 1,573 .49

Advantech TPC-671H-Z2AE 6.5" VGA, Z510 1.1GHz/512k, 1GB

Brand: Advantech
MPN: TPC-671H-Z2AE
Part #: IPCAVH221389
UPC:

Normally $1,640.44

You save $66

PB Tech price

AUD $ 1,573 .49

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-671H-Z2AE
Part #: IPCAVH221389
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

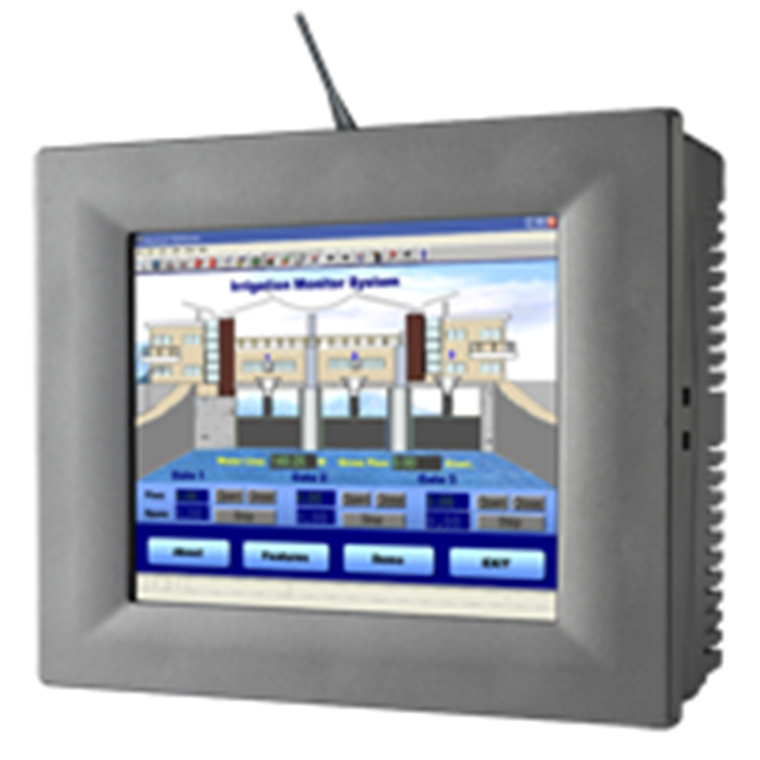

Advantech TPC-671H-Z2AE 6.5" VGA LED LCD Intel® Atom™ Z510 Touch Panel Computer

With a high quality TFT LCD display, the TPC-671H is designed with the Intel® Atom™ Z510 processor as its core. The Intel® Atom™ has low power consumption and 1.1 GHz operating frequency. This system is fanless although the kernel is powerful. In addition, spindle-free storage makes the TPC-671H a durable and reliable platform. Supports Mini-PCIe expansion to bundle with IoT-Rready and Communication module to meet more applications in outdoor and iTerminal Gateway.

- Intel® Atom™ Z510 1.1GHz processor
- 6.5" VGA TFT LED LCD
- Super slim and compact design with PC/ABS Resin housing
- Fanless cooling system
- IP65 approved front panel
- Full-size Mini PCIe expansion support
- Serial port isolation protection
- Automatic data flow control RS-485
- Gigabit Ethernet supported
- Supports Microsoft® WES7/WES 2009/XPE/WinCE
- Supports external antenna for wireless communication

Specifications

General

BIOS

Award® 4Mbit

Certification

BSMI, CCC, CE, FCC Class A, UL

Cooling System

Fanless design

Dimensions (W x H x D)

195 x 148 x 44.5 mm (7.68" x 5.83" x 1.75")

Enclosure

PC/ABS Resin

Mounting

Panel Mount

OS Support

Microsoft® WES7/WES 2009/XPE/CE 6.0/CE5.0 /Linux / Android

Power Consumption

6.6W (Typical), 9W (Full load)

Power Input

18~32 VDC

Watchdog Timer

1 ~ 255 sec (system)

Weight (Net)

0.95 kg (2.1 lbs)

System Hardware

CPU

Intel® Atom™ Z510 1.1GHz with 512KB cache

Chipset

US15WP

Memory

1GB SO-DIMM DDR2 SDRAM, up to 2GB (one channel)

LAN

10/100/1000Base-T x 1

Expansion Slots

Full-size Mini PCI-E

Storage

CompactFlash® slot x 1

I/O

RS-232 x 1(COM1)
RS-422/485 x 1 (COM2) with isolation and auto data flow control
USB 2.0 x 2 (Host)

LCD Display

Display Type

VGA TFT LED LCD

Display Size

6.5"

Max. Resolution

640 x 480

Max. Colors

262 K

Luminance cd/m2

700

Viewing Angle (H/V°)

160/140

Backlight Life

50,000 hrs

Contrast Ratio

600:1

Touchscreen

Lifespan

36 million touches at single point (finger hitting rate by 250g at 2 times per second)

Light Transmission

Above 75%

Resolution

Linearity

Type

5-wire, analog resistive

Environment

Humidity

10 ~ 95% RH @ 40°C, non-condensing

Ingress Protection

Front panel: IP65

Operating Temperature

0 ~ 55°C (32 ~ 131°F)

Storage Temperature

-20 ~ 60°C (-4 ~ 140°F)

Vibration Protection

2 Grms (5 ~ 500 Hz) (Operating, random vibration)

Manufacturer Part No:

TPC-671H-Z2AE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221389

Product Model:

TPC-671H-Z2AE

Warranty: 12 months *
