Advantech TPC-671H-Z2AE 6.5" VGA, Z510 1.1GHz/512k, 1GB
- Brand: Advantech
- MPN: TPC-671H-Z2AE
- Part #: IPCAVH221389

Product URL: https://www.pbtech.com/au/product/IPCAVH221389/Advantech-TPC-671H-Z2AE-65-VGA-Z510-11GHz512k-1GB
Features

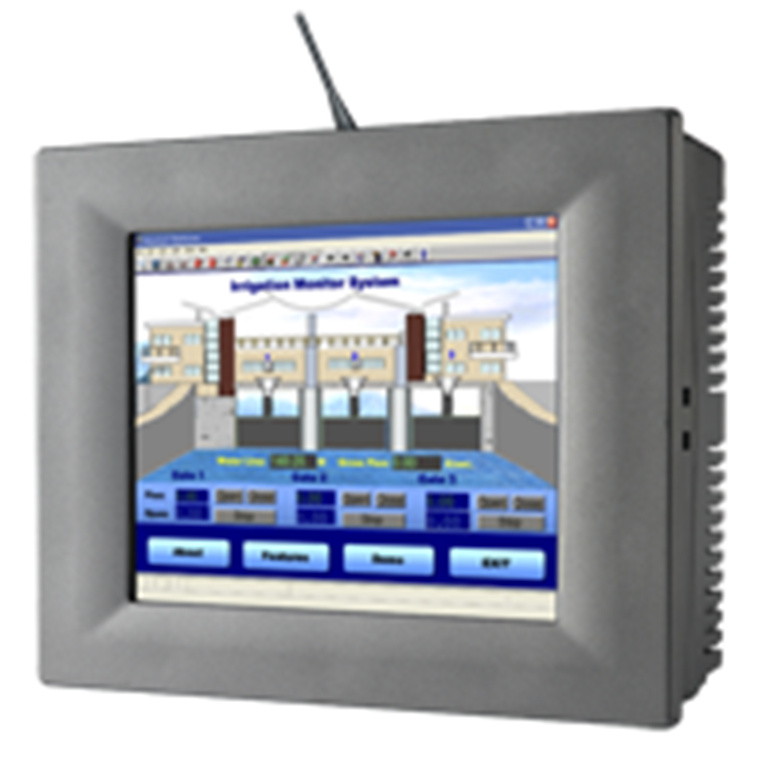

Advantech TPC-671H-Z2AE 6.5" VGA LED LCD Intel® Atom™ Z510 Touch Panel Computer
With a high quality TFT LCD display, the TPC-671H is designed with the Intel® Atom™ Z510 processor as its core. The Intel® Atom™ has low power consumption and 1.1 GHz operating frequency. This system is fanless although the kernel is powerful. In addition, spindle-free storage makes the TPC-671H a durable and reliable platform. Supports Mini-PCIe expansion to bundle with IoT-Rready and Communication module to meet more applications in outdoor and iTerminal Gateway.
- Intel® Atom™ Z510 1.1GHz processor
- 6.5" VGA TFT LED LCD
- Super slim and compact design with PC/ABS Resin housing
- Fanless cooling system
- IP65 approved front panel
- Full-size Mini PCIe expansion support
- Serial port isolation protection
- Automatic data flow control RS-485
- Gigabit Ethernet supported
- Supports Microsoft® WES7/WES 2009/XPE/WinCE
- Supports external antenna for wireless communication
Specifications
General
BIOS
Award® 4Mbit
Certification
BSMI, CCC, CE, FCC Class A, UL
Cooling System
Fanless design
Dimensions (W x H x D)
195 x 148 x 44.5 mm (7.68" x 5.83" x 1.75")
Enclosure
PC/ABS Resin
Mounting
Panel Mount
OS Support
Microsoft® WES7/WES 2009/XPE/CE 6.0/CE5.0 /Linux / Android
Power Consumption
6.6W (Typical), 9W (Full load)
Power Input
18~32 VDC
Watchdog Timer
1 ~ 255 sec (system)
Weight (Net)
0.95 kg (2.1 lbs)
System Hardware
CPU
Intel® Atom™ Z510 1.1GHz with 512KB cache
Chipset
US15WP
Memory
1GB SO-DIMM DDR2 SDRAM, up to 2GB (one channel)
LAN
10/100/1000Base-T x 1
Expansion Slots
Full-size Mini PCI-E
Storage
CompactFlash® slot x 1
I/O
RS-232 x 1(COM1)
RS-422/485 x 1 (COM2) with isolation and auto data flow control
USB 2.0 x 2 (Host)
LCD Display
Display Type
VGA TFT LED LCD
Display Size
6.5"
Max. Resolution
640 x 480
Max. Colors
262 K
Luminance cd/m2
700
Viewing Angle (H/V°)
160/140
Backlight Life
50,000 hrs
Contrast Ratio
600:1
Touchscreen
Lifespan
36 million touches at single point (finger hitting rate by 250g at 2 times per second)
Light Transmission
Above 75%
Resolution
Linearity
Type
5-wire, analog resistive
Environment
Humidity
10 ~ 95% RH @ 40°C, non-condensing
Ingress Protection
Front panel: IP65
Operating Temperature
0 ~ 55°C (32 ~ 131°F)
Storage Temperature
-20 ~ 60°C (-4 ~ 140°F)
Vibration Protection
2 Grms (5 ~ 500 Hz) (Operating, random vibration)
