Advantech TPC-B500-673BE Modular TPC -Computingr Box Modules with Intel Core i7-6600U, 8G

Normally $3,505.09

You save $143

AUD $ 3,362 .05

$ 3,362 .05

Advantech TPC-B500-673BE Modular TPC -Computingr Box Modules with Intel Core i7-6600U, 8G

Brand: Advantech
MPN: TPC-B500-673BE
Part #: IPCAVH221398
UPC:

Normally $3,505.09

You save $143

PB Tech price

AUD $ 3,362 .05

In stock at Supplier

Delivery: Order now and it ships on 26 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: Advantech
MPN: TPC-B500-673BE
Part #: IPCAVH221398
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

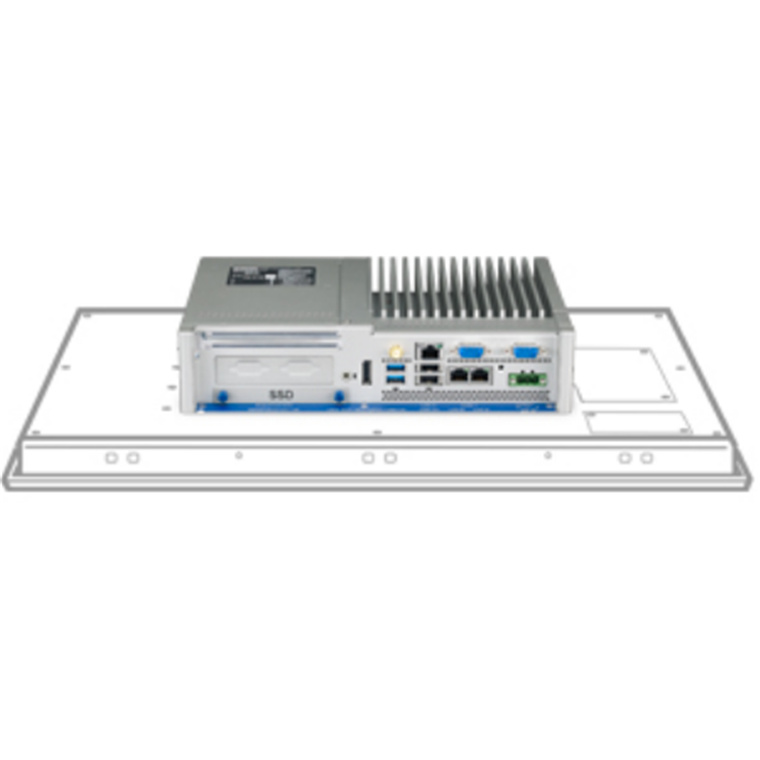

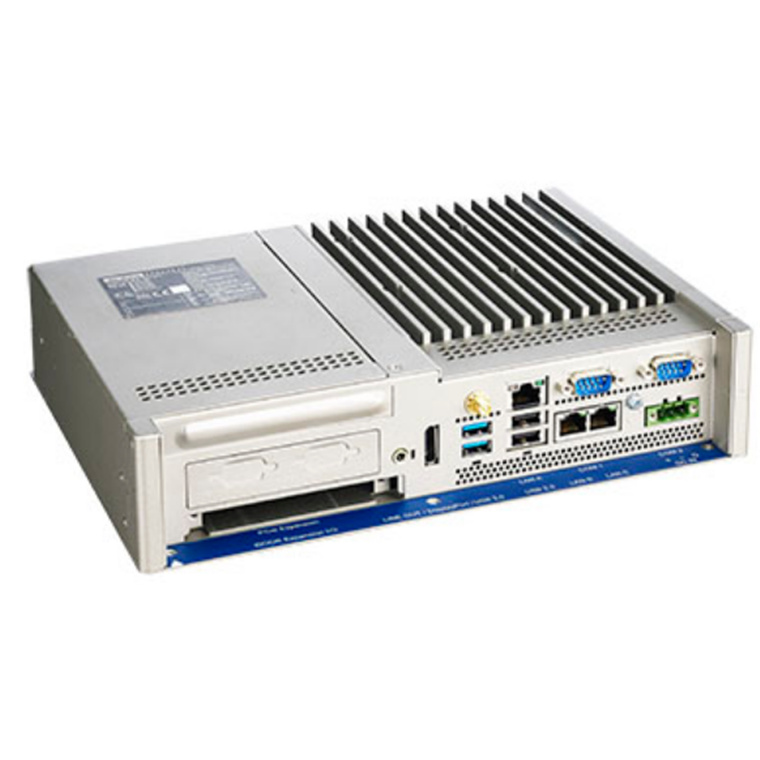

TPC computing box modules are powered by 6th Gen Intel® Core™ processors combined with an industrial-grade LED LCD module, providing compact and fanless control panel solutions that support high-performance computing. With a flexible modular design, they allow users to interchange video interfaces such as industrial monitors which can be used as an interface of two controllers simultaneously via the PiP (Picture-in-Picture) feature or expand the signal transmission distance to 100m via iLINK technology.

- Computing Box powered by Intel® Core™ i7-6600U with 8GB SODIMM
- Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology) (iLINK technology)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 2x Full-size mini PCIe
- 1x Half-size PCIe (Max. Dimension of PCIe card: 167.65mm x 64.41mm x 14.48mm (D x W x H)
- M.2 and SSD expansion
- Supports TPM2.0 hardware security

Specifications

General

Certification

BSMI, CCC, CE, FCC Class A, CB/UL

Cooling System

Fanless design

Dimensions (W x H x D)

269 x 203 x 58.50 (mm)

Enclosure

Die cast aluminum alloy

Mounting

VESA Mount, Desktop, Wall or Panel Mount

OS Support

Windows 10 IoT Enterprise LTSC

Security

TPM 2.0 (built-in)

Power Input

24 VDC ± 20%

Weight (Net)

3 kg (6.61 lbs)

System Hardware

CPU

6th Gen Intel® Core™ i7-6600U 2.60 GHz

Memory

8GB DDR4 SDRAM (up to 32GB)

Storage

1 x M.2 (2280) SATA
1 x 2.5" SATA SSD
1 x CFast (optional via iDoor module)

LAN

1 x 1GbE
2 x 2.5GbE

Expansion Slot

1x Half-size PCIe*
2 x Full-size mini PCIe

I/O

1 x RS-232, 1 x RS-232/422/485
2 x USB 3.0, 2 x USB 2.0
1 x Audio line out

DisplayPort

1.2 Out x 1

Power Input

24 VDC ± 20%

Security TPM

2.0 (built-in)

Environment

Humidity

95% RH @ 40°C, non-condensing

Ingress Protection

IP66 (for optional panel module with "Panel Mount")

Operating Temperature

0~60°C (32~140°F) (w/o air flow)

Storage Temperature

-20~70°C (-4~158°F)

Vibration Protection

With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)

Manufacturer Part No:

TPC-B500-673BE

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221398

Product Model:

TPC-B500-673BE

Warranty: 12 months *
