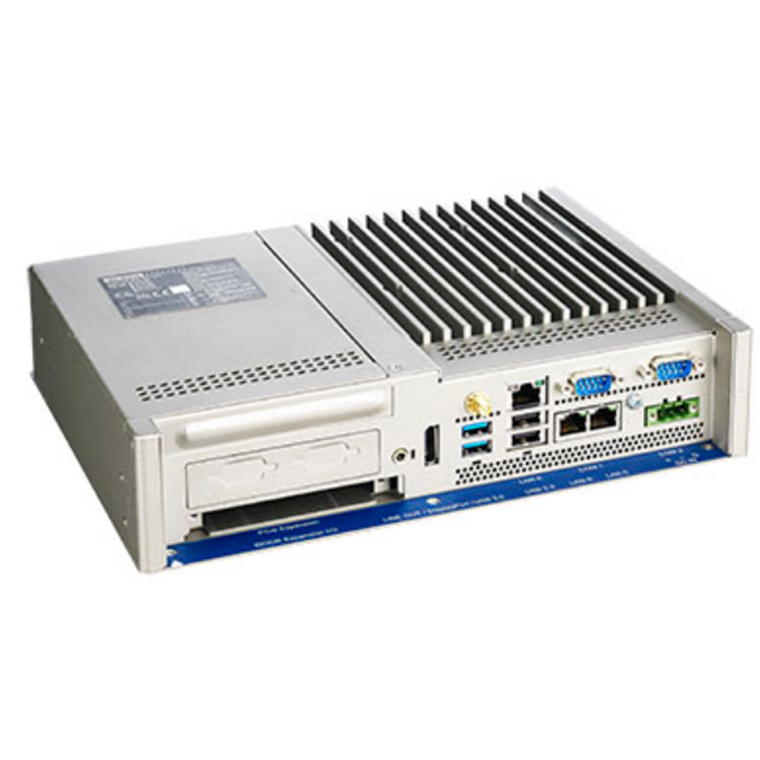

Advantech TPC-B500-673BE Modular TPC -Computingr Box Modules with Intel Core i7-6600U, 8G
- Brand: Advantech
- MPN: TPC-B500-673BE
- Part #: IPCAVH221398

Product URL: https://www.pbtech.com/au/product/IPCAVH221398/Advantech-TPC-B500-673BE-Modular-TPC--Computingr-B
Features
TPC computing box modules are powered by 6th Gen Intel® Core™ processors combined with an industrial-grade LED LCD module, providing compact and fanless control panel solutions that support high-performance computing. With a flexible modular design, they allow users to interchange video interfaces such as industrial monitors which can be used as an interface of two controllers simultaneously via the PiP (Picture-in-Picture) feature or expand the signal transmission distance to 100m via iLINK technology.
- Computing Box powered by Intel® Core™ i7-6600U with 8GB SODIMM
- Supports two independent video interfaces with picture-in-picture function and up to 100m long signal transmission distance (iLINK technology) (iLINK technology)
- Multiple sized front panel module offering with P-Cap multi-touch sensor (12.1" & 19" w/ robust 5-wire resistive touch)
- 2x Full-size mini PCIe
- 1x Half-size PCIe (Max. Dimension of PCIe card: 167.65mm x 64.41mm x 14.48mm (D x W x H)
- M.2 and SSD expansion
- Supports TPM2.0 hardware security
Specifications
General
Certification
BSMI, CCC, CE, FCC Class A, CB/UL
Cooling System
Fanless design
Dimensions (W x H x D)
269 x 203 x 58.50 (mm)
Enclosure
Die cast aluminum alloy
Mounting
VESA Mount, Desktop, Wall or Panel Mount
OS Support
Windows 10 IoT Enterprise LTSC
Security
TPM 2.0 (built-in)
Power Input
24 VDC ± 20%
Weight (Net)
3 kg (6.61 lbs)
System Hardware
CPU
6th Gen Intel® Core™ i7-6600U 2.60 GHz
Memory
8GB DDR4 SDRAM (up to 32GB)
Storage
1 x M.2 (2280) SATA
1 x 2.5" SATA SSD
1 x CFast (optional via iDoor module)
LAN
1 x 1GbE
2 x 2.5GbE
Expansion Slot
1x Half-size PCIe*
2 x Full-size mini PCIe
I/O
1 x RS-232, 1 x RS-232/422/485
2 x USB 3.0, 2 x USB 2.0
1 x Audio line out
DisplayPort
1.2 Out x 1
Power Input
24 VDC ± 20%
Security TPM
2.0 (built-in)
Environment
Humidity
95% RH @ 40°C, non-condensing
Ingress Protection
IP66 (for optional panel module with "Panel Mount")
Operating Temperature
0~60°C (32~140°F) (w/o air flow)
Storage Temperature
-20~70°C (-4~158°F)
Vibration Protection
With SSD: 1 Grms (5 ~ 500 Hz) (Operating, random vibration)
