Advantech UNO-127-E22BA Pocket-Size DIN-Rail Edge IPC with Intel Atom X6413E, 4G DDR4

Normally $895.11

You save $36

AUD $ 858 .59

$ 858 .59

Advantech UNO-127-E22BA Pocket-Size DIN-Rail Edge IPC with Intel Atom X6413E, 4G DDR4

Brand: Advantech
MPN: UNO-127-E22BA
Part #: IPCAVH221403
UPC:

Normally $895.11

You save $36

PB Tech price

AUD $ 858 .59

In stock at Supplier

Delivery: Order now and it ships on 25 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

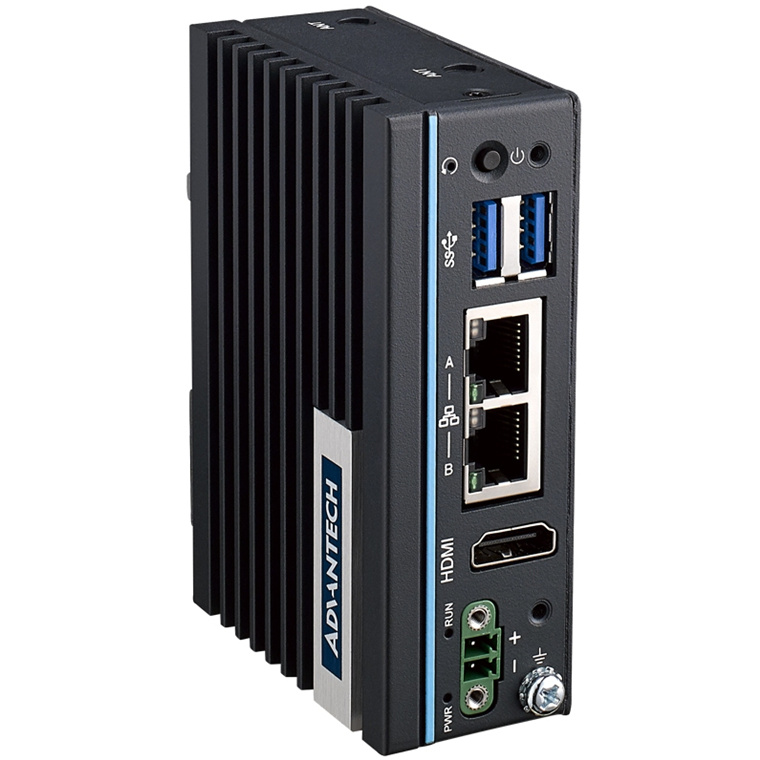

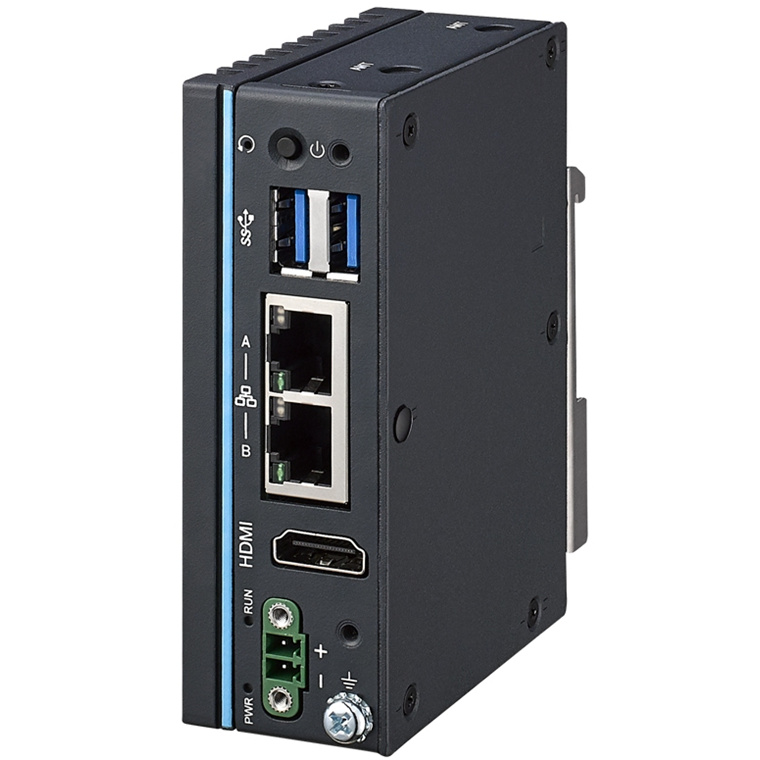

Click or hover over image to enlarge

Brand: Advantech
MPN: UNO-127-E22BA
Part #: IPCAVH221403
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Advantech's UNO-100 series of integrated DIN-rail controllers feature a modular design for flexible configuration according to specific usage requirements. The UNO-127 model is equipped with an Intel® Atom® x6413E processor, 4 GB DDR4 RAM, 64 GB eMMC storage, 2 x LAN, 2 x USB, and 1 x HDMI, as well as 1 x full-size mini PCIe for expansion. IEC 61010-1 certified for industrial use, UNO-127 can also be equipped with an optional second-stack extension kit that supports additional 4 x COM ports and 1 x M.2 B key for extending the system I/O and wireless connectivity capabilities.

- Intel® Quad core x6413E processor with 4GB DDR4 onboard memory
- Compact, robust, fanless and cable-free system with high stability
- Optimized basic unit with 2 x GbE, 2 x USB, 1 x HDMI
- On-board full-size mPCIe port for various expansion capability
- Built-in TPM2.0 for hardware-based security
- System ground isolation design
- Certified with IEC 61010-2-201 for industrial application
- Ubuntu Core 20 certified hardware
- Support Windows 11 IoT Enterprise LTSC

Specifications

Hardware

Power Input

10~30 VDC

CPU

Intel® Atom™ x6413E 1.5GHz Quad-Core

Memory

1 x DDR4 with 4 GB

Certification

CE, FCC, UL 61010-2-201, CCC, BSMI

OS Support

Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux

Hardware Security

TPM 2.0

Storage

1 x eMMC (64 GB), 1 x mSATA (shared with mPCIe)

Graphics Engine

Intel® UHD Graphics

Mechanical

Weight (Net)

0.5 kg (1.1 lb)

Enclosure

Aluminum housing

Mounting

DIN-rail

Dimension (W x H x D)

33.5 x 100 x 70 mm

I/O Interface

LAN Ports

2 x 10/100/1000 Mbps

Displays

1 x HDMI

Expansion

1 x Full-size mPCIe Slot

Power Connector

1 x 2-Pin Terminal Block

USB Ports

2 x USB 3.2

Environment

Storage Temperature

-40~85 °C (-40~185 °F)

Ingress Protection

IP30

Vibration Protection

2 Grms, random

Shock Protection

50 G, half sine

Operating Temperature

-20~60 °C (-4~140 °F)

Relative Humidity

10~95% RH (non-condensing)

Manufacturer Part No:

UNO-127-E22BA

Brand:

Advantech

Product Type:

UPC

Product Family:

Shipping Weight:

1 kg

PB Part No:

IPCAVH221403

Product Model:

UNO-127-E22BA

Warranty: 12 months *
