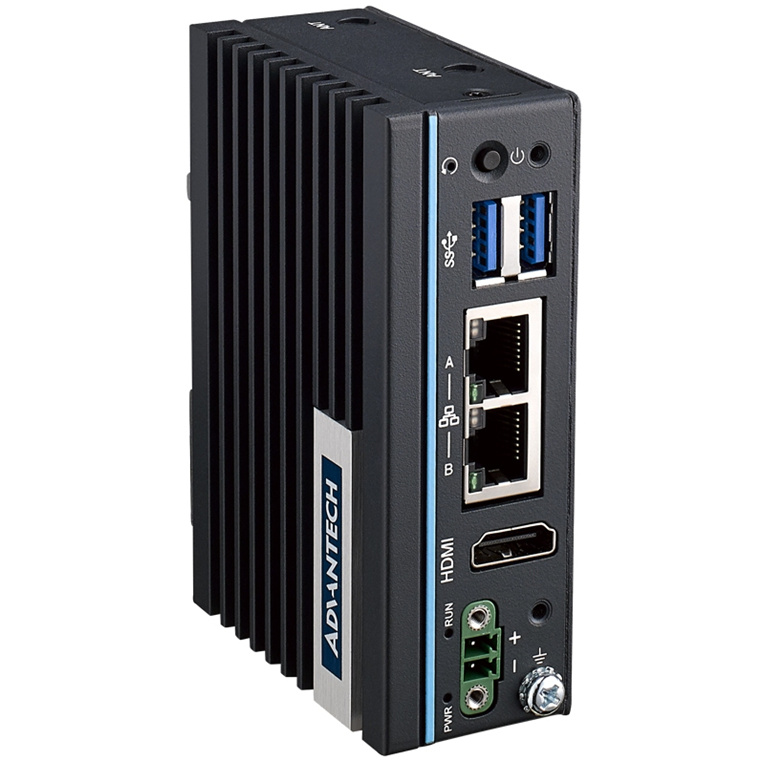

Advantech UNO-127-E22BA Pocket-Size DIN-Rail Edge IPC with Intel Atom X6413E, 4G DDR4
- Brand: Advantech
- MPN: UNO-127-E22BA
- Part #: IPCAVH221403

Product URL: https://www.pbtech.com/au/product/IPCAVH221403/Advantech-UNO-127-E22BA-Pocket-Size-DIN-Rail-Edge
Features
Advantech's UNO-100 series of integrated DIN-rail controllers feature a modular design for flexible configuration according to specific usage requirements. The UNO-127 model is equipped with an Intel® Atom® x6413E processor, 4 GB DDR4 RAM, 64 GB eMMC storage, 2 x LAN, 2 x USB, and 1 x HDMI, as well as 1 x full-size mini PCIe for expansion. IEC 61010-1 certified for industrial use, UNO-127 can also be equipped with an optional second-stack extension kit that supports additional 4 x COM ports and 1 x M.2 B key for extending the system I/O and wireless connectivity capabilities.
- Intel® Quad core x6413E processor with 4GB DDR4 onboard memory
- Compact, robust, fanless and cable-free system with high stability
- Optimized basic unit with 2 x GbE, 2 x USB, 1 x HDMI
- On-board full-size mPCIe port for various expansion capability
- Built-in TPM2.0 for hardware-based security
- System ground isolation design
- Certified with IEC 61010-2-201 for industrial application
- Ubuntu Core 20 certified hardware
- Support Windows 11 IoT Enterprise LTSC
Specifications
Hardware
Power Input
10~30 VDC
CPU
Intel® Atom™ x6413E 1.5GHz Quad-Core
Memory
1 x DDR4 with 4 GB
Certification
CE, FCC, UL 61010-2-201, CCC, BSMI
OS Support
Microsoft® Windows 10 LTSC, Microsoft® Windows 11, Linux
Hardware Security
TPM 2.0
Storage
1 x eMMC (64 GB), 1 x mSATA (shared with mPCIe)
Graphics Engine
Intel® UHD Graphics
Mechanical
Weight (Net)
0.5 kg (1.1 lb)
Enclosure
Aluminum housing
Mounting
DIN-rail
Dimension (W x H x D)
33.5 x 100 x 70 mm
I/O Interface
LAN Ports
2 x 10/100/1000 Mbps
Displays
1 x HDMI
Expansion
1 x Full-size mPCIe Slot
Power Connector
1 x 2-Pin Terminal Block
USB Ports
2 x USB 3.2
Environment
Storage Temperature
-40~85 °C (-40~185 °F)
Ingress Protection
IP30
Vibration Protection
2 Grms, random
Shock Protection
50 G, half sine
Operating Temperature
-20~60 °C (-4~140 °F)
Relative Humidity
10~95% RH (non-condensing)
