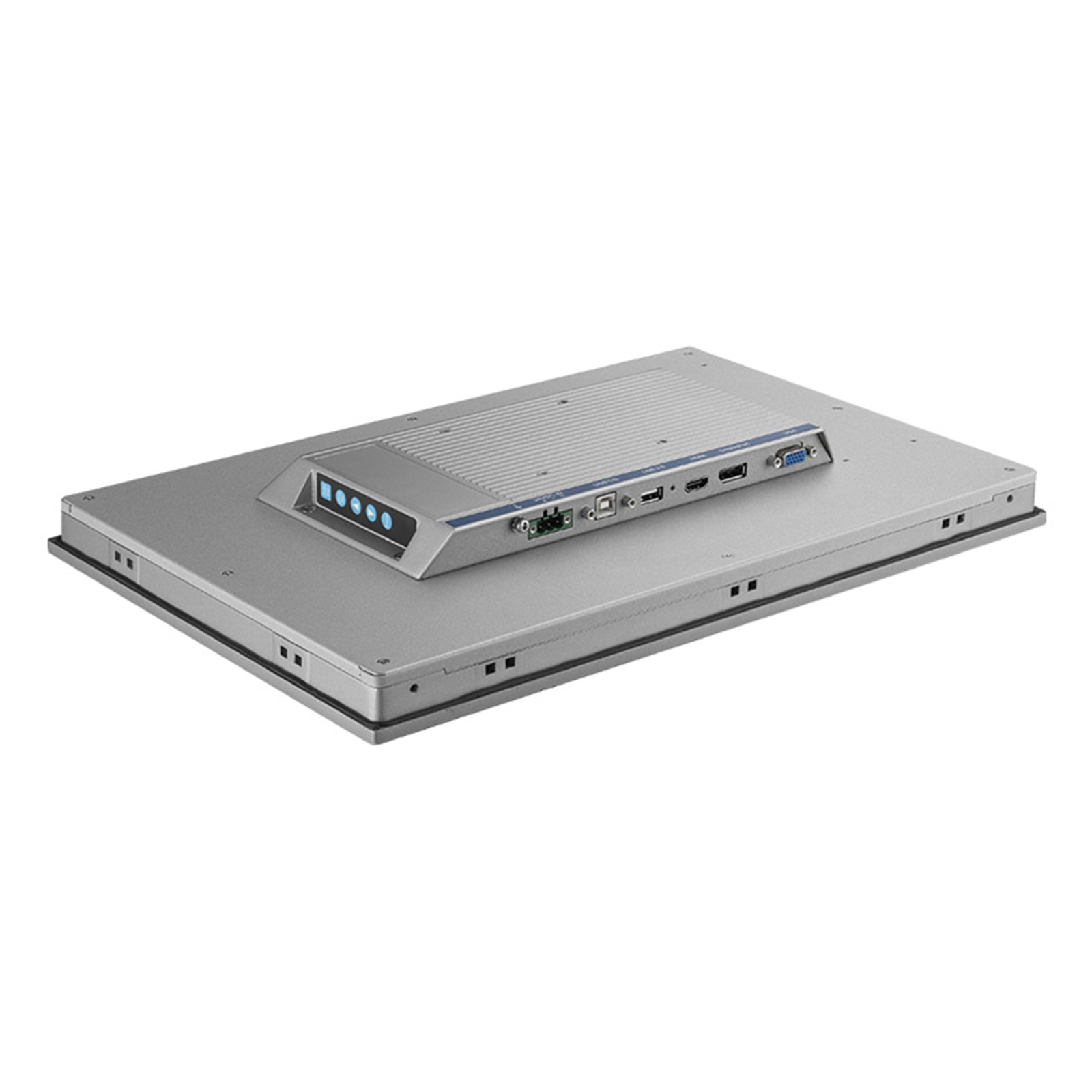

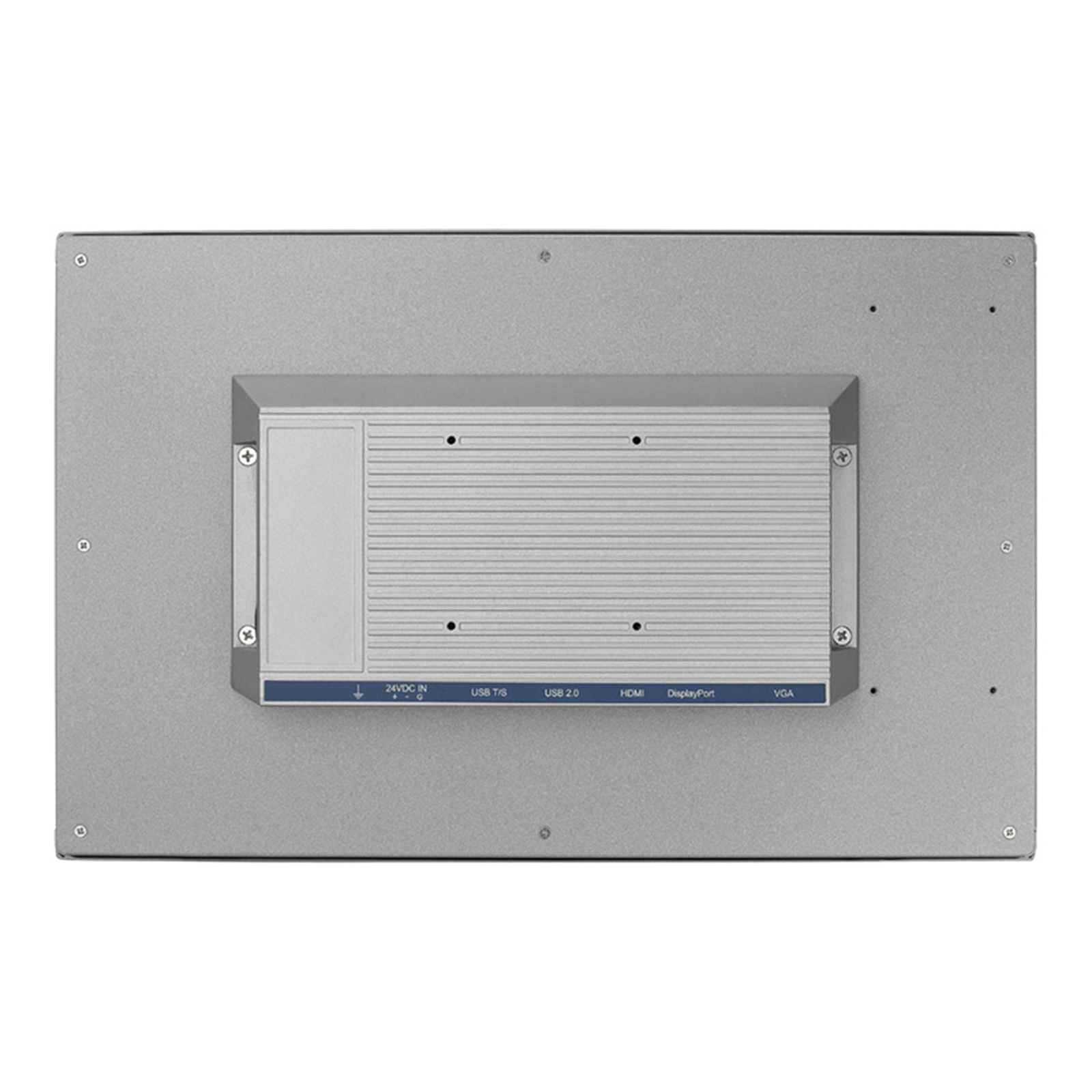

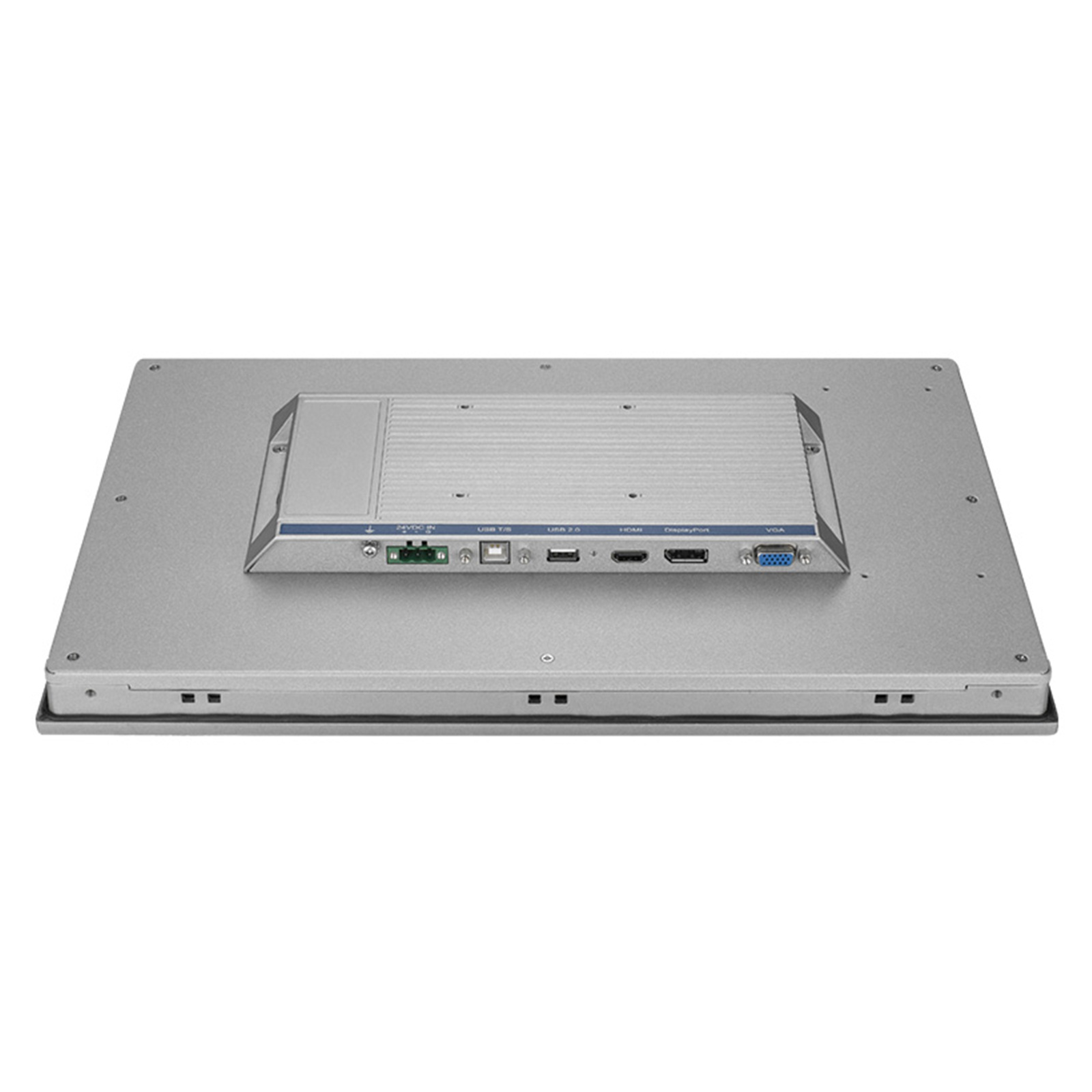

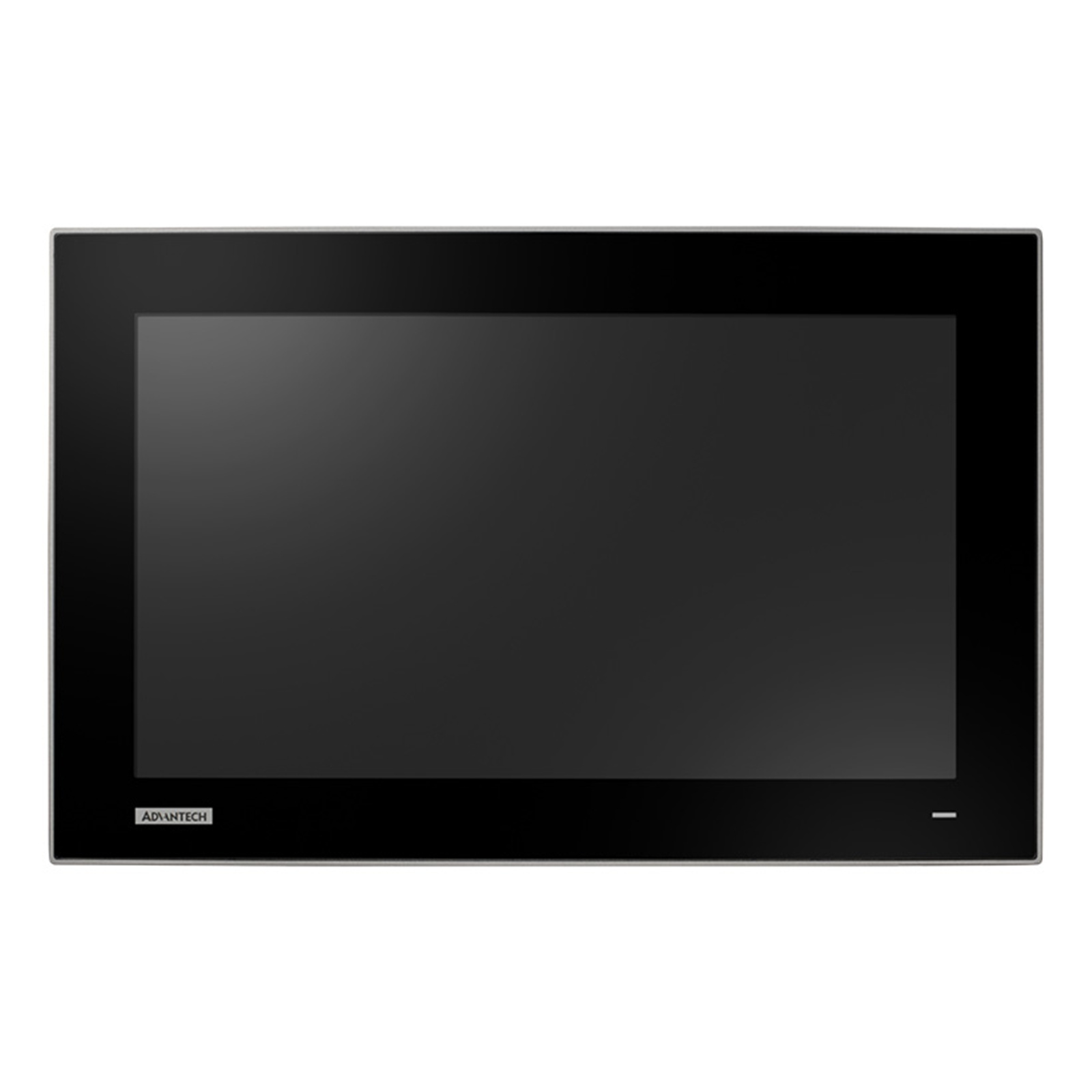

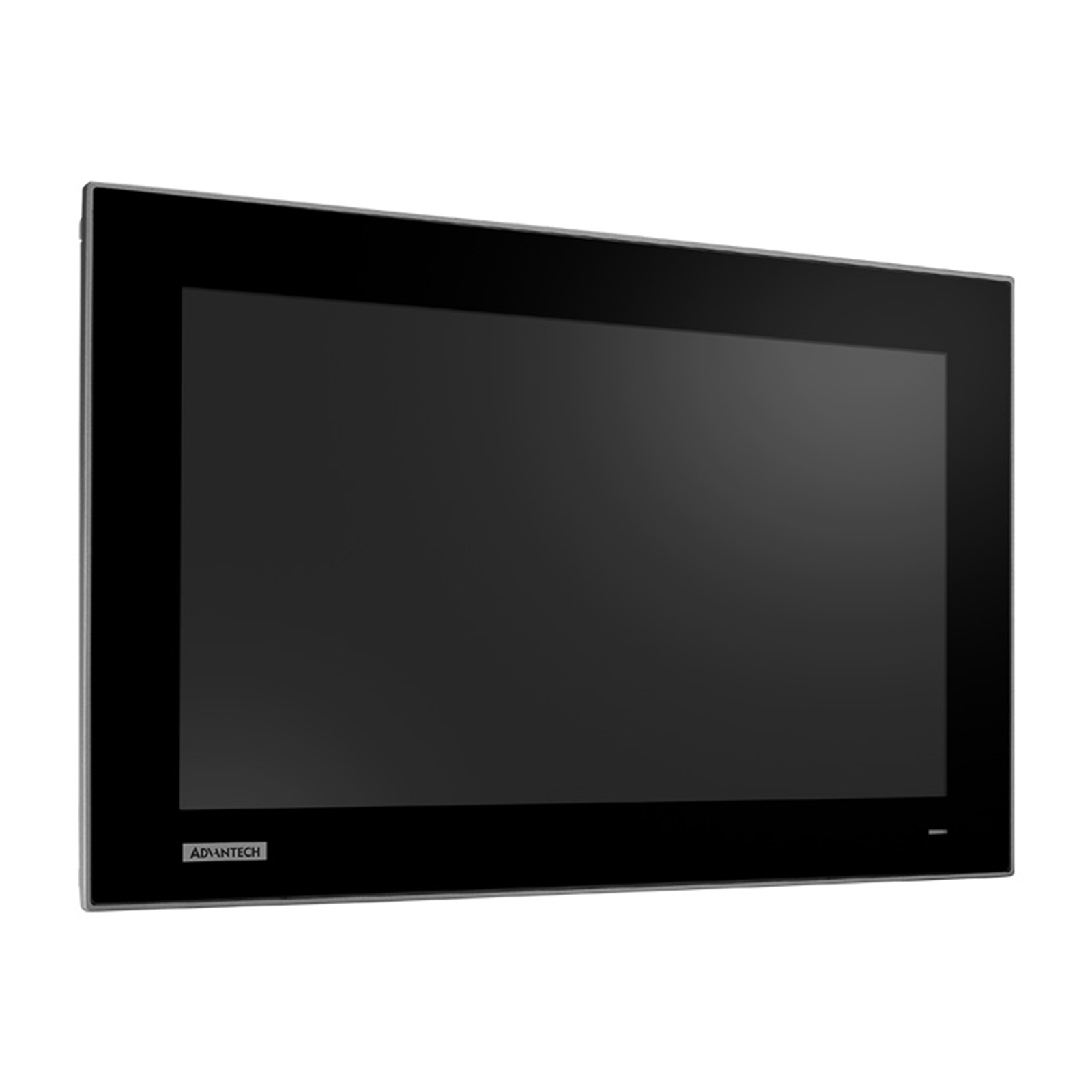

Advantech FPM-724W-P9AE 23.8" Full HD Industrial Monitor with P-CAP Touch Control, Direct HDMI, DP, and VGA Ports

PB Tech price
PB Tech price
AUD $ 1,997 .30
$ 1,997 .30
$2,191.97  +GST
$2,191.97

Advantech FPM-724W-P9AE 23.8" Full HD Industrial Monitor with P-CAP Touch Control, Direct HDMI, DP, and VGA Ports

  • Brand: Advantech
  • MPN: FPM-724W-P9AE
  • Part #: IPCAVH221479
  • UPC:
PB Tech price
AUD $ 1,997 .30 $ 1,997 .30


Delivery: Order now and it ships on 07 Oct
Estimated Delivery Times
7 - 10 working days for international destinations

View all shipping info
$2,191.97  +GST
$2,191.97

Features

- 23.8" Full HD TFT LED LCD with true-flat touchscreen

- 16:9 wide screen aspect ratio, increases viewing area by 40%

- Supports 10-point multi-touch control via USB interface in Windows 7/8/10 OS

- Slim design enables easy installation

- Supports various mount options: panel, desktop, and VESA arm

- Touchscreen with reliable glass surface and P-CAP touch control

- Robust system with Die-casting aluminum chassis and IP66-rated aluminum alloy front bezel

- Lockable I/O connectors

- Supports various mount options: panel, wall, desktop, rack or VESA arm mounting

Specifications

General

Certification

BSMI, CCC, CE, FCC Class A, UL, CB

Dimensions (W x H x D)

FPM-724W: 595.9 x 374.1 x 53 mm
(23.4" x 13.7" x 2.08")

Enclosure

Front panel: Die-casting aluminium,
Rear cover: Die-casting aluminium

Mount

Options Stand, Wall, Panel and VESA arm (75 x 75mm)

Power Input

Terminal Block: 24 VDC input

Video Port

HDMI, DP, and VGA

USB

Rear I/O USB 2.0 type A

Weight (Net)

4kg (8.82 lb) / 7kg (15.43 lb)/ 7.8kg (17.20 lb)

LCD Display

Display Type

Full HD TFT LED LCD

Display Size

23.8"

Max. Resolution

1920 x 1080

Max. Color

16.7M

Viewing Angle (H/V)°

178/178

Luminance (cd/m2)

350

Backlight Life (hrs)

30,000

Contrast Ratio

1000:1

Touchscreen

Type

Projected capacitive touch

Interface

USB

OS Support

Windows® 7, 8, 10, XPe, CE and Linux

Hardness

7H

Multi Touch

10 points, USB interface in Win 7/8/10, Linux

Touch Surface

Anti Glare (FPM-721W/FPM-724W)

Environment

Operating Temperature

-20 ~ 60 °C (-4 ~ 140 °F)
0 ~ 50 °C (32 ~ 122 °F) (FPM-724W only)

Storage Temperature

-30 ~ 70 °C (-22 ~ 158 °F)

Relative Humidity

Operating, 95% RH @ 40 °C, Non-Condensing
Non-Operating, Operating, 95% RH @ 60 °C,
Non-Condensing

Waterproof

Front Panel IP66 Compliant

Vibration

5 ~ 500 Hz, 1 Grms (Operating, Random)

Power Consumption

FPM-724W-P9AE

0.161 (Standby), 24.41 (Max)

Ordering Information

FPM-724W-P9AE

23.8" Full HD Ind. Monitor, w/ PCAP touch

Optional Accessories

PWR-247-DE

Adapter 100-240V 60W 24V 2.5A

FPM-1000T-SMKE

Desktop/Wall Mounting kit for FPM series

FPM-7000G-ADKE

Mounting bracket of adapter for FPM-7000

Manufacturer Part No:
FPM-724W-P9AE
Brand:
Product Type:
-
UPC
-
Product Family:
-
Shipping Weight:
1 kg
PB Part No:
IPCAVH221479
Product Model:
FPM-724W-P9AE
Warranty: 12 months *
