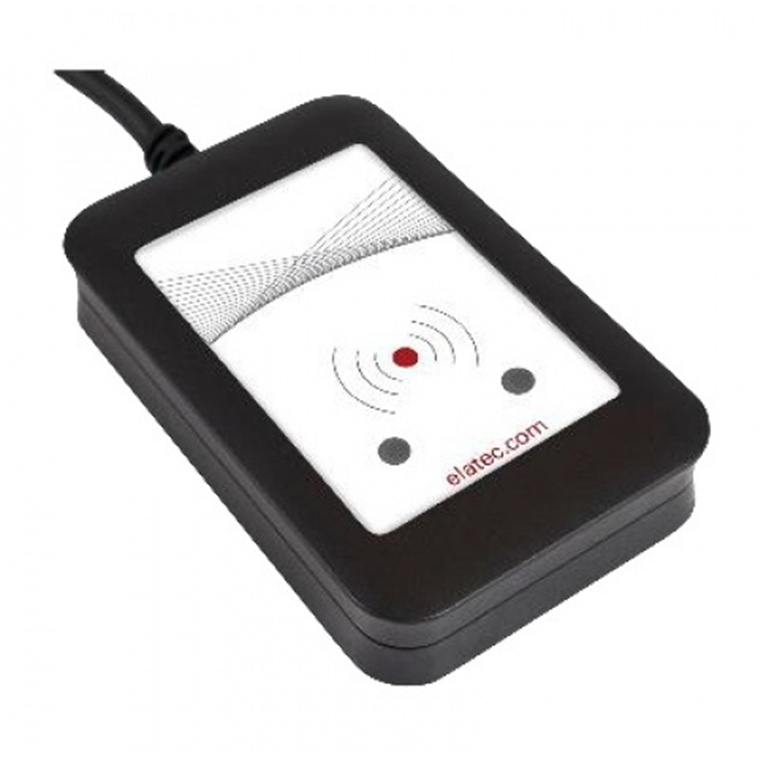

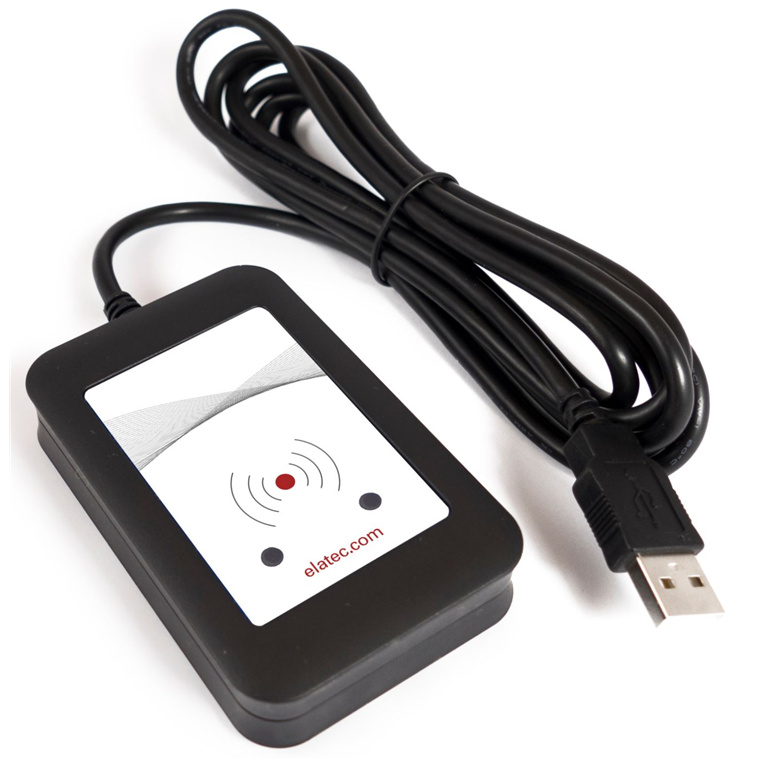

ELATEC TWN4 Desktop 13.56/NFC Multi -Reader Black V2

PB Tech price

AUD $ 394 .42

$ 394 .42

ELATEC TWN4 Desktop 13.56/NFC Multi -Reader Black V2

Brand: ELATEC
MPN: T4BT-FB2BEL6-P
Part #: POSELT1001
UPC:

PB Tech price

AUD $ 394 .42

In stock at NZ Logistics Centre

Delivery: Order now and it ships on 16 Sep

Estimated Delivery Times

7 - 10 working days for international destinations

View all shipping info

Add To Compare

Stock Alerts

Click or hover over image to enlarge

Brand: ELATEC
MPN: T4BT-FB2BEL6-P
Part #: POSELT1001
UPC:

Be the first to review this product

Returns & Warranty Bulk Quote Print Page

Features

Elatec's TWN4 family of transponder readers and writers allows users to read and write to almost any 125 kHz, 134.2 kHz and 13.56 MHz tags and/or labels. It supports all major transponders from various suppliers like ATMEL, EM, ST, NXP, TI, HID etc. and ISO standards like ISO14443A/B (T=CL), ISO15693, ISO18092 / ECMA-340 (NFC). The TWN4 MultiTech 2 reader has integrated RFID (LF & HF) and NFC, which is supported by mobile phones with Android version 4.3 or greater. The app on the reader communicates with the NFC module with easy commands.

-powerful SDK for writing apps which are executed directly on the reader
-firmware update in the field possible
-onboard 18 kB flash storage, e.g. for storing user accessible non-volatile data
-direct chip-commands support
-two onboard SAM sockets (Secure Access Module)
-CCID and PC/SC 2.01
-4 GPIOs
-supports quick centralized (re)configuration over network and over wireless interface with TWN4 CONFIG Card
-3D construction data (STEP) available on request

Specifications

FREQUENCY

125 kHz/134.2 kHz (LF) / 13.56 MHz (HF)

ANTENNA

Integrated

HOUSING

Material: ABS UL94-V0

DIMENSIONS (L X W X H)

Desktop Reader: 88 mm x 56 mm x 18 mm / 3.5 inch x 2.2 inch x 0.7 inch
OEM Board: 76 mm x 49 mm x 9 mm / 3.0 inch x 1.9 inch x 0.4 inch

POWER SUPPLY

4.3 V - 5.5 V via USB or RS-232; RS232 requires 5 V external power supply; via connector CNB 3.3 V +/- 5%

RELATIVE HUMIDITY

5% to 95% non-condensing

READ- / WRITE DISTANCE

LF and HF: Up to 100 mm / 4 inch, depending on environment and transponder

TRANSMISSION SPEED

Host: USB Full speed (12 Mbit/s), RS-232: up to 115.200 baud; HF Air: up to 848 kbit/s

OPERATING MODES (USB)

USB keyboard emulation - USB virtual COM port - CCID / PC/SC 2.01

MTBF

500,000 hours

WEIGHT

Approx. 20 g (without housing)

Manufacturer Part No:

T4BT-FB2BEL6-P

Brand:

ELATEC

Product Type:

UPC

Product Family:

Shipping Weight:

1.01 kg

PB Part No:

POSELT1001

Product Model:

Warranty: 12 months *
* Warranty period is as stated above unless the manufacturer has chosen to specify a longer period.
All warranties are return to base unless otherwise specified.
